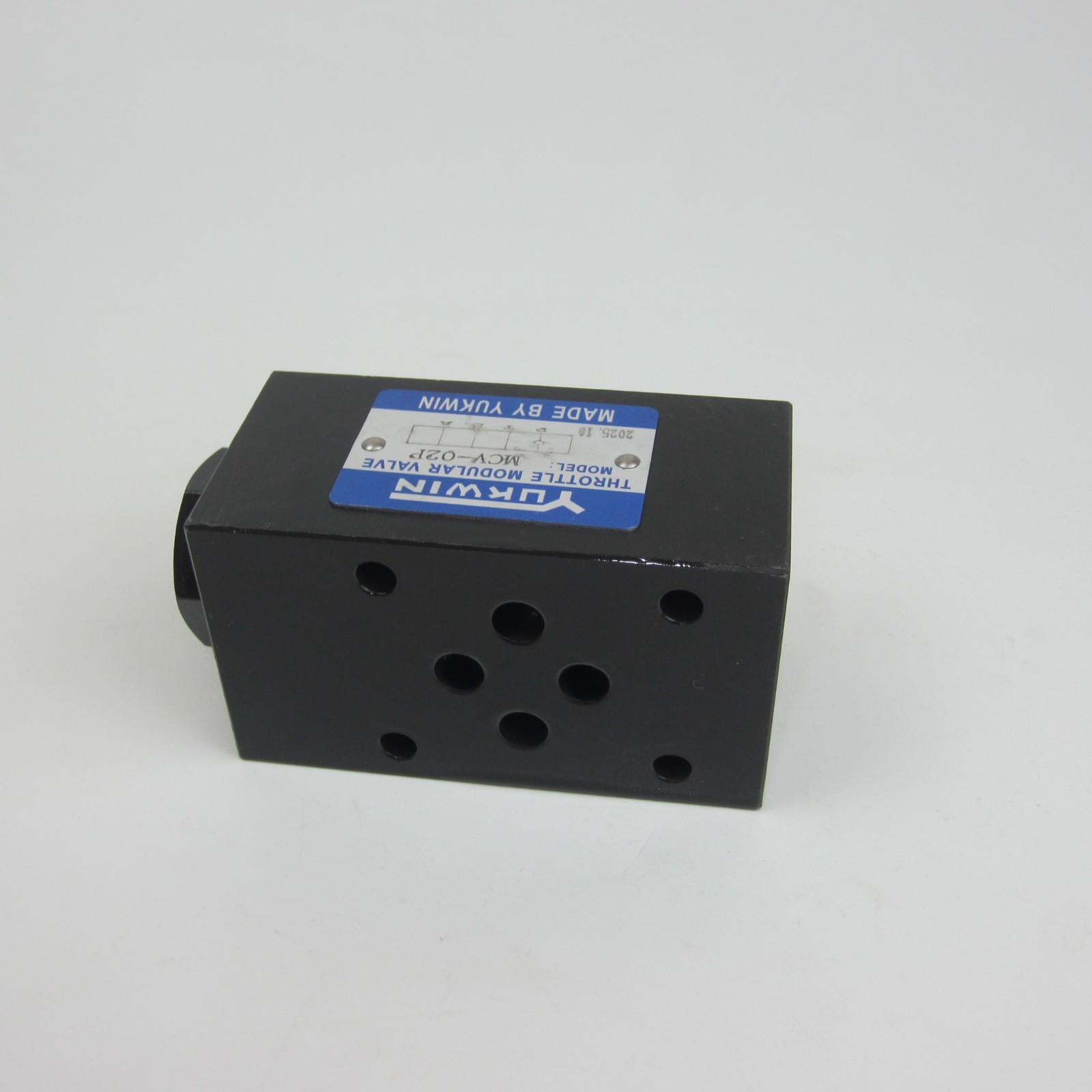

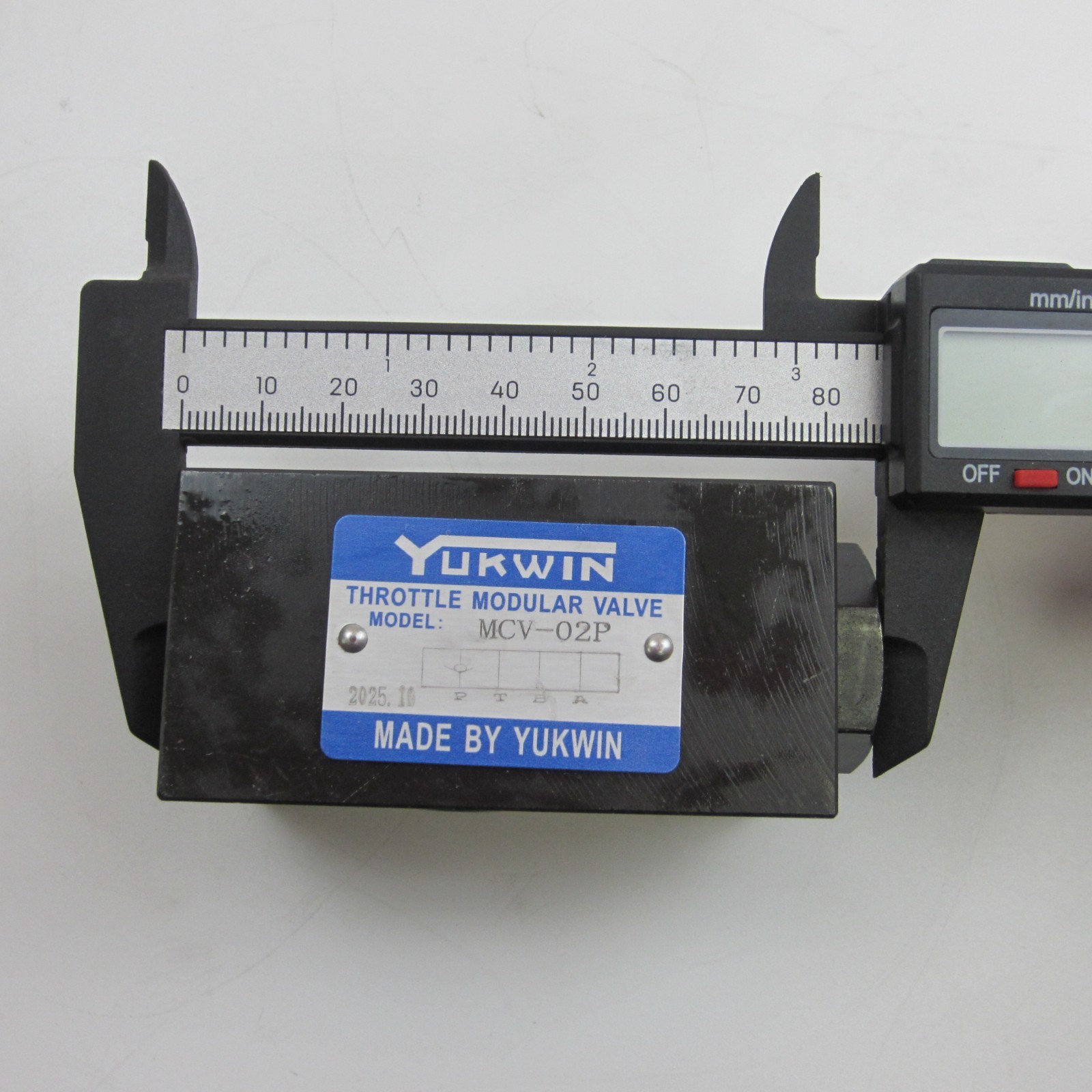

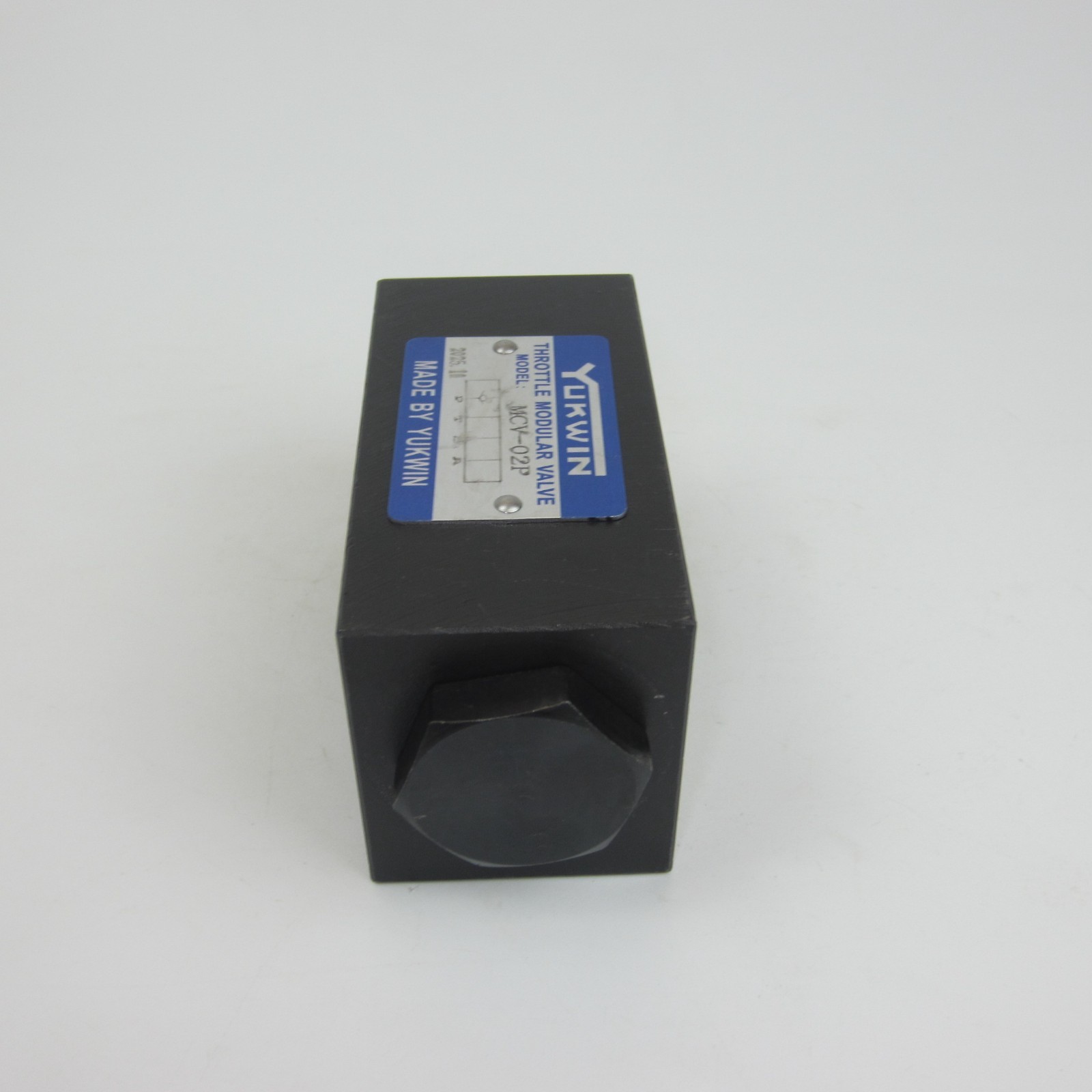

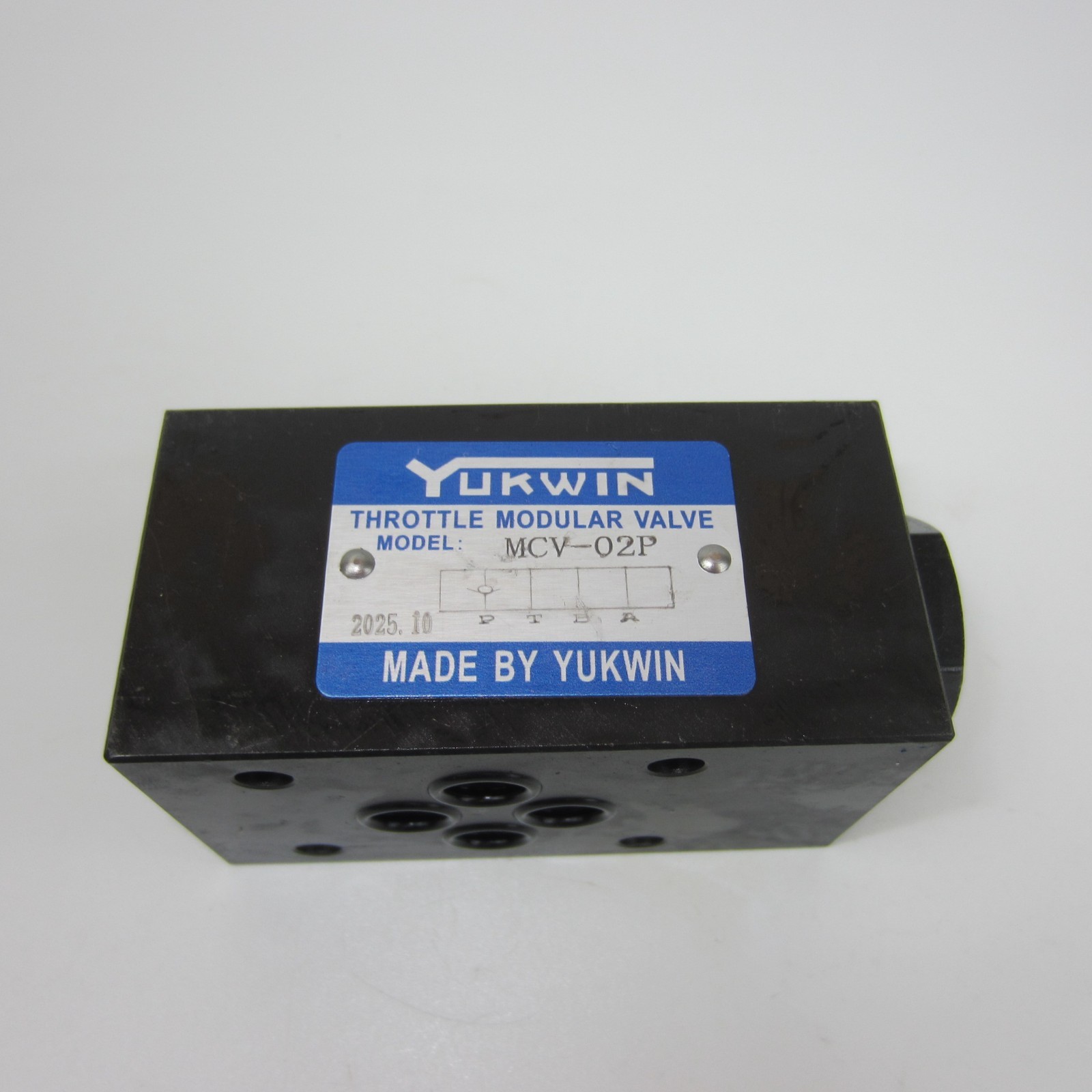

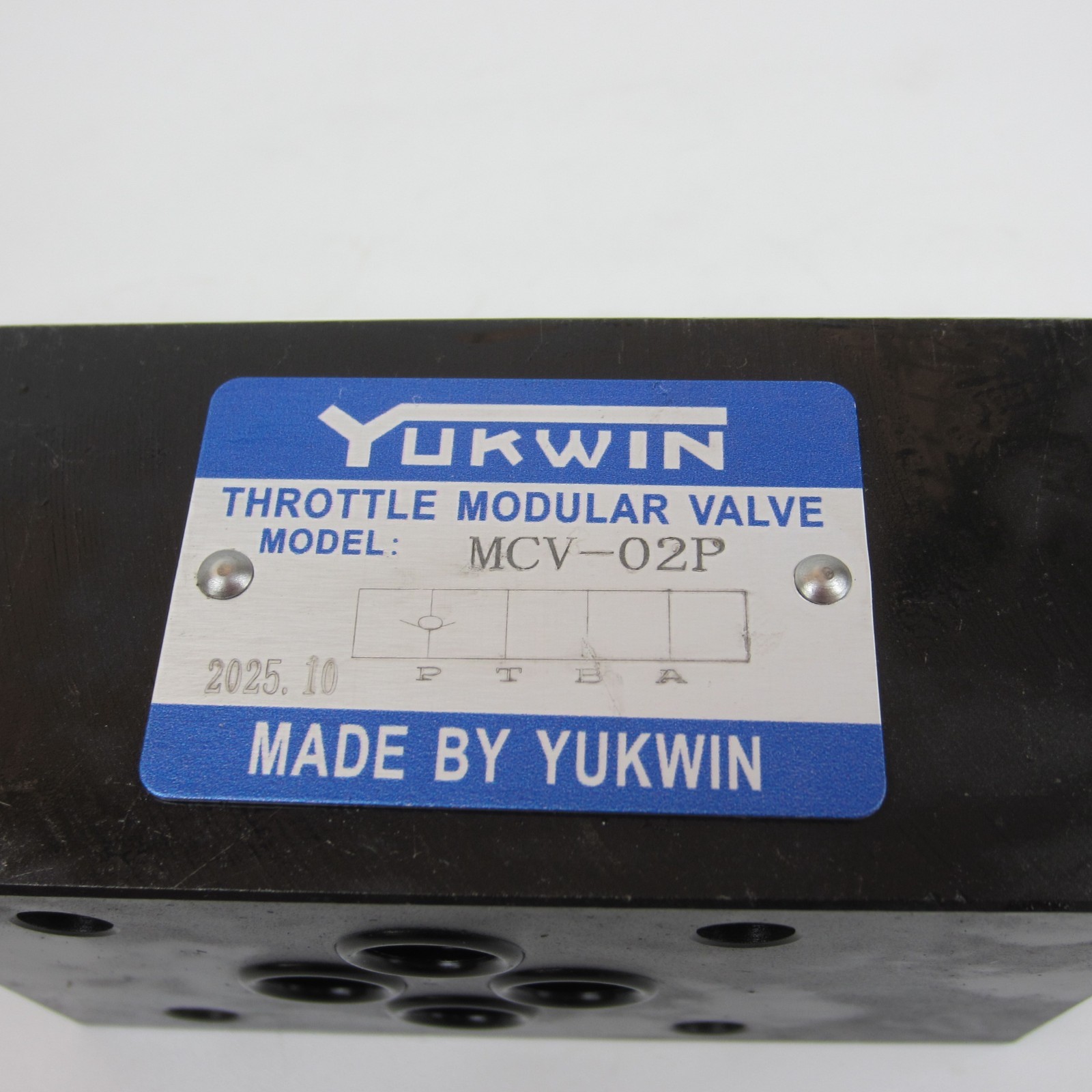

MCV-02P Hydraulic Module Check Valve - Pilot Operated Type
Brand New | OEM Quality | Fast Shipping from China
📌 Specifications
| Model | MCV-02P |
| Type | Hydraulic Sandwich Check Valve (Pilot Operated) |
| Valve Function | Pilot Operated Check - P Port Controls Opening |
| P Port Function | Pilot Pressure Port (Acting Port) |
| System Pressure | 25 MPa (3625 PSI) |
| Sandwich Mounting | Between Pump and Motor / Modular Stack |
| Material | High-Strength Steel |
| Seal Material | NBR (Nitrile Rubber) |
| Temperature Range | -20°C to +80°C |
| Weight | Approx. 0.5 kg |
| Compatible Brand | Yuken Type Replacement |
✅ Features
- Sandwich / Modular Design - Mounts between pump and motor in hydraulic stack
- Pilot Operated Check Valve - P port (pilot port) controls valve opening/closing
- One-Way Flow Control - Allows flow in one direction, blocks reverse flow
- High Pressure Rated - Up to 25 MPa (3625 PSI) working pressure
- Yuken MCV-02P Type - Direct replacement for Yuken sandwich valve series
- Durable Steel Construction - High-strength material for industrial use
- Compact Sandwich Design - Space-saving modular mounting
- Reliable Performance - Proven design for mobile and industrial hydraulics
🔧 How It Works
The pilot operated check valve allows hydraulic flow in one direction only:
- Free Flow Direction: Hydraulic fluid flows freely from port A to port B
- Blocked Reverse Flow: Reverse flow from B to A is blocked by spring-loaded poppet
- P Port (Pilot Port): When pilot pressure is applied to P port, it overcomes spring force and opens the check, allowing reverse flow to pass through
- Application: Used in hydraulic circuits where you need to control unloading, bypassing, or sequencing
🔧 Applications
- Forklift Hydraulic Systems
- Excavator Hydraulic Circuits
- Mobile Hydraulic Equipment
- Industrial Hydraulic Power Units
- Agricultural Machinery
- Construction Equipment
- Material Handling Equipment
- Hydraulic Lift Systems
📏 Technical Data
| Parameter | Value |
| Model | MCV-02P |
| Type | Pilot Operated Check Valve |
| Max Working Pressure | 25 MPa (3625 PSI) |
| Pilot Port | P Port (Acting/Control Port) |
| Mounting | Sandwich / Modular Stack |
| Material | Steel |
| Seal | NBR |
⚠️ Installation Notes
- Install in sandwich/stack configuration between pump and motor
- Ensure correct port identification (P = Pilot Port)
- Use proper seals and bolts for sandwich mounting
- Apply correct torque to mounting bolts
- Filter hydraulic fluid (recommend 10 micron)
- Do not exceed maximum pressure rating
- Check pilot pressure requirements before operation
📦 Package Includes

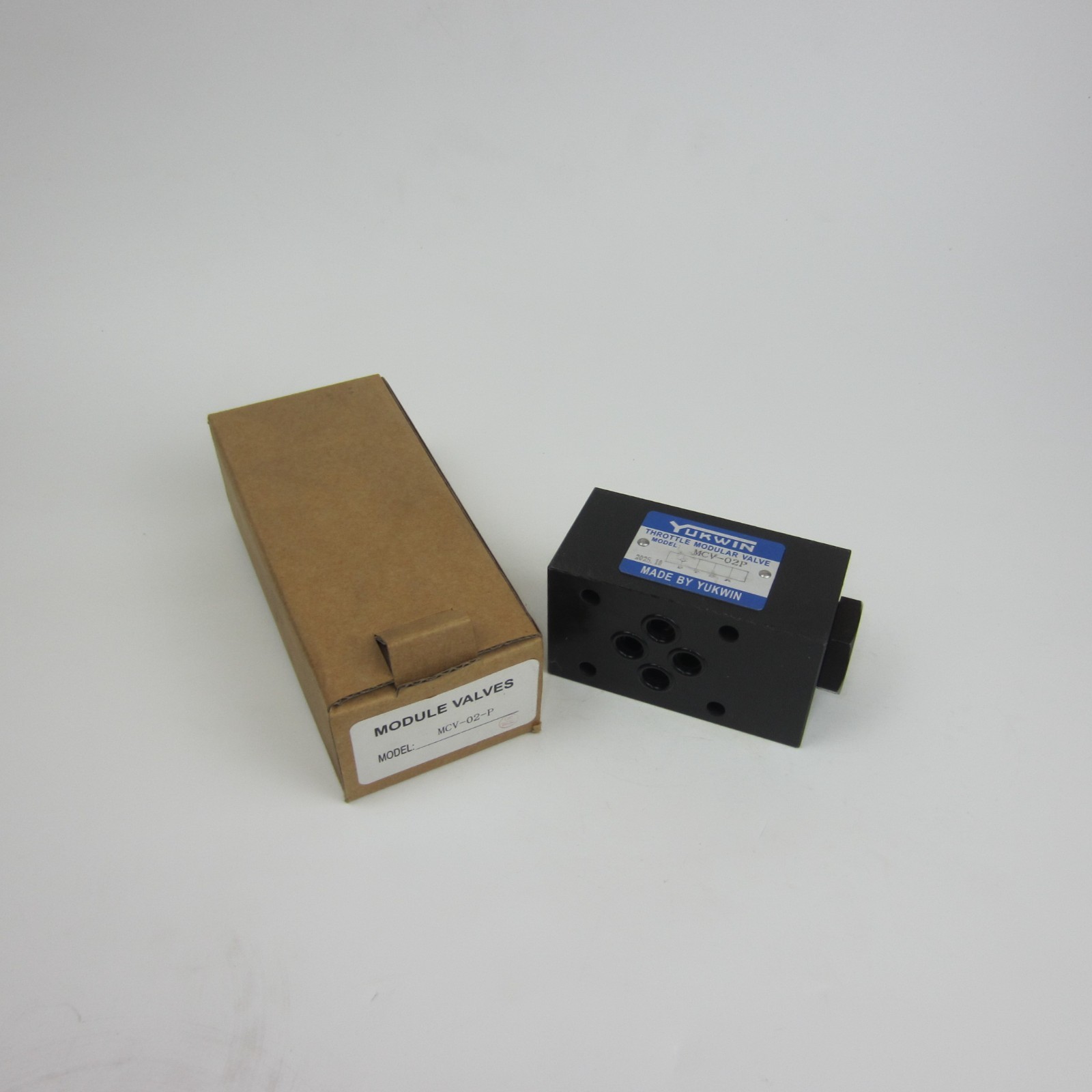

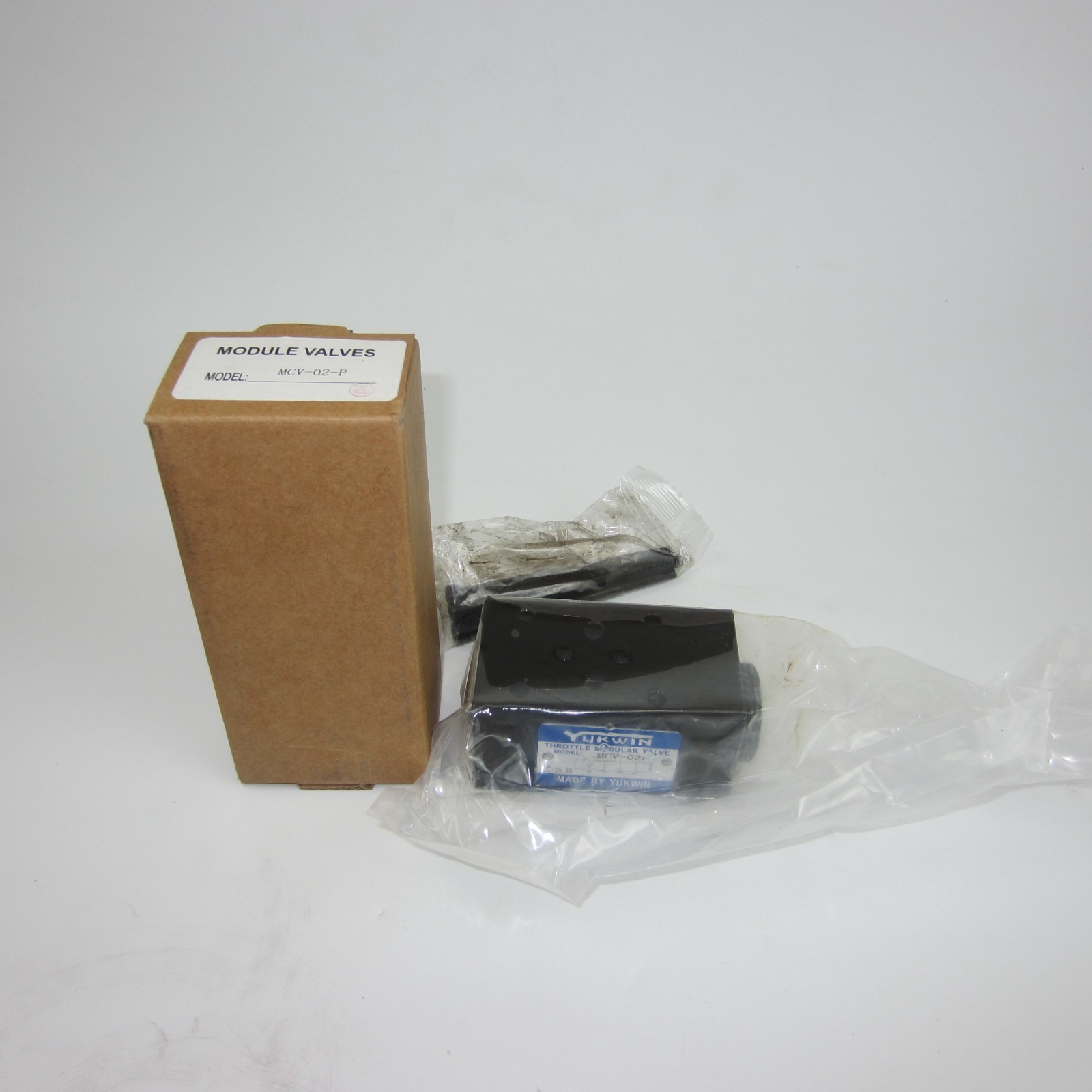

- 1 x MCV-02P Hydraulic Sandwich Check Valve
- Seals pre-installed
