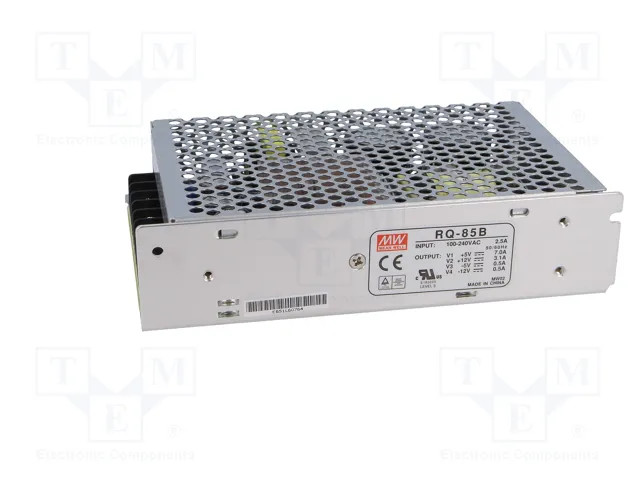

Power supply: switching; for building in,modular; 80.7W; 5VDC
MEAN WELL
MPN: RQ-85B
EAN: 4711287434438
Kind of power supply: modular
Type of power supply: switching
Output voltage 4: -12V DC
Price per 1 pc
Technical parameters
| Parameter | Value |
| Kind of power supply | modular |
| Related items | DRP-03 |
| Type of power supply | switching |
| Electrical connection | terminal block |
| Protection | short circuit protection SCP |
| Caution! | multi output power supply - for operating properly, each channel must be loaded within specified range |
| Operating temperature | -20...70°C |
| Output voltage 4 | -12V DC |
| Output voltage 3 | -5V DC |
| Body dimensions | 159x97x38mm |
| Output current 4 | 0.5 (0...1)A |
| Output current 3 | 0.5 (0...1)A |
| Output current | 7 (2...10)A |
| Output voltage 2 | 12V DC |
| Efficiency | 76% |
| Supply voltage | 125...373V DC |
| Power | 80.7W |
| Kind of case | 901 |
| Manufacturer series | RQ-85 |
| Number of outputs | 4 |
| Output current 2 | 3.1 (0.3...4)A |
| Output voltage | 5V DC |
Weight: 598 g
