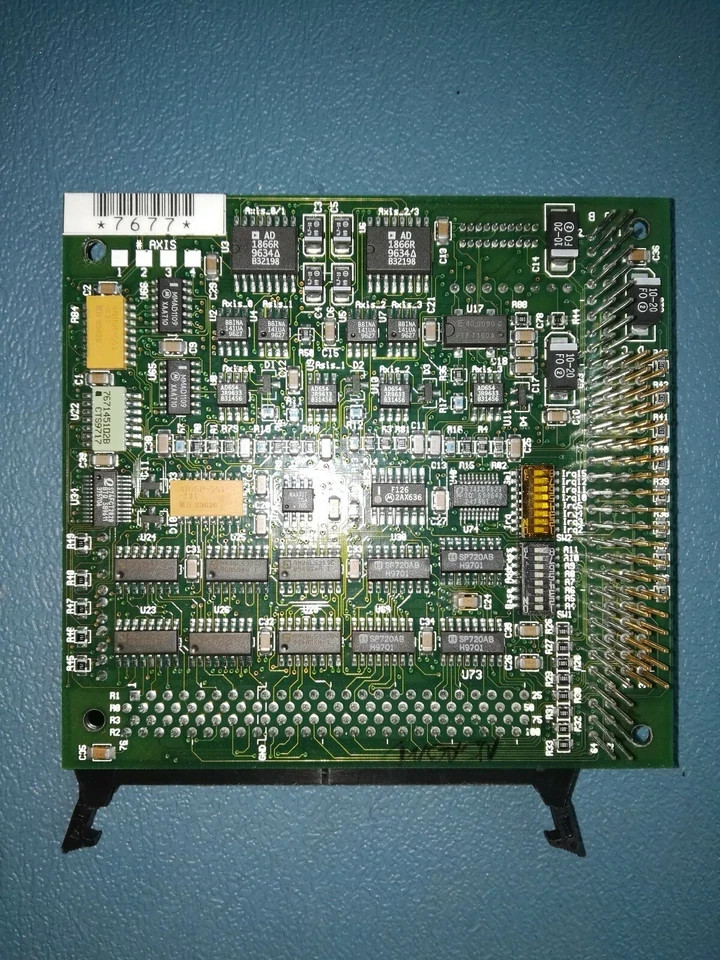

MEI PC-104/DSP, Motion Engineering Inc PC-104/DSP Rev. 6 Programmable Motion Controller
“It was pulled out from working PRI Automation Systems .It is used and in excellent condition.”
Price is for one unit, three units available .
Features- C-Programmable using MEI Standard C-Function Libraries
- PC-104 Card Supports Up to 4 Axes
- Fast Host Communication Across PC-104 Bus at 1.2 MB/Second
- Supports Both Servos and Steppers
- 20 User I/O Lines
- 16-Bit Servo Output Resolution
- 375 kHz Step/Direction Output
- Point-to-Point and Coordinated Motion
Description
The Motion Engineering 104/DSP combines MEI's proven DSP-based motion control architecture with the compact, rugged design of the PC-104 bus interface. Hardware features include 16- bit servo outputs, encoder inputs to 5 MHz, and 20 lines of user I/O.
You program the 104/DSP using MEI's flexible C function libraries with over 250 motion control functions. Combining MEI C libraries with compilers from Microsoft, Borland, Watcom, Symantec, and others speeds development of complex motion applications.
The 104/DSP provides a rich set of software algorithms, including a sophisticated second-order PID control algorithm with velocity, acceleration, and friction feed-forward. Advanced features include electronic gearing and camming, dual-loop control, circular and linear interpolation, and trapezoidal, S-curve, parabolic, and custom motion profiles.
The 104/DSP allows motion control programs to share execution between the on-board DSP (for numerically intensive real-time functions) and the host (for non-realtime functions). This results in an ideal division of labor with minimal host intervention.
Product Family: PC-104/DSP, 104/DSP, 104DSP, PC104DSP
Motion Engineering Inc. PC-104/DSP Programmable Motion Controller is used and in excellent condition.
