Features:
1. Suitable for Android phones, with APP, and play

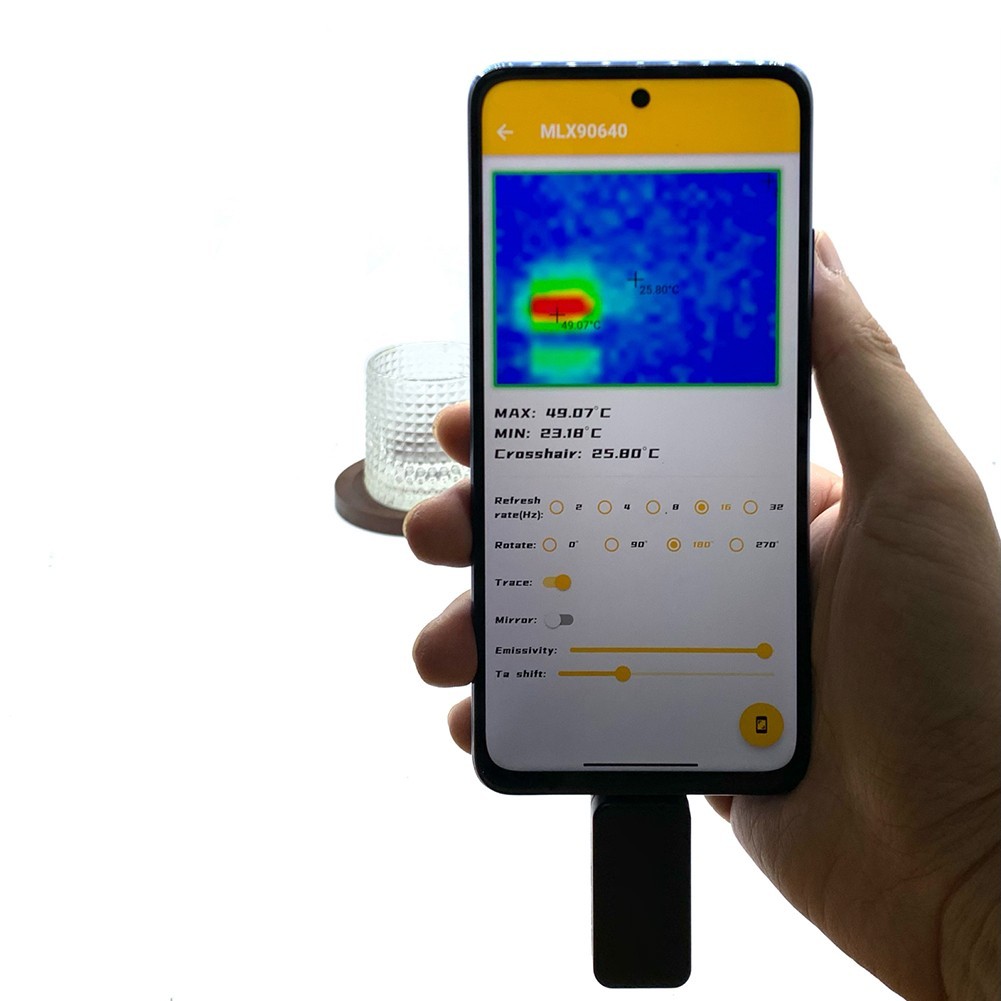

2. Support real-time display of temperature distribution images
3. The best use distance is within 2 meters
4. Support refresh rate adjustment, screen mirroring and other functions
Specifications:

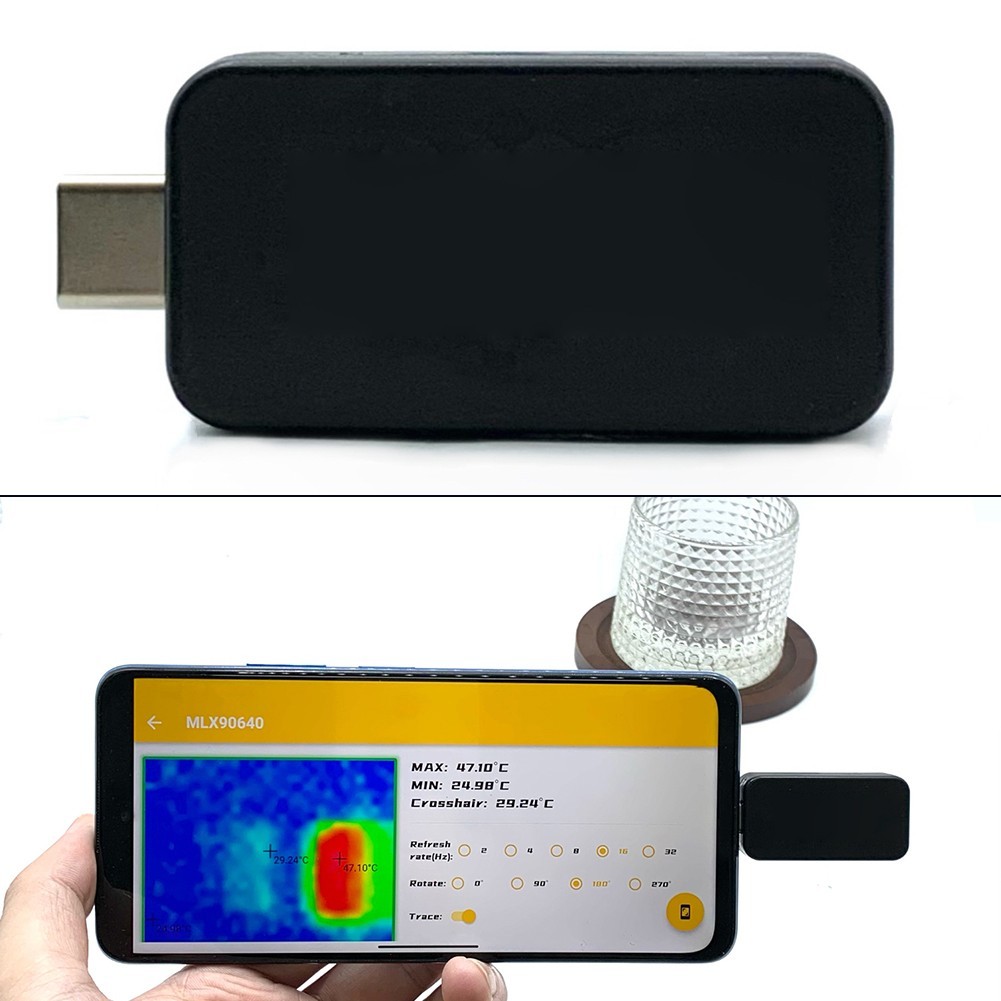

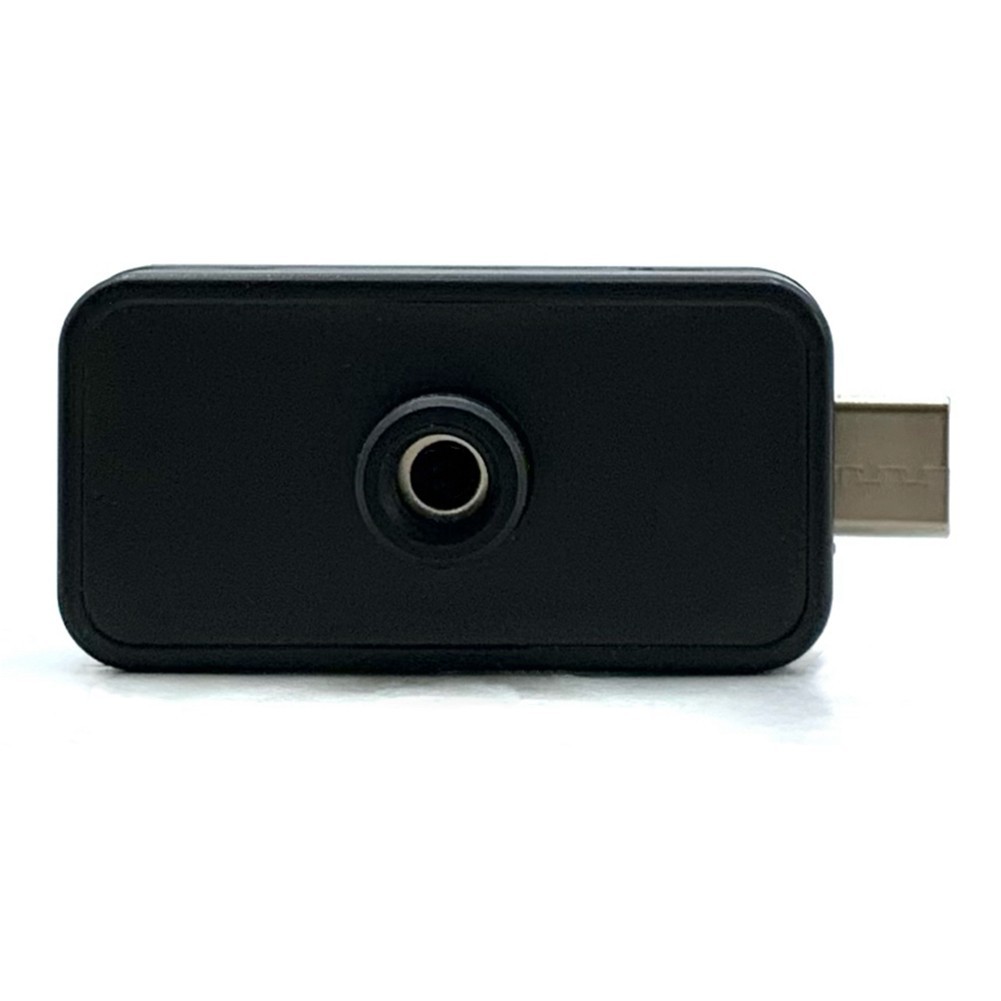

Part name: MLX90640 thermal imager
Material: abs
Color: black
Size: 50*22*11mm
Sensor model: MLX90640-BAB
FOV: 55*35°C
Thermal imaging resolution: 32*24
Temperature measurement range: -40 - 380 degrees Celsius
Measurement accuracy: 1 degree Celsius
Mobile phone system requirements: for Android system supports OTG function
Module interface: TYPE_C interface
Power supply mode: mobile phone OTG interface power supply, TYPEC port required
How to use:
for Android phone installs the corresponding software, inserts the module into the mobile phone TYPE_C interface, opens the corresponding software (need to allow the mobile phone to install external APK), and then it can be used.
Package Contents:
1 x MLX90640 Thermal Imager
Note:
Temperature detection accuracy is very low, only ±1℃, and the resolution is 32*24, which is only suitable for routine detection
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
