DESCRIPTION

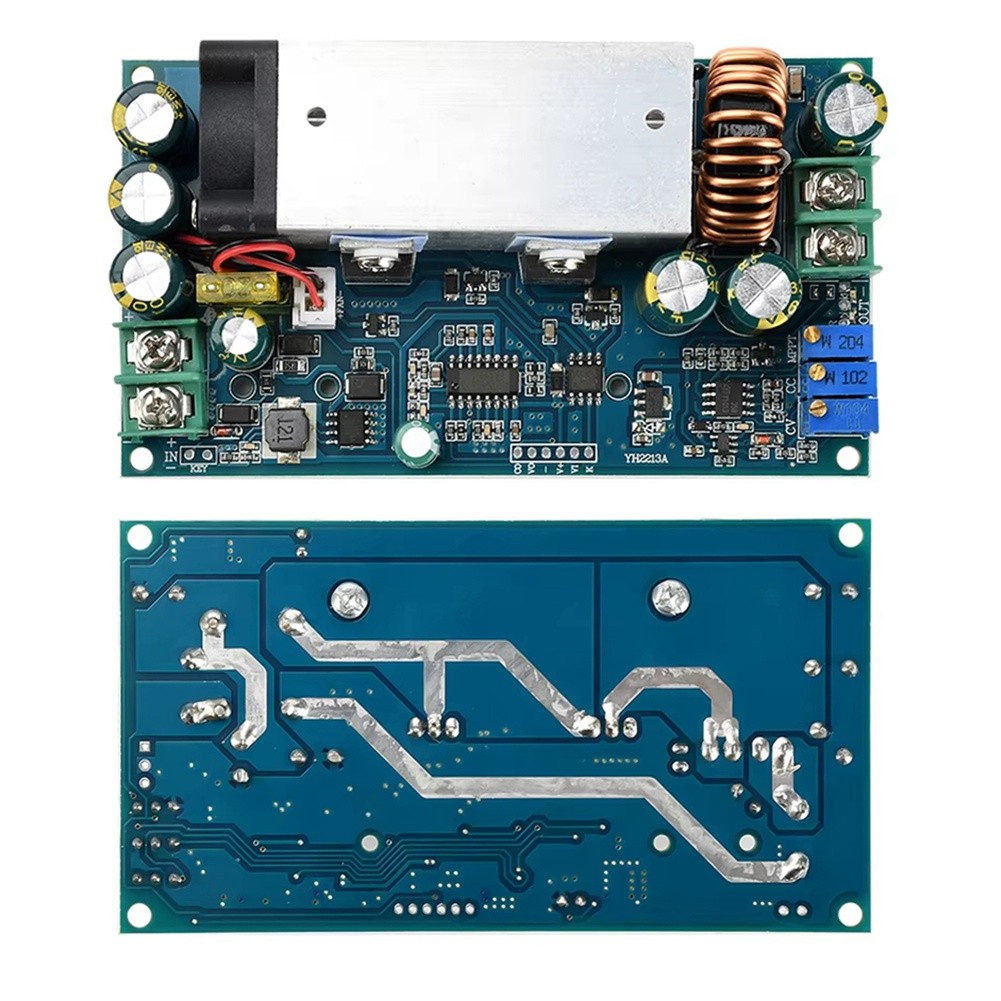

MPPT Module Solar Charging Step-Down Module 10-75V to 2-60V 20A3708
1. Wide input voltage range, suitable for a variety of solar panels and other DC .
2. Built-in MPPT technology intelligently tracks the maximum power point, significantly improving conversion efficiency.
3. Supports constant voltage and constant current output modes to meet the precise charging needs of different battery packs.
4. Equipped with an intuitive display, it monitors key parameters such as voltage, current, and power in real time.
5. With a maximum output current of up to 20A, it is suitable for industrial equipment, outdoor storage, and DIY electronics projects.
Parameters:
Module Type: Non-isolated Synchronous Rectifier Step-Down Module
Input Voltage Range: DC 10-75V
Output Voltage Range: DC 2-60V (Voltage is random at the factory; please adjust upon receipt)
Adjustable Output Current Range: 0.1-20A (Maximum 25A)
Minimum Input/Output Voltage Difference: Input Voltage * 0.2 (The higher the output current, the greater the voltage difference)
MPPT Voltage Setting Range: 9-70V (MPPT function can be used as input undervoltage protection)
Operating Frequency: 120kHz
Overcurrent Protection: 26A
Color:Blue
Material:PCB
Package Contents:
1 * MPPT Module
