Item Description
XSize: 32mm X22mm X27mm

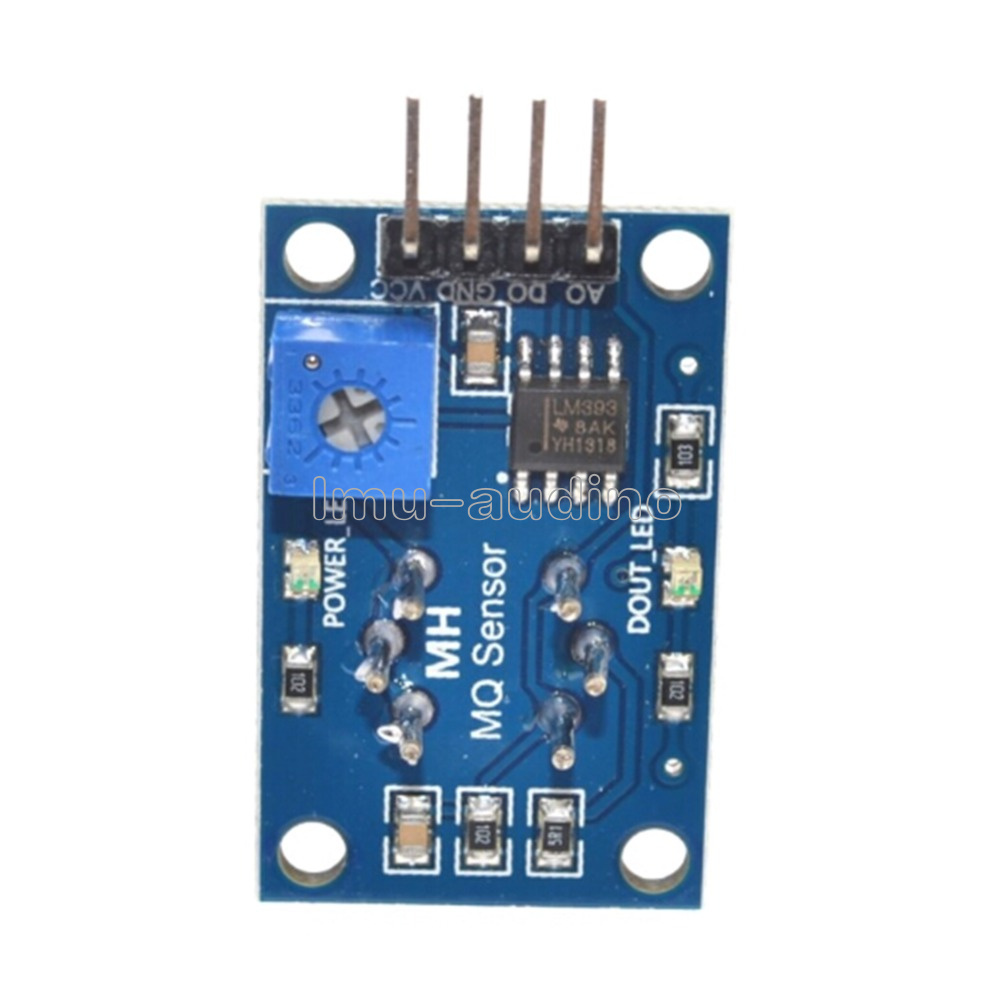

Main chip: LM393, ZYMQ-5 gas sensor
Operating voltage: DC 5 Volt
Features :
1. Indication of the signal output.
2. Dual signal output (analog output, and TTL level output)
3. TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
4. 0 ~ 5V analog output voltage, the higher the concentration, the higher the voltage.
5. Liquefied petroleum gas, natural gas, city gas, better sensitivity.
6. Has a long life and reliable stability
7. Fast response and recovery characteristics
Applications :
Liquefied petroleum gas, natural gas, coal gas monitoring device suitable for home or industrial. Excellent resistance to alcohol, smoke interference ability.
Package including:

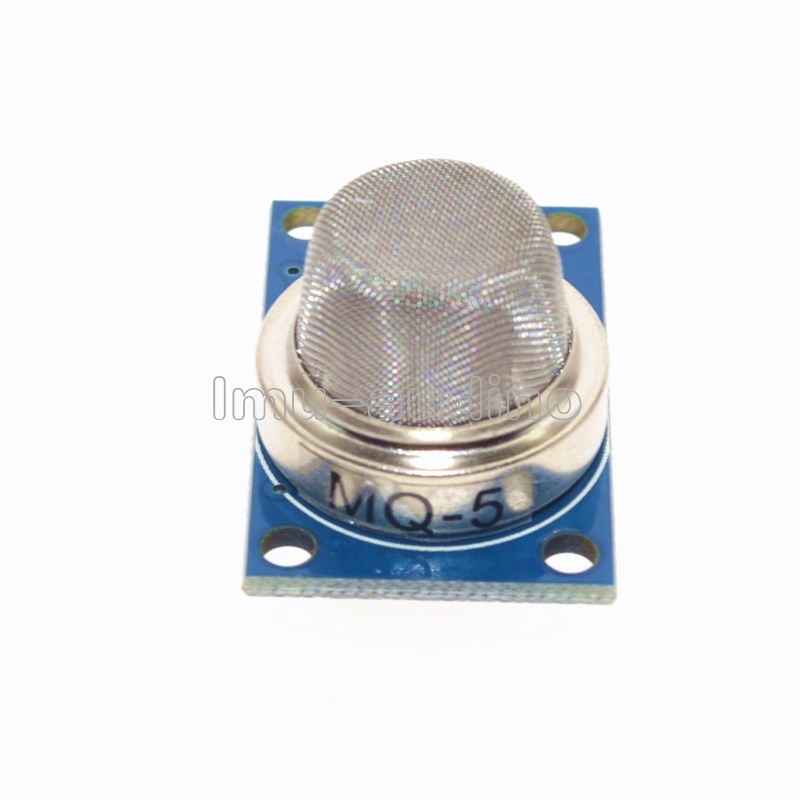

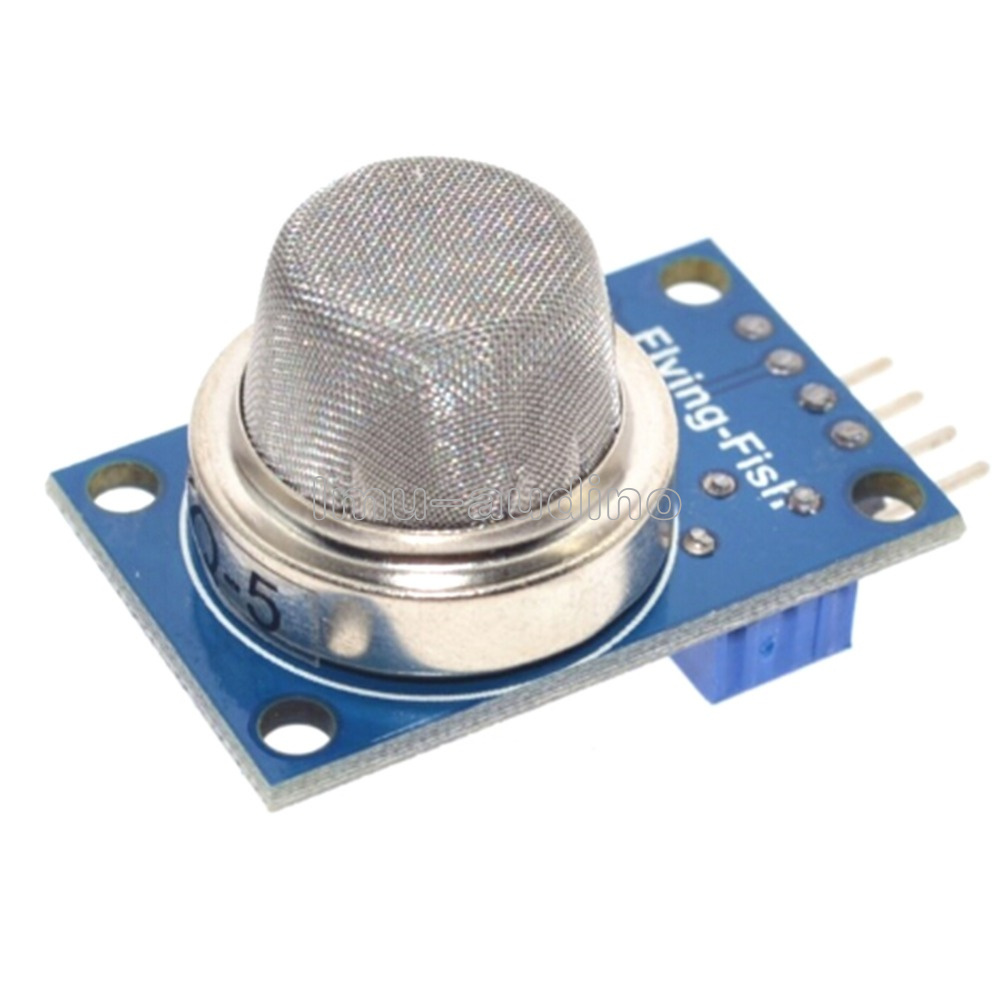

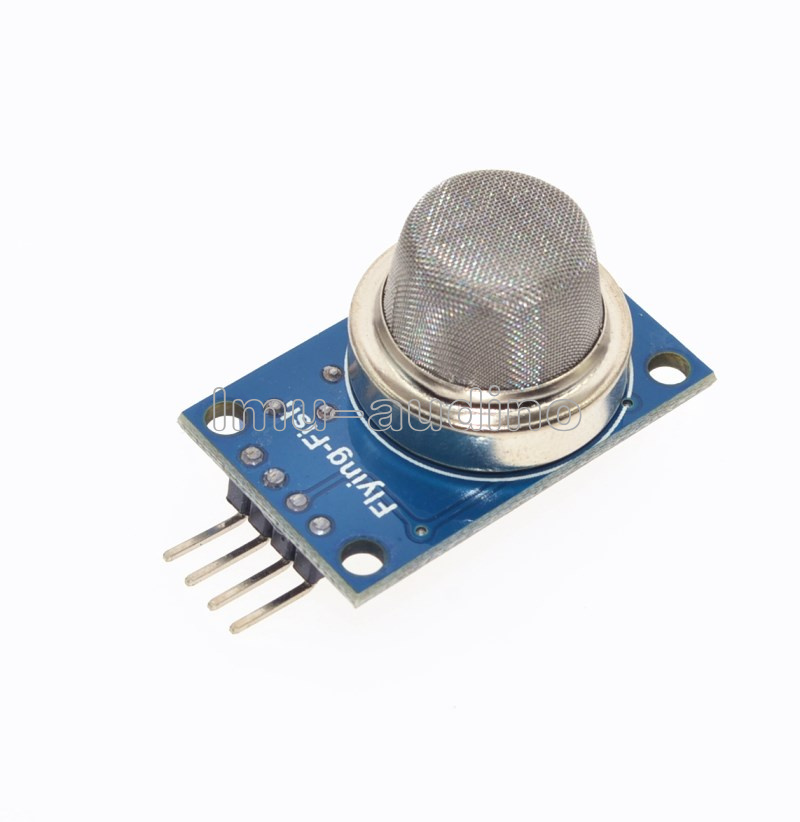

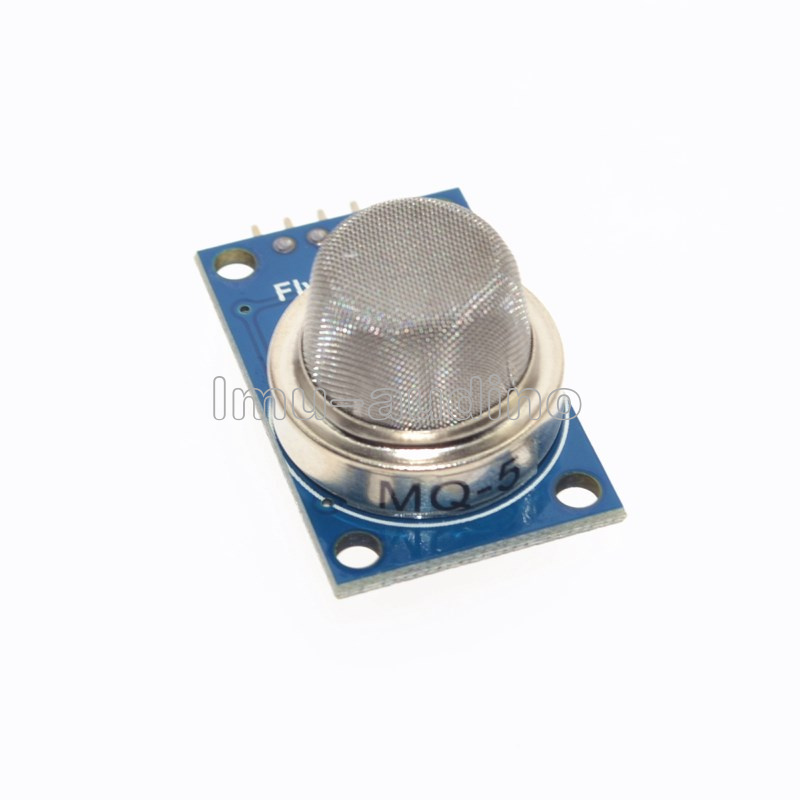

1PCS MQ-5 MQ5 Methane Gas Sensor Shield Arduino Methane Detector Module
