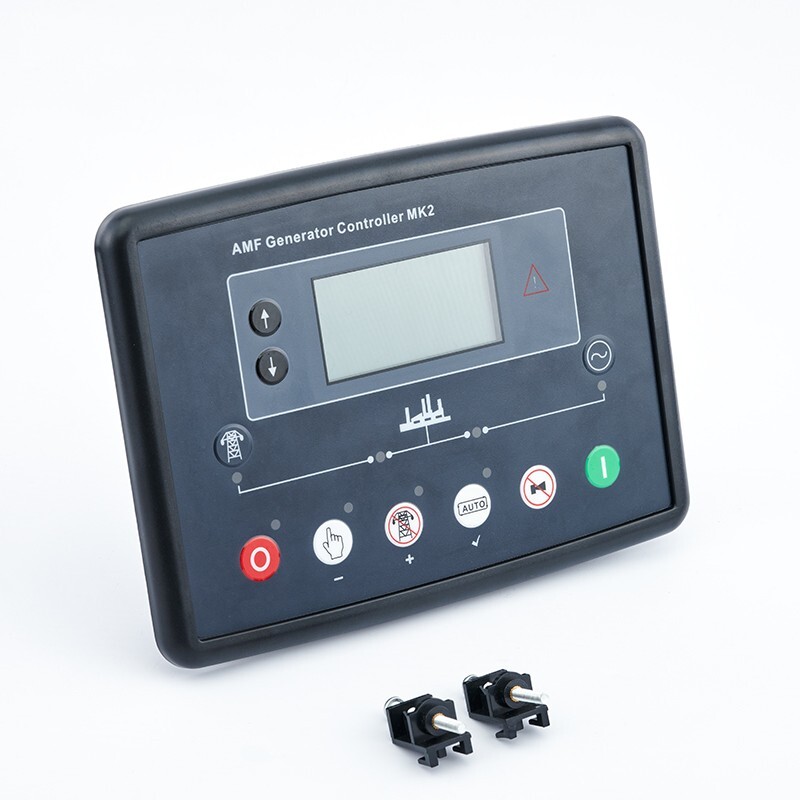

Maxgeek DSE6020MK2 Generator Controller Genset Control Panel Module LCD Screen w/ AMF Function
Description:
The 6020 generator controller is an auto start control module and the DSE6020 generator controller is an auto mains failure control module, suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.
Generator controller DSE6020 offers electronic (CAN) and non-electronic (magnetic pick-up alternator sensing) engine versions and offer a number of flexible inputs outputs and engine protections so the system can be easily adapted to suit a wide range of application demands. The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.
Specification:
Overall size: 216*158*43mm
Panel cutout size: 184*137mm
Maximum panel thickness: 8mm
DC supply:
Continuous voltage rating: 8V to 35V
Maximum operating current: 10mA at 12V, 105mA at 24V
Maximum standby current: 60mA at 12V, 55mA at 24V
Mains (utility):
Voltage range: 15V to 415V AC (Ph to N), 26V to 719V AC (Ph to Ph)
Frequency range: 3.5Hz to 75Hz
Outputs:
Output A (fuel): 10A short term, 5A continuous, at supply voltage
Output B (start): 10A short term, 5A continuous, at supply voltage
Auxiliary outputs C, D, E, F: 10A short term, 5A continuous, at supply voltage
Generator:
Voltage range: 15V to 415V AC (Ph to N), 26V to 719V AC (Ph to Ph)
Frequency range: 3.5Hz to 75Hz
Magnetic pick-up:
Voltage range: +/-0.5V to 70V
Frequency range: 10,000Hz (max)
Features:
-Back-lit icon LCD display
-Front panel editing
-LED and LCD alarm indication
-Power Save mode
-CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
-PC and front panel configuration
-4 digital inputs
-3 analogue inputs
-6 outputs (4 configurable on Magnetic Pick-up/Alt, 6 configurable on CAN version)
-Configurable timers and alarms
-Alternative configuration
-Event Log (5)
-Remote Start input
-3 Phase generator monitoring
-Current monitoring and protection
-Power monitoring (kw, kvA, KV Ar)
-3 Phase Mains (Utility) monitoring (DSE6020 only)
-Test button (DSE6020 only)
-Battery Voltage monitoring
-Engine pre-heat
-Hours counter
-Comprehensive shutdown or warning on fault condition
Advantages:
-Automatically transfers between mains (utility) and generator power (DSE6020 only)
-Hours counter provides accurate information for monitoring and maintenance periods.
-User-friendly set-up and button layout
-Multiple engine parameters are monitored simultaneously
-Module can be configured to suit individual applications
-Compatible with a wide range of CAN engines
-Uses DSE Configuration Suite PC software for simplified configuration
-IP65 rating (with optional gasket) offers increased resistance to water ingress
-Licence-free PC software
Package List:
1 x Generator Controller
Description:
The 6020 generator controller is an auto start control module and the DSE6020 generator controller is an auto mains failure control module, suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.
Generator controller DSE6020 offers electronic (CAN) and non-electronic (magnetic pick-up alternator sensing) engine versions and offer a number of flexible inputs outputs and engine protections so the system can be easily adapted to suit a wide range of application demands. The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.
Specification:
Overall size: 216*158*43mm
Panel cutout size: 184*137mm
Maximum panel thickness: 8mm
DC supply:
Continuous voltage rating: 8V to 35V
Maximum operating current: 10mA at 12V, 105mA at 24V
Maximum standby current: 60mA at 12V, 55mA at 24V
Mains (utility):
Voltage range: 15V to 415V AC (Ph to N), 26V to 719V AC (Ph to Ph)
Frequency range: 3.5Hz to 75Hz
Outputs:
Output A (fuel): 10A short term, 5A continuous, at supply voltage
Output B (start): 10A short term, 5A continuous, at supply voltage
Auxiliary outputs C, D, E, F: 10A short term, 5A continuous, at supply voltage
Generator:
Voltage range: 15V to 415V AC (Ph to N), 26V to 719V AC (Ph to Ph)
Frequency range: 3.5Hz to 75Hz
Magnetic pick-up:
Voltage range: +/-0.5V to 70V
Frequency range: 10,000Hz (max)
Features:
-Back-lit icon LCD display
-Front panel editing
-LED and LCD alarm indication
-Power Save mode
-CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
-PC and front panel configuration
-4 digital inputs
-3 analogue inputs
-6 outputs (4 configurable on Magnetic Pick-up/Alt, 6 configurable on CAN version)
-Configurable timers and alarms
-Alternative configuration
-Event Log (5)
-Remote Start input
-3 Phase generator monitoring
-Current monitoring and protection
-Power monitoring (kw, kvA, KV Ar)
-3 Phase Mains (Utility) monitoring (DSE6020 only)
-Test button (DSE6020 only)
-Battery Voltage monitoring
-Engine pre-heat
-Hours counter
-Comprehensive shutdown or warning on fault condition
Advantages:
-Automatically transfers between mains (utility) and generator power (DSE6020 only)
-Hours counter provides accurate information for monitoring and maintenance periods.
-User-friendly set-up and button layout
-Multiple engine parameters are monitored simultaneously
-Module can be configured to suit individual applications
-Compatible with a wide range of CAN engines
-Uses DSE Configuration Suite PC software for simplified configuration
-IP65 rating (with optional gasket) offers increased resistance to water ingress
-Licence-free PC software
Package List:
1 x Generator Controller
