Feature:

1. WORKING RANGE: Mini optical power meter, power measurement range is ‑70‑10dbm, wavelength range is 850‑1700nm, efficient and .
2. MULTIPLE FUNCTION: With fast and accurate measurement, no need to wait for warm up, which has relative power calculation and calibration function.
3. GOOD PERFORMANCE: Sensitive chip and sturdy internal structure, low power consumption, auto shutdown in 10 minutes, can work continuously for 40 hours.
4. COMPACT SIZE: The optical fiber power meter has a compact size and covers most of the maintenance needs of communications engineering.
5. ABS SHELL: Handheld fiber power tester, the shell is made of ABS material, light weight, wear and aging resistant, and has a long service life.

Specification:

Item Type: Optical Power Meter
Model: AUA M7
Material: ABS
Power Supply: 2 x AAA battery (battery not included)
Power Measurement Range: -70~+10dbm
Probe Type: For InGaAs
Wavelength Range: 850-1700nm

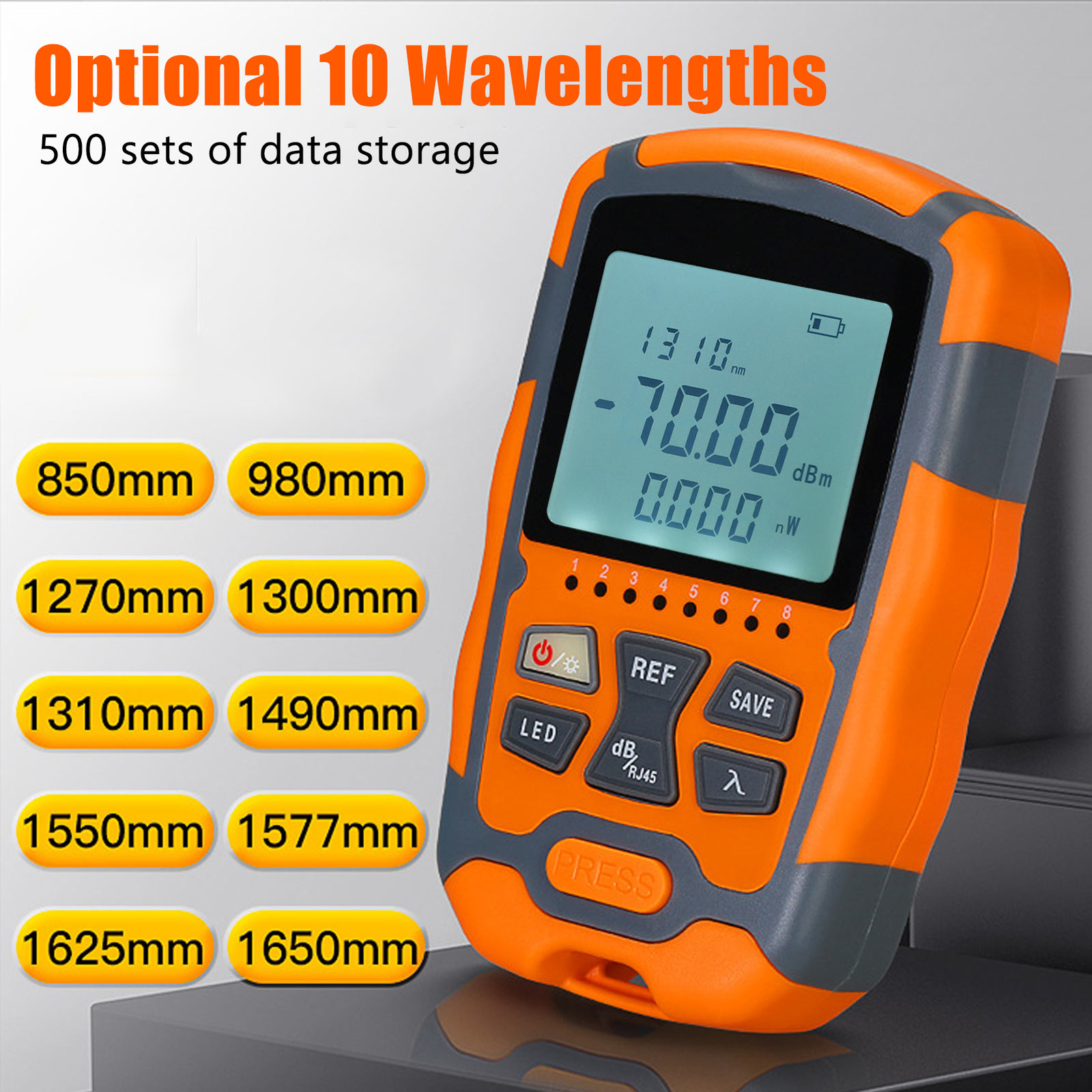

Standard Wavelength (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
Display Resolution: Linear Display: 0.1%, Logarithmic Display: 0.01dBm
Working Temperature: -10-60℃
Storage Temperature: -25-70℃

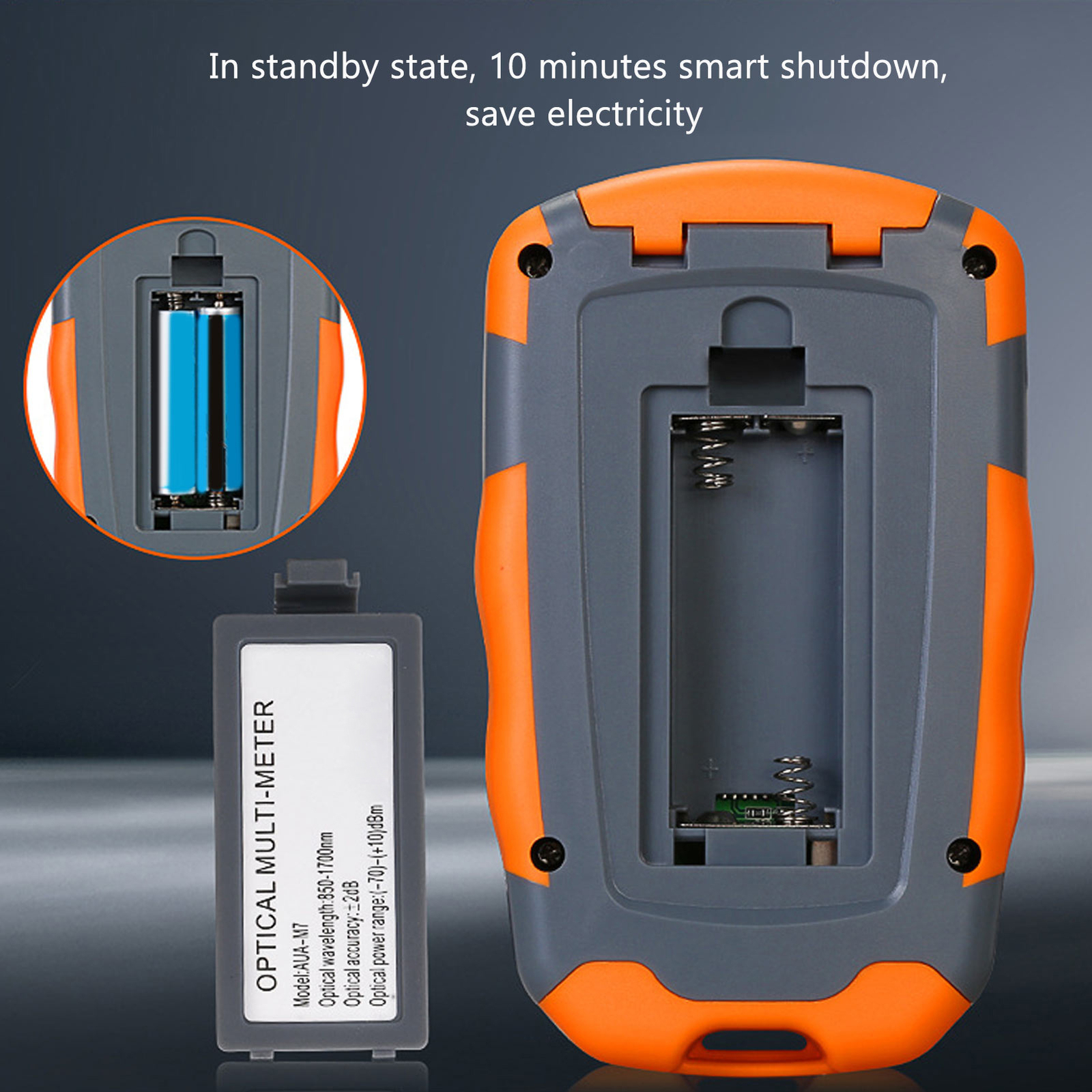

Automatic Shutdown Time: 10 minutes
Battery Continuous Working Time: Not less than 40 hours

Package List:

1 x Optical Power Meter

1 x Lanyard

1 x User Manual
