Motion Pro REV3 Throttle Kit - Standard 01-2954
How The REV3™ Variable Rate Throttle Works:
The REV3™ throttle has several different size reels that will change how much twist is necessary for the throttle to completely open the carbs or throttle bodies on a motorcycle. The larger the reel is, the shorter the twist. Each reel size will shorten the twist by about 10 degrees. If your stock throttle has a 40 mm reel and stock twist is 90 degrees (1/4 turn), the 45 mm reel will reduce the twist to 80 degrees and the 50 mm reel will reduce it to 70 degrees. The 35 mm reel will increase the throttle twist to approximately 100 degrees. This is just an example; every model of motorcycle is different.
The included cam reel has a progressive profile that allows the throttle to act like a sensitive, long twist throttle during the initial small throttle openings for precise control and then acts like a more aggressive short twist throttle at large throttle openings, progressively shortening the amount of twist needed to reach full throttle.
The NEW 3rd generation Motion Pro Revolver variable rate throttle system is here!
- Innovative reel changing system lets you tailor the throttle rate to your preference and riding conditions.
- Five different reels provide perfect throttle response for any condition:
- Use smaller reels for slower throttle rate and larger reels for faster throttle rate.
- Included cam reel provides progressive throttle response preferred by some riders.
- Slim REV3™ throttle housing allows more room for lever clearance and adjustment to throttle housing position.
- Improved throttle stop provides greater strength and durability - snap together elbows makes it even easier to install and change reels.
- Cable boot keeps dirt and dust out for reliable and smooth operation.
- REV3™ off-road kits are compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (P/N 01-2818 and 01-2819, sold separately) and ODI Lock-On grips.
- Billet aluminum inline cable adjusters ease installation and adjustment.
- Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight.
- Upper section of cables use 6 mm housing to provide solid support of adjusters.
- Simple to install and maintain.
- Patented.
- Kit includes:
- REV3™ throttle assembly with throttle tube (REV3™ off-road kits include the unbreakable Titan Throttle Tube™).
- Motion Pro REV3™ black vinyl cables specifically designed for your bike.
- REV3™ sportbike kits include Motion Pro RoadControl™ grips (P/N 01-1131) and REV3™ off-road kits include Motion Pro DirtControl™ II grips (P/N 01-2816).

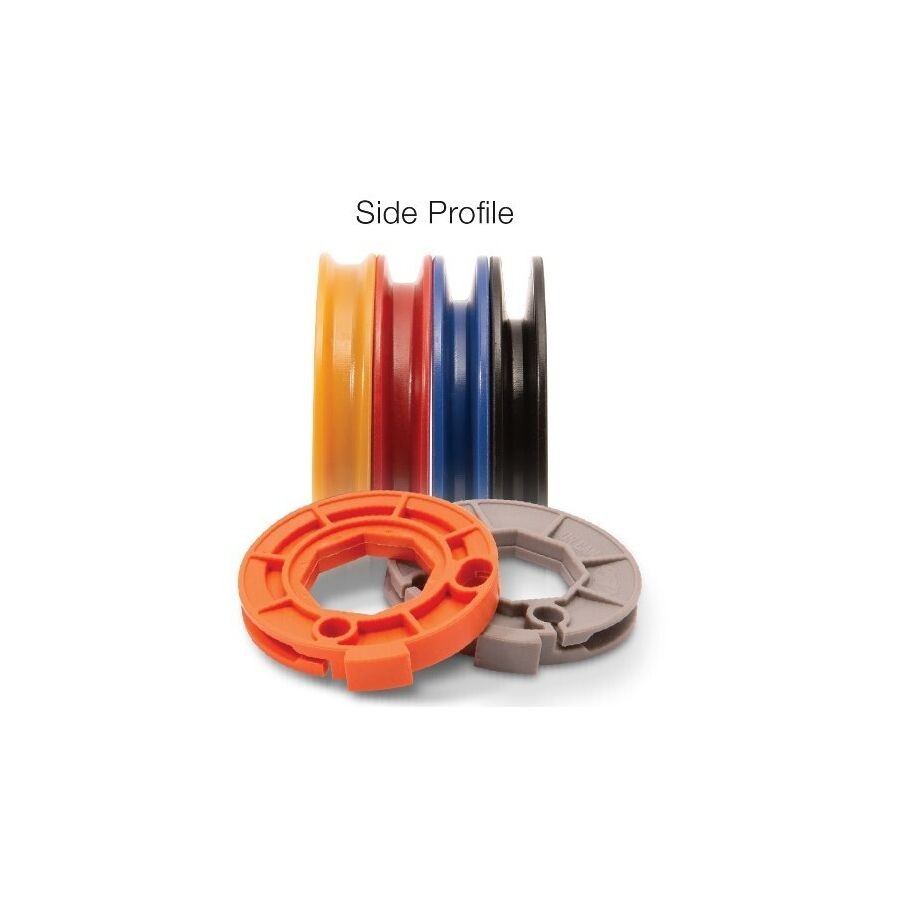

- Four interchangeable round reels: 35 mm, 40 mm, 45 mm, 50 mm.
- Progressive cam reel - Sportbike kits include road race profile cam reel (orange) and off-road kits include off-road profile cam reel (gray).
