It can also extract those compressed Bitstream audio such as Dolby Digital, AC3 and DTS 5.1 through its optical audio output for further decoding by your A/V receiver.

The HDMI input supports maximum resolutions up to 4K.

This device has an internal repeater function built in to make sure its HDMI output will pass the same sharp detailed images with original digital audio sound maintained all the way to the display or the receiver end.

LPCM 5.1 7.1 To Analog Surround Sound Audio Extractor
This audio decoder is specifically designed for decoding digital LPCM 7.1 or 5.1 channel sound into analog surround format for existing analog amplifier or receiver.

Many newer game consoles, 4K TV box or digital media players now offer PCM or LPCM type 5.1 and 7.1 digital surround sound output.

Users can use this DAC to decode such LPCM 5.1/7.1 digital surround sound into analog surround sound for hookup with their existing speakers, home theater systems or AV receivers.

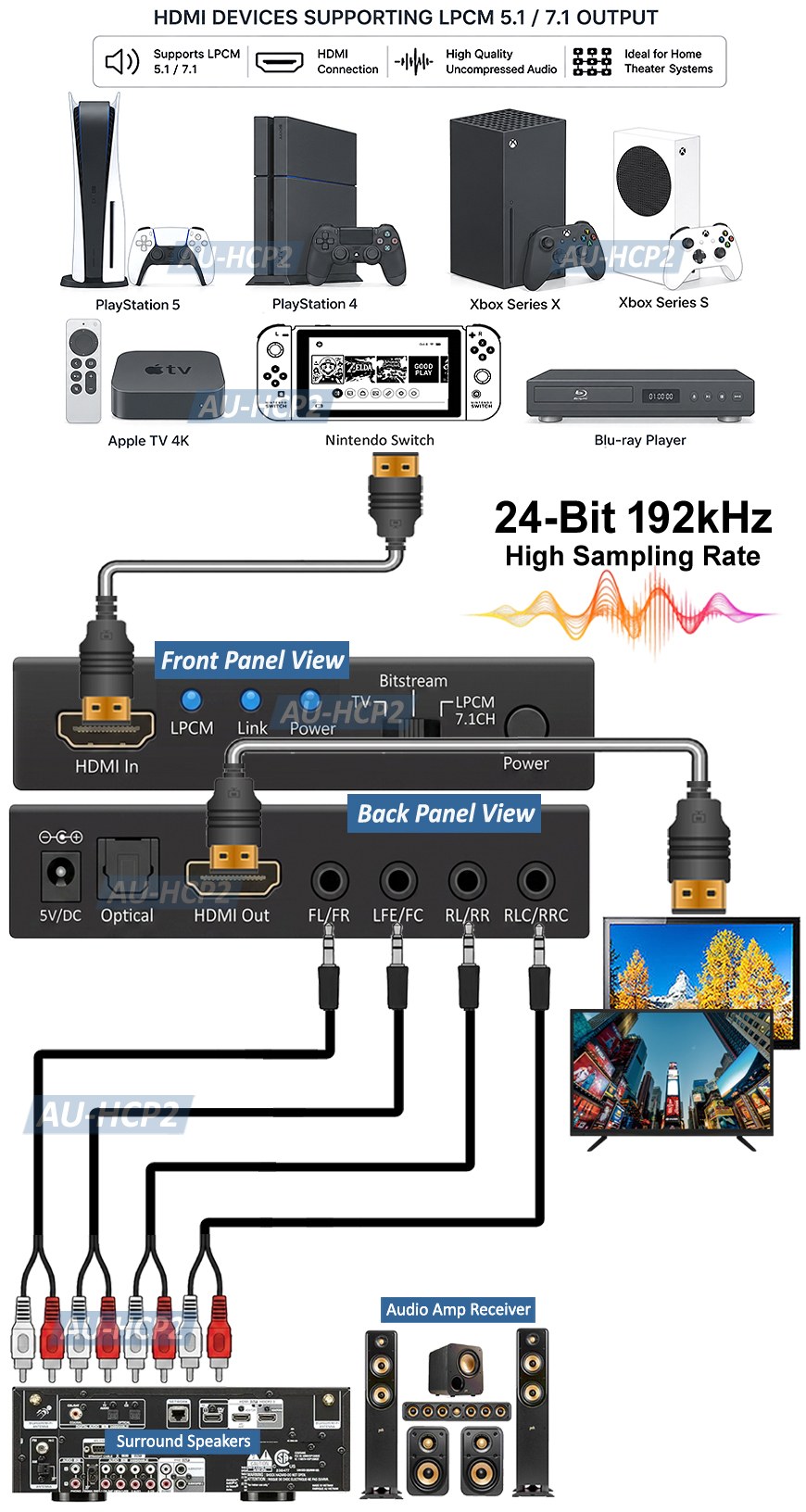

Analog Discrete Channel Sound Output
This HDMI audio processor decodes LPCM 5.1 or 7.1 audio and outputs through 4 of its 3.5mm audio terminals using optional splitters/cables (not included)

• FL/FR OUT: front left and front right audio outputs
• LFE/FC OUT: subwoofer and center audio outputs
• RL/RR OUT: rear left and rear right audio outputs
• RLC/RRC OUT: rear left center and rear right center audio outputs

Supreme High 24-Bit 192 kHz Sampling Rate
This HDMI LPCM audio extractor supports both HDMI audio sampling rates and S/PDIF optical audio sampling rates up to 192 kHz.

So no downsampling required for HD audio sources that can output the high-resolution 24-bit/192 kHz audio tracks.

Preserve the high-frequency audio for your audiophile DACs and AV receivers.

No TV Hookup Required
The operation of this HDMI audio processor does not require HDMI hookup with a TV.

The analog audio output or optical audio output from the device remains coming through when the HDMI output of this device is not connected with a TV.

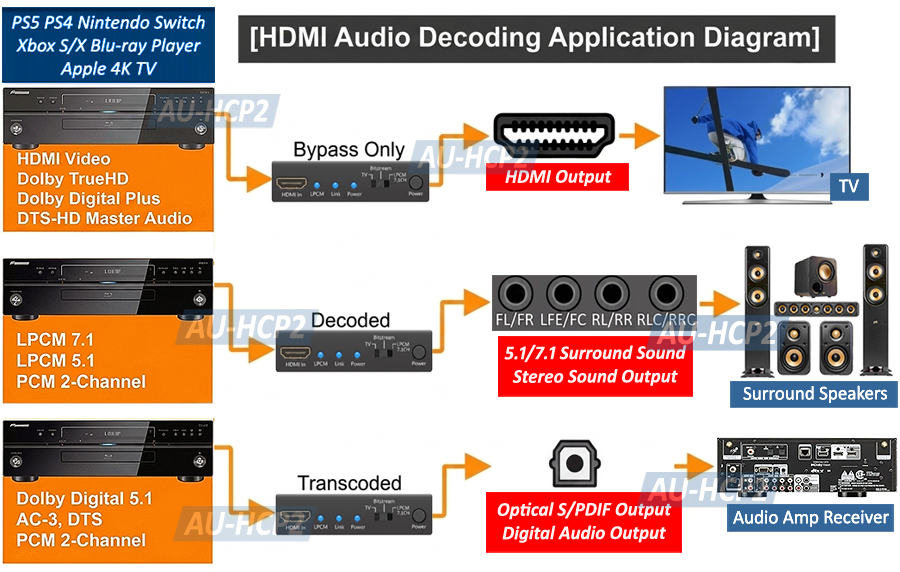

Easy EDID Switch For Audio Output Mode
This unit is featured with EDID switch on the front panel for manually selecting between various audio output modes:

• TV Mode: Switch to TV mode for the HDMI source to output audio according to what the TV or AV receiver can support.
• Bitstream Mode: HDMI source will output bit-stream audio such as AC3, Dolby 5.1, DTS 5.1, which will be extracted and routed through its optical audio output.
• LPCM 7.1CH Mode: all 3.5mm audio ports output LPCM 7.1CH sound. Optical port output 2 channel PCM digital audio.

⚠[Important Note]: Depending on the input audio format, the unit may not output audio through all output port. For Example, the optical output port will have no audio when the input audio format is more than LPCM 7.1CH.

HDMI LPCM 5.1 7.1 Audio Decoder
This HDMI audio decoder decodes the LPCM 5.1 and 7.1 surround sound output into 7.1 and 5.1 discrete channel sound through its front left/right, center/subwoofer, rear left/right and rear center left/right ports to deliver a directional and more realistic effect.

⚠[Important Note]: The HD video audio sources must need to have the capability of providing multi-channel LPCM 7.1 or 5.1 audio output for proper decoding.
⚠[Important Note]: Dolby TrueHD or DTS-HD Master Audio can only passed through the HDMI output with no decoding and no conversion.

HDMI To Optical Audio Output
This HDMI audio converter can extract the compressed Dolby Digital, AC3 and DTS 5.1 and route through its optical audio out.

⚠[Important Note]: The optical output port from this audio decoder can only provide 2-channel stereo audio when the input audio format is LPCM 7.1 or 5.1CH.

Internal HDMI Repeater Function
This HDMI audio processor has repeater built in which can automatically equalizes and compensates for HDMI signal loss during the cable run.

It can also extends the cable reach to maximum distance with the same signal quality maintained all the way and delivered to the end HD display.

• Great digital to analog audio decoder solution for transcoding uncompressed digital LPCM 7.1 or 5.1 channel sound into analog surround format for existing analog amplifier or receiver.
• Extract compressed digital Bitstream audio such as Dolby Digital, AC3 and DTS 5.1/7.1 embedded in HDMI feed and output through its optical audio output for further decoding by downstream device.
• Supports uncompressed LPCM 7.1, LPCM 5.1 and PCM in analog output through the multi-channel 3.5 output ports.
• Deliver 7.1 and 5.1 discrete channels through its front left/right, center/subwoofer, rear left/right and rear center left/right channel to deliver a directional and more realistic effect
• Supports compressed audio such as Dolby Digital, AC3, DTS 5.1 and PCM 2CH through optical audio output.
• Easy EDID dip switch selection so users can easily control their HDMI source to send the desired digital audio format for decoding or conversion.
• No HDMI output with TV is required when receiving audio at the analog or optical audio output.
• Supports all HDTV resolutions including 4K, 2K, 1080p, 1080i, 720p, 576p and 480p. Output resolution follows input.
• Fully compliant with HDMI 1.3, HDCP 1.2 and DVI 1.1 standards.
• Supports HDMI audio sampling rates up to 192 kHz.
• Supports optical (S/PDIF) digital audio sampling rates up to 192 kHz.
• Supports high-bit-rate (HBR) audio.
• Its built-in repeater function helps devices regenerate and equalize the HDMI output signal to be same with sharp detailed images with original audio sound quality.
• Supports 12-bit per channel (36-bit all channel) deep color and 3D .
• Supports HDMI CEC (Consumer Electronics Control) bypass.

• Video Bandwidth: 300Mbps / 10.2 Gbps
• Input Port: HDMI female x 1
• Output Port:
  • HDMI female x 1
  • Optical Audio in Toslink female x 1
  • 3.5mm x 4
• HDMI Audio Sampling Rate: 192 kHz max
• Optical S/PDIF Audio Sampling Rate: 192 kHz max
• HDMI Audio Format Support:
  • LPCM 2CH, LPCM 5.1/7.1CH
  • Dolby Digital 5.1 and DTS 5.1
  • Dolby TrueHD, and DTS-HD Master Audio [Pass-Through Only]
• Analog Audio Output Format Support: 6-channel or 8 channel audio decoded from the LPCM 5.1 or 7.1 input
• Optical Audio Output Format Support:
  • LPCM 2CH
  • Dolby Digital and DTS
• Power Supply: DC 5V, 2A

• HDMI LPCM audio processor
• Power adapter
• User manual
