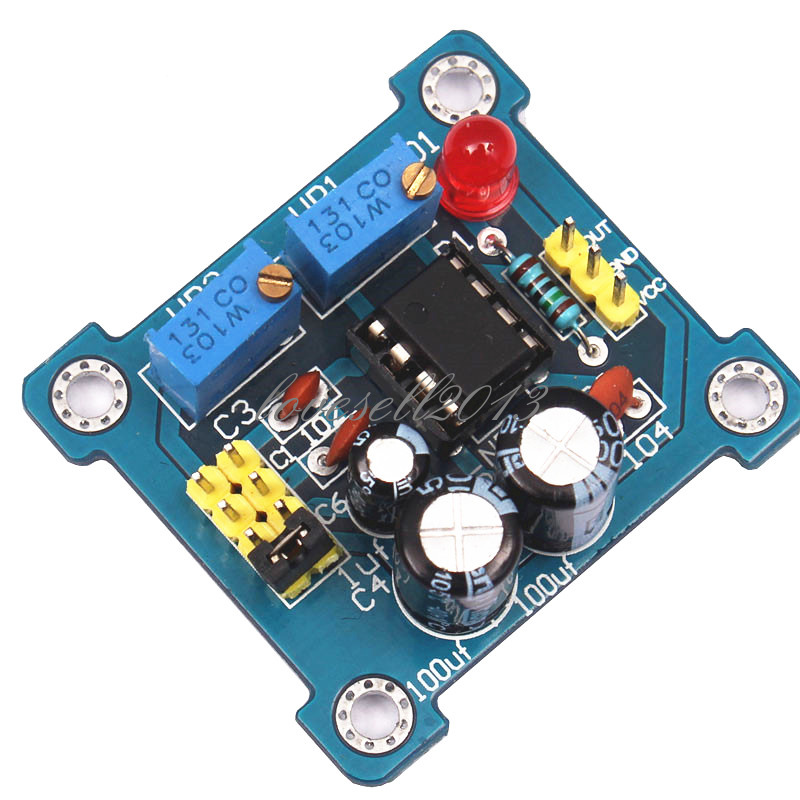

Specifications
Condition: 100% new
Color: As Show in the Picture
Main Chip: NE555
Input current: >=100MA
Input Voltage: 5V-15VDC (when power supply is 5V, the output current can be 15MA around, when 12V power supply, the output current can 35MA around)
Output amplitude: 4.2V V-PP to 11.4V V-PP (Different input voltage, the output amplitude will be different)
Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
The output frequency range is selectable: LF file: 1Hz ~ 50Hz,IF file: 50Hz ~ 1kHz, High-frequency file: 1KHz ~ 10kHz, HF file: 10kHz ~ 200kHz
The output frequency is adjustable:
1) Period T = 0.7 (RA +2 RB) C
2) RA, RB is 0-10K adjustable
3) Low profile when C = 0.001UF
4) IF stalls C = 0.1UF
5) High-frequency file C = 1UF
6) HF stalls C = 100UF (so buyers can calculate the frequency of the waveform.)
Suitable: for experimental development, experimental development and so on.
Item included:

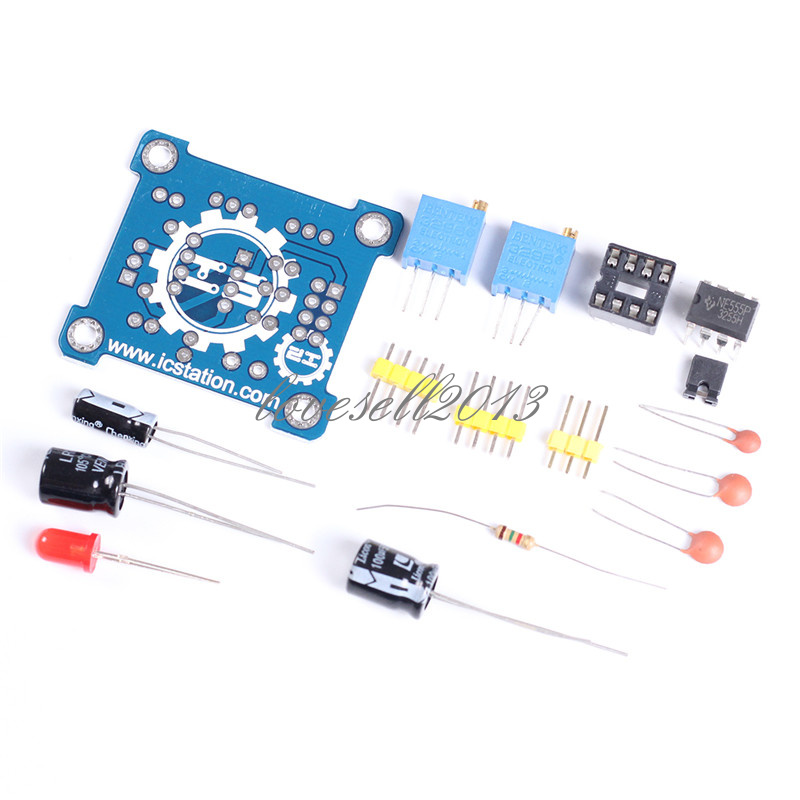

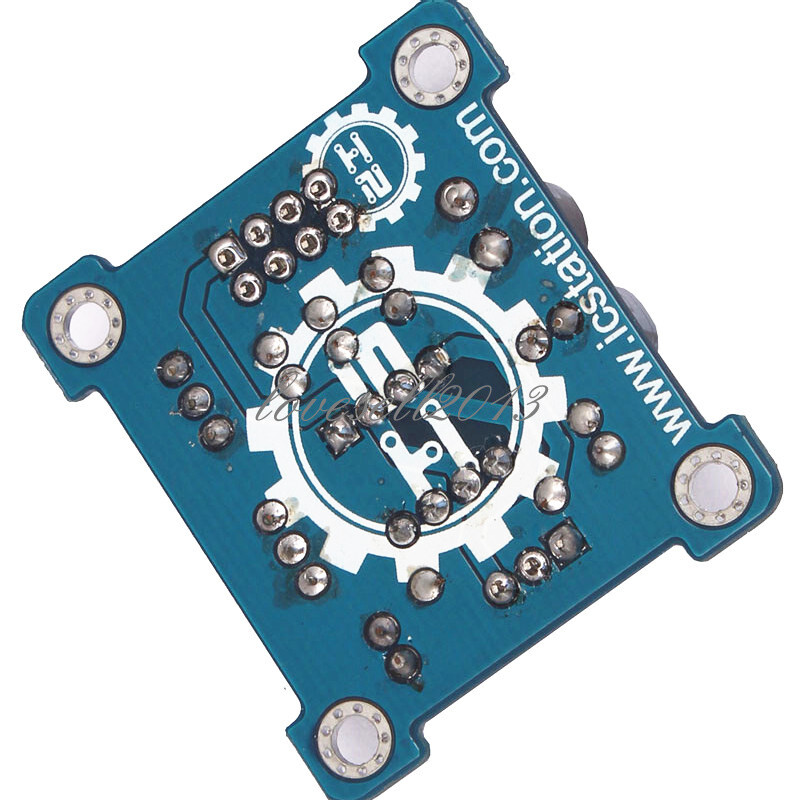

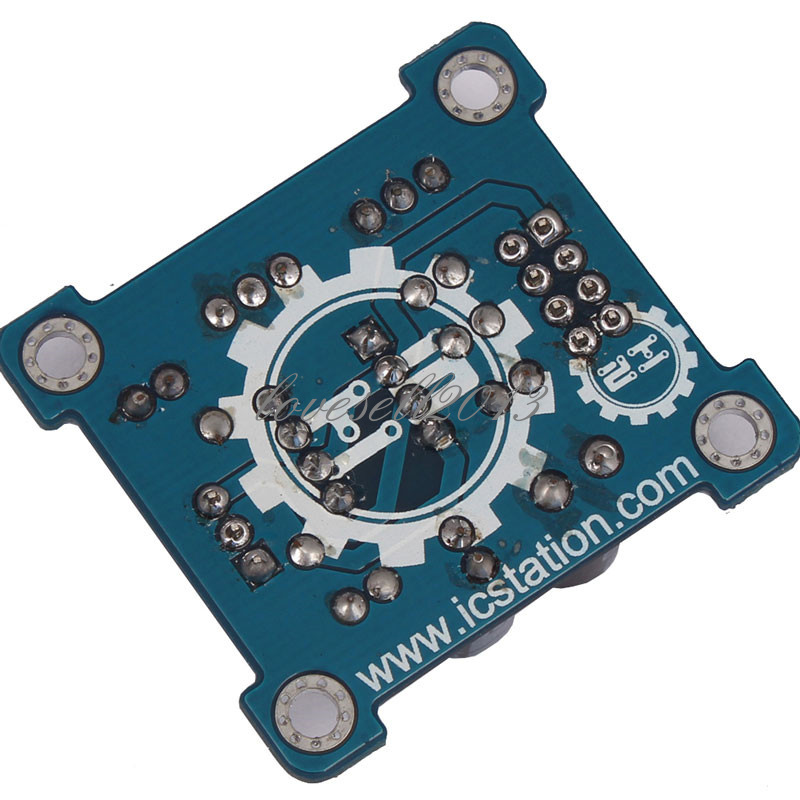

1x NE555 Board
16x Accessory
