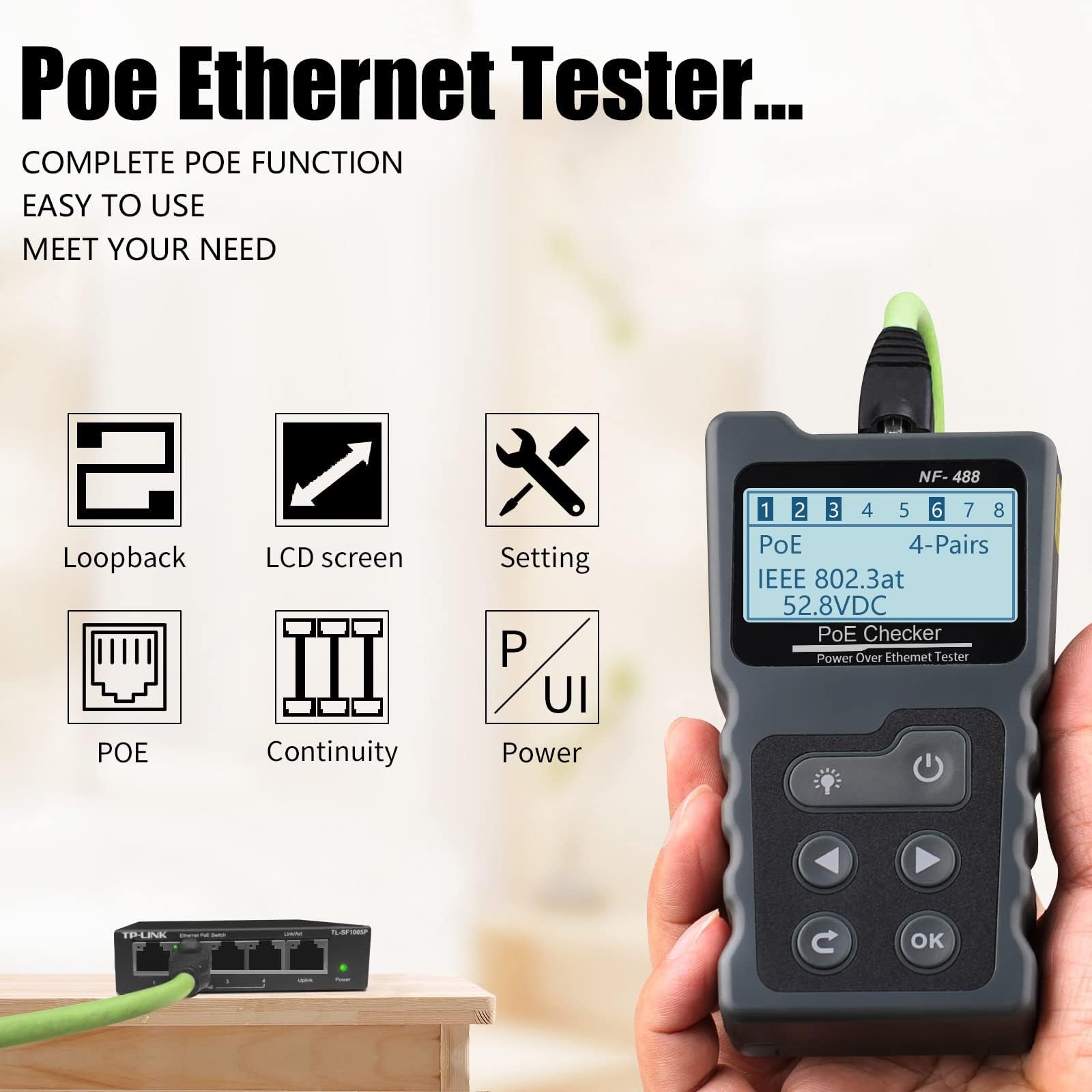

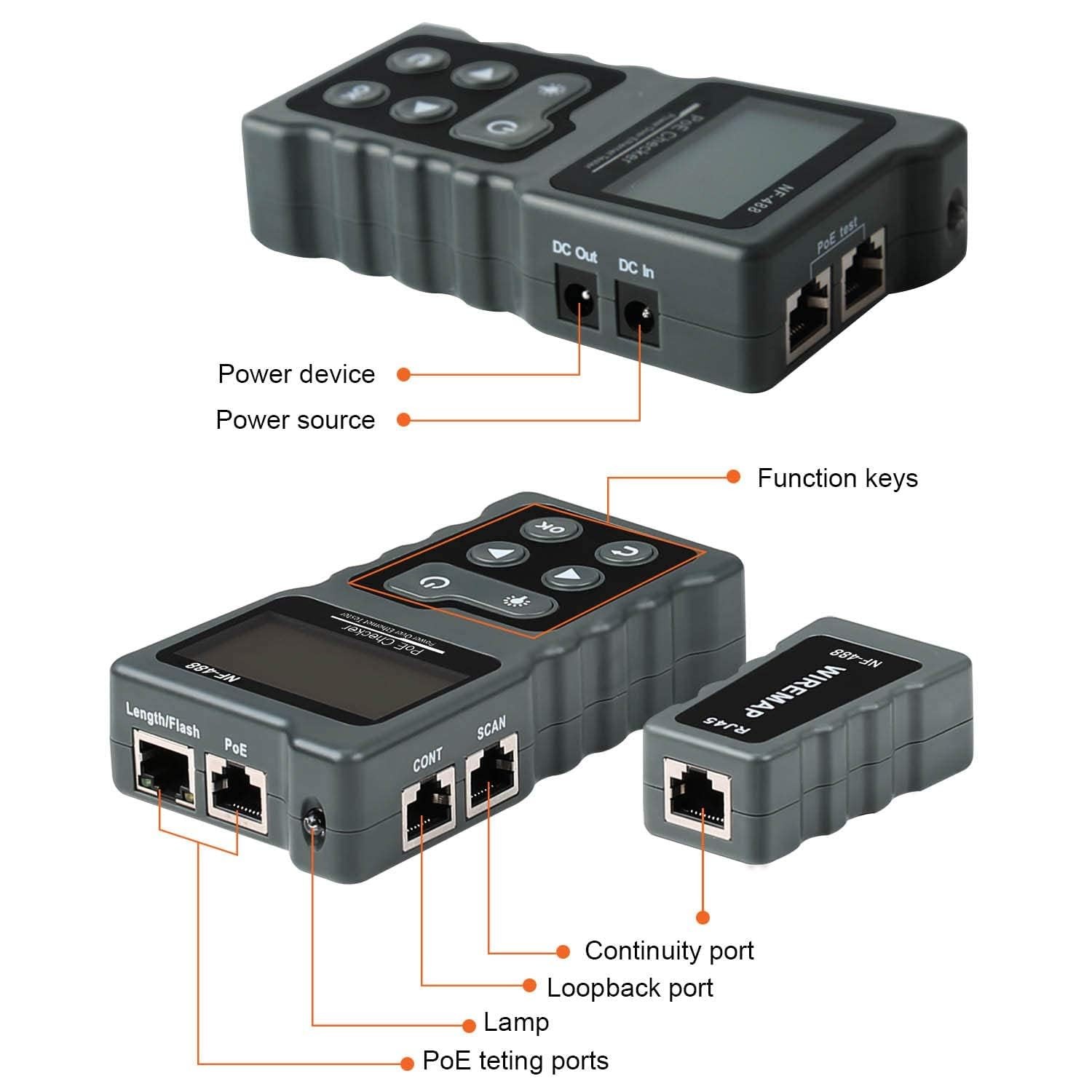

PoE Ethernet Tester Inline Tester For Power Over Ethernet NF-488 Specification: LCD 128*64 mm, with backlight Cable types--CAT5,CAT6 Check UTP/STP cable--YES Cable short indicate--YES Max testing range--600 m (23622 in) Wire mapping-- Emitter and Remote Emitter and switch router PoE Function: Test range-- DC5-60V POE switch Standard identify--802.3af at ( standard/non-standard) Test range power--0-18W Power Function: Output interface--YES Voltage test rangeDC0-60V Current test range0-3A power test range0-180W Input voltage protection: DC48V 5mA Max working current: ≤80mA Loopback: Compatible with 10 M,100 M,1000 M switch Power supply: 3*AAA NF-488 Remote Specification Ports: RJ45 Function: Wire mapping for network cable Input voltage protection: DC48V 5mA

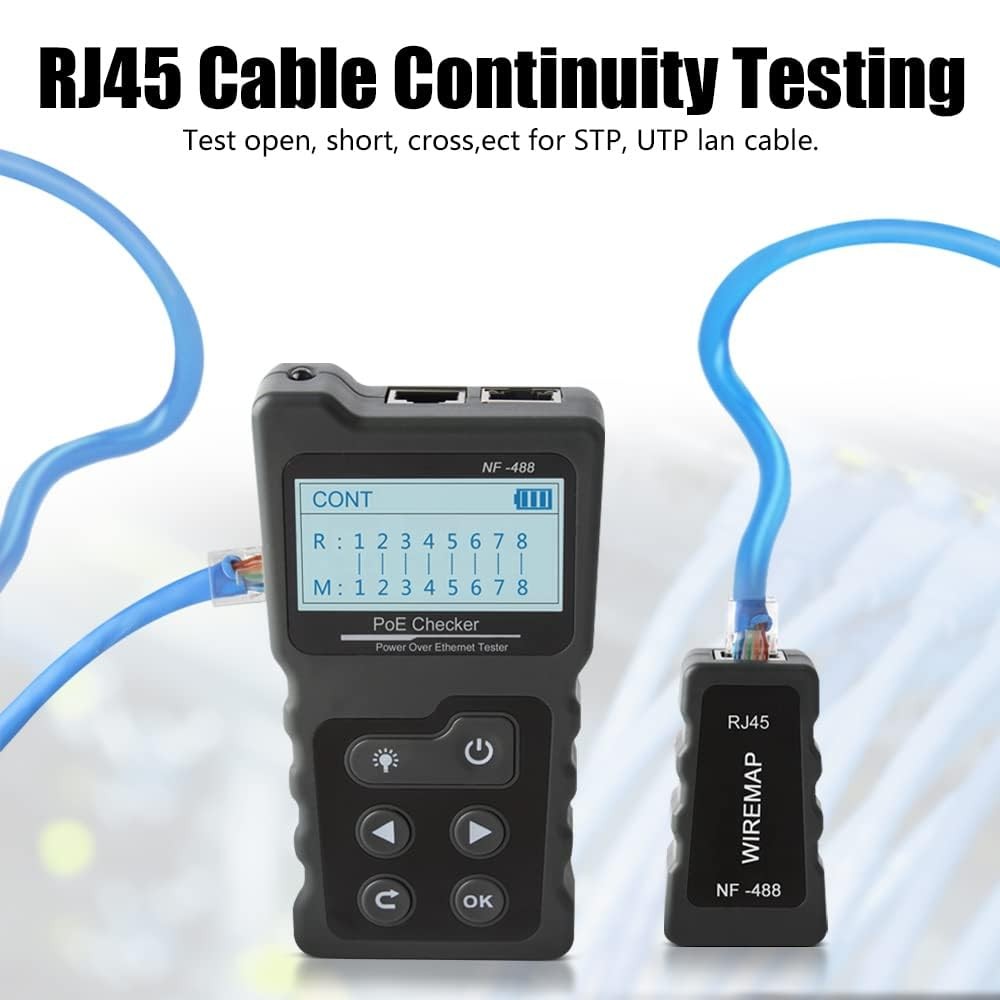

【Multi-functional Network Cable Tester】Network RJ45 Tester can check the network cable's short circuit, crossover, and open circuit status; Suitable for CAT5 and CAT6 cable types; Quickly find the root cause of a poor network and saves time and effort

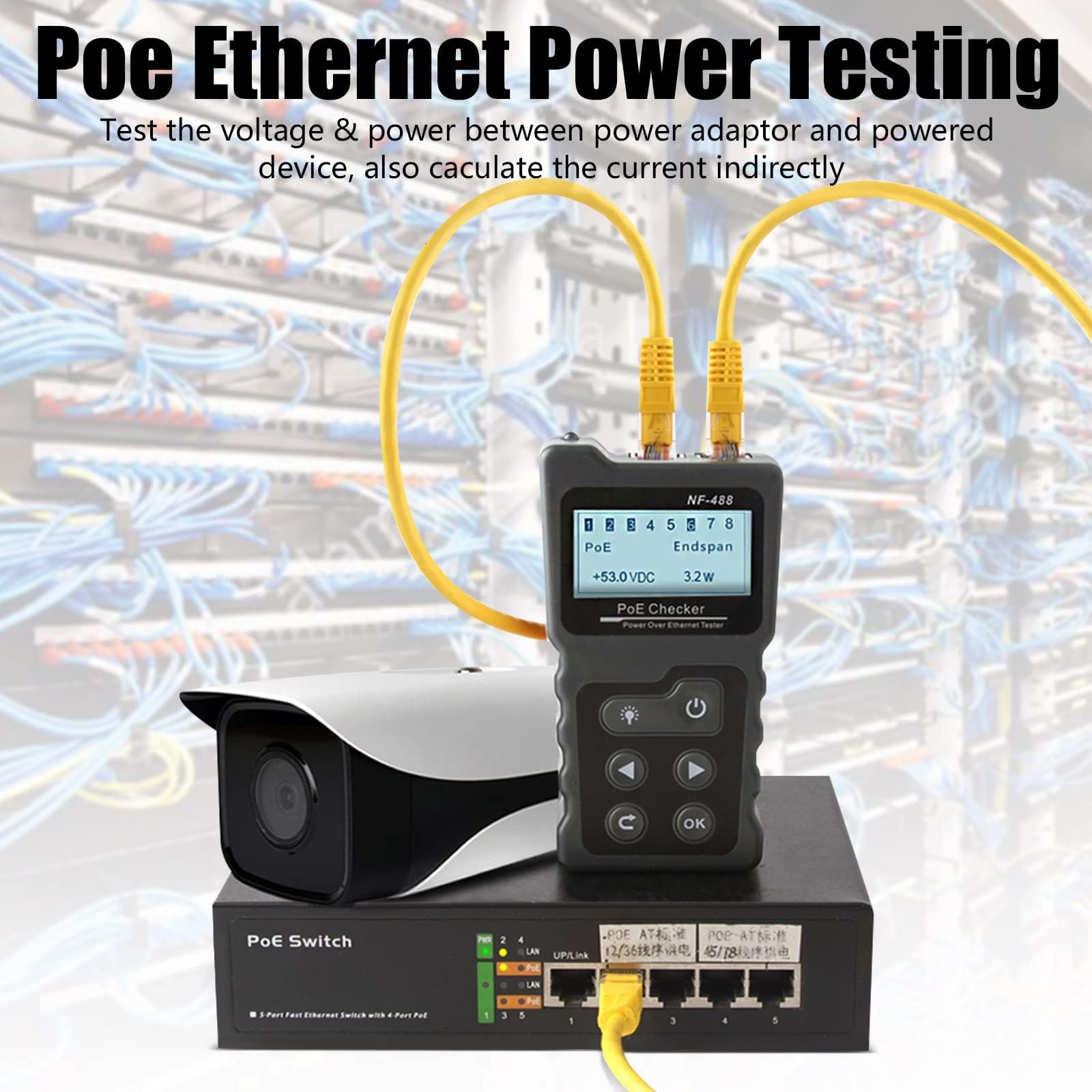

【POE Test】POE Ethernet Tester Cable Tester can test standard POE Checker information such as af at standards, power voltages, power polarity, and modes; Identifies the power voltage, polarity, and mode of non-standard PoE devices

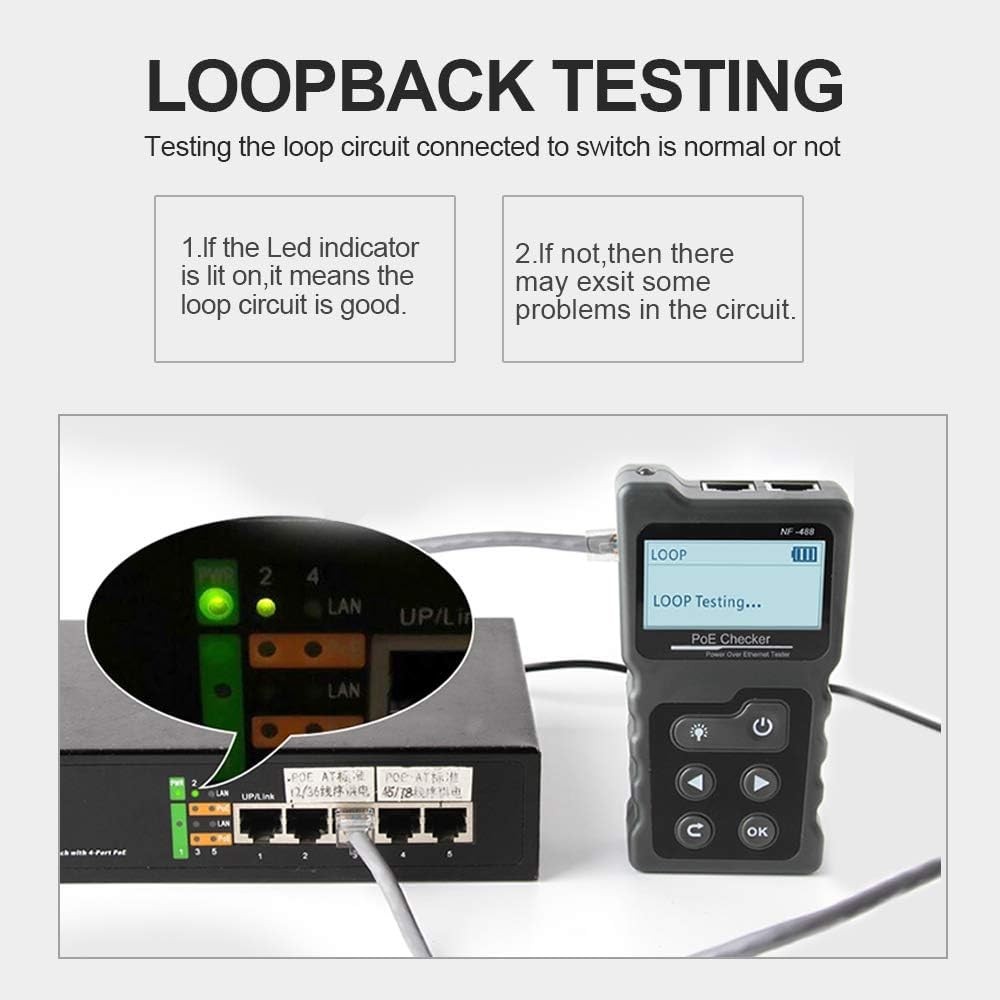

【Loop-back Test and Power Current Voltage Test】The Ethernet Cable Tester can do the loop-back test that helps you diagnose whether there is a problem with the loop; the NF488 Cat6 Tester can test the current, voltage, and power DC appliances consume
【Current Detection】The Network Tester tests the current, voltage, and power consumption of DC devices; Voltage detection range: DC 0-60V; Current detection range: 0~3A; Power detection range: 0-180W. Intuitive data for a better working experience
【Excellent Service & LED Lamp】Network Cable Tester includes an LED lamp you can use to illuminate in low-light or dark environments. Additionally, the ethernet cable tester comes with lifetime friendly customer service. If you have any questions about using the product or need advice, please feel free to contact us. We will reply to you within 24 hours
