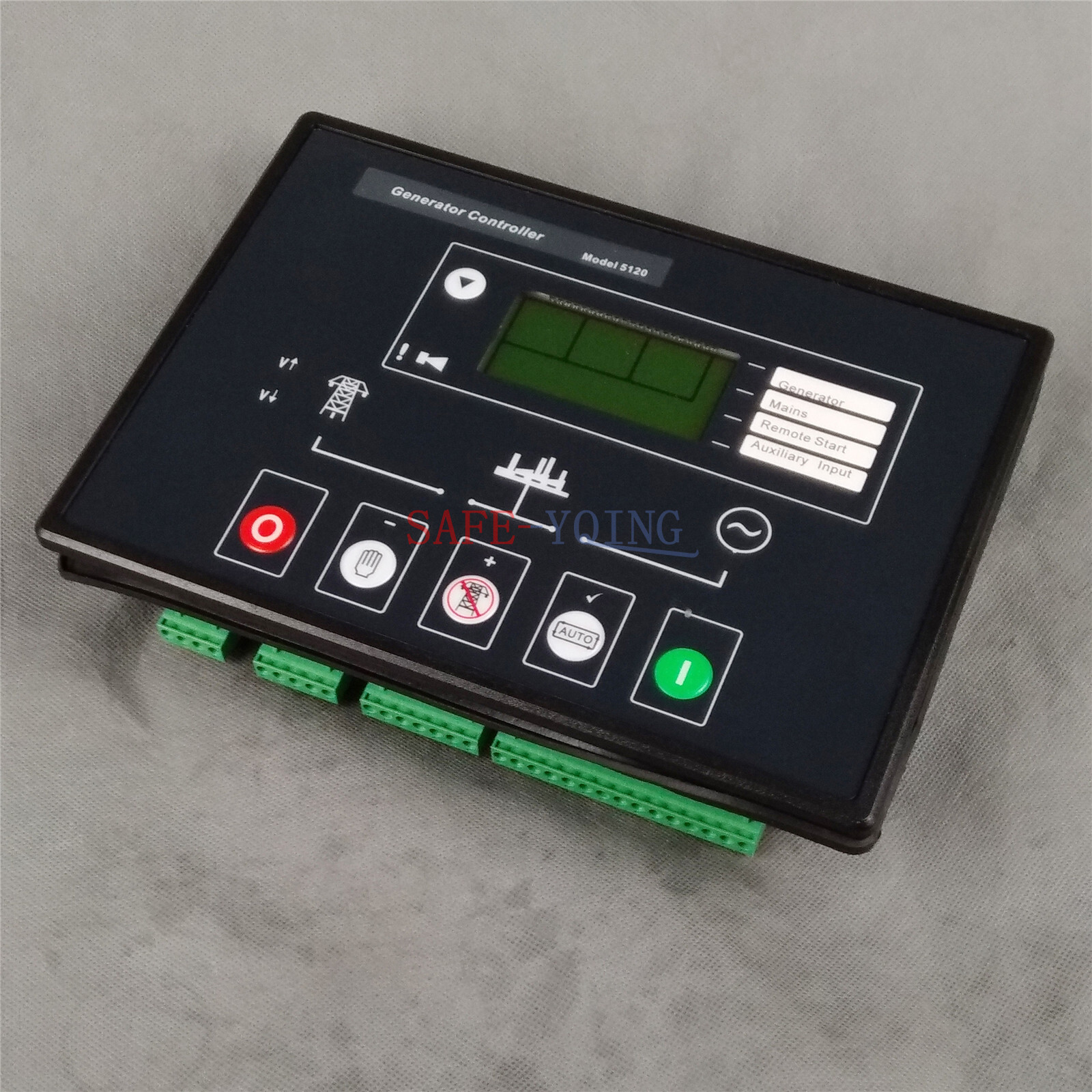

The DSE5120 Mains Failure Control Module includes all the features of the DSE5110 and plus the ability to monitor a mains (utility) supply. Upon detection of a mains (utility) failure.The module automatically starts the generating set. Once the mains power has been restored it, instructs the generating set to stop.
     Dedicated outputs are provided for the control of both the mains (utility) and generator switching devices. This feature combined with the inbuilt incoming mains (utility) supply sensing, removes the requirement for expensive external devices.

 Feature:
 · Automatic start
 · Automatic mains (utility) failure
 · Configurable inputs
 · Configurable outputs
 · Configurable alarms & timers
 · Digital inputs
 · Analogue inputs
 · Back-lit character LCD display
 · Engine protection
 · Front panel mounting
 · PC configurable
 · Front panel programming
 · Remote monitoring
 · LCD alarm indication
 · LED alarm indication
 · Icon based fault diagnostics

Power Supply:8 to 35 Vdc Continuous
Cranking Dropouts:Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the need for internal batteries.
Max Current:Operating 320mA at 12V, 215mA at 24V; Standby 175mA at 12V, 95mA at 24V
Start Relay Output:16 Amp DC at supply voltage.
Fuel Relay Output:16 Amp DC at supply voltage.
Auxiliary Relay Outputs:5 Amp DC at supply voltage.
Charge Fail / Excitation Range    0 V to 35 V
Alternator Input Range:    15V(ph-N) to 300V(ph-N) 3 Phase 4wire AC (+20%)
Alternator Input Frequency:50 - 60 Hz at rated engine speed (Minimum:15V AC Ph-N)
Magnetic Pick-up Voltage Input Range:    +/- 0.5 V to 70 V Peak
Magnetic Input Frequency:10,000 Hz (max) at rated engine speed
Operating Temperature Range:-30 to +70°C
Panel Cutout:220mm x 160mm ( 8.7” x 6.3”)
