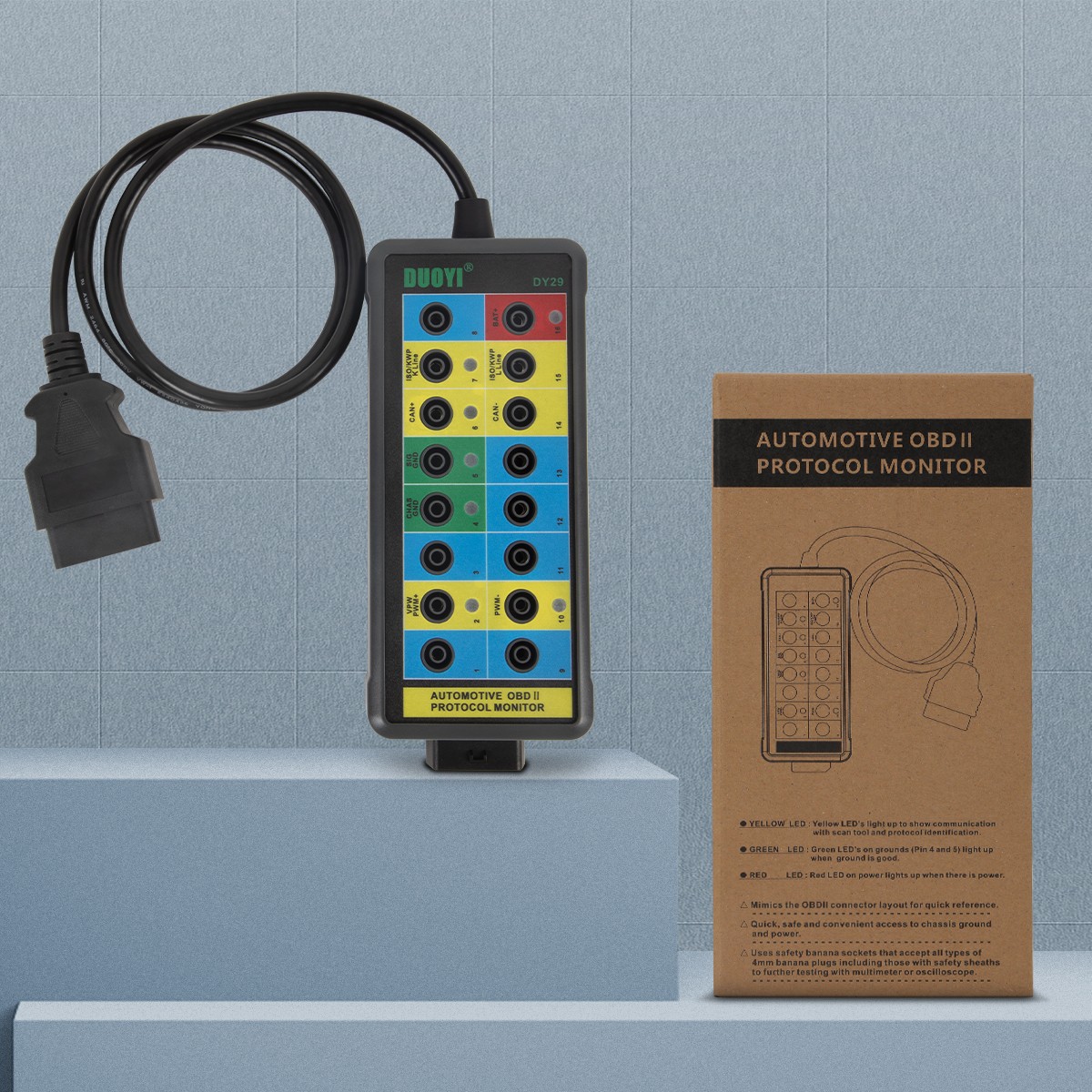

OBD2 Breakout Box Auto OBDII Protocol Detector Car Diagnostic CAN Test Scan Tool
$40
DESCRIPTION
| 16-PIN INPUT JACK The layout of the input jack completely simulates the 16-pin layout ofthe OBD ll interface, which can be connected to a multimeteror an oscilloscope for testing. | DIAGNOSTIG INSTRUMENT INTERFAGE When the diagnostic instrument communicates with the vehicle, all 16 pins of OBD ll can be easily connected. | DC POWER JAGK Connect a12V backup battery, which can be used to replace thecar battery after supplying power to the car ECU. |
Features:
- The extension wire of OBD II connector adopts the technology of multithreading data connection, which makes the connection faster and smoother. The wire body is made of elastic thermoplastic TPU material, which is characterized by high elasticity, high strength and high resilience.
- When the decoder communicates with the vehicle, all 16 OBD II pins can be easily connected.
- The layout of the input jack completely simulates the 16 pin layout of the OBD II interface, so that more tests can be carried out quickly and visualized.
- Quickly, safely and conveniently check various signals of the vehicle.
- The built-in input jack can be connected to any type of 4mm banana plug, which is convenient for connecting with a multimeter or oscilloscope for further measurement.
- The extension wire of OBD II connector adopts the technology of multithreading data connection, which makes the connection faster and smoother. The wire body is made of elastic thermoplastic TPU material, which is characterized by high elasticity, high strength and high resilience.
- When the decoder communicates with the vehicle, all 16 OBD II pins can be easily connected.
- The layout of the input jack completely simulates the 16 pin layout of the OBD II interface, so that more tests can be carried out quickly and visualized.
- Quickly, safely and conveniently check various signals of the vehicle.
- The built-in input jack can be connected to any type of 4mm banana plug, which is convenient for connecting with a multimeter or oscilloscope for further measurement.
| OBD VOLTAGE DISPLAY Can quickly measure the voltage value of the car OBD ll interfaceand display it intuitively on the screen. | LED INDICATOR LIGHT The LED light in the input socket can quickly display whether the powerand ground of the OBD ll interface on the vehicle are normal. |
