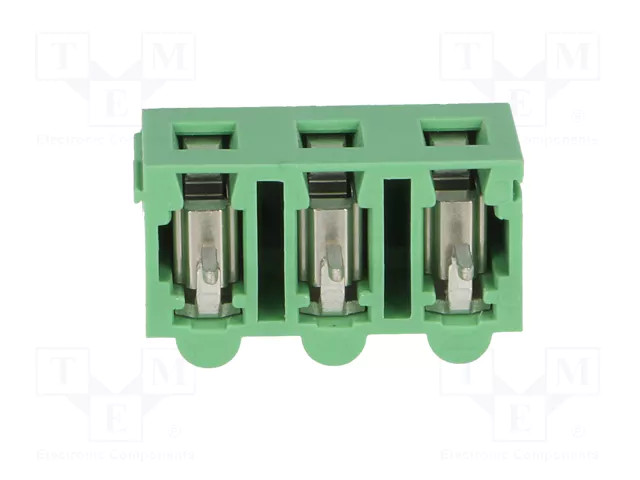

Connector: PCB terminal block; terminal; 24A; 630V; PIN: 3; on PCBs
PHOENIX CONTACT
MPN: 1732034
Connector: terminal
Connectors features: assembling possibility
Length: 22.5mm
Price per 1 pc
Technical parameters
| Parameter | Value |
|---|
| Conform to the norm | VDE |
| Electrical mounting | THT |
| Connector | terminal |
| Body material | polyamide |
| Mechanical mounting | on PCBs |
| Connectors features | assembling possibility |
| Wire cross-section | 0.2...2.5mm² |
| Length | 22.5mm |
| Spatial orientation | angled 90° |
| Contact plating | tinned |
| Number of pins | 3 |
| Number of ways | 3 |
| Rated voltage | 0.63kV |
| Wire size | 24AWG...12AWG |
| Connector pinout layout | 1x3 |
| Type of connector | PCB terminal block |
| Flammability rating | UL94V-2 |
| Contacts pitch | 7.5mm |
| Depth | 12.8mm |
| Height | 18mm |
| Current rating | 24A |
| Colour | green |
Weight: 7 g
