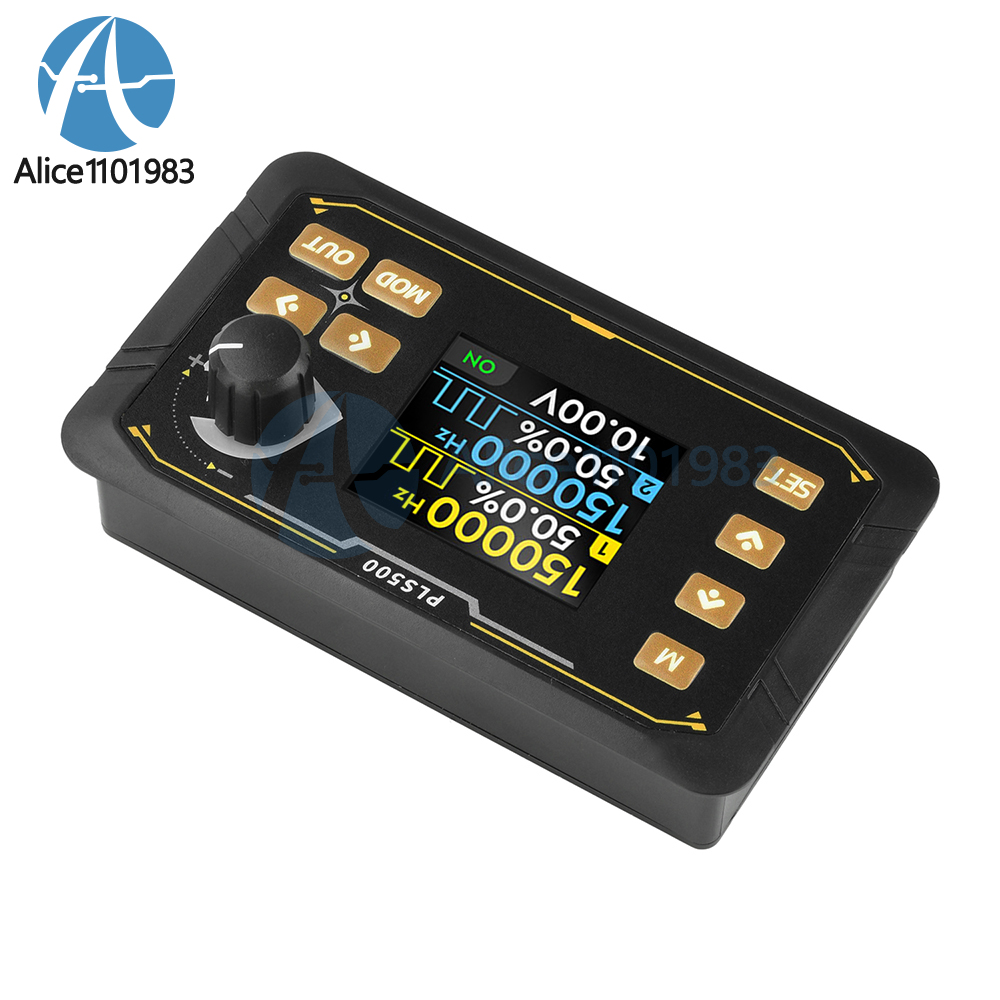

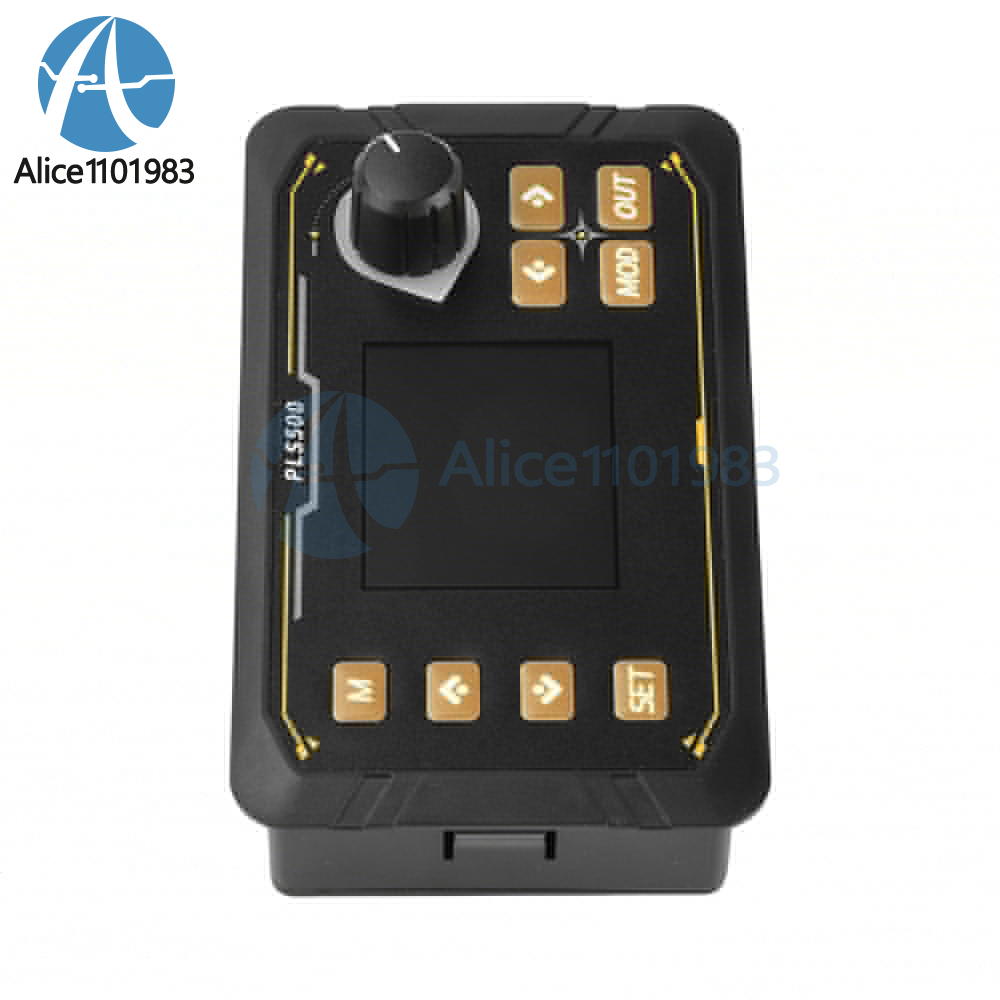

Features:

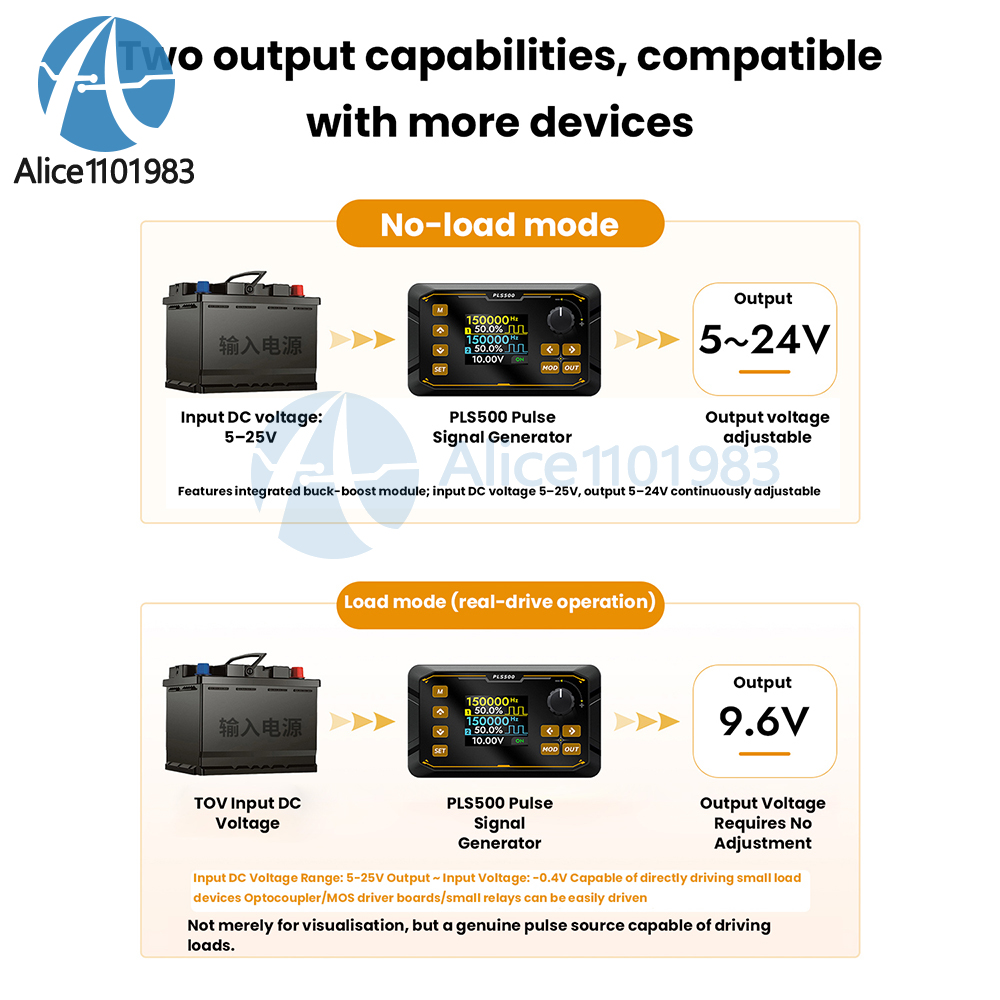

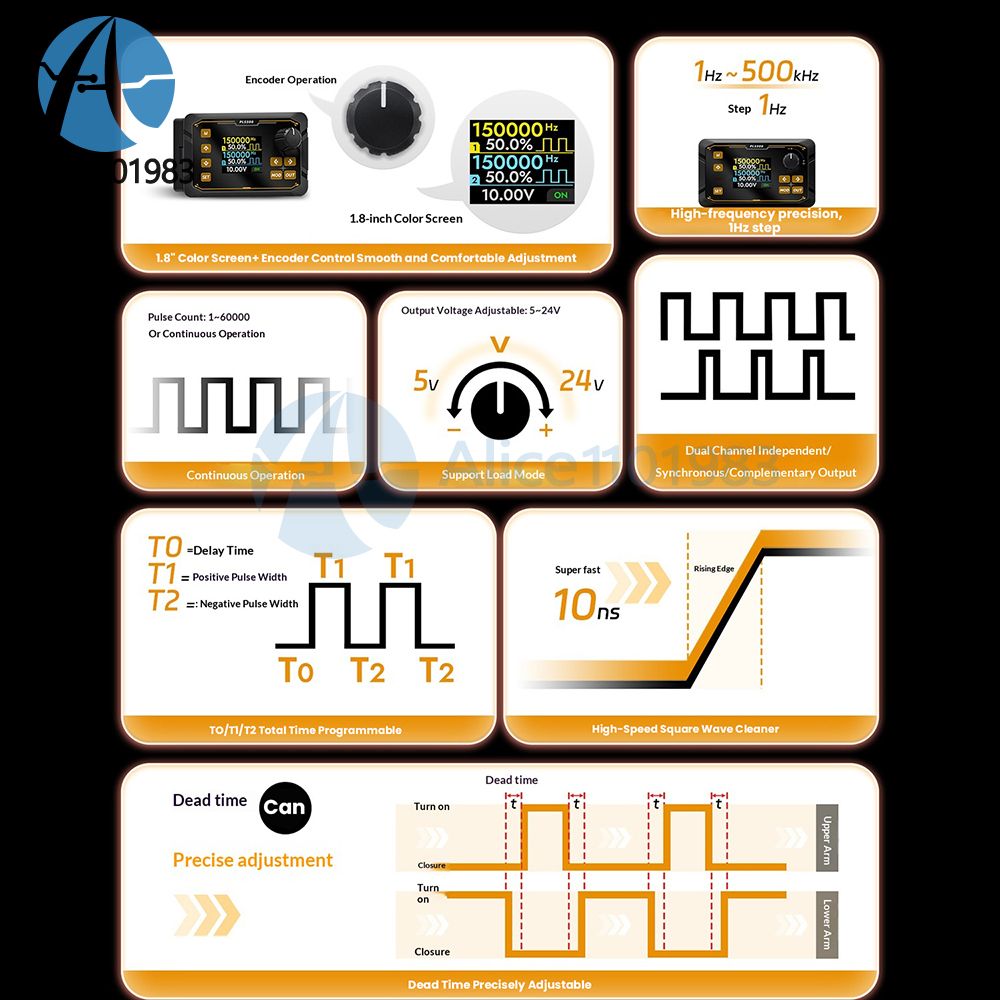

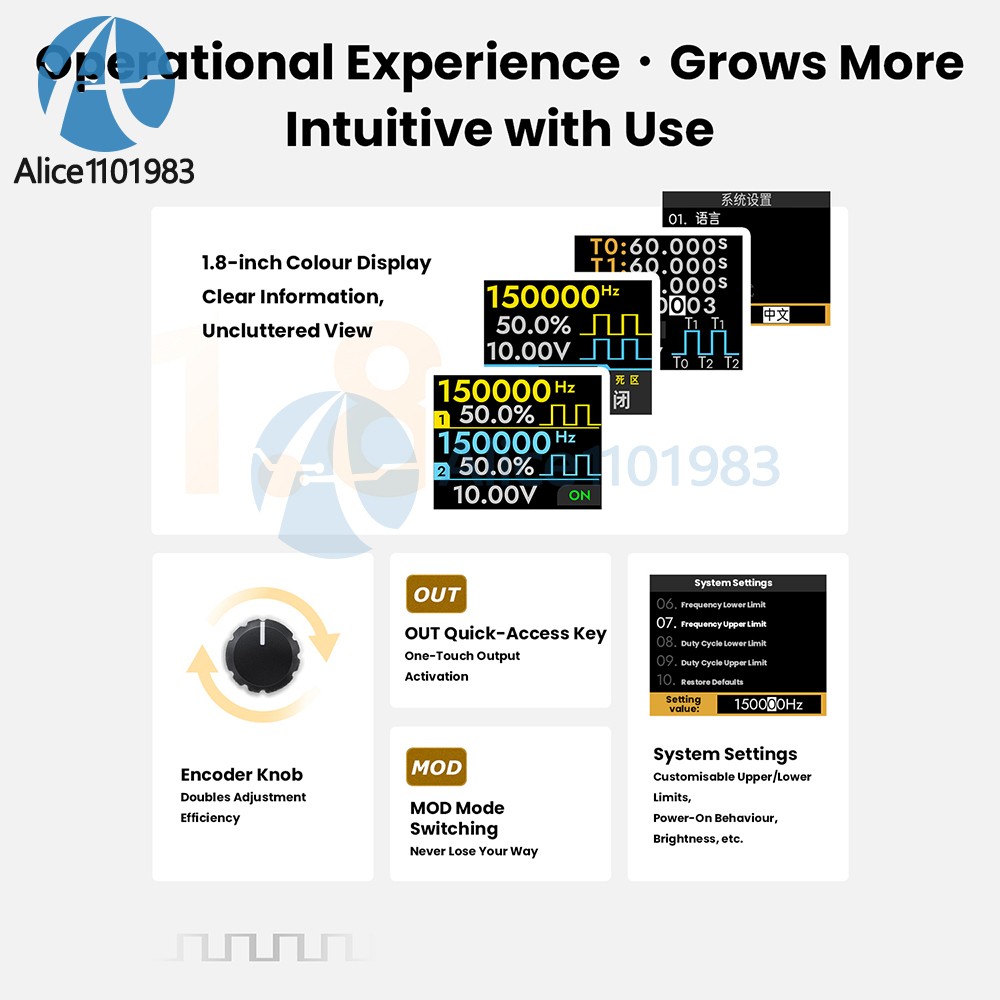

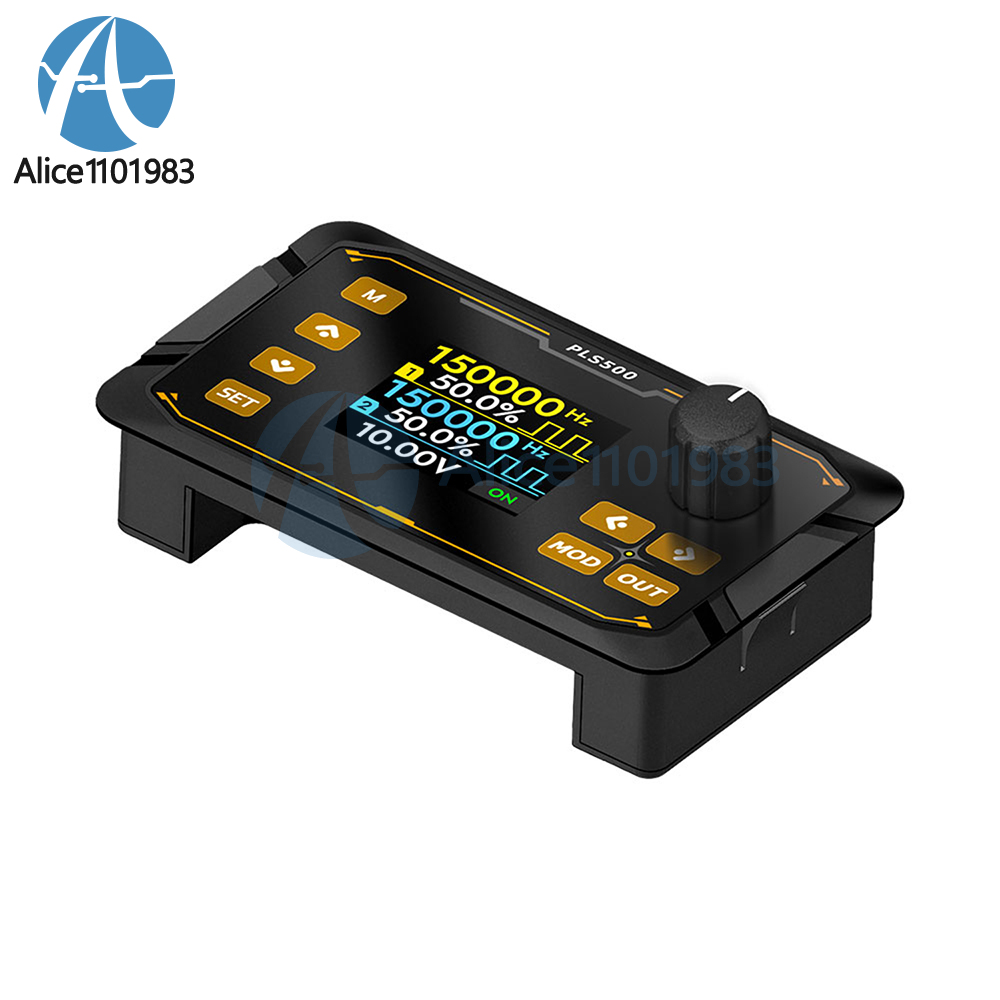

1. 1.8-inch color screen + encoder operation for quick and convenient adjustments, supports load mode
2. High-frequency precision control with low-frequency stability; 1Hz stepping ideal for sweep frequency and fine tuning
3. Duty cycle freely adjustable from 0-100%, 0.1% stepping; no distortion during full pull-up or pull-down
4. Dual-channel phase shift testing for enhanced convenience; effortlessly simulates industrial control and servo synchronization signals
5. Ultra-fast rise time for driver/switch device testing, maintaining pristine waveforms at high frequencies
Specifications:

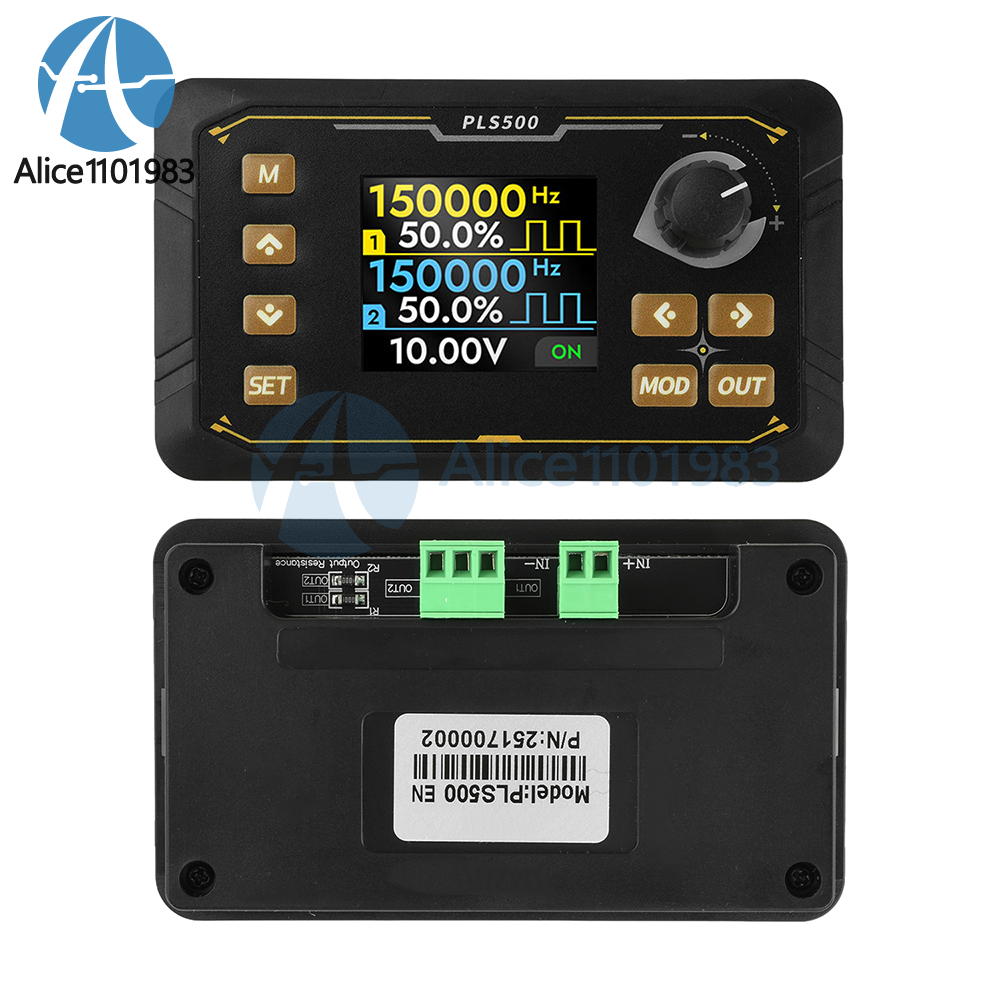

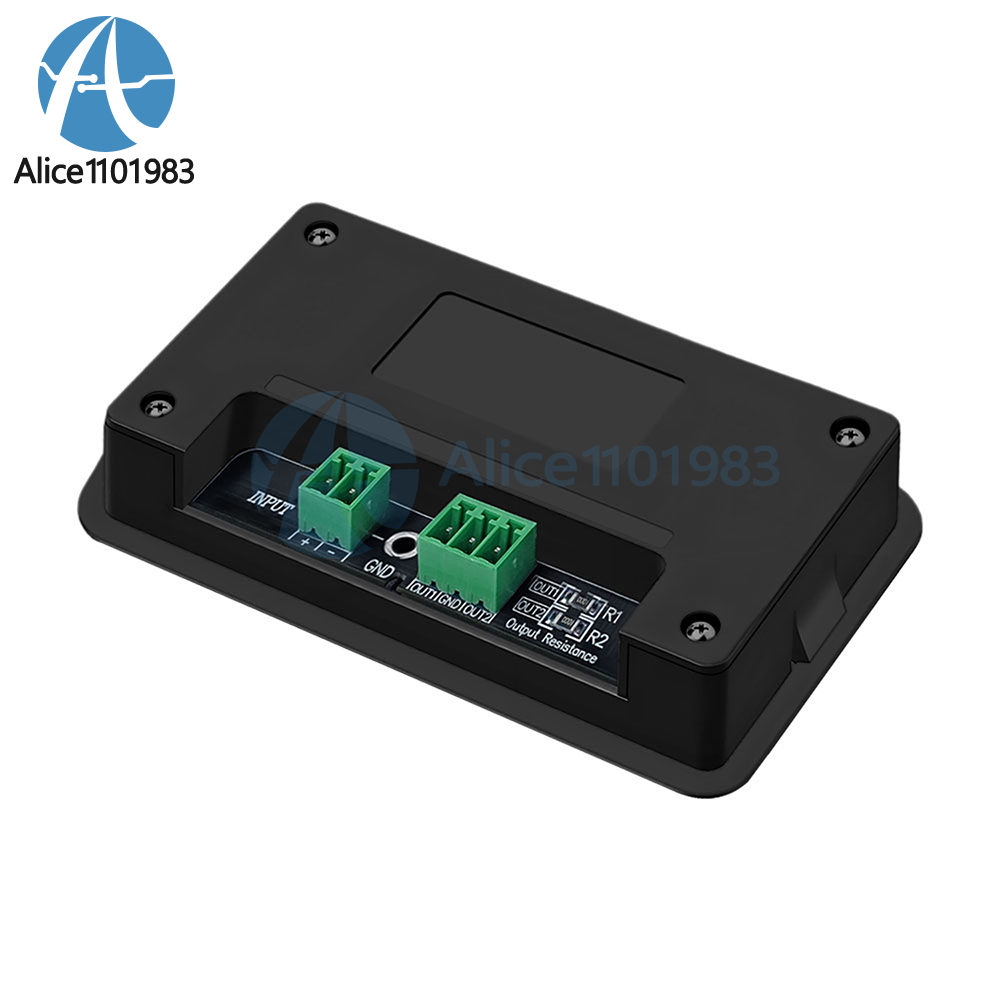

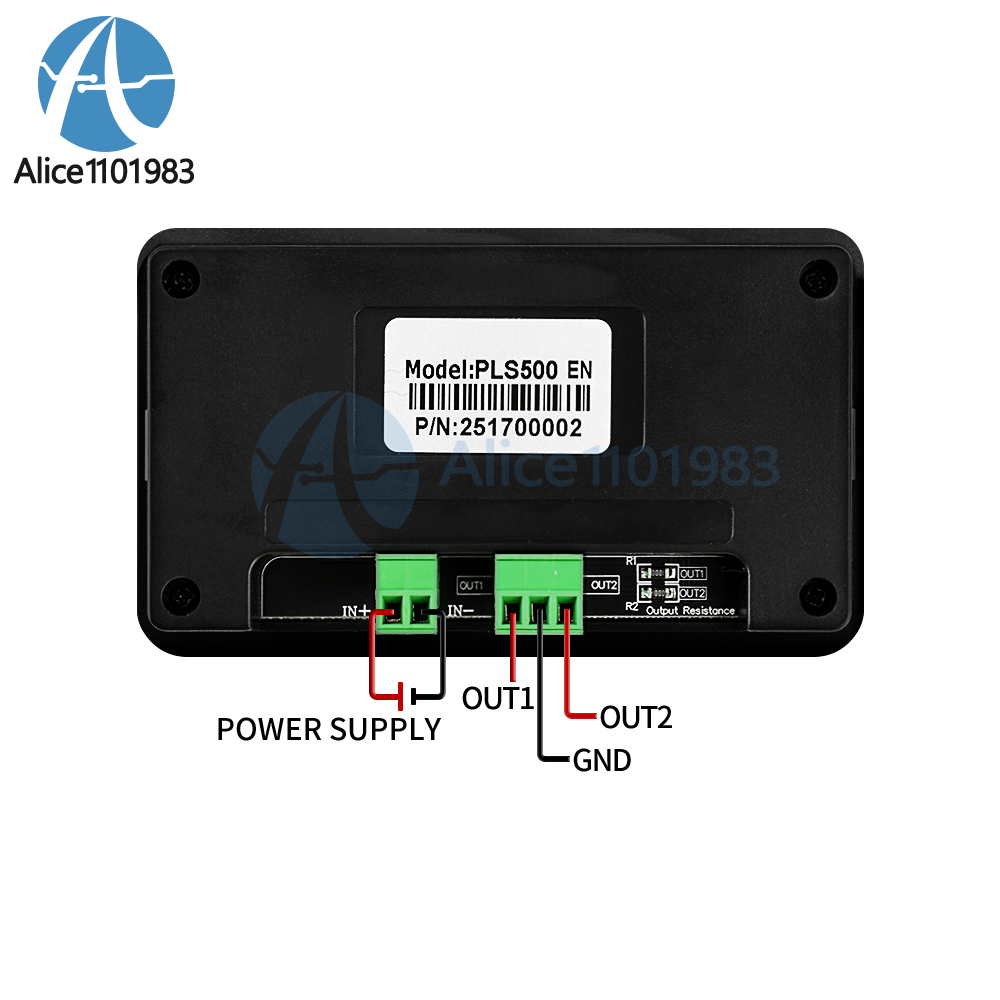

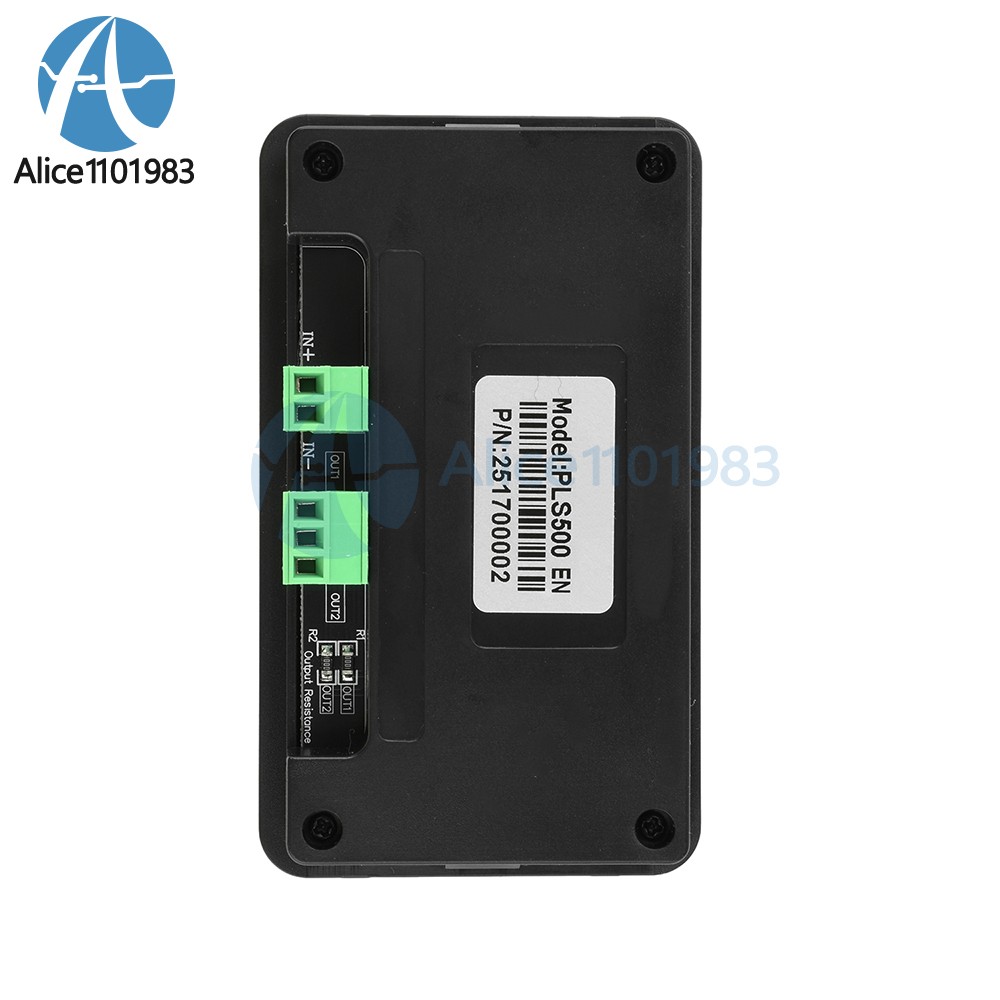

Output Channels: CH1 + CH2
Operating Voltage: DC 5-24V
Frequency Range: 1Hz-500kHz
Step Size: 1Hz
Frequency Accuracy
1kHz-10kHz: 0.2%
10kHz-50kHz: 0.4%
50kHz-500kHz: 2%
Duty Cycle Range: 0-100% (0.1% step)
Phase Range: 0-359° (1° step)
Rise Time: 10ns
T0 Delay Output Time: 00.000s-60.000s, minimum settable to 0.001s
T1 Positive Pulse Width: 00.000s-60.000s, minimum settable 0.001s
T2 Negative Pulse Width: 00.000s-60.000s, minimum settable 0.001s

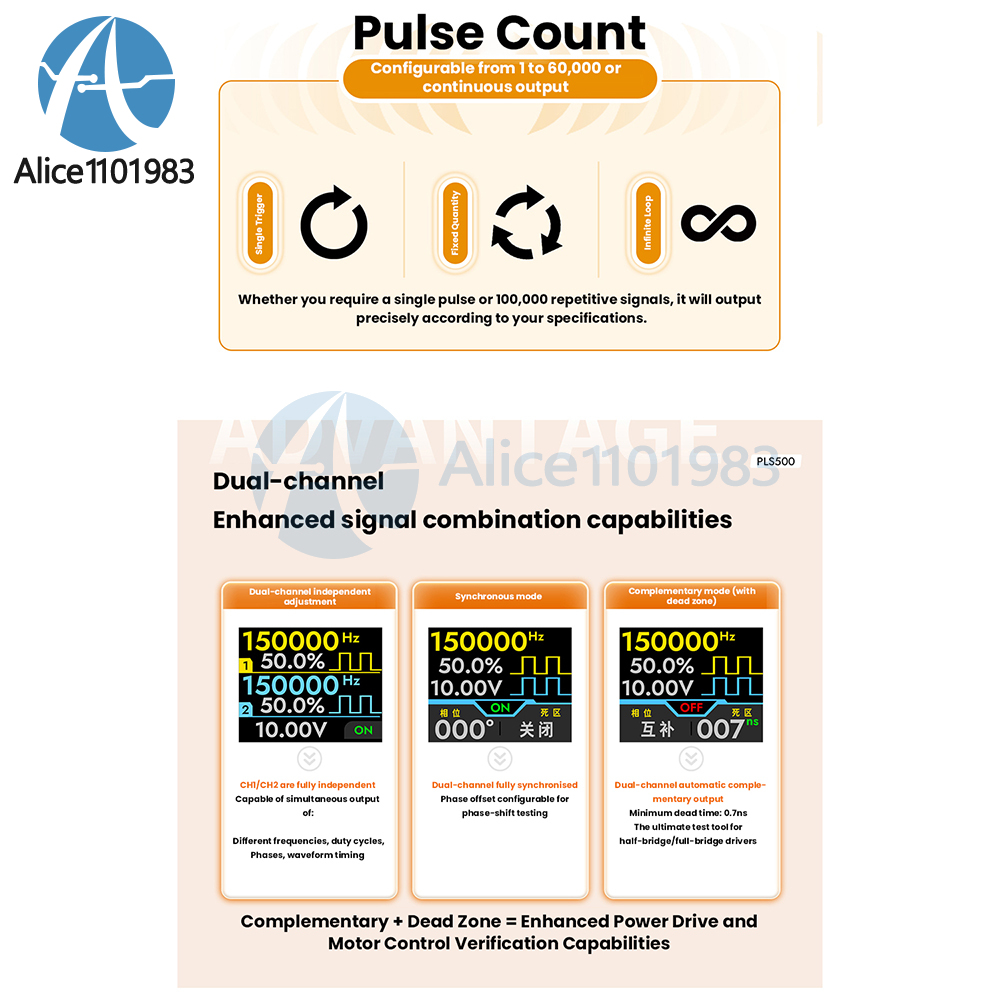

Pulse Count: 1-60000, ∞
Dead Time: 00-91ns (7ns steps); 0.0-20.0μs (0.1μs increments)
PWM Mode: Normal/Complementary (with dead zone)
Operation Mode: Encoder + Buttons
Display: 1.8-inch Color Screen

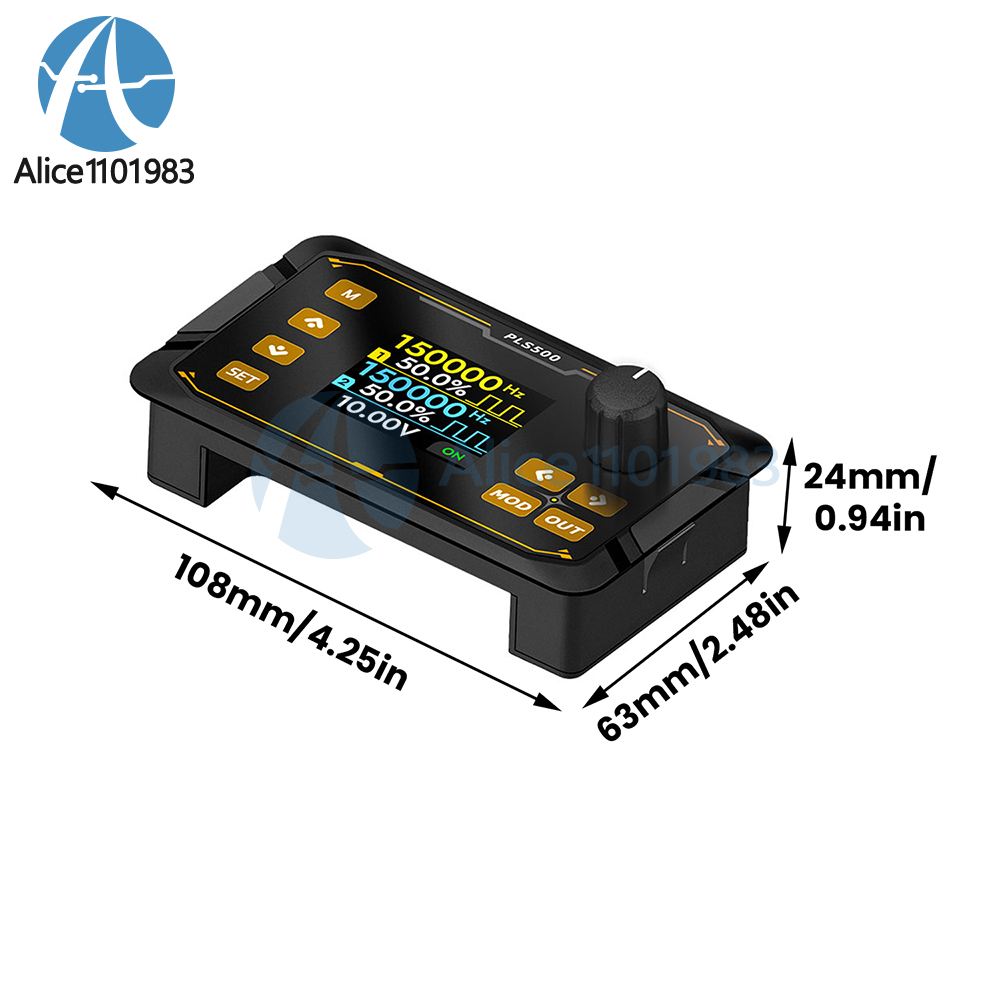

Product Dimensions: 108*63*24mm
Cutout Dimensions: 100*56mm
Package Contents:
Display Meter*1
Manual*1
