DESCRIPTION

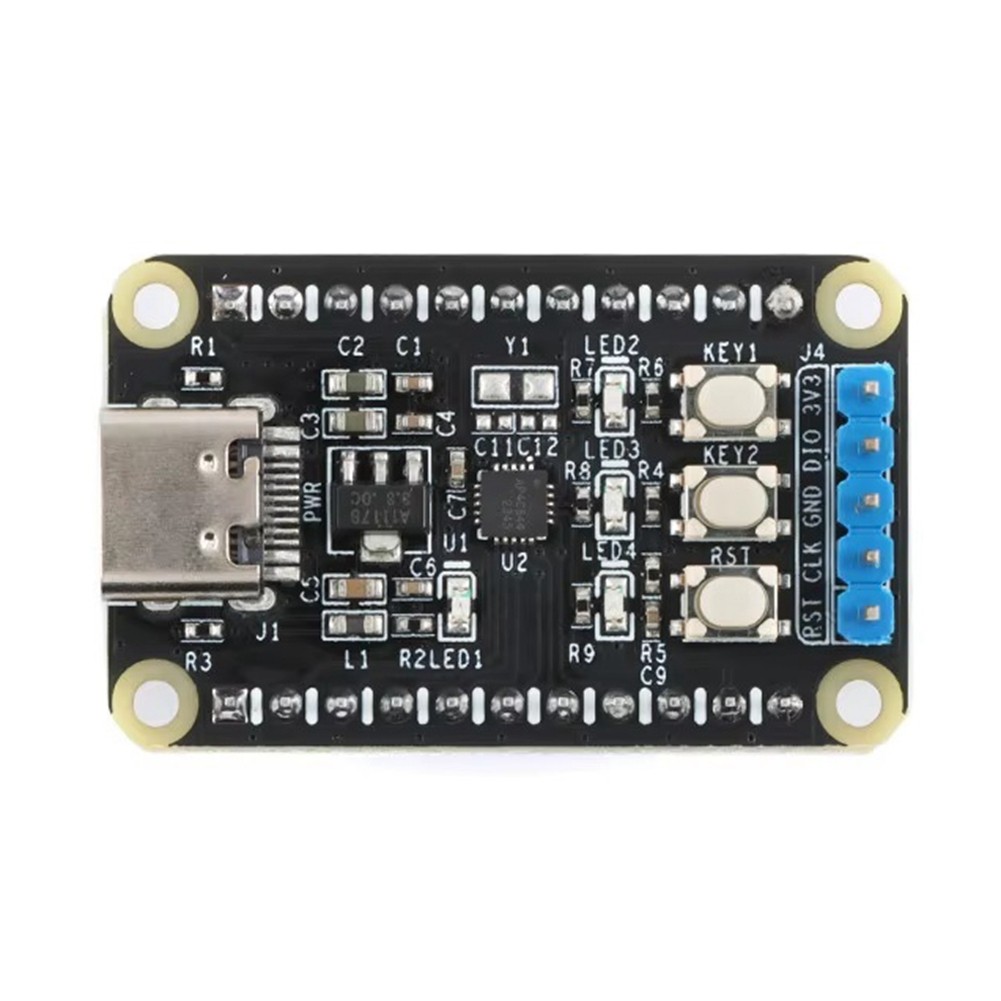

PY32F002BF15U6TR PY32F002B PY32F002 Core Development Board Module 24Mhz6834

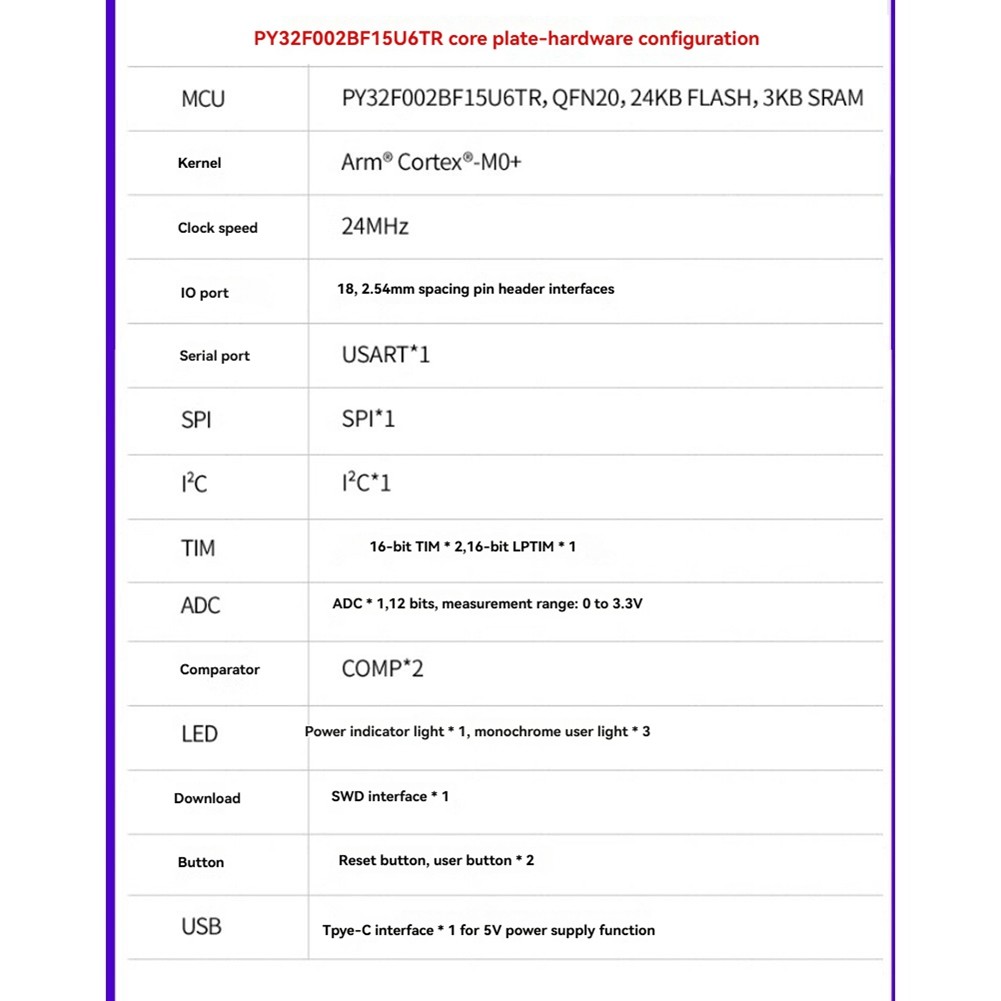

The PY32F002B series microcontroller uses a high-performance 32-bit ARM -M0+ core and a wide voltage operating range MCU.
Embedded with 24 Kbytes Flash and 3 Kbytes memory, the maximum operating frequency is 24 MHz.
The main chip provides sleep/stop low-power working mode to meet different low-power applications.
18 IO ports are led out in the form of pin headers, suitable for DIY design.
The PY32F002B series microcontrollers are suitable for a variety of application scenarios, such as controllers, handheld devices, PC peripherals, games, GPS platforms and industrial applications.
The operating temperature range of the PY32F002B series microcontroller is -40℃~85℃, and the operating voltage range is 1.7V~5.5V.
Suitable objects
1. Beginner users
2. Enterprise engineering for project evaluation
The printing/appearance from batch to batch, but it not affect the use; the actual product may have color difference due to different light or display.
Color: Black
Material: PCB+Plastic+Metal
Package Contents:
1 x Development Board
Embedded with 24 Kbytes Flash and 3 Kbytes memory, the maximum operating frequency is 24 MHz.
The main chip provides sleep/stop low-power working mode to meet different low-power applications.
18 IO ports are led out in the form of pin headers, suitable for DIY design.
The PY32F002B series microcontrollers are suitable for a variety of application scenarios, such as controllers, handheld devices, PC peripherals, games, GPS platforms and industrial applications.
The operating temperature range of the PY32F002B series microcontroller is -40℃~85℃, and the operating voltage range is 1.7V~5.5V.
Suitable objects
1. Beginner users
2. Enterprise engineering for project evaluation
The printing/appearance from batch to batch, but it not affect the use; the actual product may have color difference due to different light or display.
Color: Black
Material: PCB+Plastic+Metal
Package Contents:
1 x Development Board
