Fitment
For Mercedes-Benz R320 2007-2009 3.0L
For Mercedes-Benz R350 2006-2010 3.0L/3.5L
For Mercedes-Benz R500 2006-2008 5.0L
For Mercedes-Benz R63 AMG 2007 6.3L
Air Suspension Installation Guide
1.Pre-installation Preparation
Tools & Accessories
- General repair sockets, wrenches, torque wrench
- Jack, safety stands, tire remover
- Air struts, air pipes, air compressor, air tank, solenoid valves, mounting brackets, sealant, cable ties
Safety Check
- Park the vehicle on flat solid ground, engage parking brake and chock wheels.
- Disconnect vehicle power supply to prevent short circuit.
2.Remove Original Shock Absorbers
- Lift the car with a jack, secure with safety stands, then remove all tires.
- Loosen upper and lower mounting bolts of the original shock absorber in order, then take off the original assembly.
- Clean dust and rust on mounting positions, and inspect suspension parts for damage.
3.Install Main Air Struts
- Align the air strut with original mounting holes, fasten bolts loosely (do not fully tighten yet).
- Adjust the angle and position to ensure no jamming or scraping, then tighten bolts to standard torque with a torque wrench.
- Check the travel range of the air spring to ensure enough operating space.
4.Lay Air Piping
- Plan the route of air pipes, keep away from high-temperature parts, sharp edges and moving components.
- Cut air pipes to proper length, connect strut air ports, solenoid valves, air tank and compressor. Apply sealant on joints to prevent air leakage.
- Fix pipes neatly with cable ties, reserve extra length for vehicle lifting and lowering.
5.Install Electric Control & Air Supply System
- Mount the air compressor, air tank and solenoid valve set in the trunk or vacant undercarriage area.
- Connect power wires, control wires and control panel per wiring instructions, wrap all wires for waterproofing.
- Firmly connect ground wire to vehicle metal body for stable conduction.
6.Debug & Air Leak Test
- Switch on power, start the compressor to inflate the system. Check if all air struts lift and lower synchronously and smoothly.
- Apply soapy water on all pipe joints and air ports to find air leaks, then re-seal defective positions.
- Lift and lower the vehicle repeatedly, test all height levels to verify normal operation.
7.Final Restoration
- Reinstall tires, remove safety stands and jack, then lower the vehicle to the ground.
- Double-check all bolts, pipes and wires, and clean the working area.
- Take a short test drive. The installation is finished if there is no abnormal noise or air leakage.
Important Safety Tips
- Please confirm compatibility and the original part number before purchasing.
- Installation instructions not included.Self-installation is not recommended for non-professionals. Improper operation may cause suspension failure and driving hazards.Professional installation is recommended.
- Regularly inspect air tightness and wire aging to ensure driving safety.
- Do not drive for a long time with the vehicle at extreme height or low height.
| Item Specifics | |
|---|---|
| Brand | everpartstorecs |
| Manufacturer Part Number | 13968916 |
| Manufacturer Warranty | 1 Year |
| Placement on Vehicle | Rear Left Right |

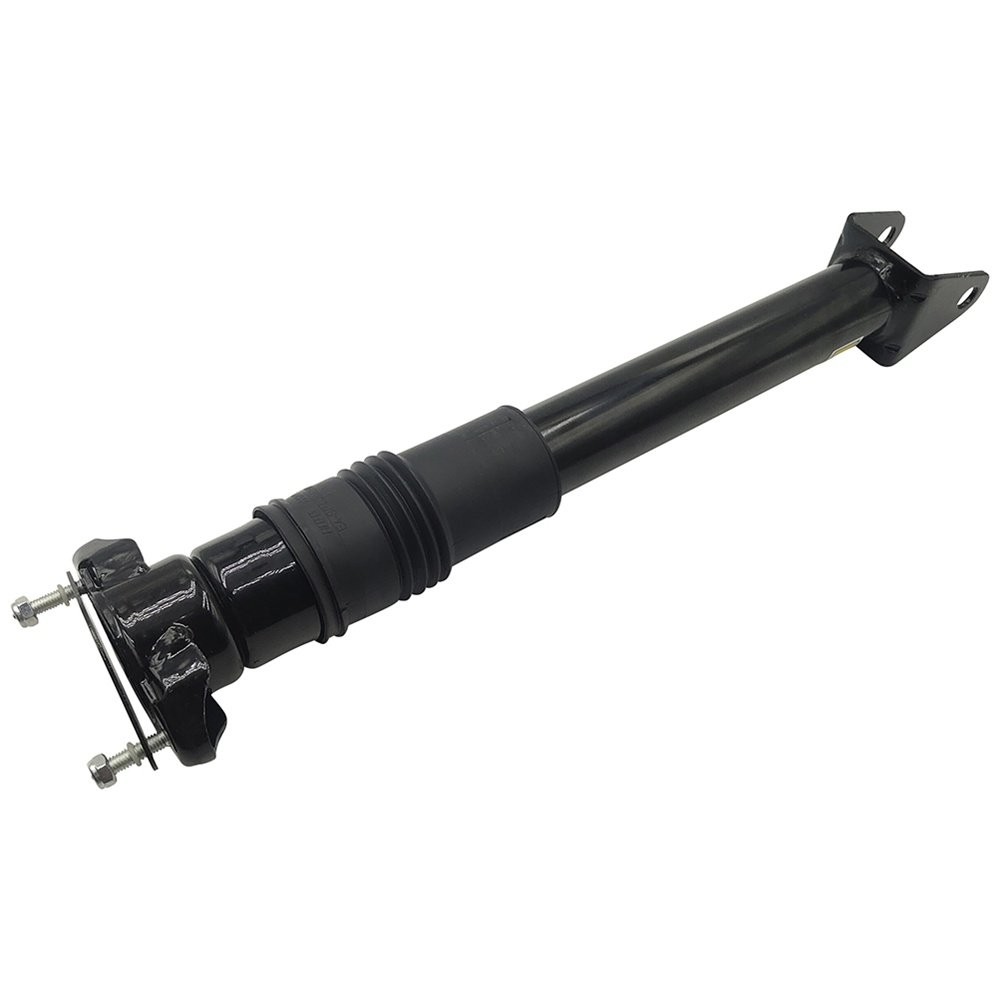

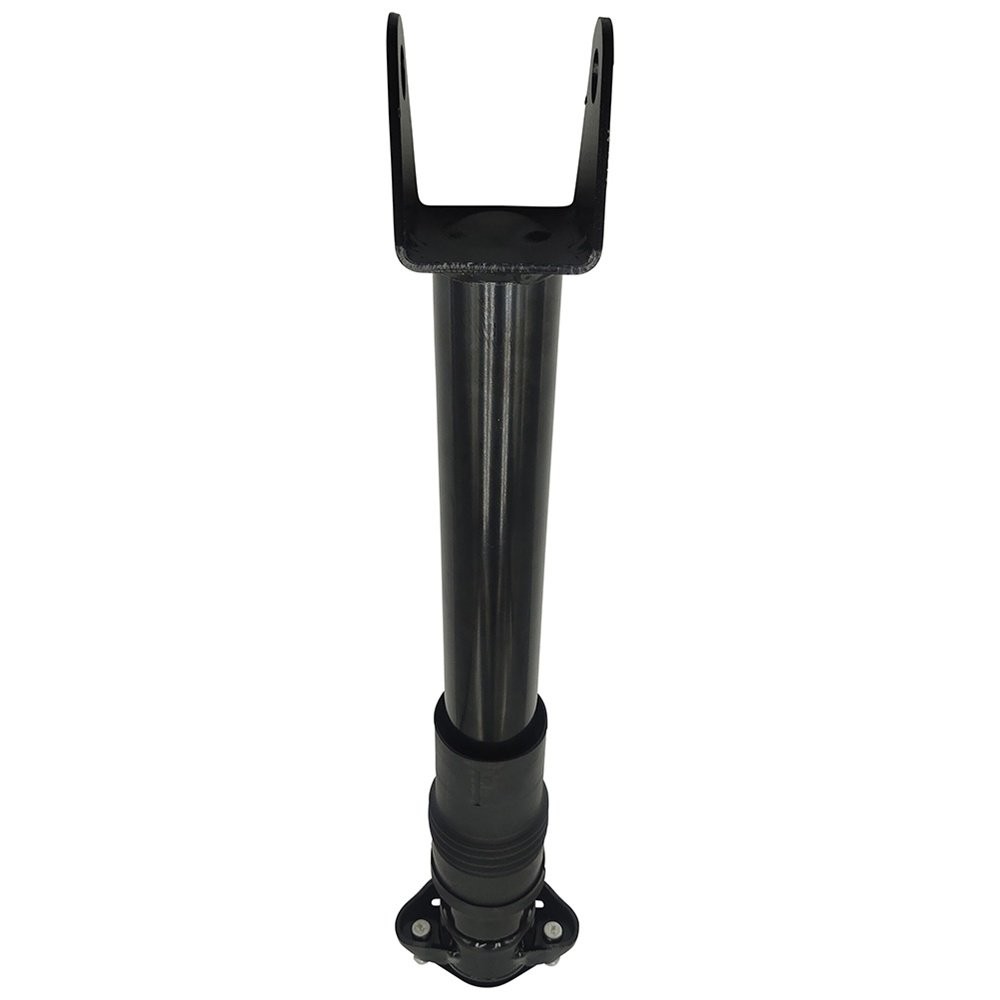

| Type | Air Suspension Shock Strut |
| Quantity | 2 |
| Material | Iron, Aluminium Alloy, Rubber |
| Fitment Type | Direct Replacement |
| Items Included | Air Suspension Shock Strut |
| Mounting Style | Screw-On |
| OE Spec or Performance/Custom | OE Spec |
| Custom Bundle | Yes |
| Features | Sealed |
| Modified Item | No |
| Adjustable | Yes |
| Performance Part | Yes |
| Universal Fitment | No |
| Vintage Car Part | No |
| Surface Finish | Rust Protected |
| Greasable or Sealed | Sealed |
| Interchange Part Number | 2513200631,2513201431,2513201931 |
| OE/OEM Part Number | 2513201031,2513201531,2513201831,2513202231 |
| Superseded Part Number | 2513202931, 2513203031, 2513200931 |
| Single Weight(KG) | 9 |
| Size | Single Dimension(CM) 60(Length)*17(Width)*14(Height) |
| Drive Layout | RWD/4WD |
| Platform | W251 |
| Maximum Operating Pressure (psi) | 160 |
| Minimum Operating Pressure (psi) | 90 |
