?Compatibility Chart

1, You can distinguish specific model of an automobile by VIN(Vehicle Identification Number).

2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits.

3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).

2008-2010 Mitsubishi Lancer

?OEM Part Number

72399

341444

?Installation Guideline


Step 1: Before you lift the vehicle, loosen lug nuts one full turn.

Step 2: Jack up vehicle and use jack stands for safety & remove the tire from the rotor.

Step 3: (Wheel alignment is necessary after strut replacement.) Marking the position of all the bolts will help

keep the alignment close to original and save time aligning. Use a colored pencil to mark the old strut on the bolt.

Step 4: Use penetrating oil (such as WD40) to coat any rusted fasteners, let soak for approximately 1 hour.

Step 5: (Optional) While waiting for oil to soak, take this time to inspect all other components that may need

replacement (brake pads, rotors, brake hoses, ball joints, CV boots, tie rod ends, bushings, sway bars, etc).

Step 6: Remove any brake line or wire attachments from the strut body. Do not disconnect brake lines (if possible)!

Opening brake lines will require bleeding of the brake system.

Use extreme caution when removing brake lines from your struts, as any damage to your brake line can result in

expensive and time consuming repairs.

Step 7: Remove sway bar attached to the strut assembly or control arm.

Step 8: Remove the tie rod (only if it attached to the body of the strut, if not leave it attached to the steering knuckle).

Step 9: Remove the strut to knuckle bolts at the bottom of the strut. On some vehicles, the brake caliper and rotor

may need to be removed to gain access.

Step 10: Remove the upper mounting plate bolts located in the engine or trunk compartment. Do not remove the

center retaining nut! It is not safe to unload the spring from the assembly in this position.

Step 11: Carefully remove the old strut assembly from the vehicle. Be very cautious not to let the strut "drop" down

on your brake line, rotor or drum.

Step 12: Install the new Complete Strut Assembly in the reverse order as above (steps 11-6). Using an anti-seize

compound on all fasteners is suggested.

Step 13: Carefully double check your work and make sure everything is tightened to manufacturers torque specifications.

Step 14: Replace the tire the rotor and tighten to manufacturers torque specifications.

Step 15: Slowly lower the vehicle down after removing the jack stands. Pay very close attention to any odd sounds

when the vehicle is lowered onto the new Complete Strut Assemblies.

Step 16: It is very important that you immediately "road test" your vehicle right away to ensure that installation was done properly.

Listen and feel for common signs of incorrect installation while driving slowly over speed bumps, rough road or potholes.

?Removal Guideline

Installation is in reverse order of Struts Shocks removal.

?Features and Benefits

• Hardened Rods & NOK Seals;
• Precision Robotic Welding;
• Top Factory Certifications;
• Premium Powder-Coated Finish;
• Damper Engineered for Each Vehicle Application's
• OE or Better Performance Level

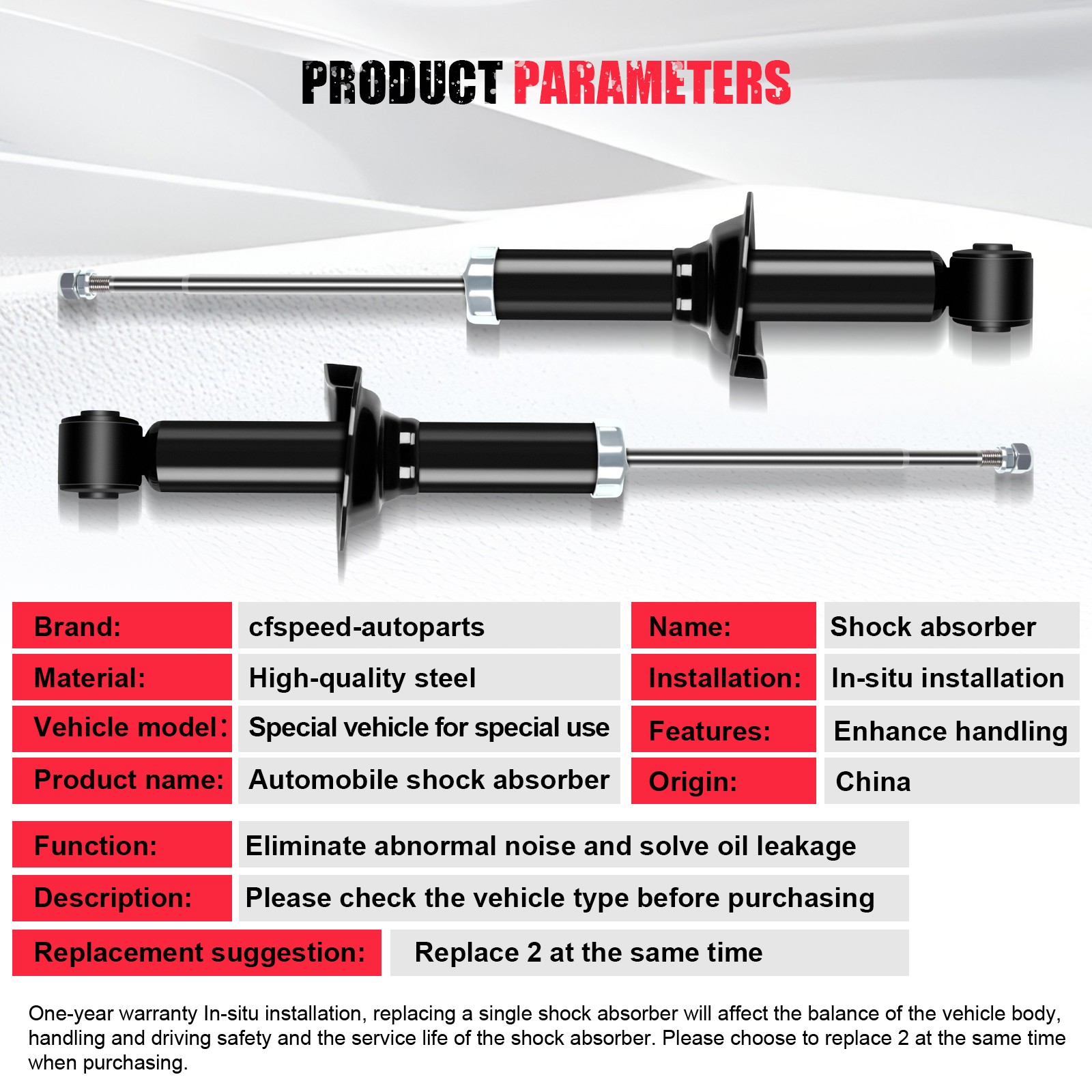

?Item Specifications

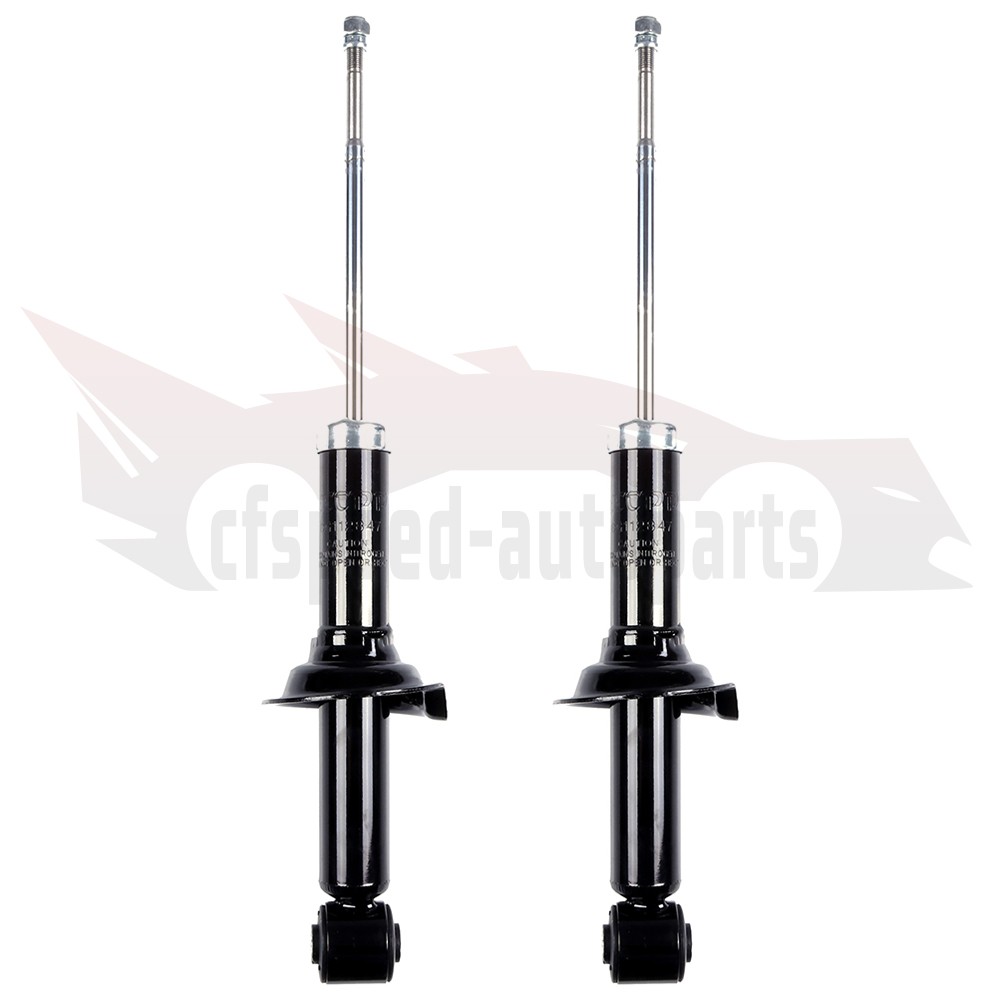

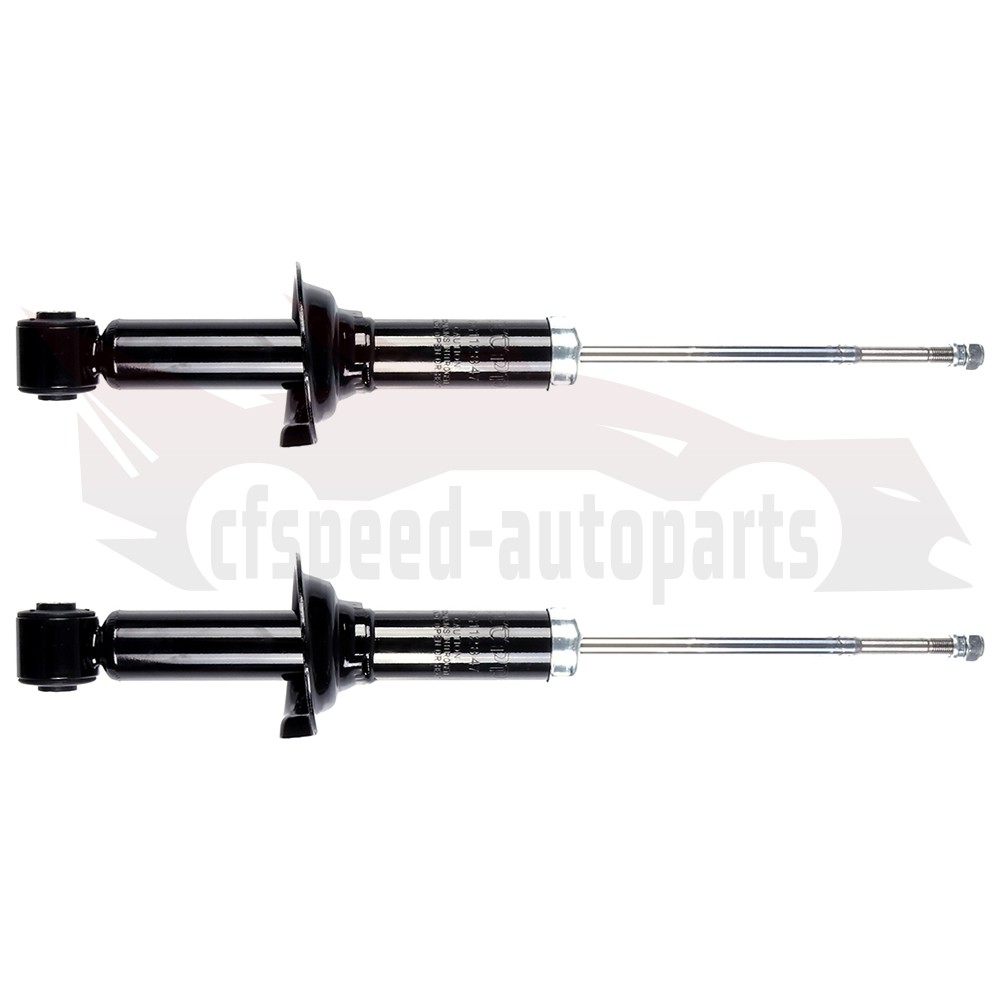

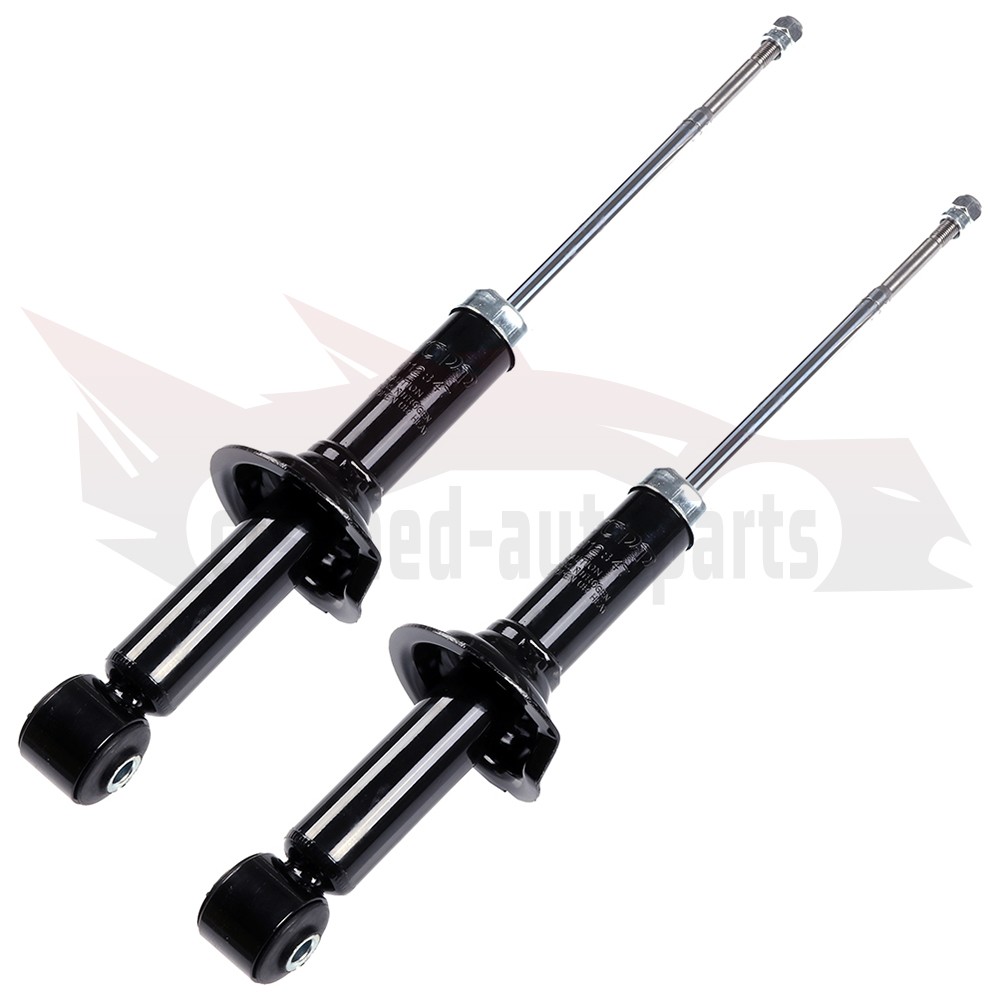

1. Key Words:Pair Rear Left and Right Shocks Struts For 2008-2010 Mitsubishi Lancer Evolution
2. Package Includes: Pair for Rear Left and Right Struts Shocks

Notes: Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.

• The struts/shocks are nitrogen gas charged and tuned for each specific vehicle application.
• They will greatly improve the ride, handling,and safety of your vehicle!
