ParkSafe PSC33 Ford Transit 2014+ Brake Light Rear View Reversing Camera AHD
Tailgate version
Condition: Brand New.
Designed to fit Ford Transit Vans 2014 onwards that have the factory fitted rear roof brake light.

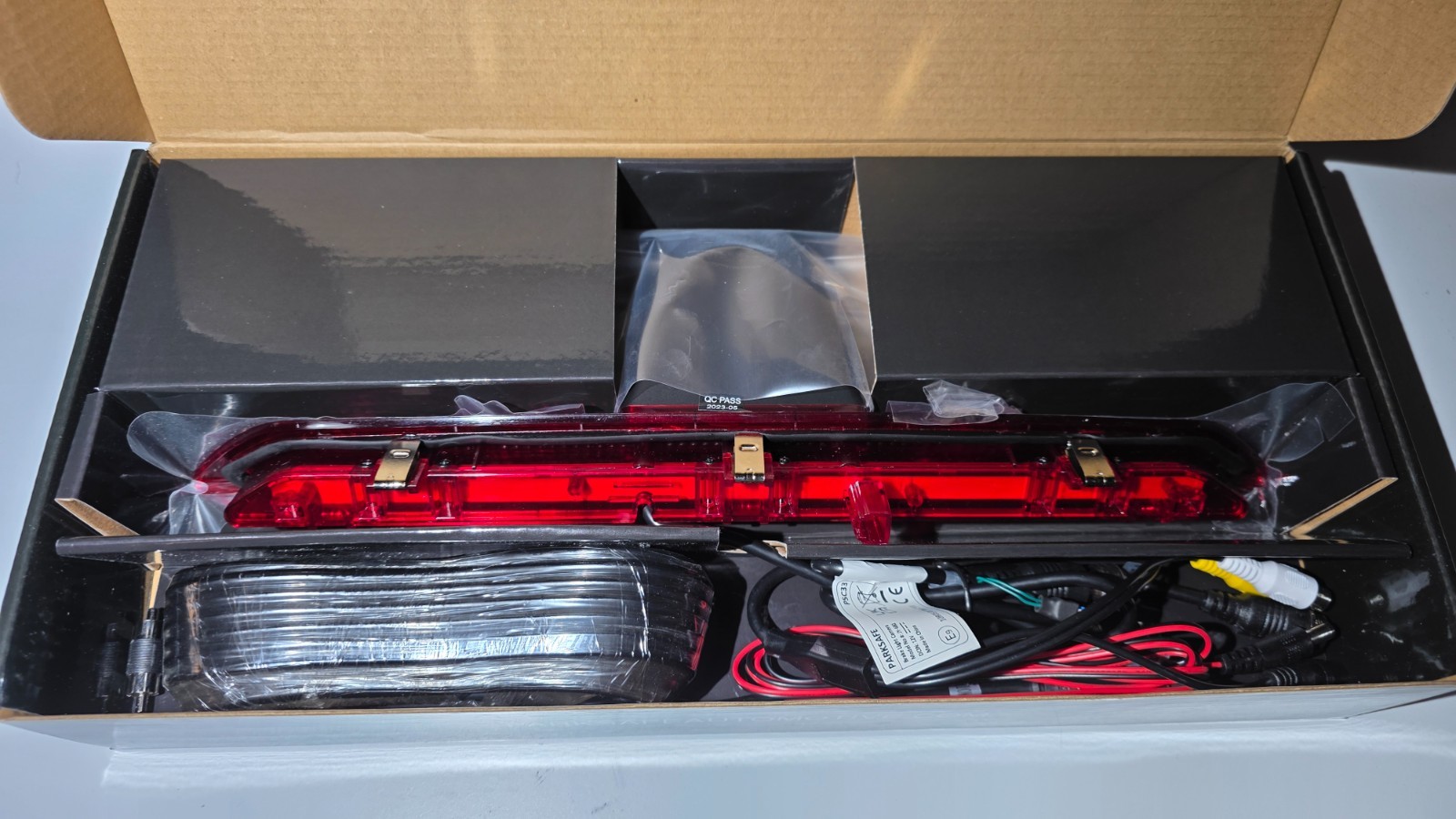

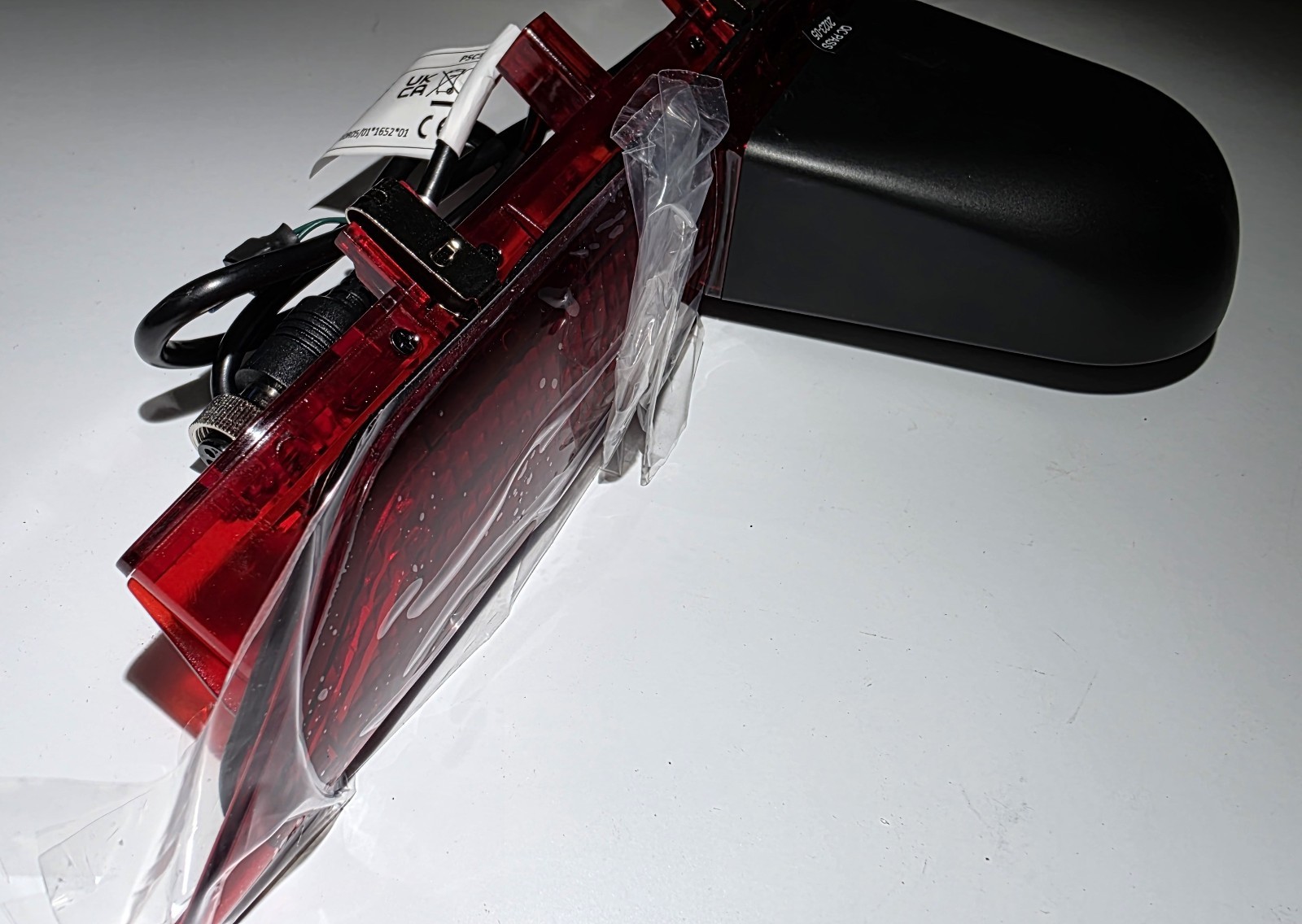

Complete outer lens brake light with integrated reverse camera. Simply unscrew original outer brake light
housing and replace with this combined unit.
Description:
Transit High Level Brake Light Camera > 27/01/2014 Onwards
Replaces Ford Part Number 1899968
SKU PSC33
Specification:- Image Type – 1/3” Colour CMOS
- Night vision With IR lamp, 6 LED's
- TV System – PAL/NTSC with Switchable
- Lens Angle (Deg.) – 130 degree
- IP Rating – IP68
- Vibration Rate – 10G
- Connector 4P BMW to 4P lock connector
- Resolution: 976 H x 592 V
- Effective Pixels N: 510×492 pixels P: 500×582 pixels
- Horizontal Resolution 700TVL
- White Balance Auto White Balance (Auto)
- B.L.C Back light Compensation (Auto)
- Minimum Illumination 0Lux (LED ON)
- S/N Ratio 48dB
- Electronic Shutter 1/60~1/100,000 Sec
- Power consumption <3W / 0.8A
- Built-in Lens f: 2.8mm
- Power Consumption DC 12V (+/-10%)
- Operation Temperature -30℃~+70℃.RH95% Max
- Storage Temperature -40℃~+80℃.RH95% Max

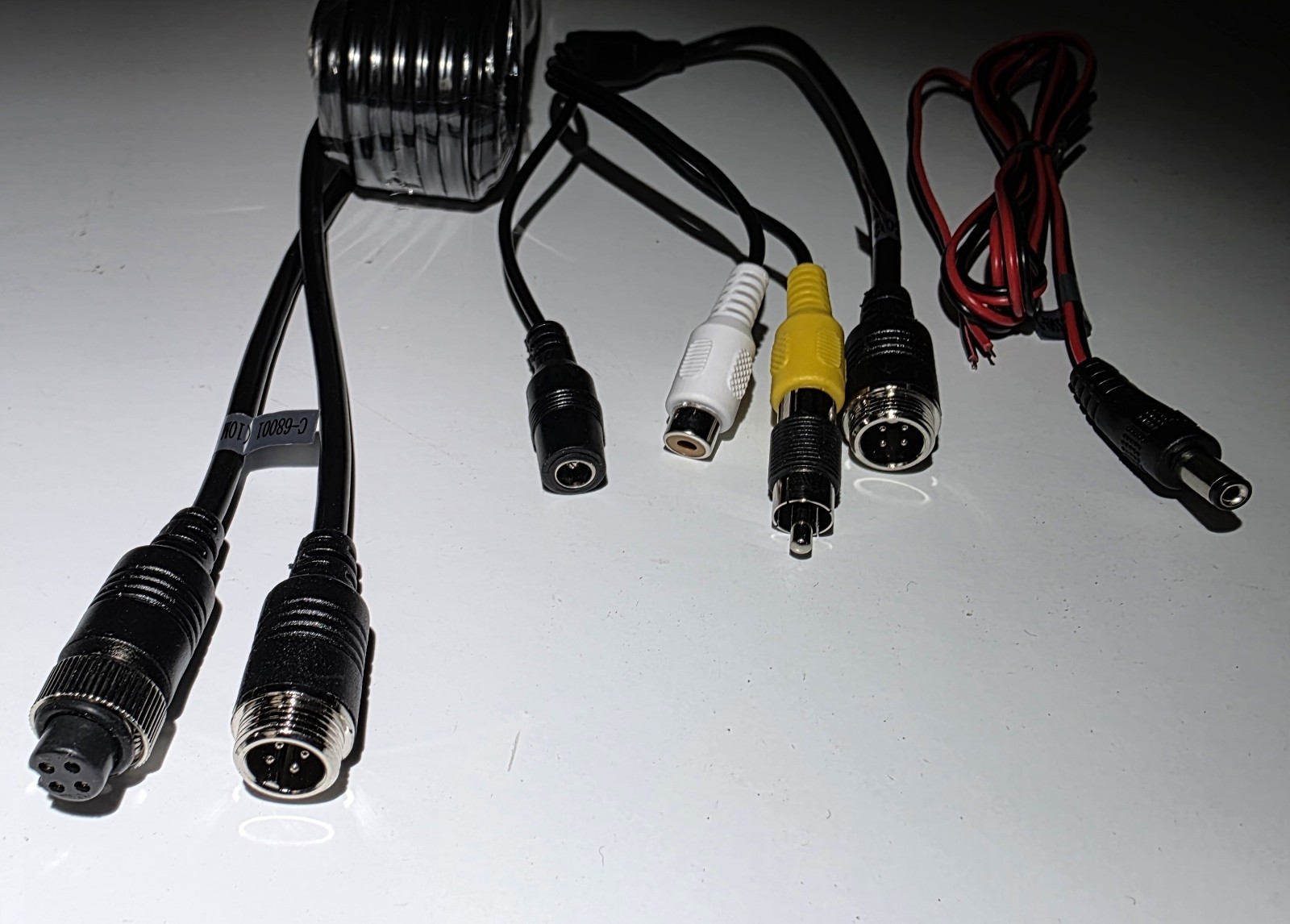

- 4 Pin connector 10m cable
Certificates: FCC, CE, E-mark, ISO9001, TS16984 & RoHS
Compatible car:
- Compatible car: Ford Transit Tail gate 2014 - present day
- Ford Transit Custom 2012 - present day (Tail Gate up and over door)
Next day dispatch via Royal Mail 48H tracked.
