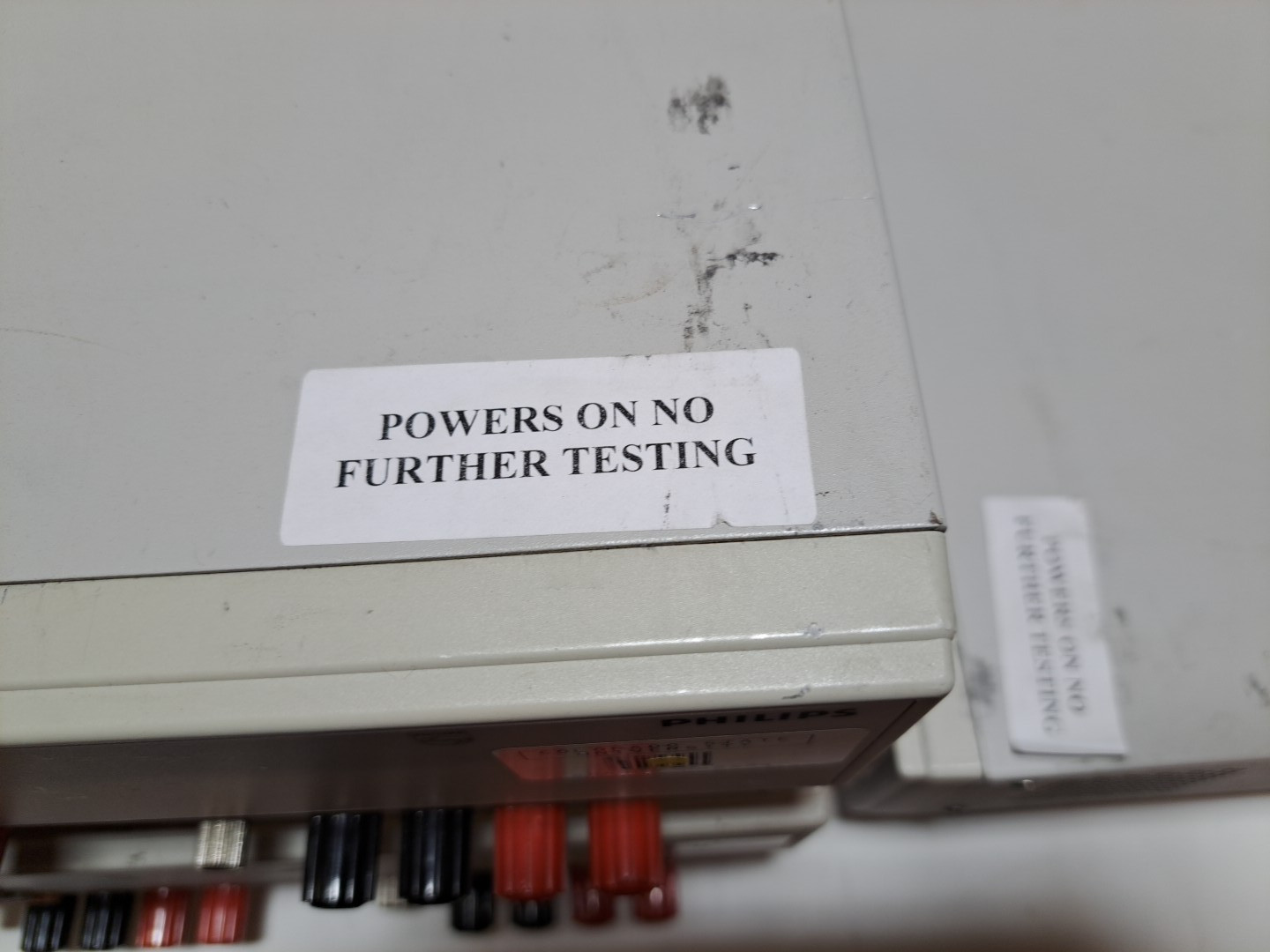

This unit came from a large university environment. It is understood to be in working condition unless otherwise specified.

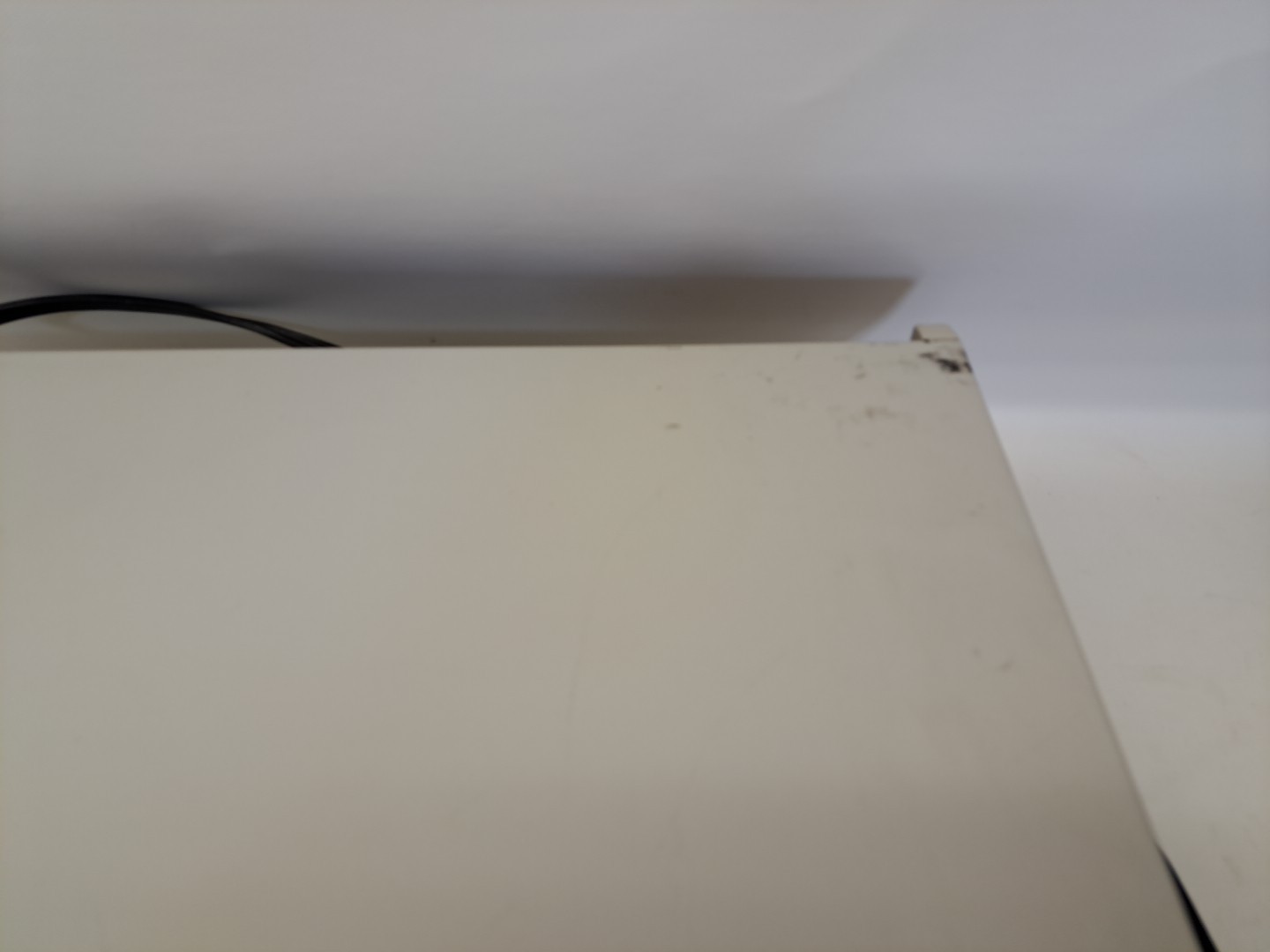

Please see pictures for condition and details.
Shipping disclosure : No free shipping to Alaska, Hawaii, or any US territories.
ZP543
Additional AI information:

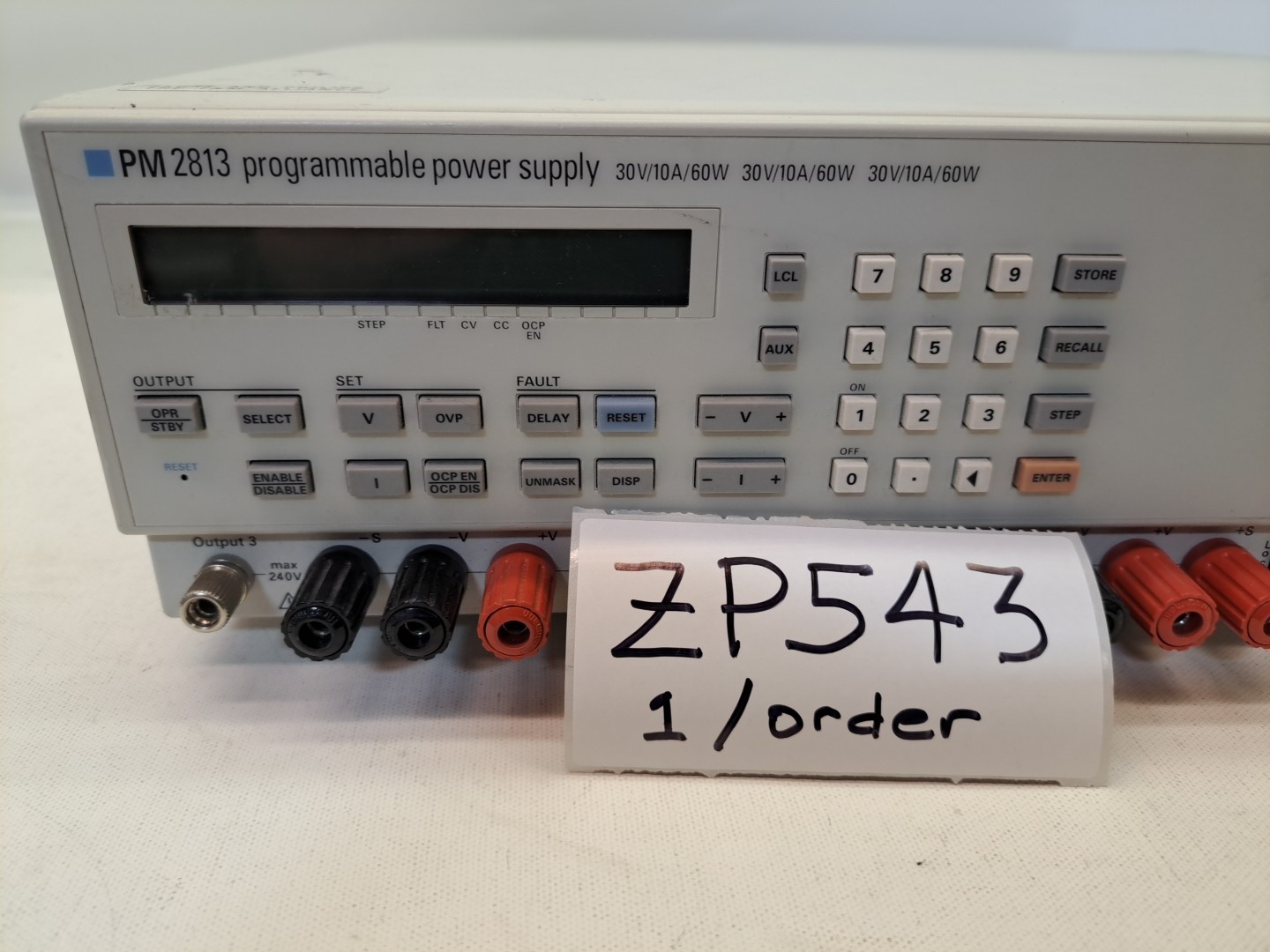

The Philips PM2813 is a high-performance, programmable Triple Output DC Power Supply designed for automated testing and laboratory applications.

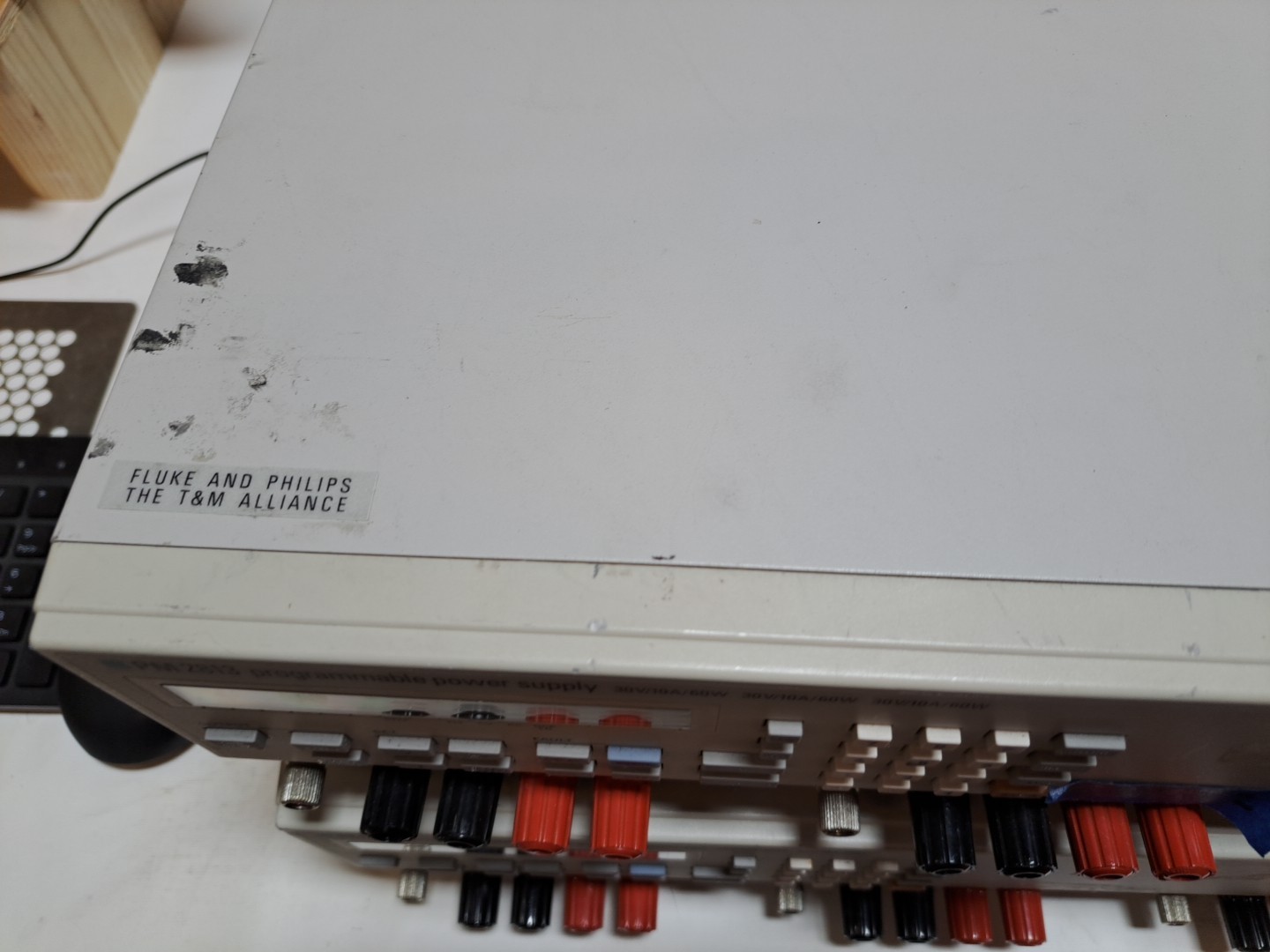

The PM2813 model was manufactured by Philips Test & Measurement, which was later acquired by Fluke Corporation, so you may find it labeled under either brand.
Power Supply Specifications
The PM2813 is an autoranging power supply which allows it to maintain a constant power output across a wide range of voltage and current settings.
Characteristic
Detail
Manufacturer
Philips (or Fluke/Philips)
Model
PM2813
Product Type
Programmable DC Power Supply
Number of Outputs
Triple Output (3 independent, isolated channels)
Output Type
Autoranging Constant Voltage (CV) / Constant Current (CC)
Maximum Power
180 Watts} total (typically 3 x 60 W)
Typical Output (Per Channel)
0 to 60 V / 0 to 5 A / 60 W
Programming/Resolution
High resolution (12-bit programming), excellent accuracy
Features
Over-Voltage Protection (OVP), Over-Current Protection (OCP), Sense Lines (Remote Sensing), Coupled Protection (outputs turn off on error), Built-in metering (Readback).
Interface
GPIB/IEEE-488 Interface (for automated test systems)
Special Mode
AUTOSTEP mode allows creation of automated voltage/current sequences without an external controller.
Key Features and Application
Triple Output: The three independent channels allow for simultaneous testing of circuits requiring multiple voltage rails (e.g., analog, digital, and peripheral circuits).
Programmability (GPIB/IEEE-488): This is a key feature, enabling the unit to be controlled remotely by a computer, making it suitable for automated testing, data logging, and production environments.
Autoranging: The 60 W output per channel can be delivered in various V/I combinations (e.g., 60 V / 1 A or 12 V / 5 A), maximizing flexibility compared to fixed-range supplies.

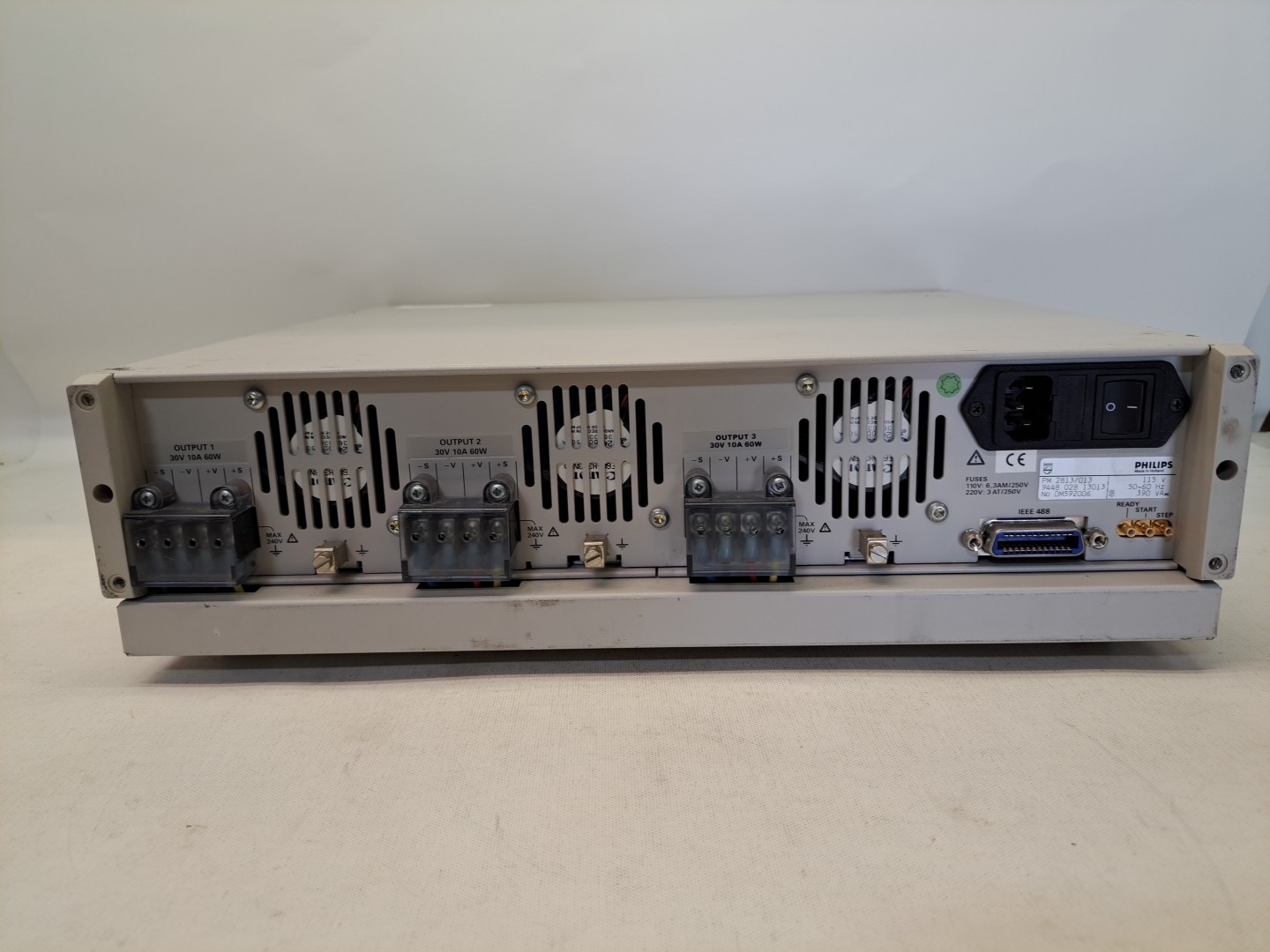

Remote Sensing: The unit includes separate sense lines to connect directly to the load, compensating for voltage drop across the output leads for highly accurate voltage delivery.
Country of Manufacture
Philips Test & Measurement was headquartered in the Netherlands. The PM2813 series was typically manufactured in Europe. After the acquisition, manufacturing shifted to Fluke facilities, often located in the United States or other global sites.
