Specification：
Input
Type: RCA stereo connectors
Impedance: approx. 47K ohm
Max. input level: -30 dBu @ 1kHz
Output
Type: RCA stereo connectors, 3.5mm stereo connector
Impedance: approx. 100 ohm
Max. output level: +10 dBu @ 1 kHz
System Specifications
Frequency response: RIAA
THD: 0.06% typ. @ -40 dBu/1 kHz
Gain: 40 dB
Signal-to-noise ratio: 68 dBu @ 0 dBu, A-weighted
Input sensitivity: 5.3mV1kHz.
Power Supply
Mains connection: external power supply, 12 V / 1000 mA
Note:
1.In case the volume level of the signal source is set too high, the product may produce distortion!
2.The product only supports phono input, using other devices will cause noise at high volume due to excessive input.
3. If there is a humming sound when using the product, please connect the earth wire from the turntable to the product, or replace it with a better quality shielded RCA cable.
4. The product will convert the phono audio signal to normal audio, so the rear device needs to be plugged into AUDIO IN instead of PHONO IN.
Package includes:
1 x Phono Preamp
1 x Power Adapter
1 x User Manual

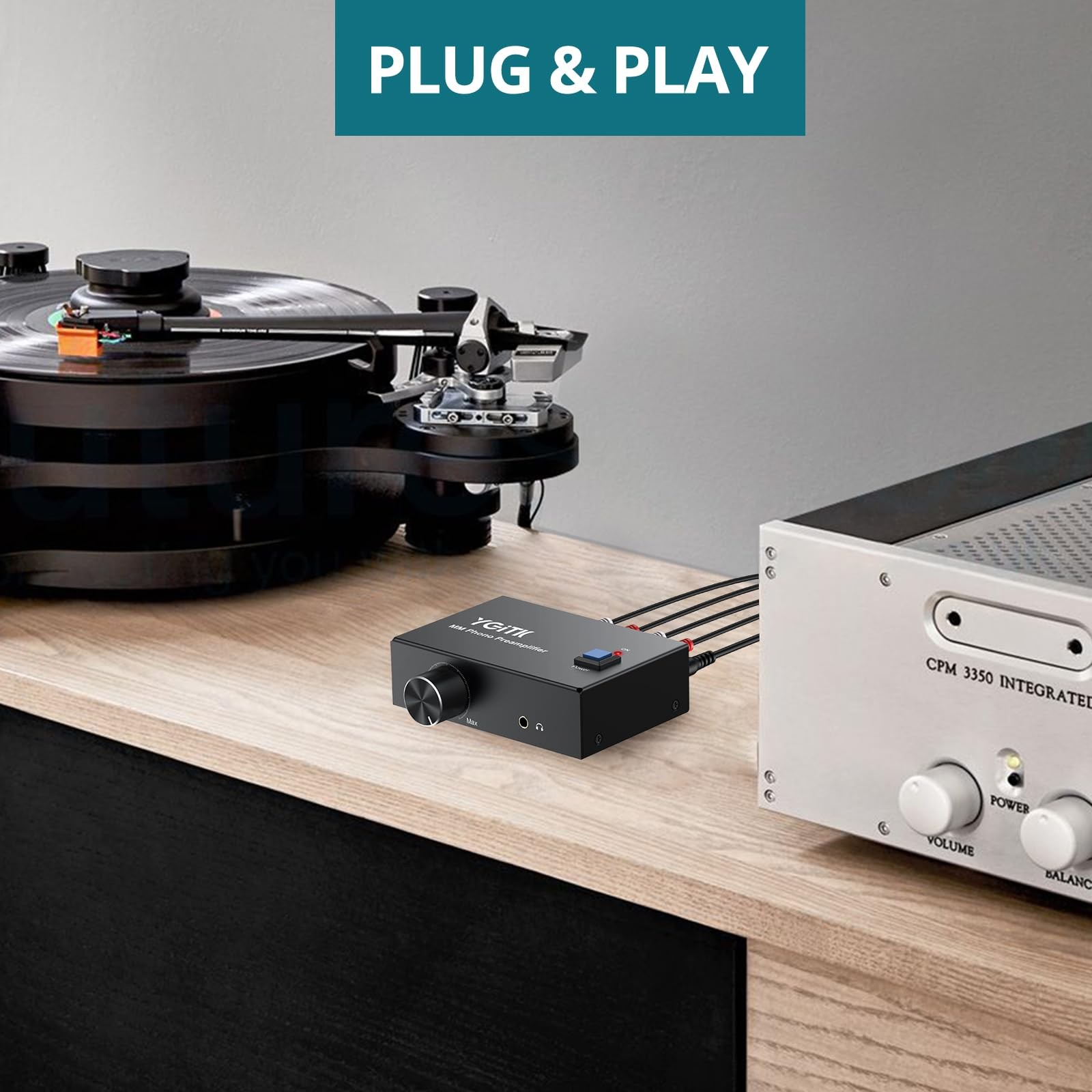

【Phono Preamp for Turntable】 Ideal for record players. Transmits and amplifies music to stereo systems and headphones. Offers simultaneous outputs to RCA and 3.5mm jack.

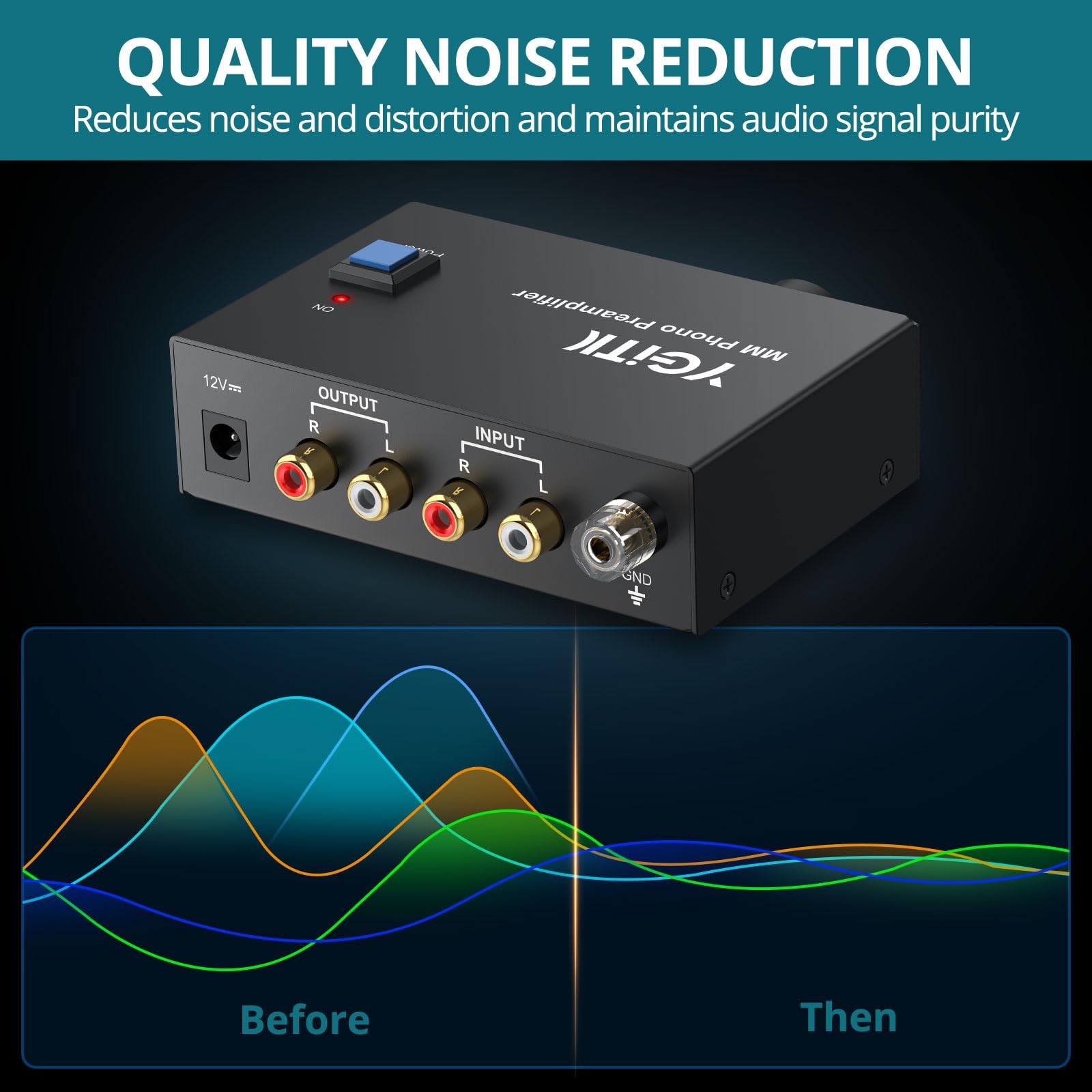

【Low-Noise Operation】 Our phono preamp features a low-noise audio operational amplifier for outstanding performance. Delivers a maximum of 2V (PP) when the output is 10K ohms. For optimal results, place the preamplifier close to the source to minimize unwanted noise and interference.
【Powerful Amplification】 The amplifier boasts an impressive maximum gain of 40dB. This professional device fully amplifies the sound of your turntable, delivering a rich and immersive audio experience.
【Independent Switch Design】 Designed with practicality in mind, this phono preamplifier features a more compact size. It comes with an additional ON/OFF button and volume control, making it not only easier to use but also highly portable.
【Solidly Built】 This phono amplifier is constructed with a solid structure, featuring a metallic case and gold-plated interfaces for durability and premium performance. The four bottom corners of the preamplifier are equipped with anti-skid pads, ensuring stability and preventing scratches on your furniture.
