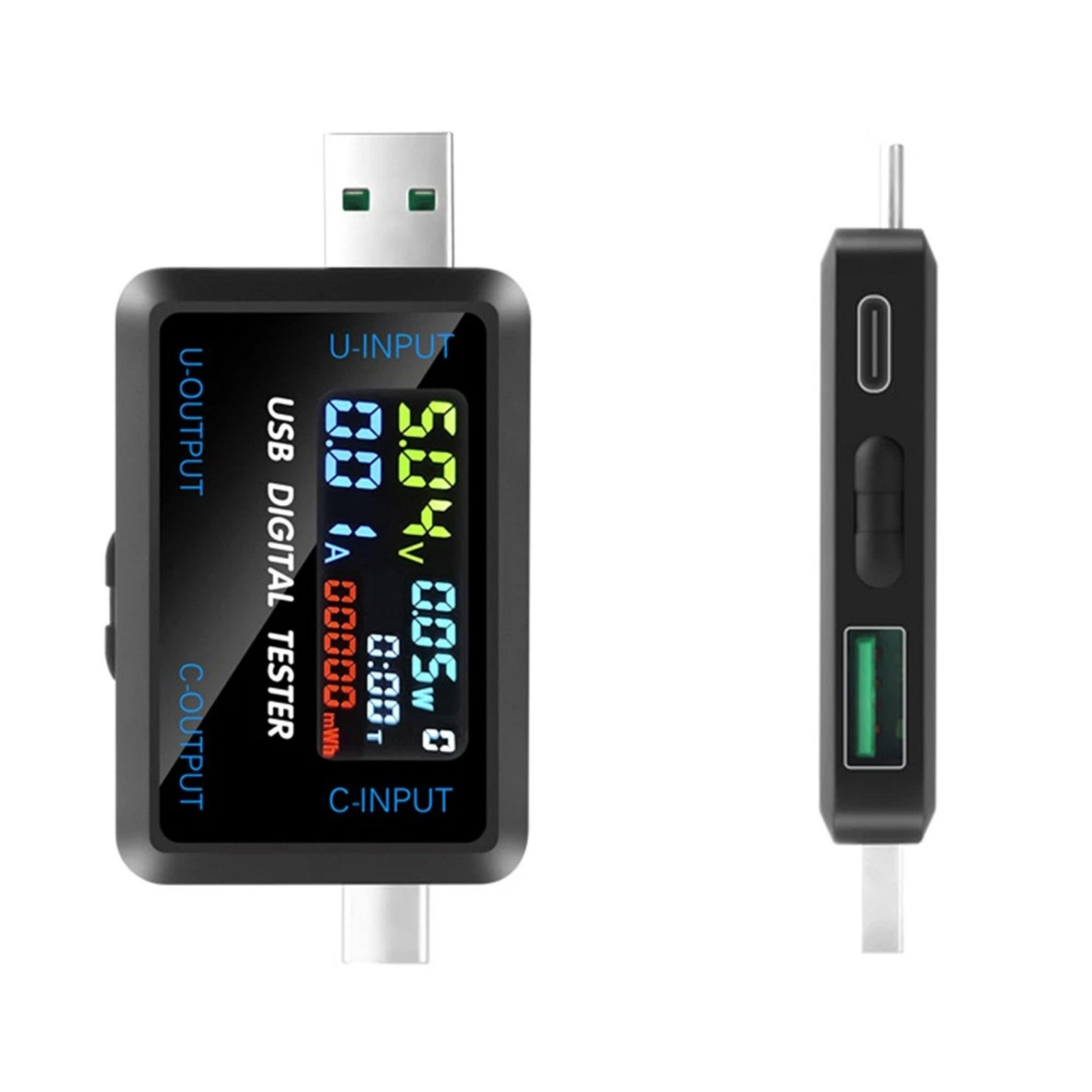

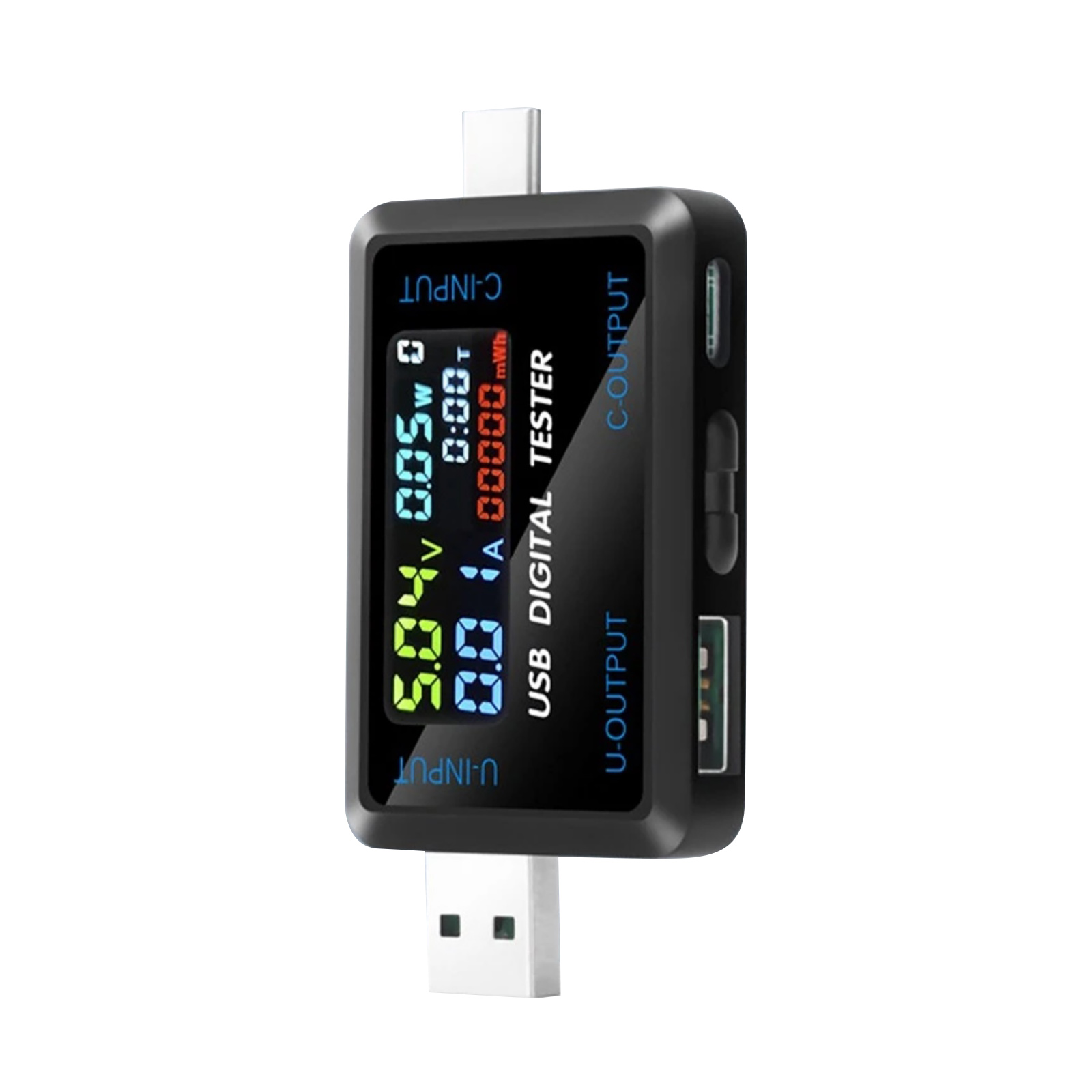

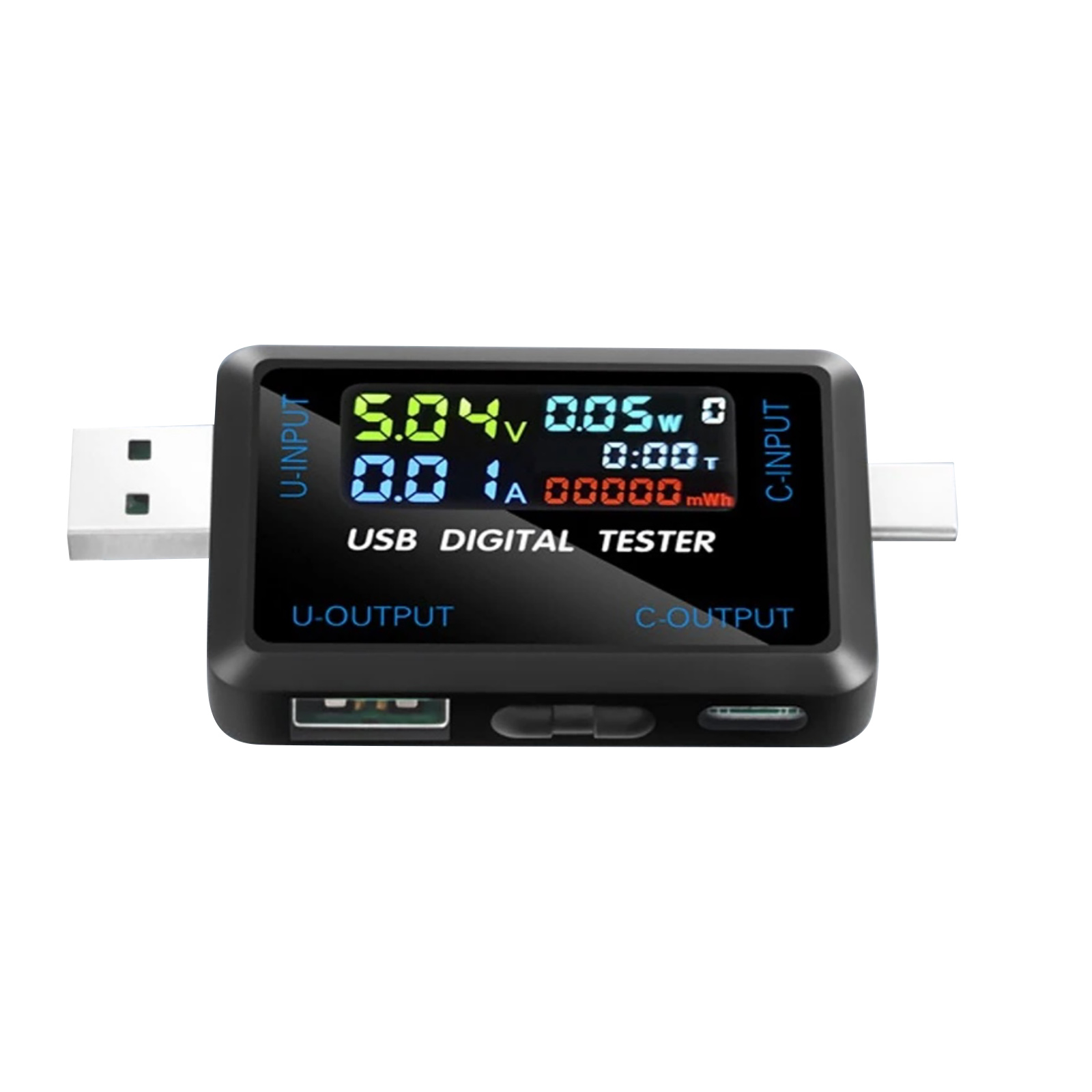

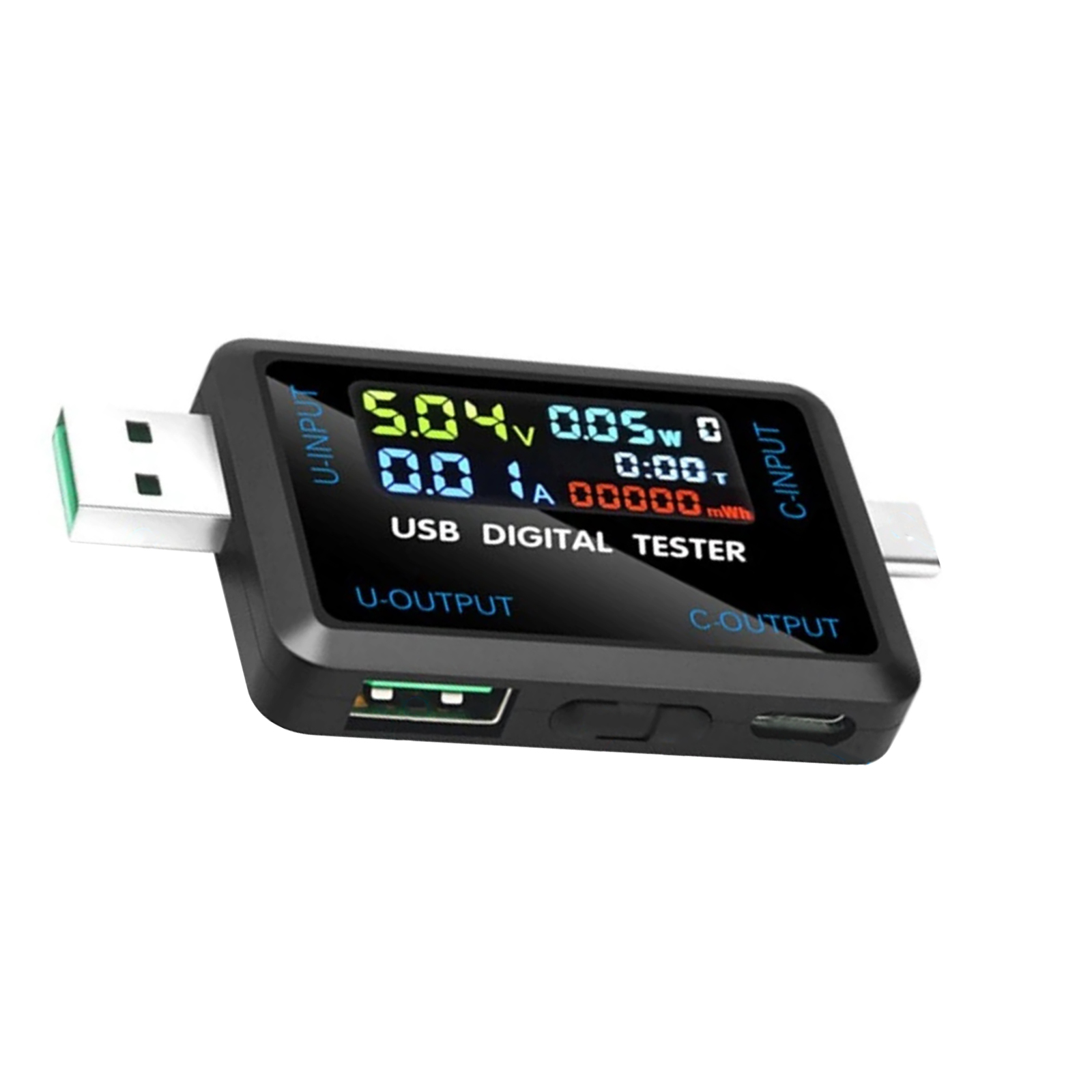

Portable USB C Voltmeter Current Meter Tester for Power Bank Charger Cable Test

Feature:
Multiple parameters such as current, voltage, power, electricity, capacity, resistance, timing time, number of capacity groups, Celsius, Fahrenheit, quick identification, etc. are displayed on one screen.

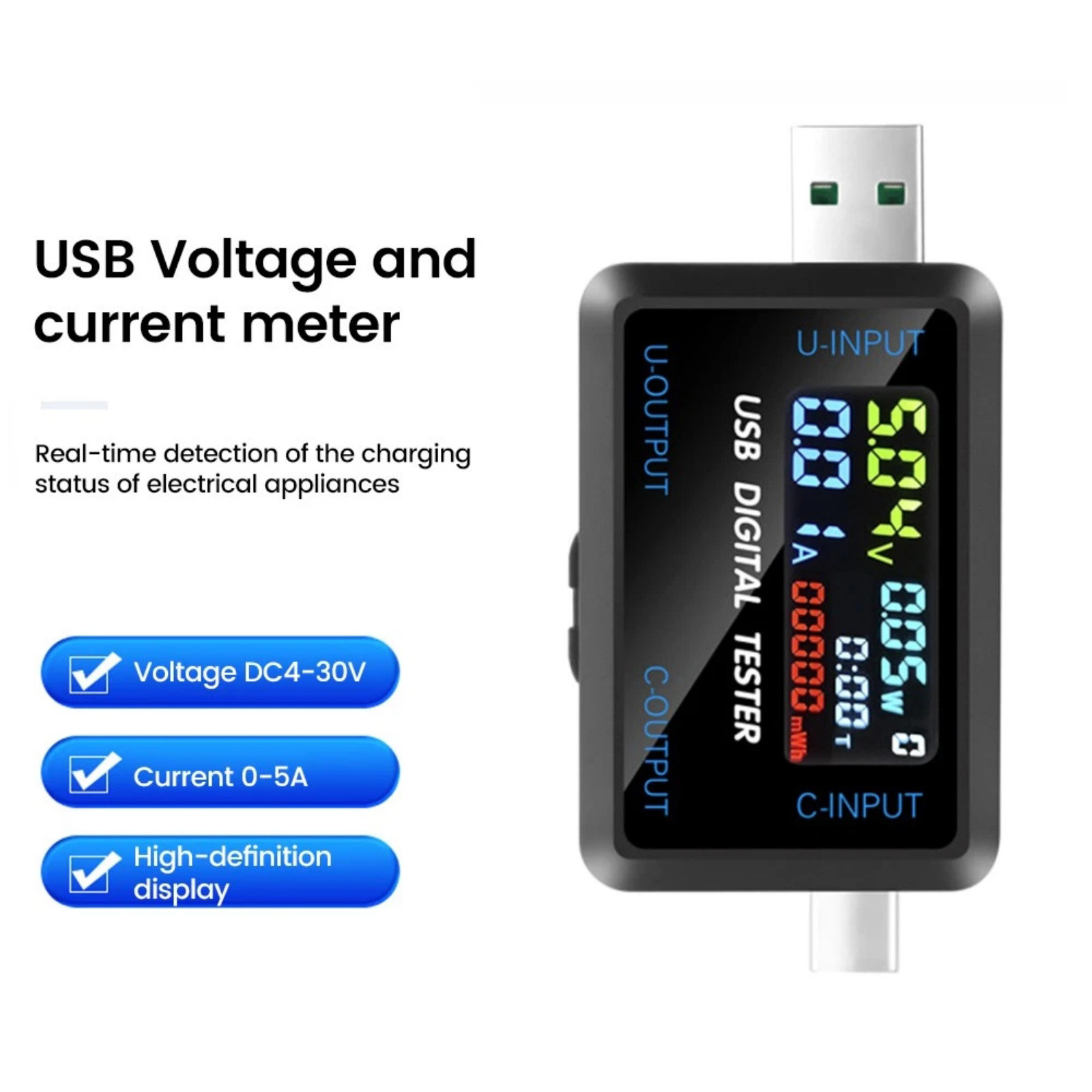

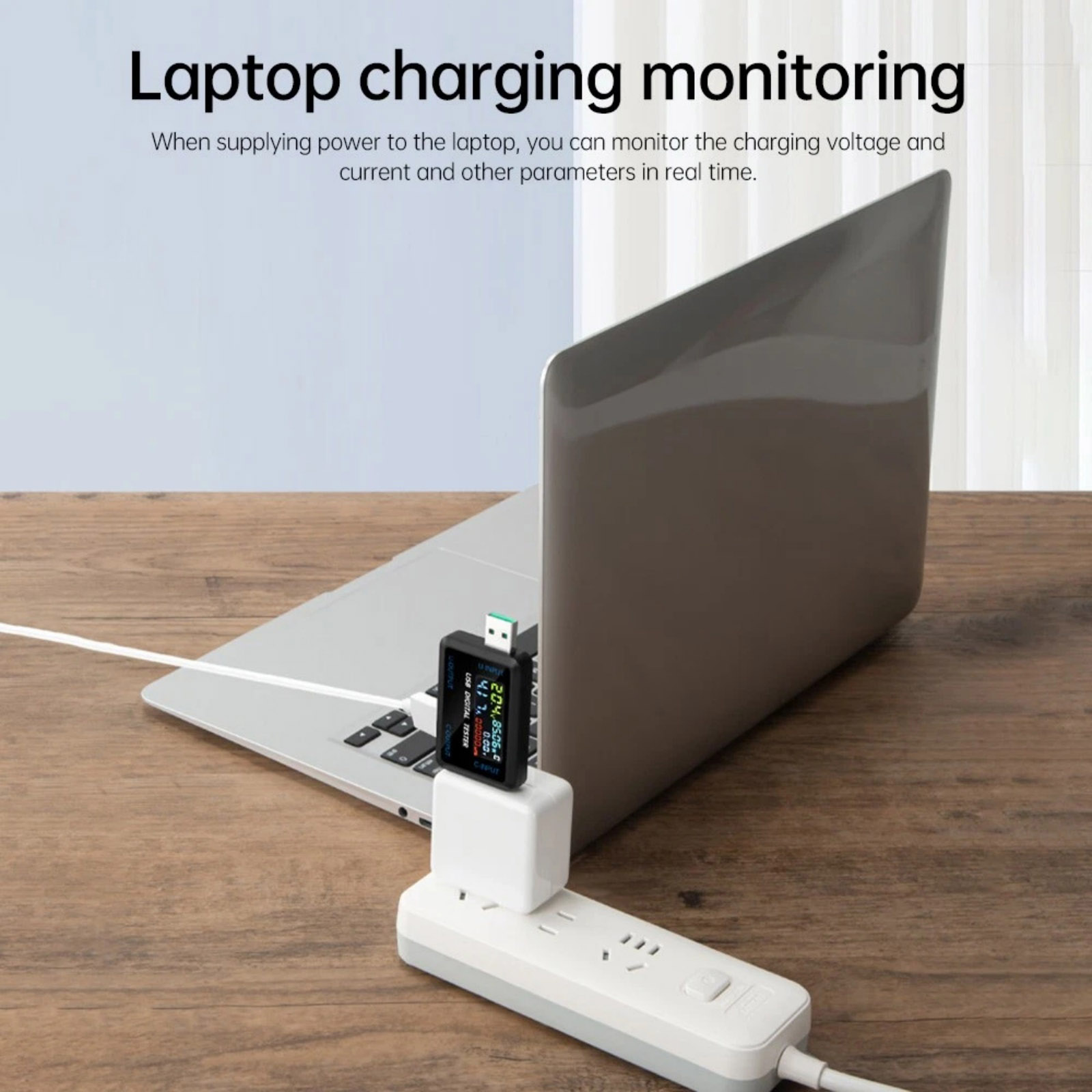

It can detect the charging status of electrical appliances in real time, monitor various parameter information such as voltage and current during charging in real time, and make it clear at a glance.

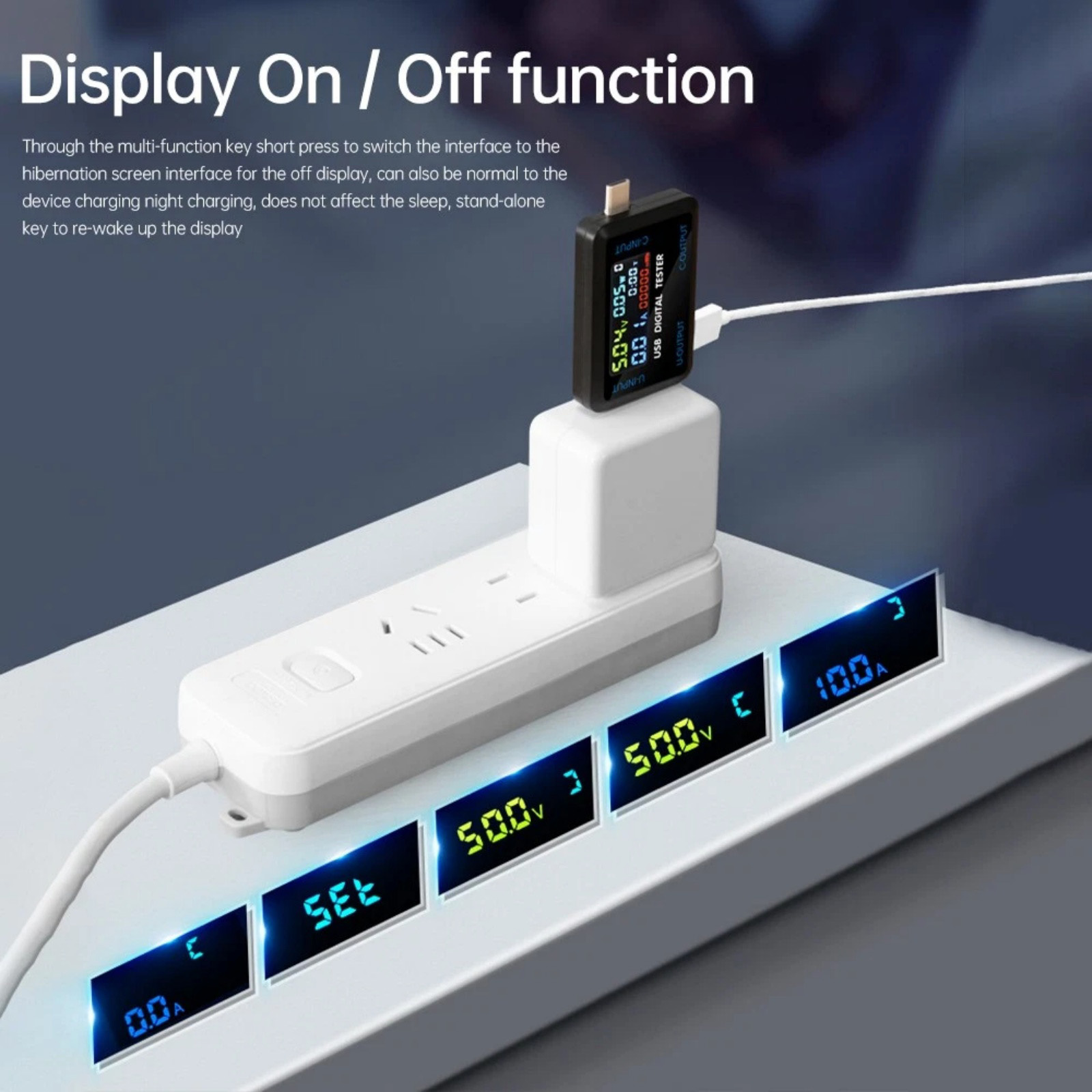

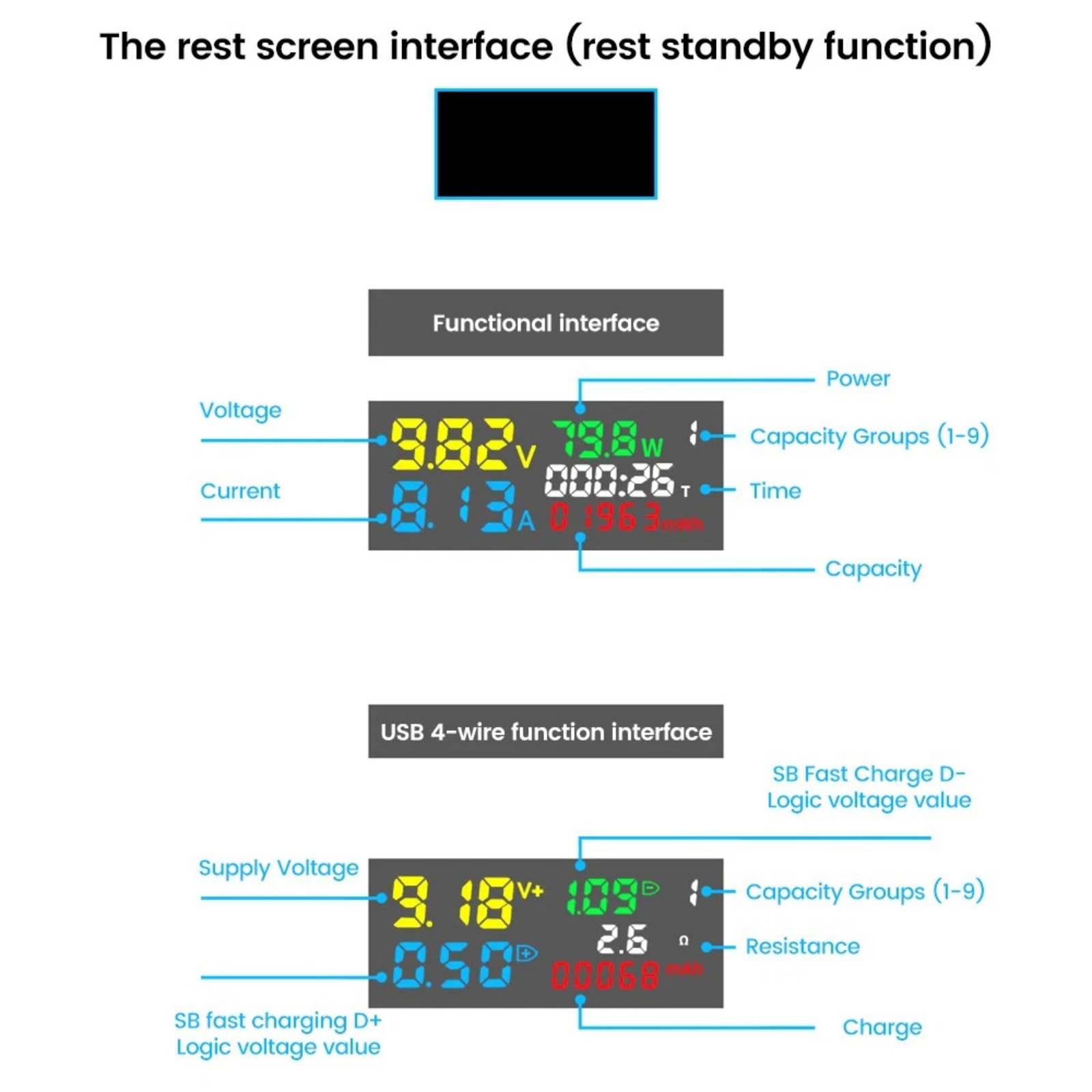

Display screen on/off function: Short press the multifunction button to switch the interface to the off screen interface to turn off the display, and it can also charge the device normally at night.

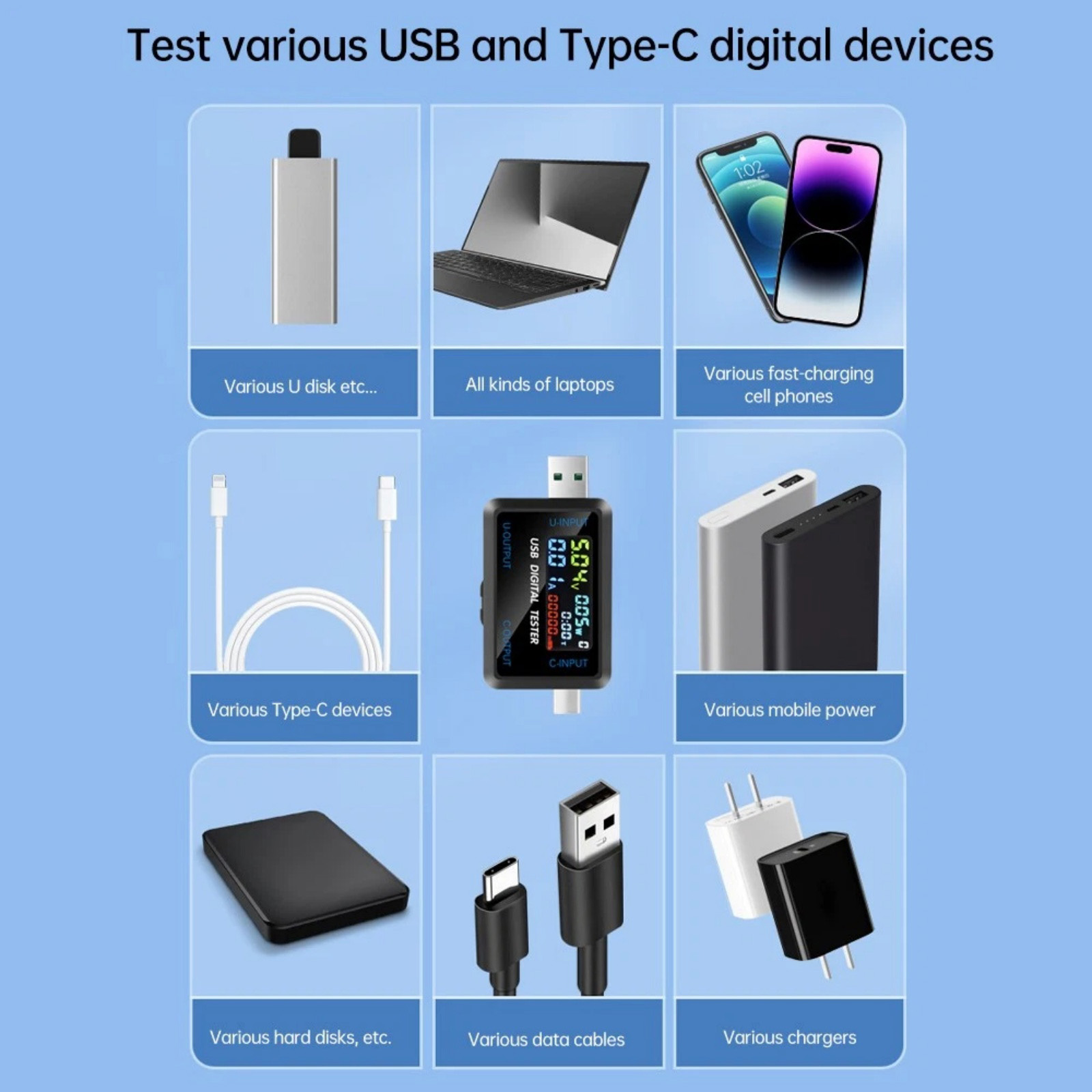

Test various USB and Type-C digital devices: easily test various chargers, data cables, power banks, laptops, mobile phones, Type-C digital devices, etc.

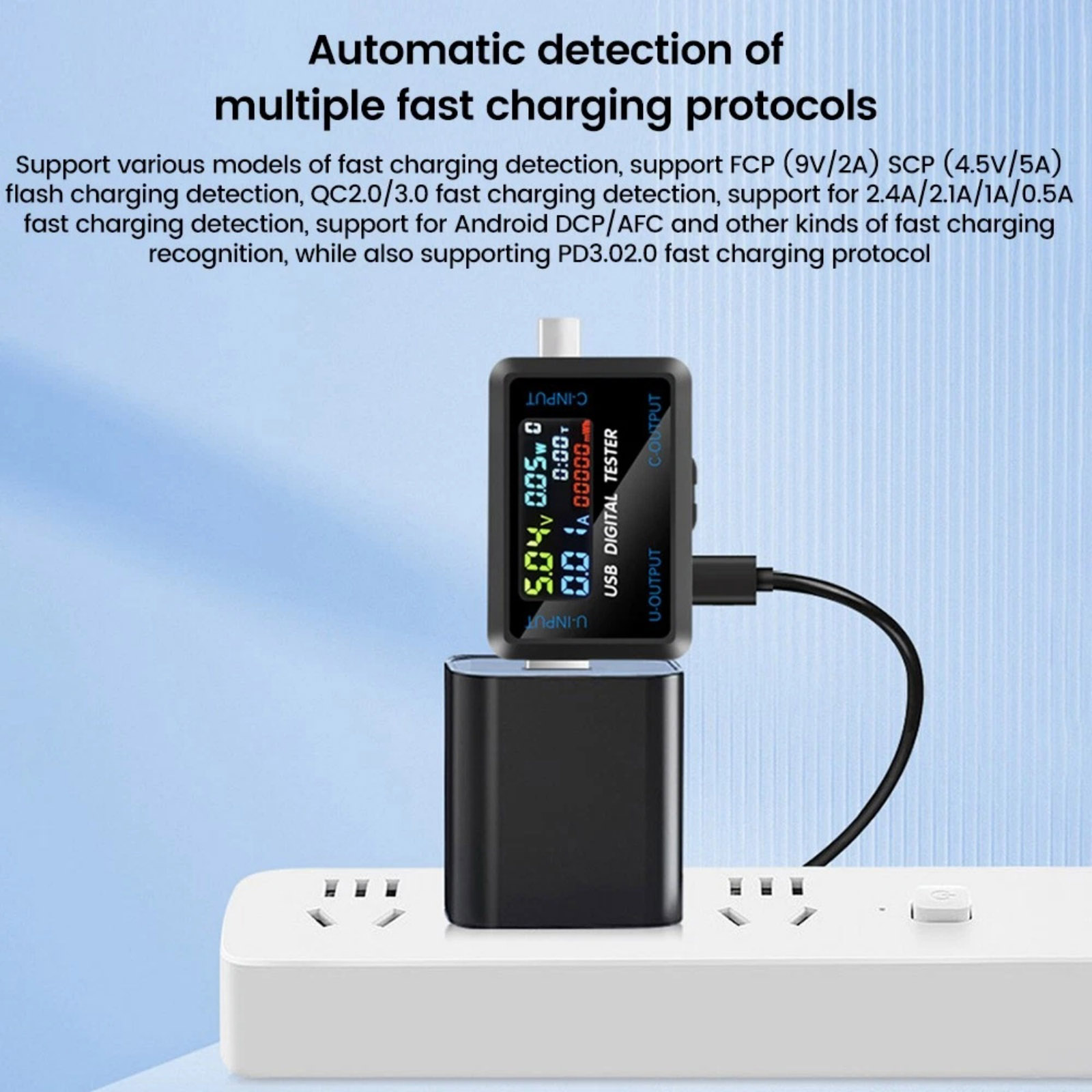

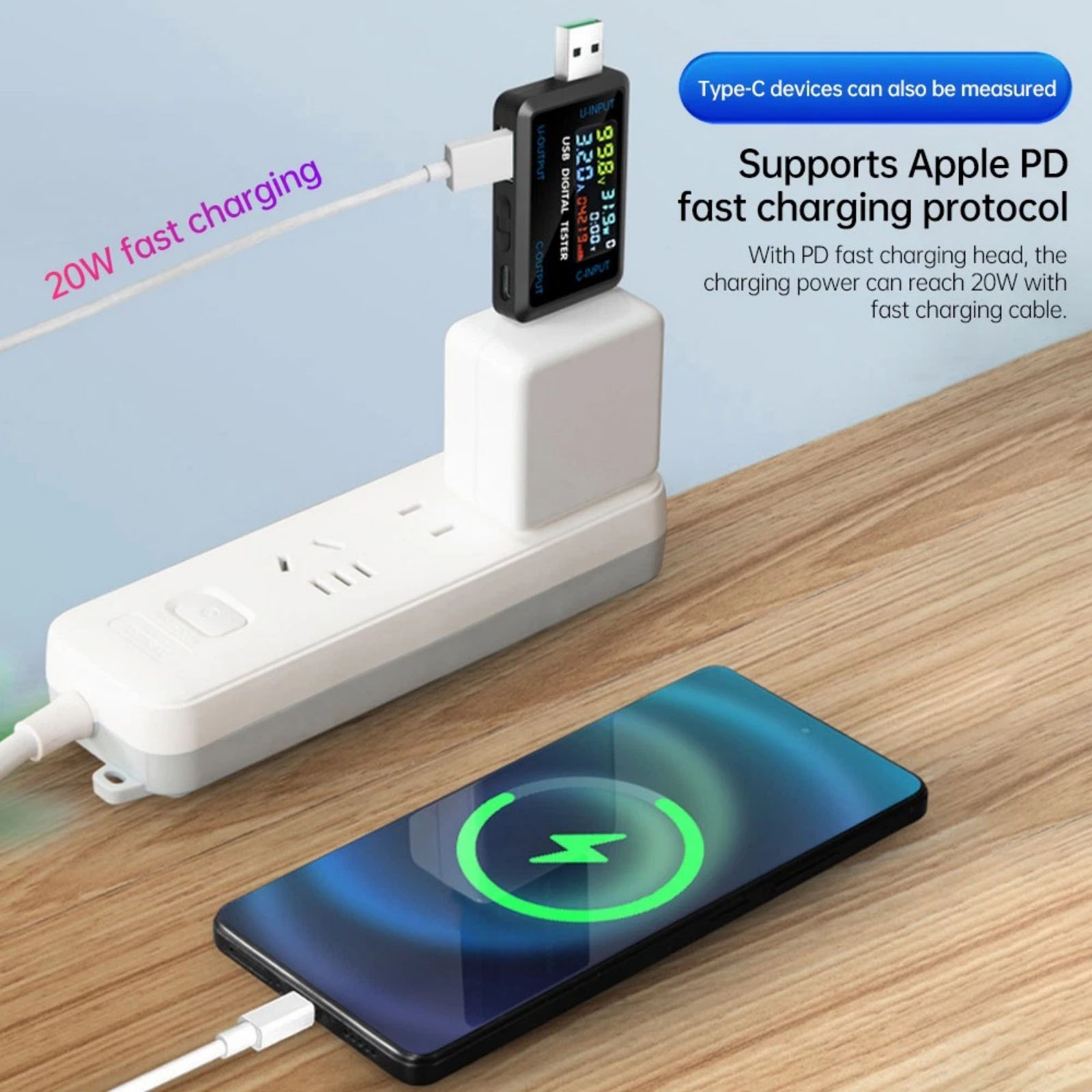

Multiple fast charging protocols are automatically detected, and fast charging recognition detection covers almost all fast charging protocols, which can meet the needs of various mobile phone users.

Specifications:
Voltage measurement range: DC 4.5~36V
Current measurement range: 0-5A/0-8A
Cumulative capacity range: 0-9999mAh
Accumulated range of electricity: 0-99999kWh
Power metering range: 0-150W
Impedance measurement range: 1-999.9 Ω
Temperature measurement range: 0~80 ℃
Timing time: 999 hours and 59 minutes

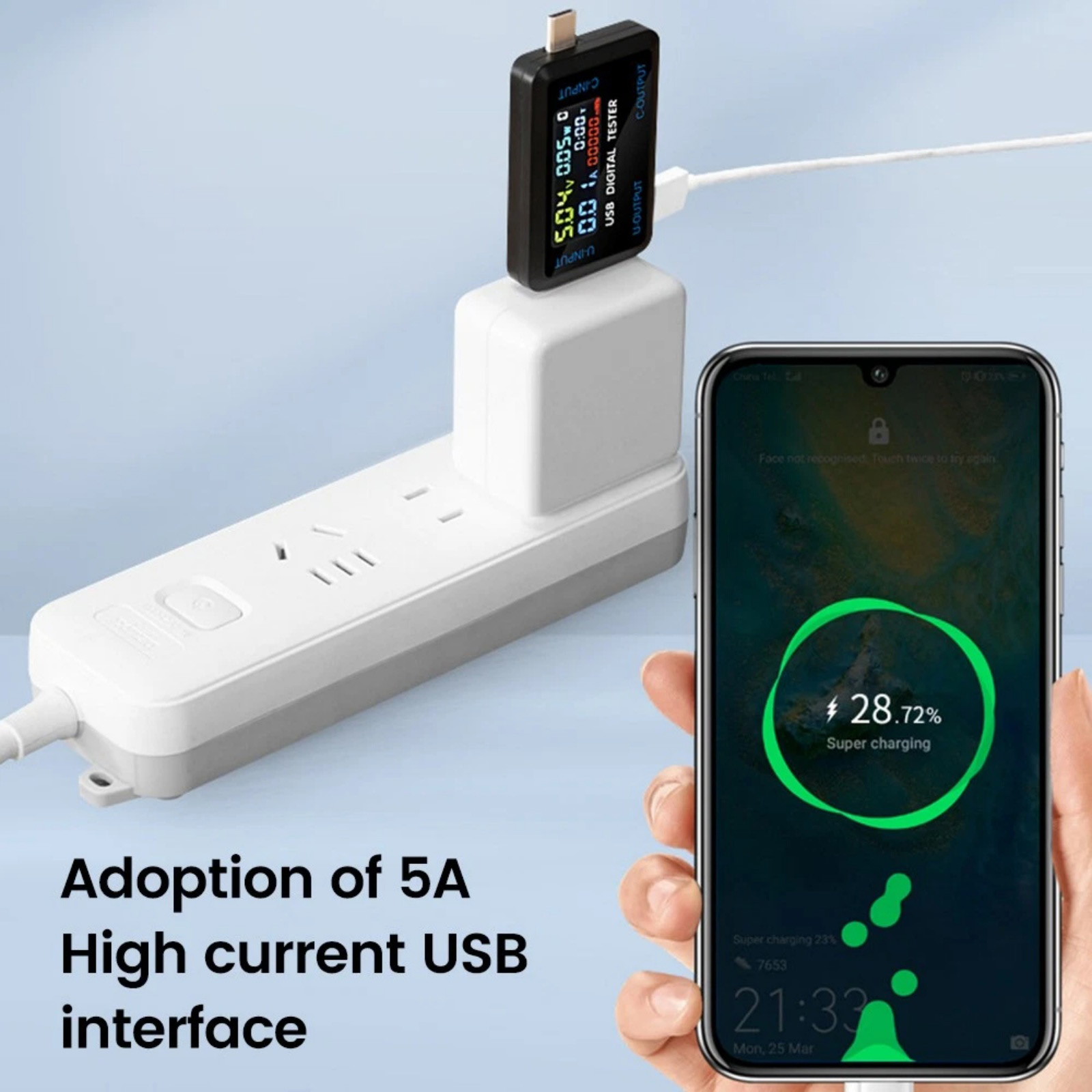

Input interface: 5A high current USB interface/Type-C interface
Output interface: USB/Type-C
USB D+voltage range: 0~2.99V
USB D-voltage range: 0~2.99V
Refresh time:> 500mS/times>500mS/times
Measurement rate: approximately 0.5 times per second
Display screen: IPS true color digital LCD display screen
Self consumption current:< 0.02A
Working temperature: -10~60℃
Working humidity: 10~80% RH (no condensation)
Working pressure: 80~106kPa

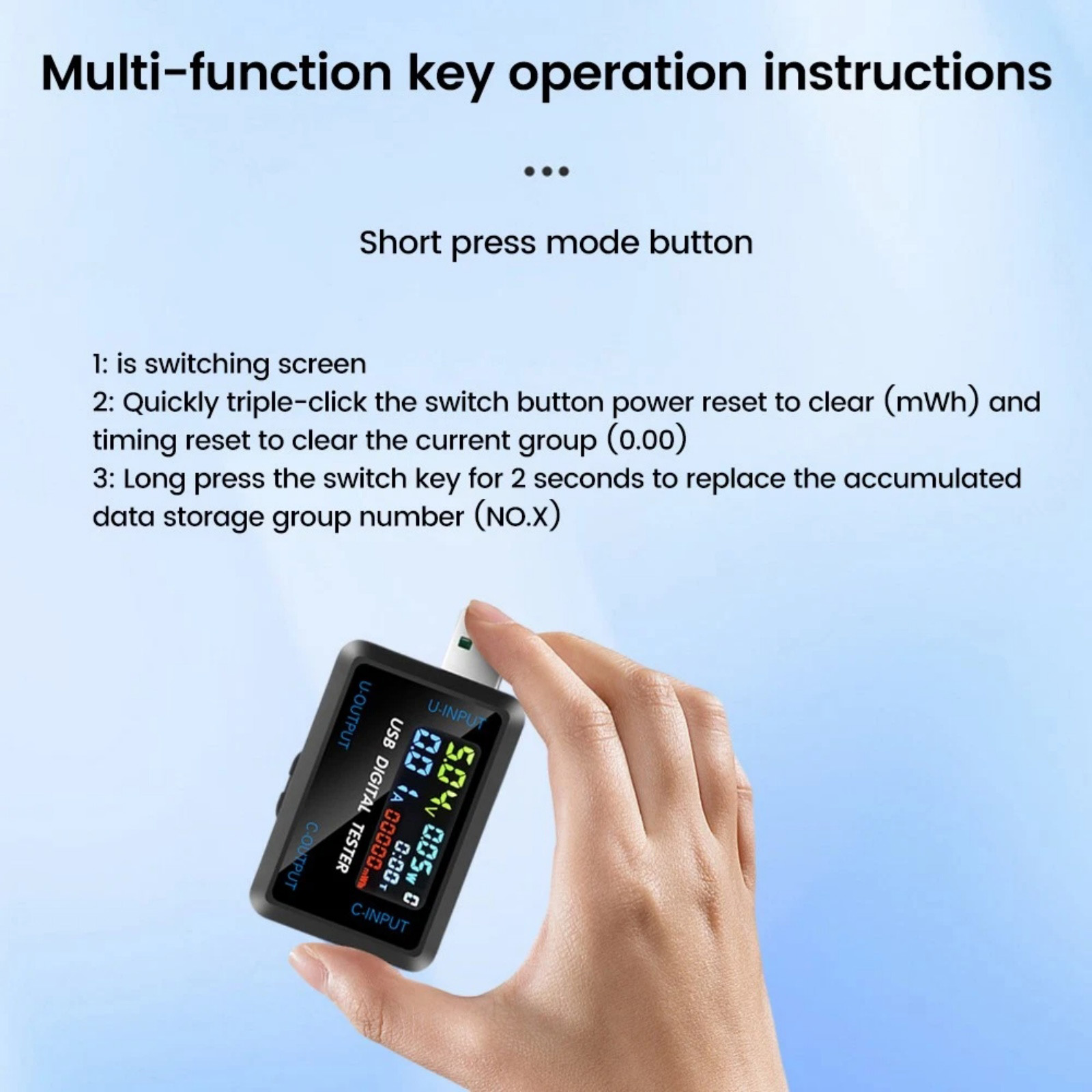

Multi functional button operation instructions:
Short press the mode button

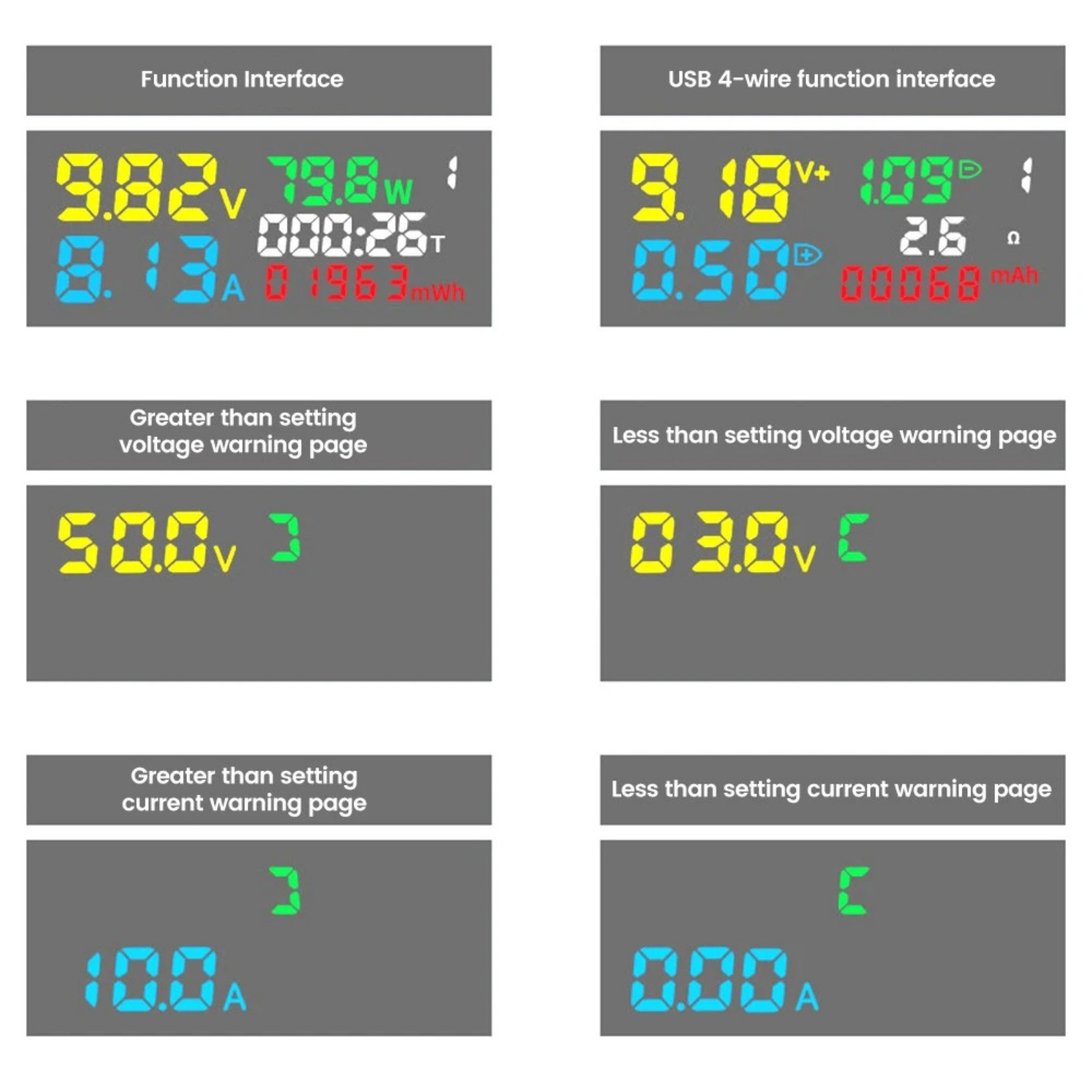

1: It's switching screens
2: Quick three tap switch button for resetting battery level to zero (mWh) and timing reset to zero current group (0.00)

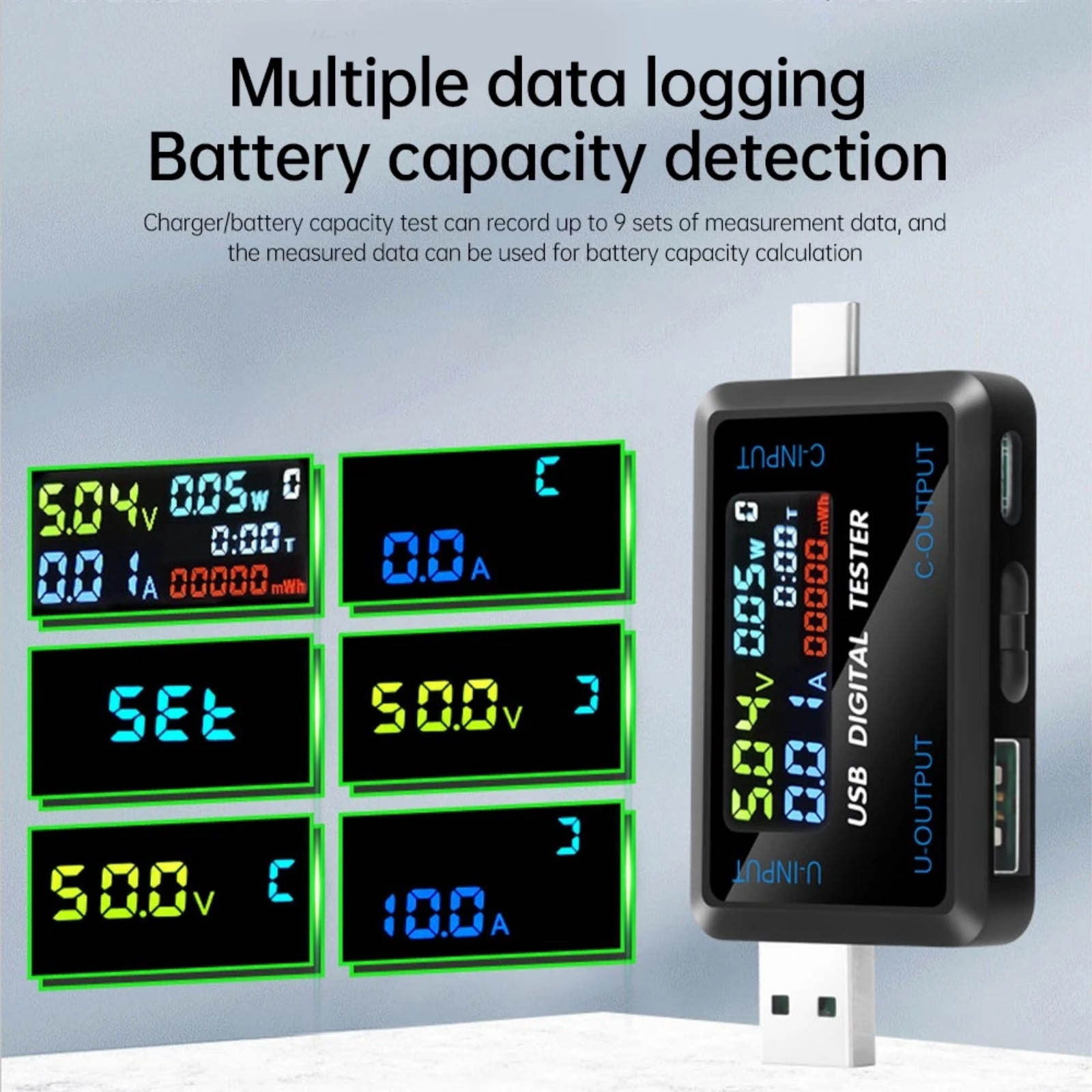

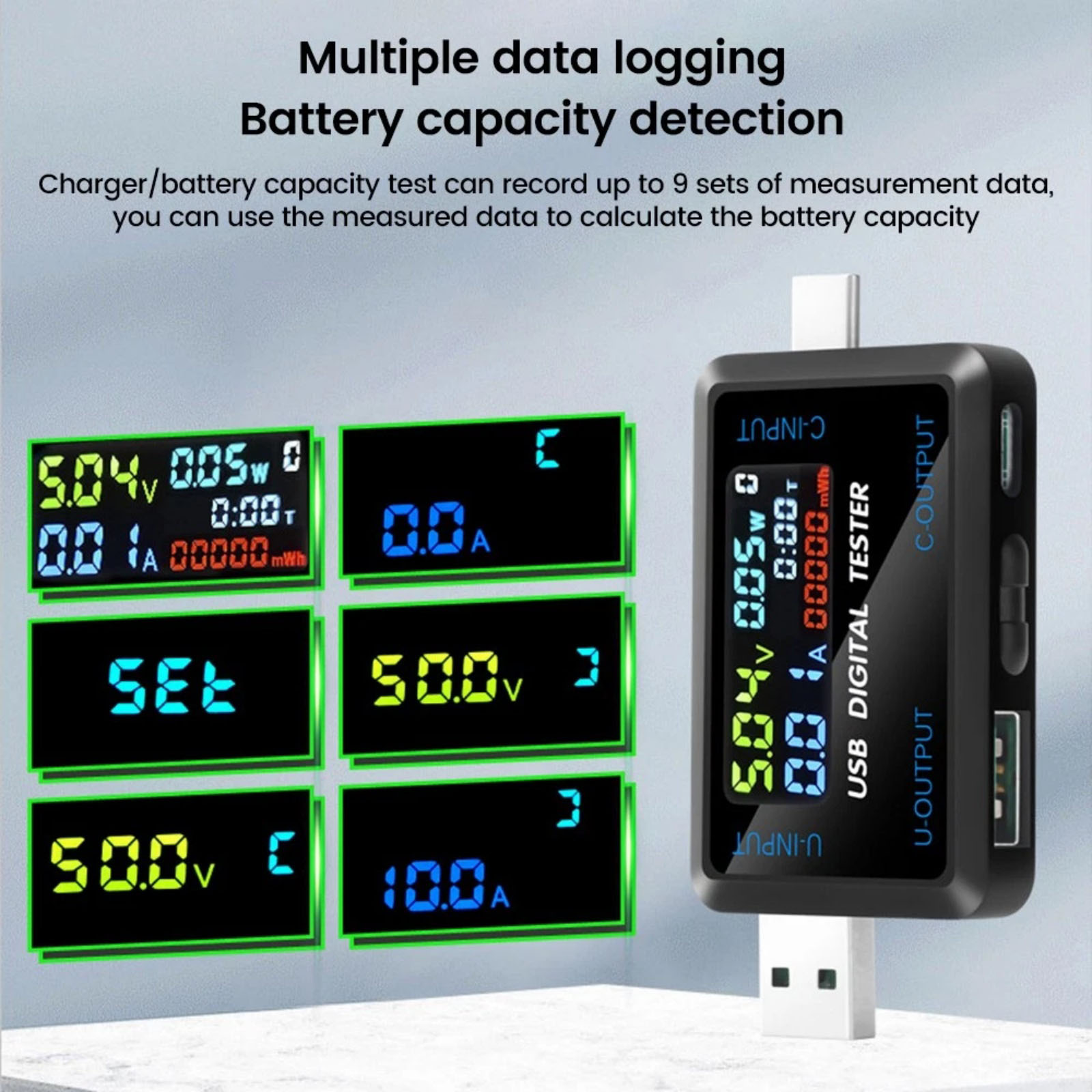

3: Press and hold the power button for 2 seconds to change the cumulative data storage group number (NO. X)

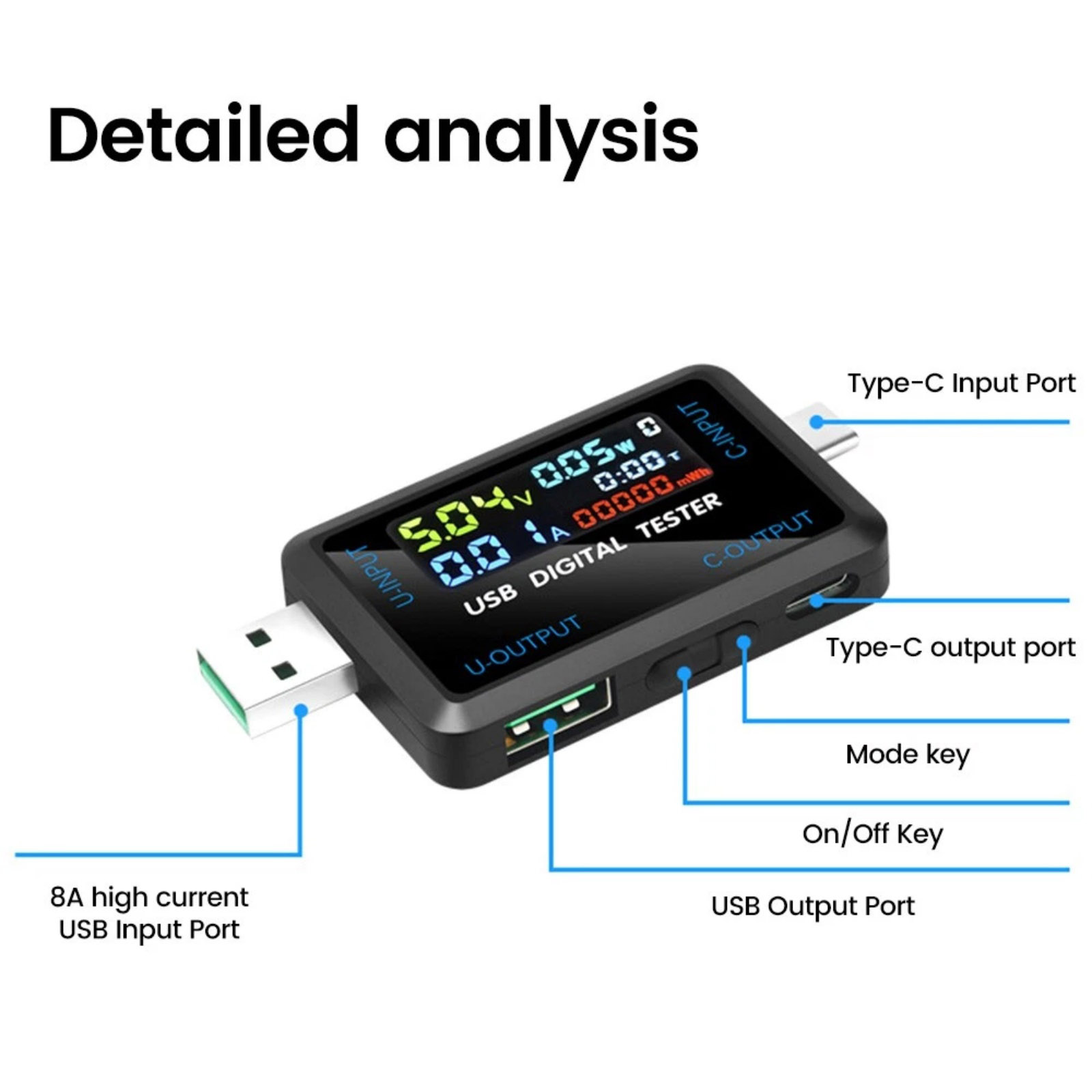

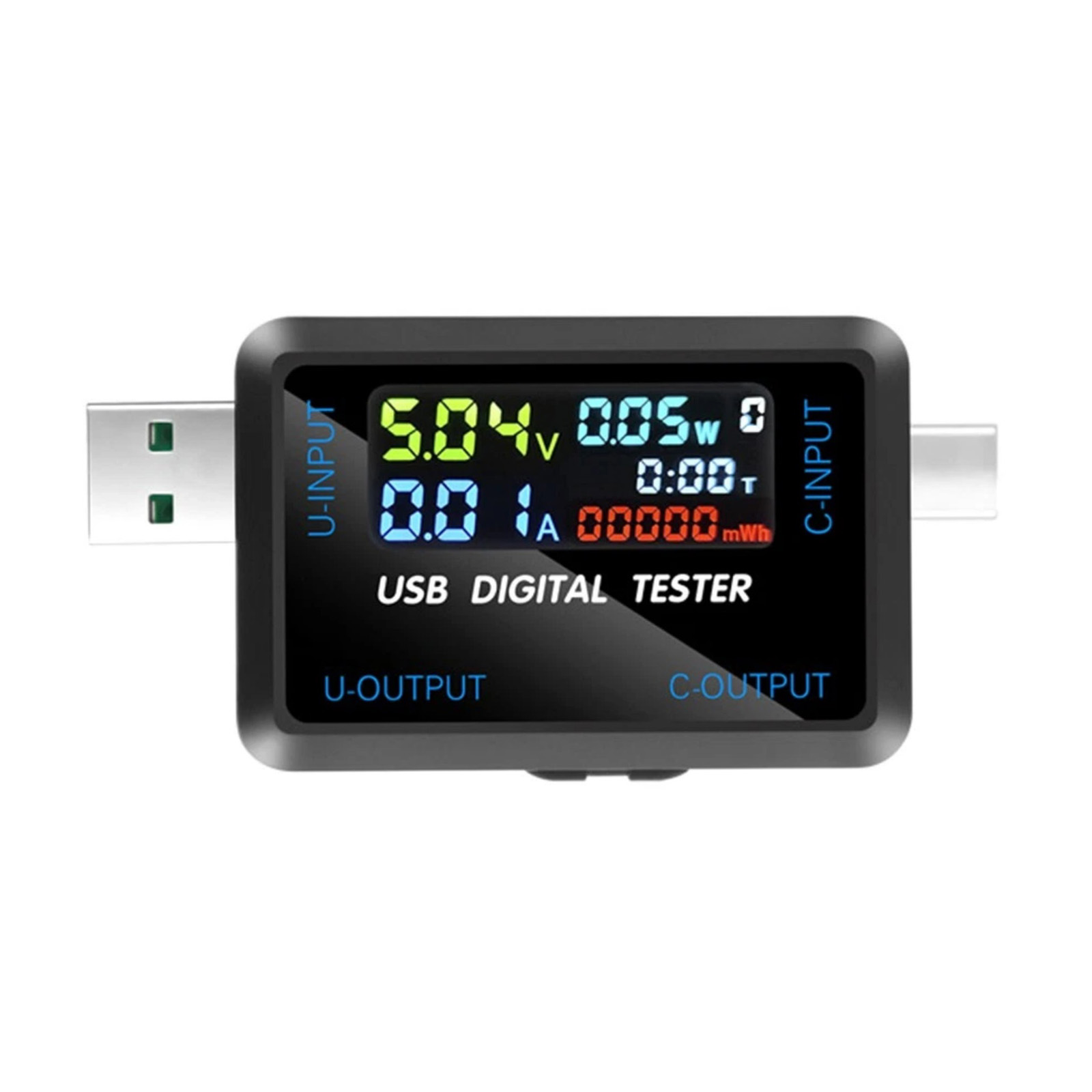

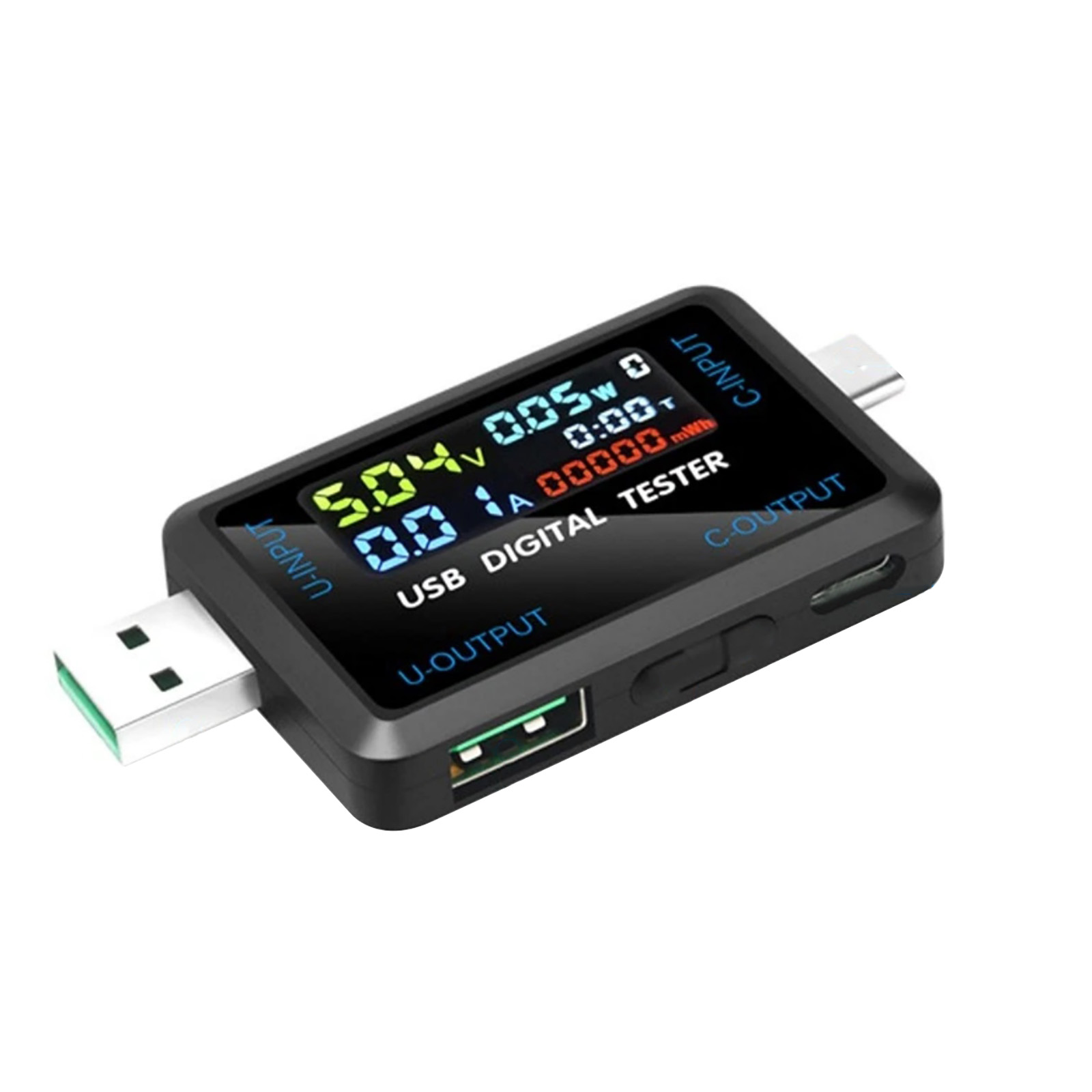

Interface Description:

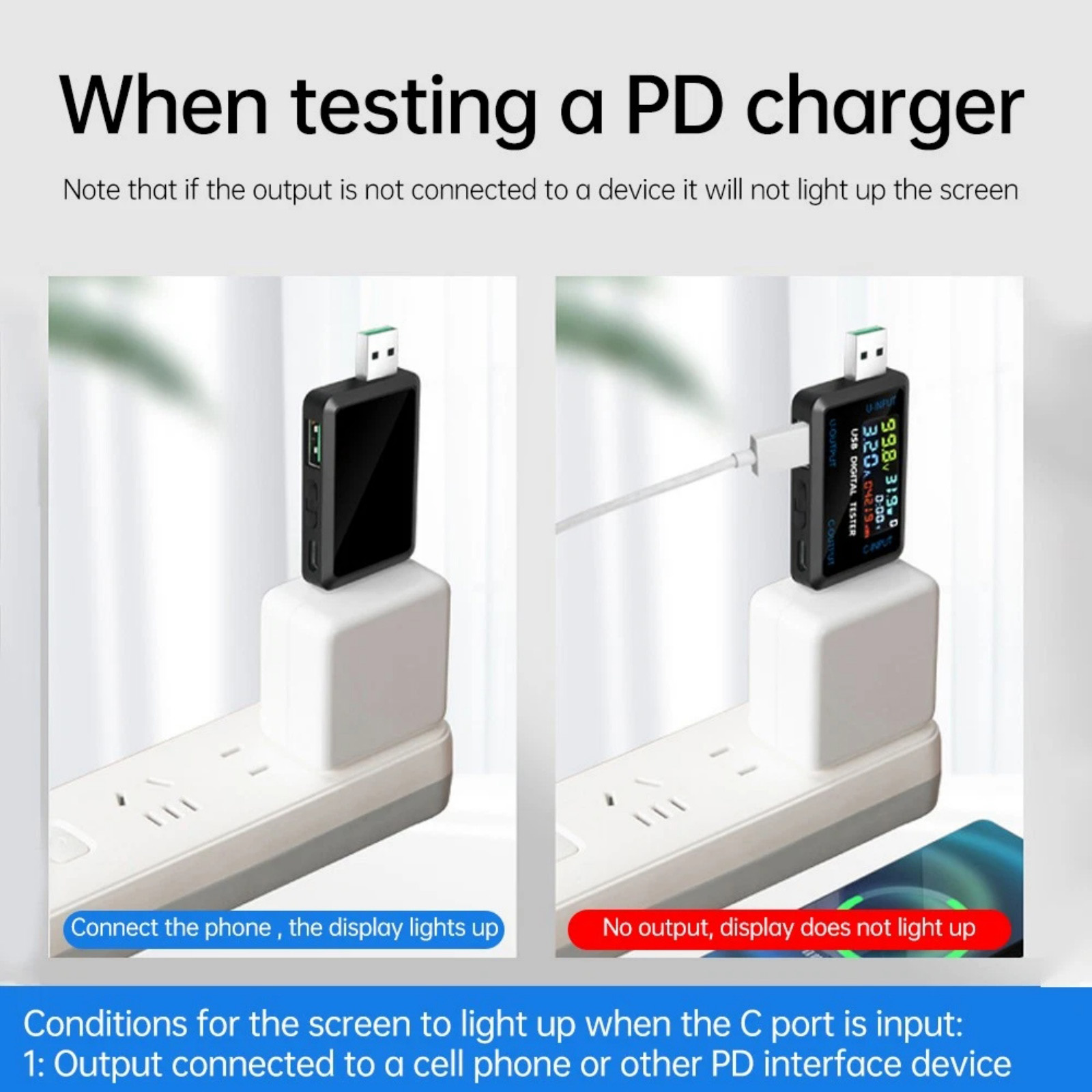

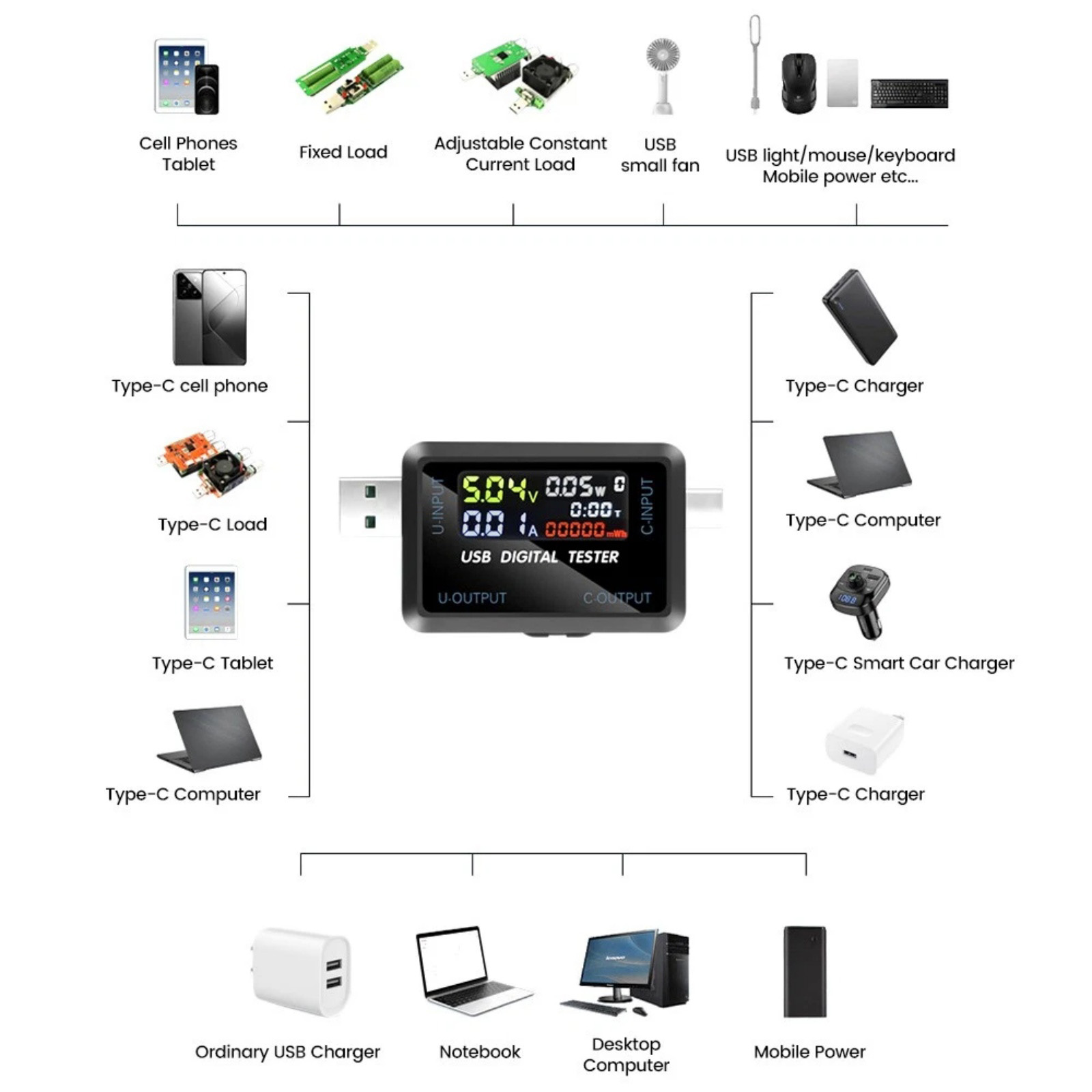

USB+Type-C interface: USB interface input=USB interface output, Type-C interface input=Type-C interface output. Attention: Type-C interface will not display without load

Packaging Includes:
1 x USB Type C Voltmeter Current Meter
