PowerStop K7004-36 Brake Kit For Ford Ranger 2010-2011 Front

Product Details

1-Click Extreme Z36 Truck and Tow Drilled and Slotted Front Brake Kit without Calipers (K7004-36) by PowerStop®. This kit is the ultimate in heavy-duty braking for your vehicle. It includes slotted and cross-drilled rotors and PowerStop Z36 high-friction metallic pads. Improve your braking capability under all conditions, wet, hot, hilly, or while towing at max weight.

Specifications:

• Bolt Circle: 108mm (4.3")
• Calipers: without Calipers
• Driving Style: Hauling & Towing, Extreme & Fleet Duty
• Rotor Height: 108mm (4.3")
• Hub Hole Diameter: 70mm (2.8")
• Lug Quantity: 5
• Minimum Rotor Thickness: 24.5mm (1")
• Nominal Rotor Thickness: 26.3mm (1")
• Outside Diameter: 286.7mm (11.29")
• Rotor Construction: 1-Piece
• Rotor Material: Cast Iron
• Rotor Style: Drilled & Slotted
• Rotor Type: Vented
• Rotor Finish: Zinc Plated
• Stud Size: 1/2" x 20
• Rotor Design: Hub and Rotor Assemblies

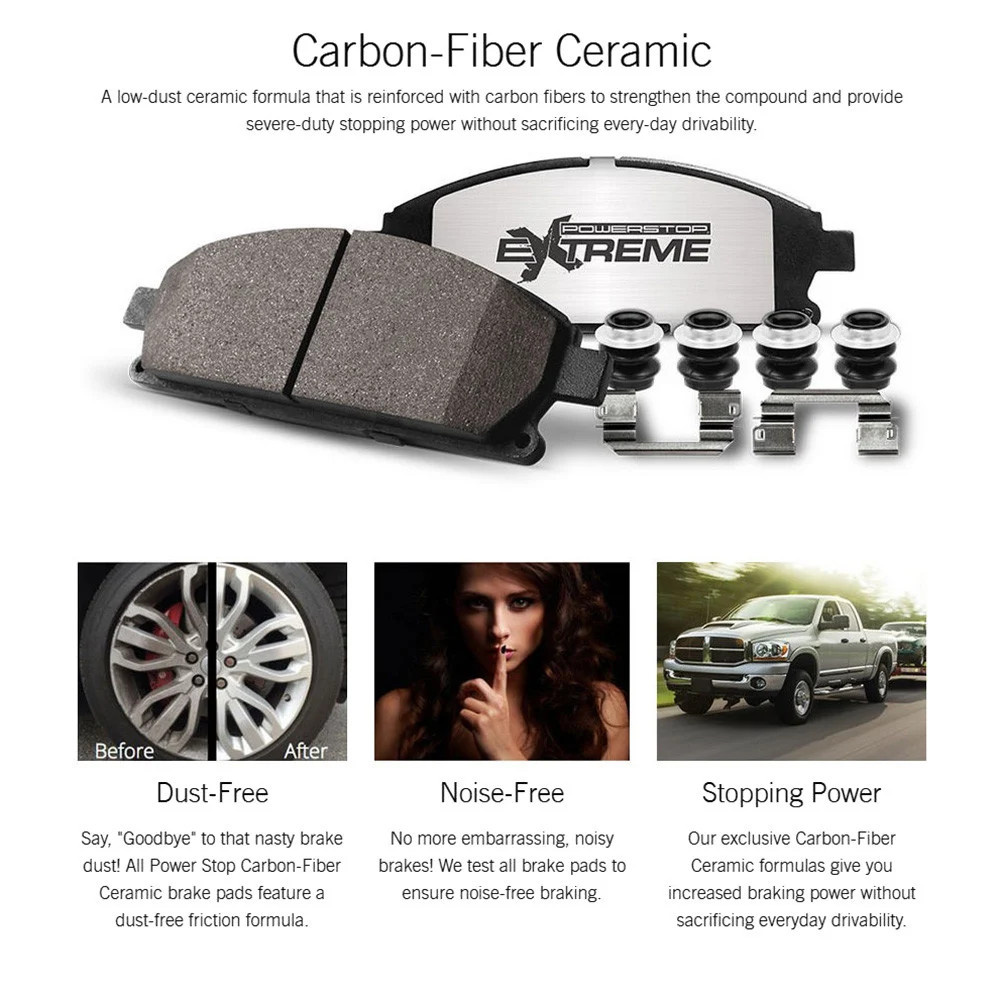

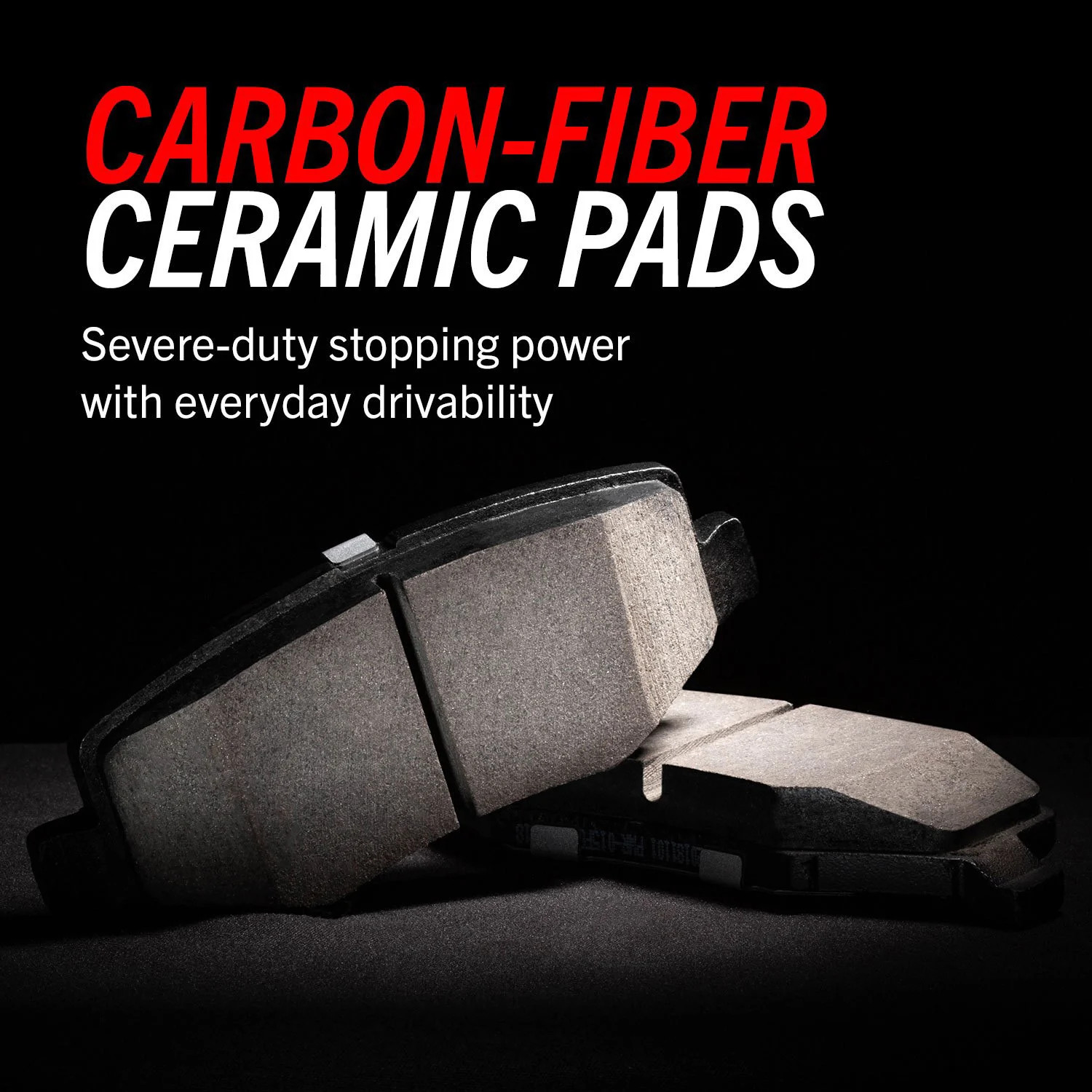

• Pads Material: Carbon Fiber Ceramic
• Front Rotor Outside Diameter (mm): 286.70mm
• Front Rotor Outside Diameter (in.): 11.30 in.
• Front Rotor Thickness (in.): 1.00 in.
• Brake Pad Construction: Integrally molded
• Brake Pad Material: Carbon fiber ceramic
• Friction Material Name: Z36
• Front Rotor Construction: Vented
• Quantity: Sold as a kit.
• Rotor Finish: Natural
• Rotor Material: Iron
• Rotor Style: Cross-drilled and slotted surface
• Intended for Street Use: Yes
• Electronic Wear Sensor Included: No
• For Use with Stock Calipers: Yes
• Shims Included: Yes

Features:

• Rotors precision machined using a Tru-Cast™ technology
• Rotor run out is within 0.0015 and DTV tolerance specification is within 0.005
• All Evolution rotors are mill balanced
• Beveled and precision drill holes help keep rotors temperatures down during extreme braking performance
• Rounded slots keep a clear contact patch between the pad and the rotor by sweeping away water, gas and dust
• All drilled and slotted rotors (except for hub and rotor assemblies) are silver zinc plated to helps shield and resist rust during normal operation

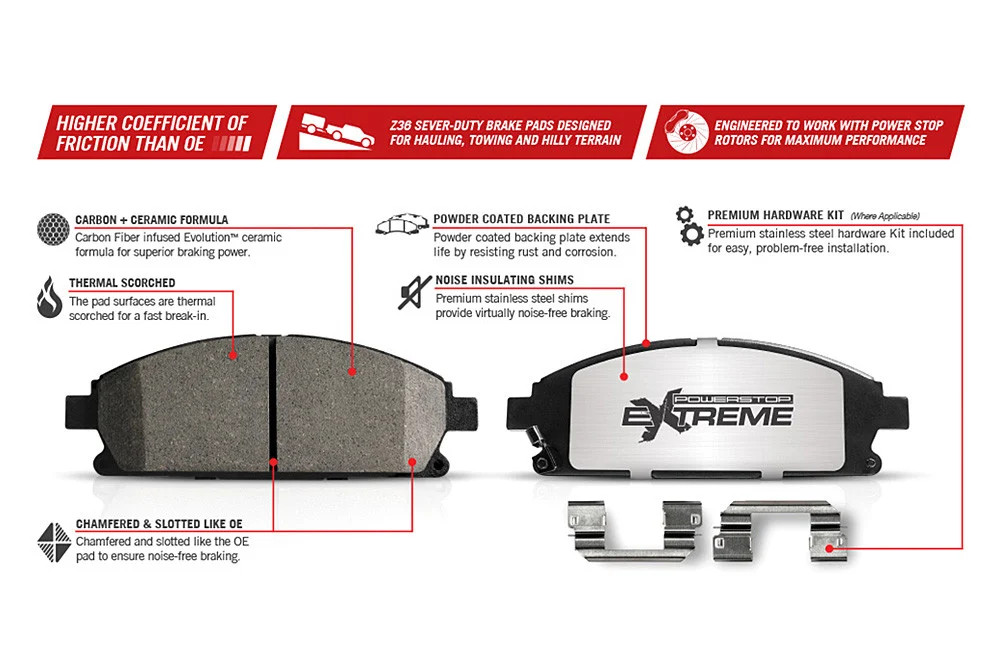

• Carbon Fiber infused Evolution ceramic formula for superior braking power
• The pad surfaces are thermal scorched for a fast break-in
• Chamfered and slotted like the OE pad to ensure noise-free braking
• Powder coated backing plate extends life by resisting rust and corrosion
• Premium stainless steel hardware kit included for easy installation
• Premium stainless steel shims provide virtually noise-free braking
• 20 percent more stopping power than other brands
• Components are engineered to work together
• One click brake kit; everything you need, including clips and shims
• Pre-matched components ready to install
• Multi-layer constrained steel anti-squeal shims
• Recommended for towing and hauling
• 3-year/36,000 mile manufacturer limited warranty on the rotors and pads purchased and installed together

Includes:

• Drilled and Slotted Brake Rotors
• Carbon-Fiber Ceramic Brake Pads with Hardware

Rotor Benefits:

• Drilled holes and Slots create an escape route for debris, dust, gases, and water
• Slots clean and de-glaze pad surface for optimum pad coefficient of friction
• Slots help to increase pad bite and improve air circulation
• Drilled holes and Slots reduce stopping distances in wet weather
• Drilled rotors improve the appearance of your wheels and provide reduced rotor weight

Don't go halfway when it's time to redo the brakes on your truck. Whether you tow a trailer, race or just drive aggressively , you should have the best brakes possible. PowerStop gives you the best of both worlds: let's start with the brake pads. Factory, OEM brake pads are a bucketful of compromises. They balance several factors, including pad noise, dust generation, service life, cost and – oh yeah, friction. But what works for most can be improved on. These Z36 metallic pads have a 17% higher coefficient of friction than OEM pads, giving you more stopping power, without standing on the pedal at the bottom of every long hill.

That would make these pads a great upgrade on your stock rotors, but you've already decided not to go halfway. Don't try to reuse your old discs, even if they still have enough meat on them after refinishing them to meet minimum thickness specifications. A thinner disc is a disc that has less mass. And it takes lots of mass to dissipate heat in a hurry, so get a pair of PowerStop drilled, slotted discs at the same time. Mass soaks up heat quickly during a panic stop, but it takes surface area and moving air to keep the rotors cool on a long downhill or in heavy stop-and-go traffic. Cross-drilling a disc adds surface area for improved cooling, but it also makes a dramatic improvement in braking performance in the rain. Cross drilling keeps water from wedging between the pad and disc surface, making the pad hydroplane, which severely affects braking ability.

Slotting does help some in the rain, although it has other advantages. During a high-speed stop, especially with a trailer or heavy load, the organic binders in the pad material will literally boil. This is normal; the problem is that the outgassing binder turns the pad into a hot little air-hockey puck that barely touches the disc surface. It rides on a pocket of outgassing binder, keeping the pad from contacting a normal, unslotted disc. Slots sweep the gases away, letting you glide to a normal stop in time instead of running that red light at the bottom of the hill with both feet standing on the brake pedal. Not fun. PowerStop's 1-Click Extreme Truck and Tow Brake Kit combines the advantages of both cross drilling and slotting to provide you with superior stopping ability, whether it's halfway down a hill, while towing, or during the rain. Add in the superior grip, low noise and dust generation of the Z36 high-friction metallic pads, and stop in comfort and safety.

PowerStop also uses the best technology for anti-squeal shims: constrained steel. A sandwich of two layers of steel with a viscoelastic layer between them prevents acoustic coupling between the pad and caliper piston, eliminating brake squeal. Other manufacturers attempt to use a single layer of steel or a layer of Teflon to achieve this. PowerStop's solution, while pricier, is far more effective.
