DESCRIPTION
Product Description

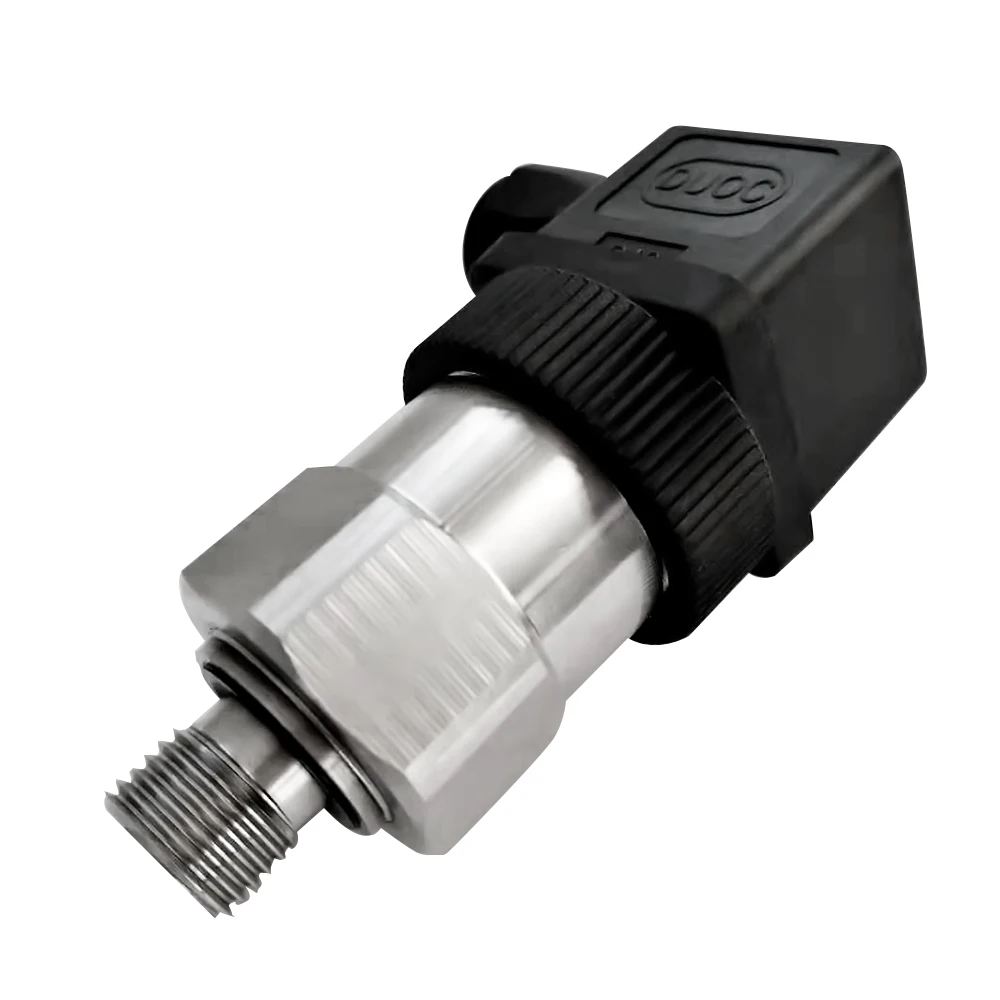

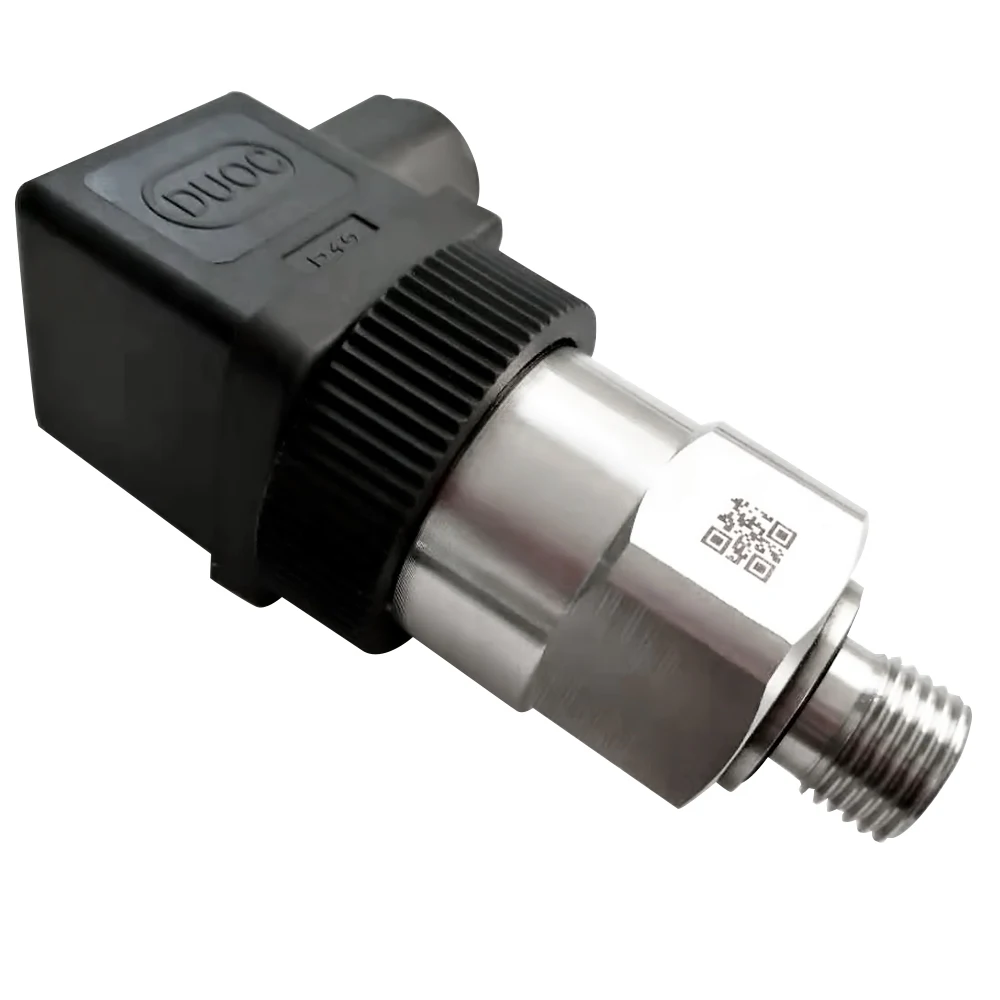

PPM-T227A pressure transmitter is specialized in servo system with high performance. The model adopt strain gauge technologies and integrated design. Tolerant frequent pressure shock, vibration, and high overload, suitable for various harsh industrial environment.
Specification
|
Measuring medium
|
liquid, steam
|
|
Pressure type
|
Sealing pressure, Gauge pressure
|
|
Pressure range
|
0~160bar
|
|
Power supply
|
9-32VDC
|
|
Output signal
|
4~20mA
|
|
Nonlinearity
|
≤0.2
|
|
Non-repeatability
|
≤0.2% FS
|
|
Accuracy
|
0.5%FS
|
|
Long-term stability
|
0.25%FS/year
|
|
Medium temp
|
-40~+85℃
|
|
Operation temp
|
-40~+85℃
|
|
Zero temp. drift
|
≤0.03%FS/℃
|
|
Safety overload pressure
|
150%FS (1.5 times FS)
|
|
Damage pressure
|
500%FS (5 times FS)
|
|
Process connections
|
G1/4, M14×1.5, or other process connections on request
|
|
Materials
|
Wetted parts: 17-4PH, non-wetted parts: stainless steel 304
|
|
Ingress protection
|
IP67
|
|
Electrical connections
|
Circular connector M12 x 1,L-connector DIN43650
|
