Features:
*Effective Object Detection: This infrared photoelectric switch utilizes a light-interruption sensing, allowing it to detect objects within a range of 2 to 30 cm,precise and reliable in various applications.
*Fast Response Time: With an impressive response time of just 2 milliseconds, this sensor quickly activates circuits upon detecting an object, making it for IDEAL for time-sensitive operations in security and industrial settings.
*Compact Design: Measuring only 20x10x8mm with a cable length of 30cm, this device is designed for easy installation and wiring in tight spaces, providing versatility for indoor use without sacrificing performance.
*Robust Operating Parameters: Operating within a temperature range of -10°C to 60°C, this sensor is suitable for various indoor environments, making it a dependable choice for projects that require consistent performance.
*Versatile Applications: Suitable for diverse scenarios, such as smoke alarms in security systems and counting movements in robotic applications, this sensor enhances functionality through accurate object detection.
Specifications:

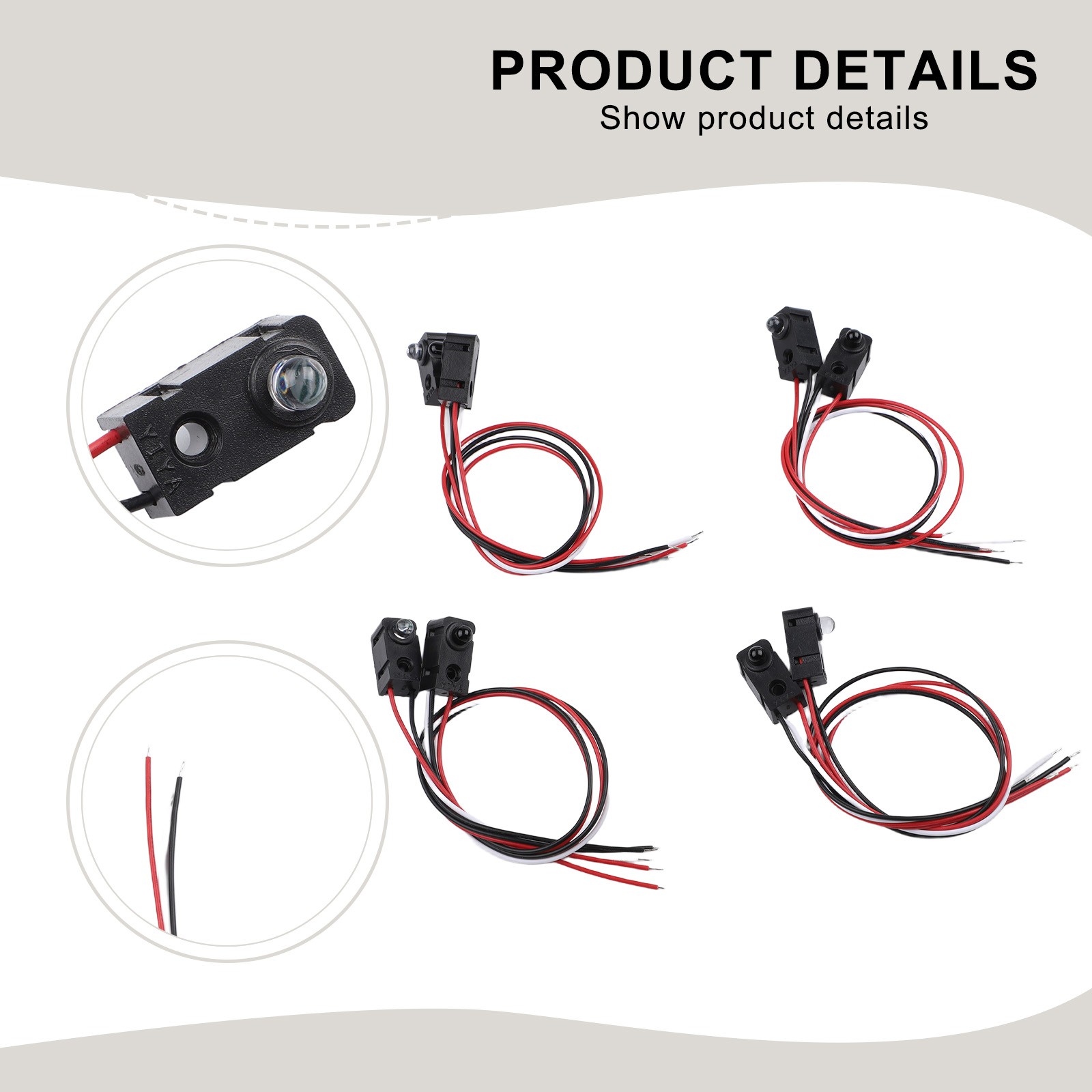

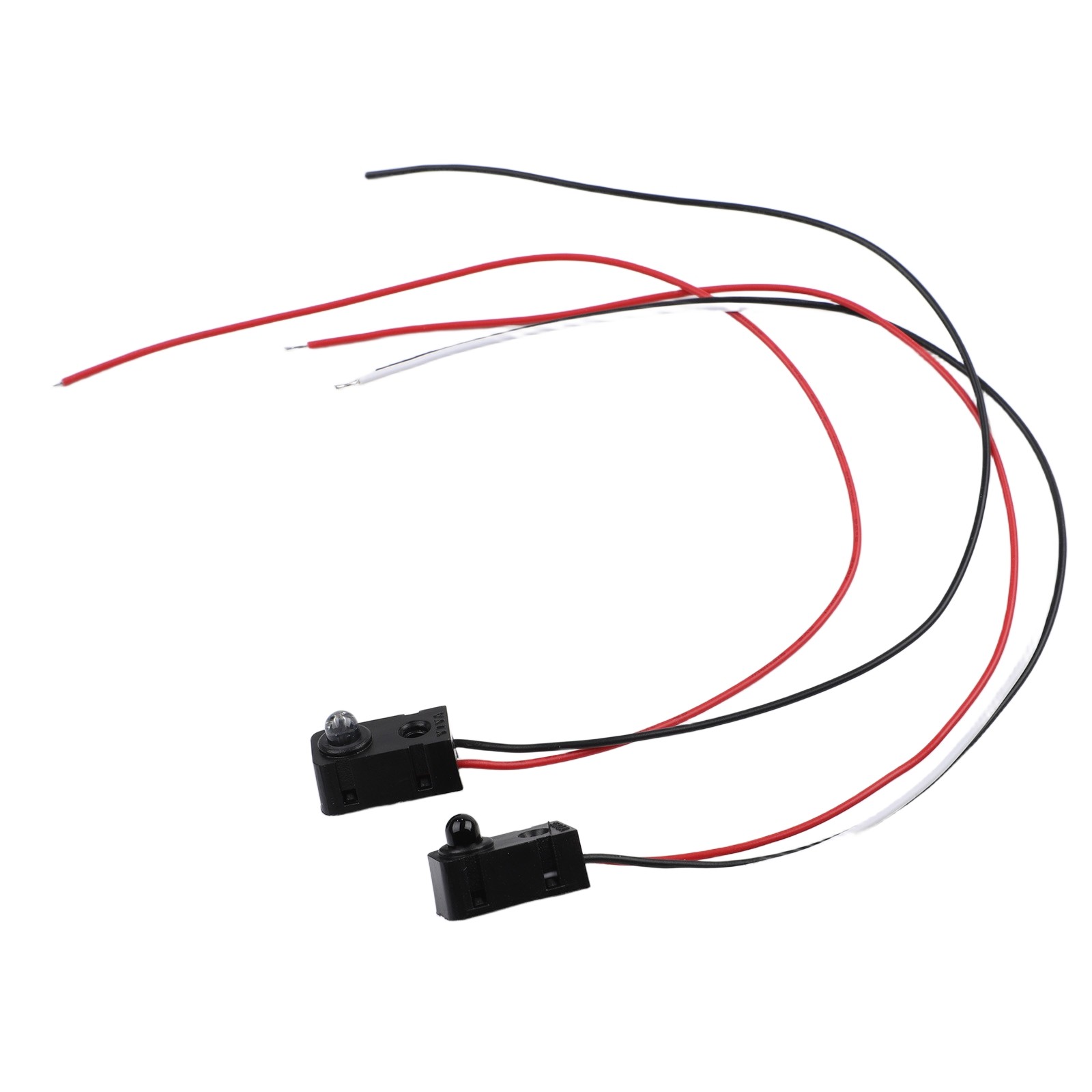

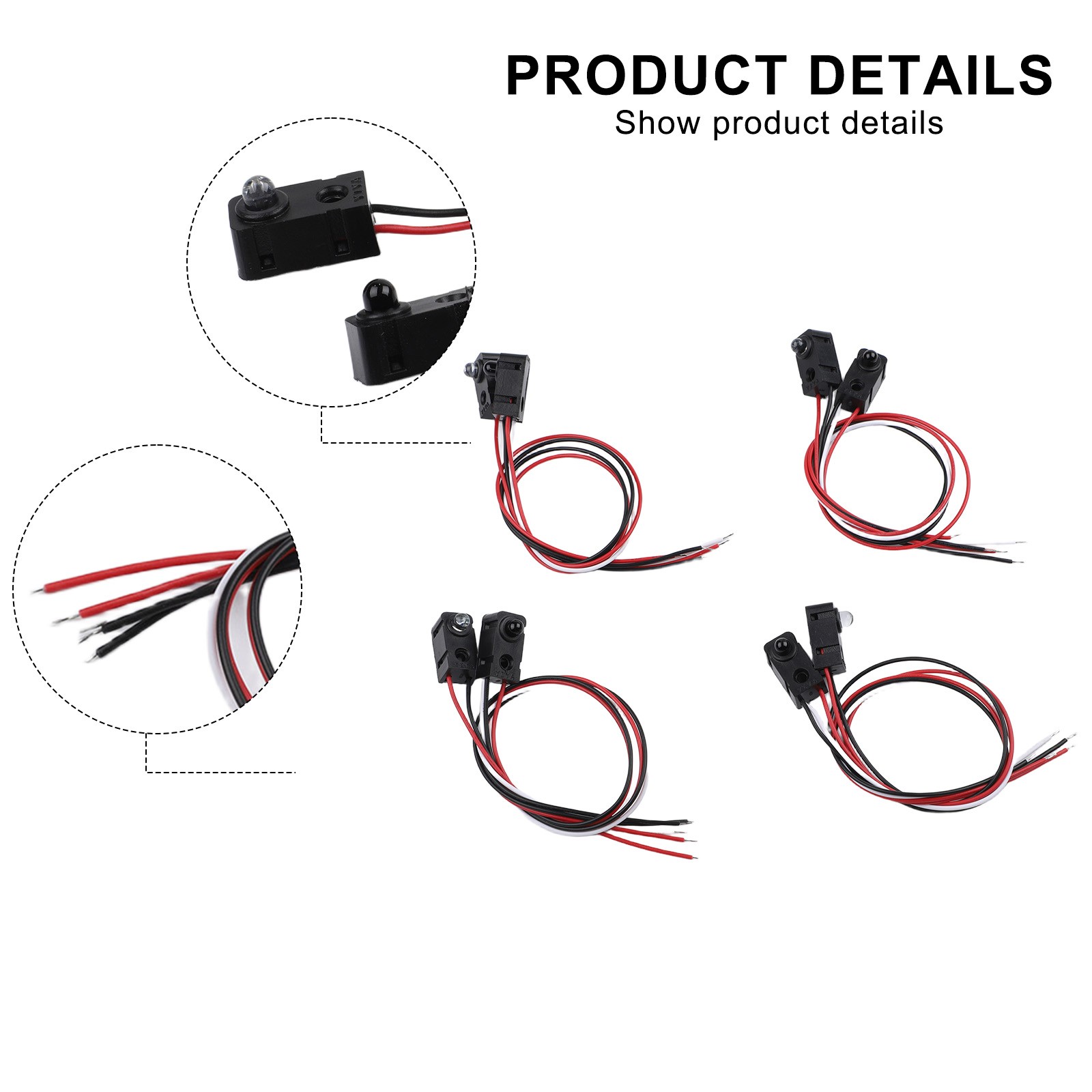

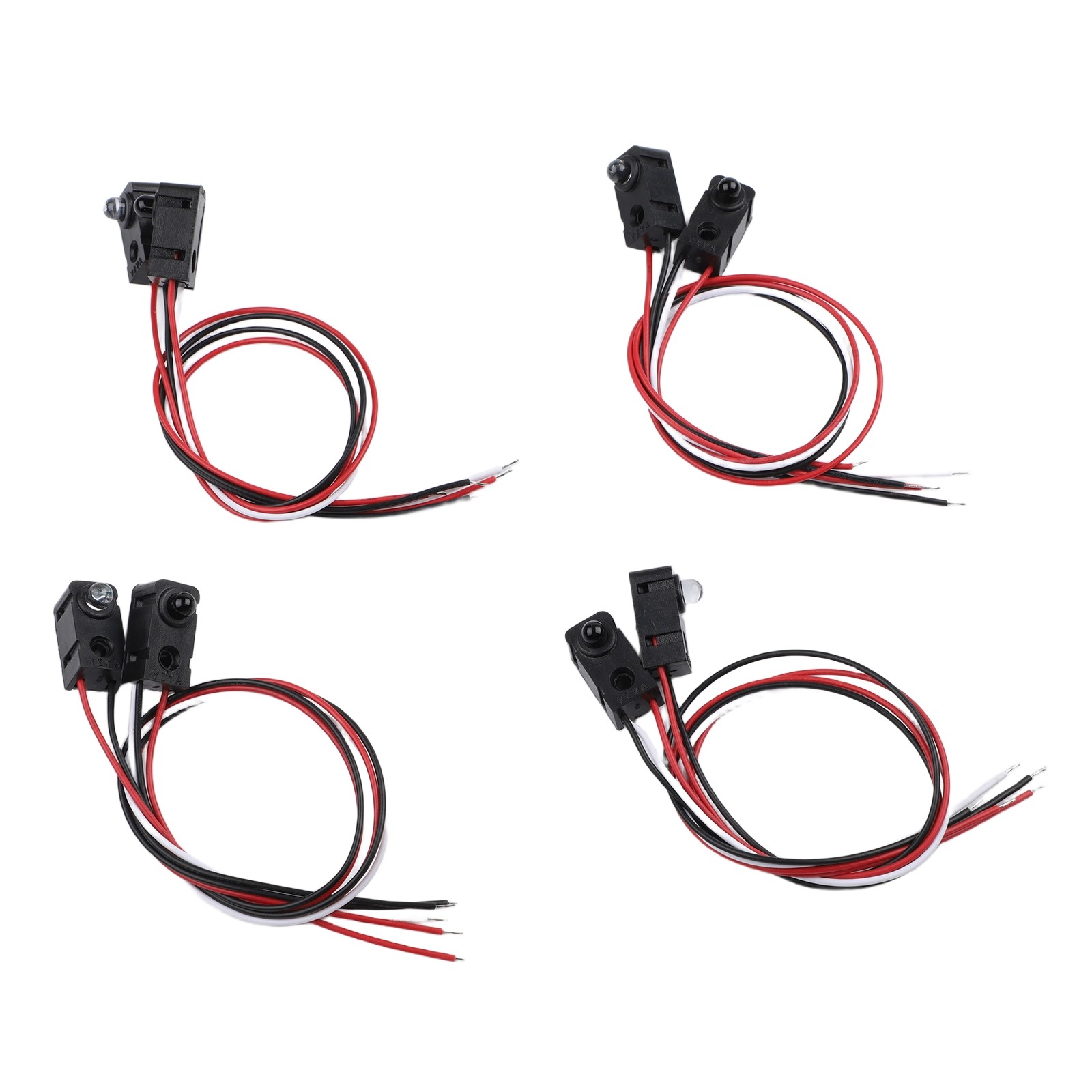

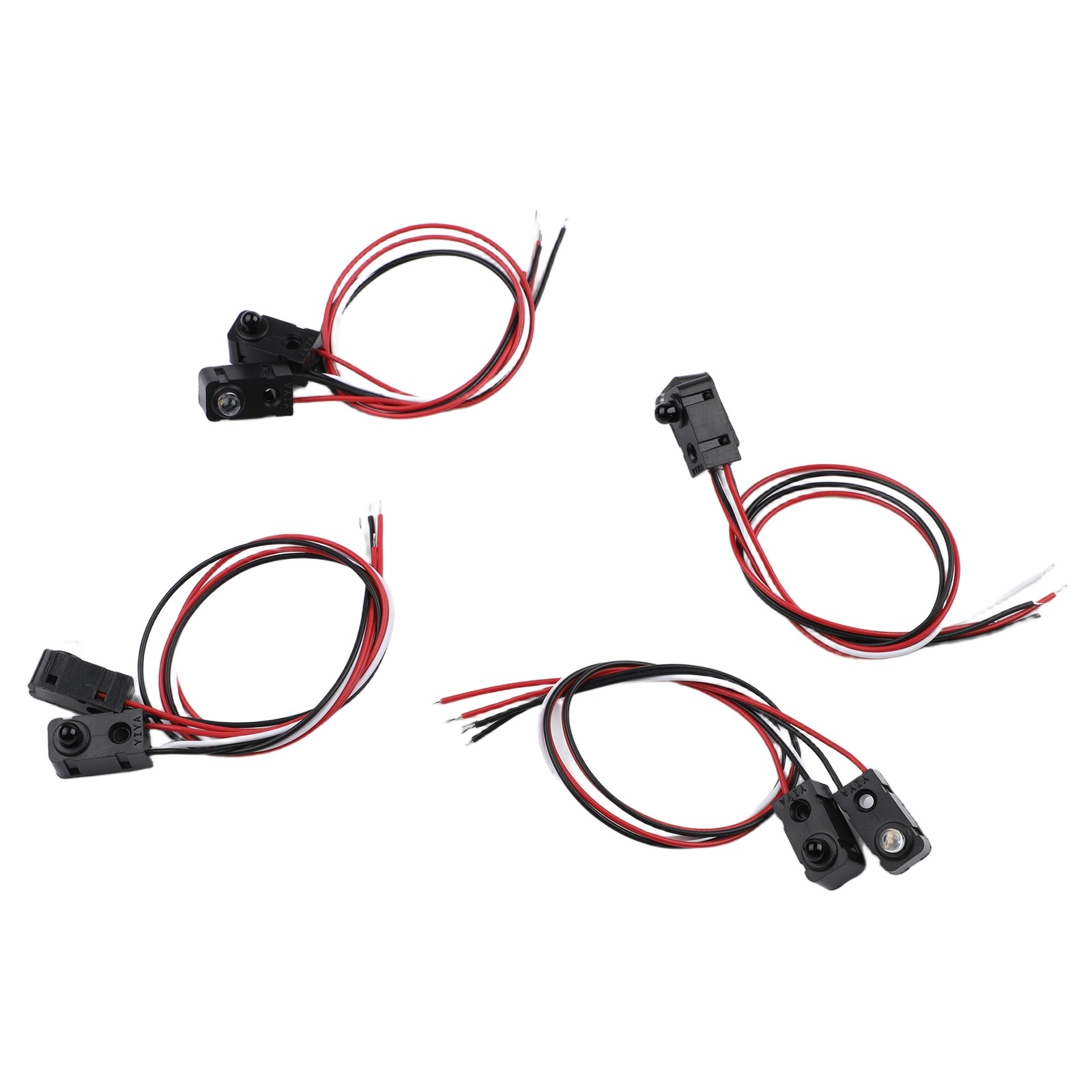

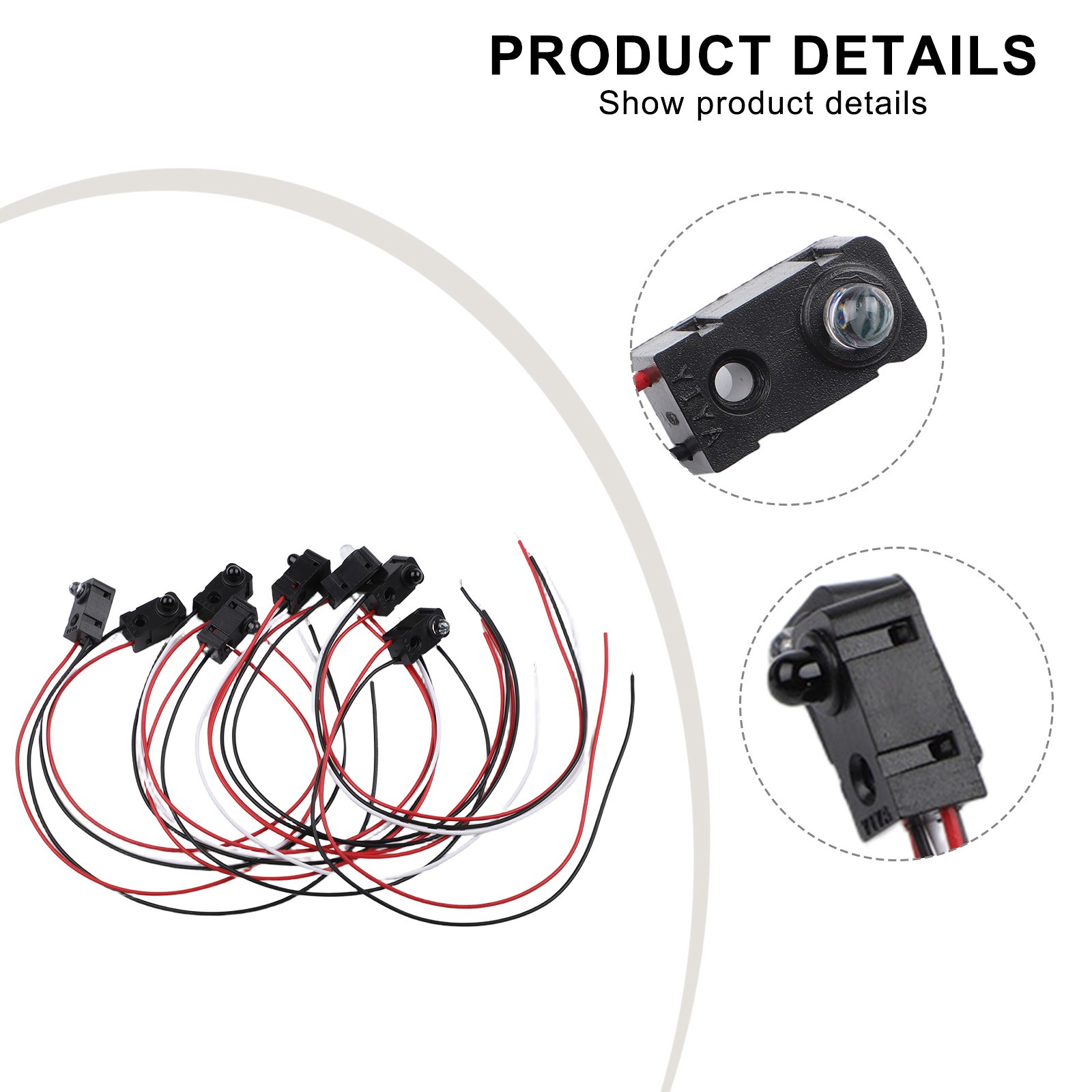

*Part Name: Through-beam Photoelectric Switch
*Material: Plastic
*Size: 20*10*8mm
*Color: Black
Sensing Distance: 2-30cm
Sensing: Light Interruption (Infrared)
Operating Voltage: DC 5V
Operating Current: Transmit (20mA), Receive (10mA)
Output: High/Low Level NPN Normally Open
Output Current: 70mA (Can directly drive a relay)
Transmitting Angle: <5°
Receiving Angle: <10°
Response Time: 2mS
Operating Temperature: -10°C to 60°C
Operating Environment: Indoor (Not Waterproof)
Cable Length: 30cm
Operating Lifespan: 50,000 hours
Wiring: red wire to positive pole, black wire to ground, yellow (white) wire to signal. Add a 1K pull-up resistor between the positive pole and the signal, and you can directly connect to the IO port of the microcontroller.
Package Content:
4 pair Through-beam Photoelectric Switch
