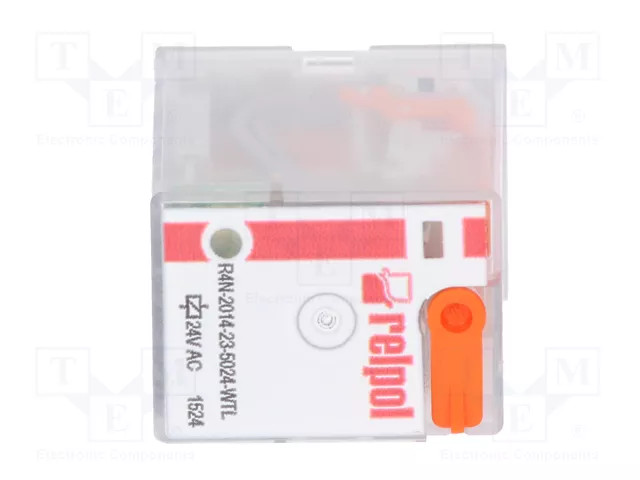

Relay: electromagnetic; 4PDT; Ucoil: 24VAC; Icontacts max: 6A; R4N
RELPOL
MPN: R4N-2014-23-5024-WTL
Leads dimensions: 2.2x0.5mm
Body dimensions: 27.4x21x35.5mm
Coil power consumption: 1.6W
Price per 1 pc
Technical parameters
| Parameter | Value |
|---|
| Optional equipment | test button with blocking function |
| Related items | SU4L |
| IP rating | IP40 |
| Leads | connectors |
| Mounting | socket |
| Relay variant | industrial |
| Operating temperature | -40...55°C |
| Leads dimensions | 2.2x0.5mm |
| Body dimensions | 27.4x21x35.5mm |
| Contact resistance | 100mΩ |
| Coil power consumption | 1.6W |
| Rated coil voltage | 24V AC |
| Contact current max. | 12A |
| DC contacts rating @R | 6A / 24V DC |
| AC contacts rating @R | 6A / 250V AC |
| Max surge current | 12A |
| Number of pins | 14 |
| Coil resistance | 158Ω |
| Switched voltage | max. 250V DC |
| Contacts configuration | 4PDT |
| Manufacturer series | R4N |
| OEM number | 860581 |
| Contact material | AgNi |
| Type of relay | electromagnetic |
Weight: 31 g
