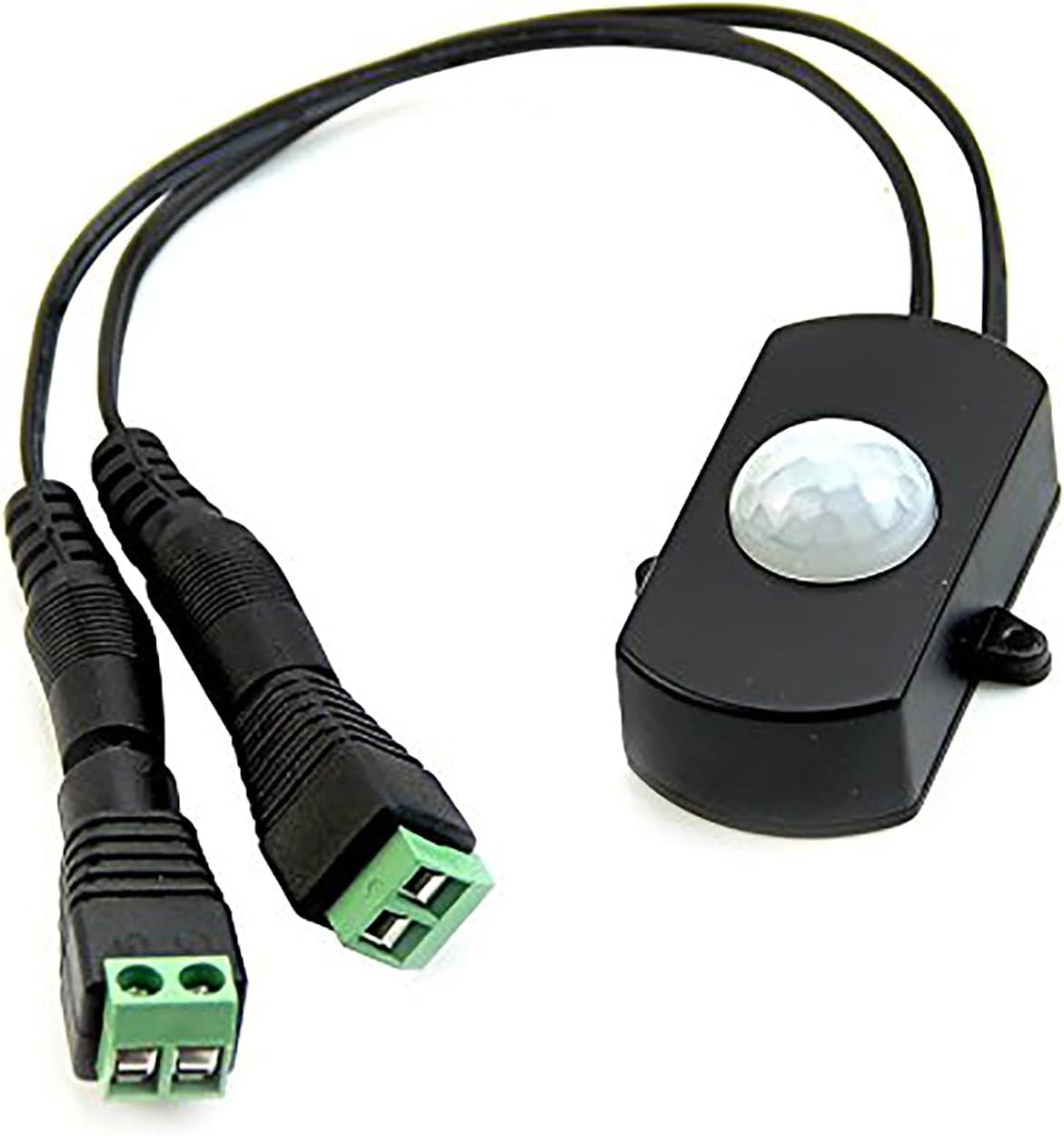

RGBZONE Automatic Mini 5A PIR Infrared Motion Sensor Detector Switch for LED Strip Light + Female Male DC Power Connector
Description
| Unit Count | 1 Count |
| Mfr Part Number | FB1020 |
| Mounting Type | Surface Mount |
| Antenna Location | Walkway, Terrace, Garden, Sidewalk, Lawn, Driveway, Garage |
| Color | Black |
| Item Dimensions D x W x H | 0.85"D x 1.02"W x 0.84"H |
| Compatible Devices | Home Automation Devices |
| Model Number | FB1020 |
| Maximum Range | 12 Meters |
| Built-In Media | 1 x LED Switch Motion Function Cotroller |
| Battery Description | battery not included |
| Manufacturer | RGBZONE |
| Brand | RGBZONE |
| Power Source | DC Power Supply |
| Size | Type 2 |
- Operating voltage: DC 6-24V Load current: 5A
- Delay time: Default setting 3-15sec
- Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage, after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time
- During the lighting, every effective human activities will cause delay sensor switch extended a period of time automatically
- Trigger Way: Continuous triggering,Light Sensor: 10LUX
Product description
PIR(Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body. Operating voltage is 6~24VDC, and output voltage is equal to input voltage.
Specification
1.Passive Infrared Sensor 2.Operating Voltage: DC6V ~ 24V 3.Load Current: 5A 4.Delay Time: 5~10 Seconds, adjustable 5.Detecting Range: 120° 6.Detecting Distance: <8M, adjustable 7.Size: 50 * 26 * 21.5mm / 1.96 * 1.02 * 0.84inch 8.Trigger Way: Continuous triggering 9.Light Sensor: 10LUX 10.Color: Black
Friendly Reminder
1.Don't exposed to direct sun light or lighting, big wind, near a heater or air condition 2.Don't fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though 3.Don't fix it in strong shock or vibration environment 4.The PIR Sensor requires a "warm-up time" in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready 5.The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right Quantity:1pc
Automatic Induction: When people enter into the range of induction,during the delay time if motion detected, the delay time will reset, and start a new delay time
Package includes:
1 x Body Infrared Motion Sensor
2 x DC adapter
Easy to connect light strips.
