ST-RJ11-R-FT

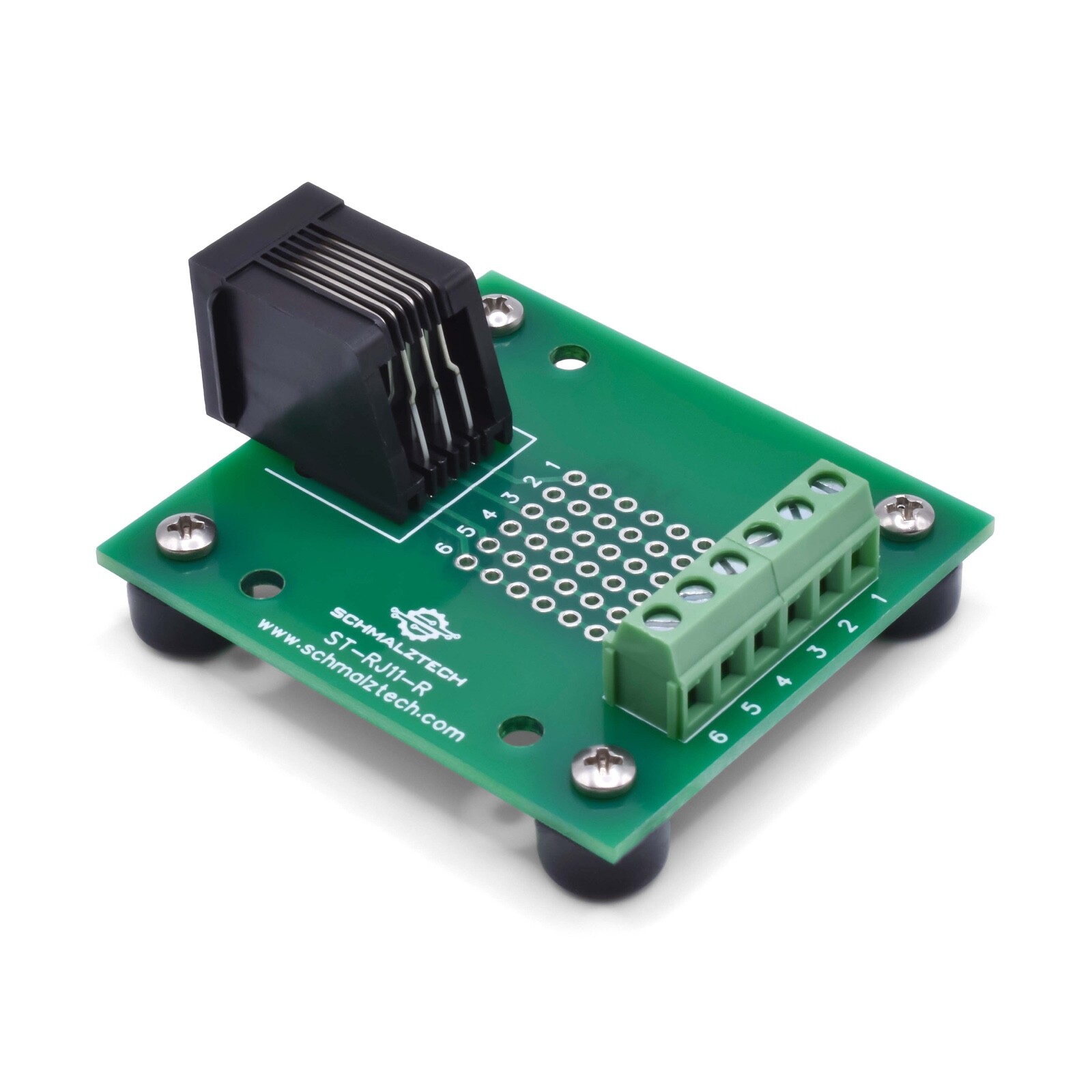

RJ11 Screw Terminal Breakout Board with Rubber Feet

Breaks out all 6 contacts
Screw terminals for fast connections
Prototyping area for in-circuit modifications
Easy access for probing and debugging
Rubber feet provide a stable base

Specifications
Wire Range (stranded)	16-26 AWG
Wire Range (solid)	16-26 AWG
Connector	6P6C
PCB Surface Finish	LF HASL
Temperature Rating	-15°C to +70°C

This RJ11 breakout board provides a convenient method of accessing all the contacts of a 6P6C connector. Each of the 6 connections are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The rubber feet on this model provide clearance for the connections on the bottom making it perfect for a lab environment where it can be placed directly on a bench.

Mechanical Drawings

Electrical Connections

Each pin of the RJ11 connector is electrically connected to a single row of the prototyping area and to one screw terminal.

Custom Designs

Can't find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing.
