Compatibility Vehicle:
2012-2018 Volvo S60
2007-2016 Volvo S80
2015-2018 Volvo V60
2008-2010 Volvo V70
2010-2016 Volvo XC60
2008-2016 Volvo XC70
About Cooling Fan:
-OE design to ensure exact fit, form and function for an easy drop-in installation;
-ISO 9001 certified manufacturing plants;
-ABS Plastic with Metal Motor;
-Built to strict quality control standards;
How to Replace the Cooling Fan?
Step 1 - Locate and disconnect the electrical connector for the cooling fan.
Step 2 - Remove the lower mounting bolts that attach the fan to the radiator. (Note: Some vehicles have alignment dowels which need not be removed.)
Step 3 - Remove any weather stripping that will help access the cooling fan. (Note: This is not needed on most vehicles.)
Step 4 - Loosen mounting bolts or clips to remove any plastic shielding that will inhibit the replacement of the cooling fan.
Step 5 - Once all mounting bolts have been removed, lift the plastic covering from the vehicle.
Step 6 - After the plastic covers have been removed, loosen and remove the core support mounting bolts. (Note: This is not needed in some vehicles.)
Step 7 - Next, lift the core support from the vehicle. (Note: A hood cable release could be mounted to this support.)
Step 8 - Then, loosen the upper radiator hose clamp using a hose clamp tool or channel locks.
Step 9 - Once the clamp has been loosened, grasp the hose and twist using a hose pick or screwdriver to assist. Have a fluid catch basin ready as coolant will leak out. (Note: Depressurize or drain the radiator if needed. Radiator replacement.)
Step 10 - After the upper radiator hose has been removed, undo the mounting clips or bolts that hold the air intake in position. (Note: This step needed only if the air intake is blocking the removal of the cooling fan.)
Step 11 - Next, loosen and remove the upper mounting bolts from the cooling fan radiator mount.
Step 12 - Once all mounting bolts and clips have been removed, gently lift the cooling fan from the engine bay. Use caution when performing this action as to not damage the radiator cooling fins.
Step 13 - After the failed cooling fan has been removed, compare the old fan to the replacement cooling fan. Inspect mounting tabs and electrical connector to ensure proper installation. (Note: Some cooling fan designs feature the replacement motor separate.)
Step 14 - Gently lower the new cooling fan down into the engine bay and onto the radiator. Again, use caution when performing this as not to damage the radiator cooling fins.) Reassembly all mounting bolts etc., refill cooling system and check the coolant reservoir, add fluid as needed.
Tools and Supplies Needed:
1.Socket set
2.Wrench set
3.Replacement cooling fan
4.Fluid catch basin
5.Protective eyewear and gloves
6.Hose clamp tool or channel locks
FAQ Anwser
1.About shipping: We have two warehouses in US, one is located in CA, and other one is located in GA. We will dispatch packages from the nearest in stock warehouse by recipient's address accordingly. Up to 99% Orders could be shipped within 24 hours after payment completed.
2.About incompatibility parts received: Please provide us with detailed vehicle information including Year/ Made/Model/Trim and Engine, or VIN#. With these information, we could try to help to find out a correct OE# part or exchange a right one for you if we have it in stock.
3.About damaged package: Please take some photos of the damage part and send to us, we will inspect it carefully and confirm with engineer if the damage will cause functional or installation issues or not. For serious damage radiator, we could do resend a new one or issue refund as compensation.
4.About shipping method: UPS, FedEx, USPS are available here and we will choose one of them according to the part you order, for generally speaking, the delivery time is about 3 to 8 working days.
5.Why choose us: Professional auto parts seller, Premium Quality Products, Excellent service, Satisfactory shopping experience.
6.Other questions: Please message us before order.
| Item Specifics | |
|---|---|
| Brand | Autocoolinghome |
| Manufacturer Part Number | 1331402 Fan Control |
| Condition | New |
| Manufacturer Warranty | 1 Year |
| Interchange Part Number | fan speed control,1375212,1437591,2011 12 13 14 15-2016 Volvo S60 |
| OE Part Number | fan control relay,1488905,1671530,2007 08 09 10-2015 Volvo S80 |
| Superseded Part Number | 940004101,2008 09-2010 Volvo V70 |
| Custom Bundle | No |
| Fitment Type | Direct Replacement |
| Material | ABS Plastic or Metal |
| Placement on Vehicle | Front |
| Applicable Regions | US |
| Type | Fan Control Module |
| Note 1 | Only fits Single cooling fan Relay Control Modul |

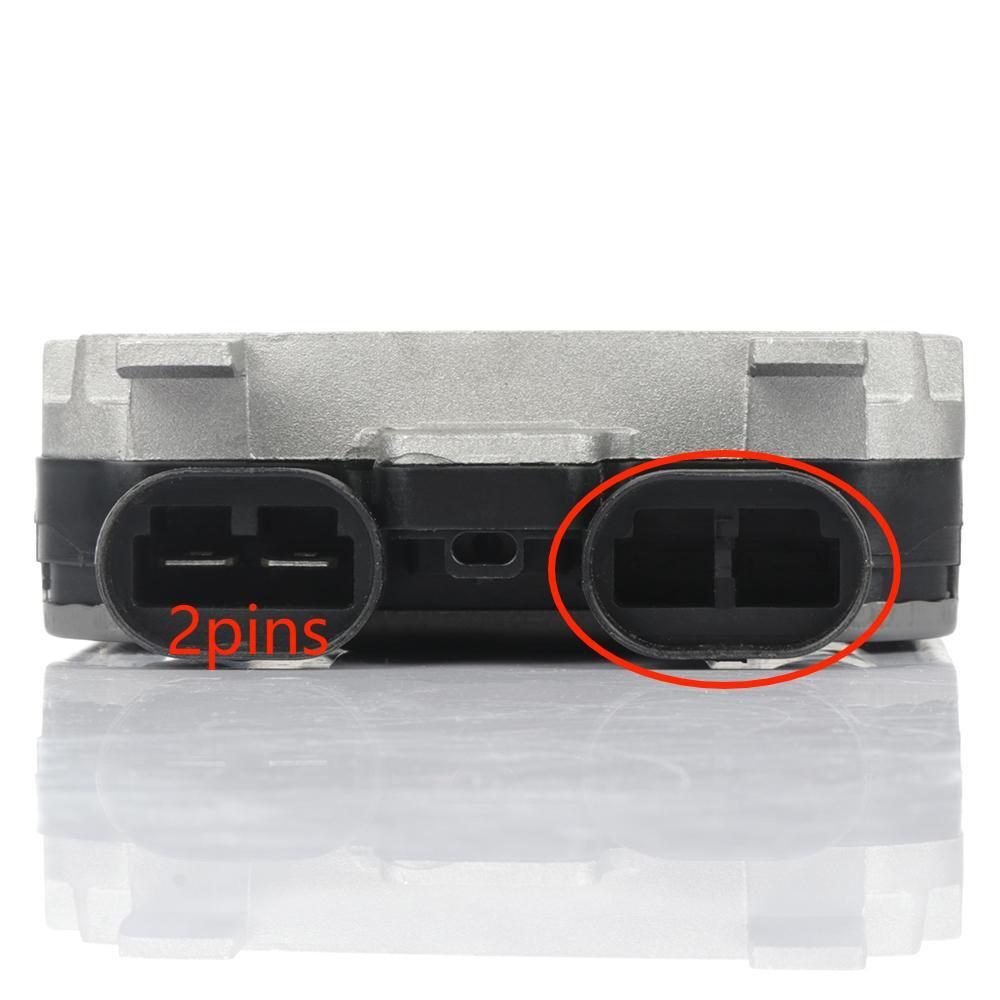

| Note 2 | it is Only have 1 Effective interface, Only connect for ONE fan |
Paypal are the accepted forms of payment.
Please use the eBay checkout system when paying for your order.
We have two warehouses in US, one is located in CA, and other one is located in GA. We will dispatch packages from the nearest in stock warehouse by recipient's address accordingly. Up to 99% Orders could be shipped within 24 hours after payment completed.
UPS, FedEx, USPS are available here and we will choose one of them according to the part you order, for generally speaking, the delivery time is about 3 to 8 working days.
Shipping services only cover 48 states and Washington DC in US Continental, while most of the time Alaska, Hawaii, Puerto Rico, American Samoa, U.S. Virgin Islands, Northern Marianas, Guam are not deliverable. USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available
Your auto parts sometimes might be shipped with two or more separated packages due to weight limitation, please keep patient with no Item Not Received claim or Return request filed until by all of your items are received.
1 YEARS WARRANTY
All of our brand new items come with a 60-Days money-back guarantee.
We will replace the defective items, provided that they are in stock within the warranty period posted with the listing and the buyer return the original item and pay for the S&H cost for the replacement
We will refund the purchase price if the replacement is not available or buyer prefers a refund and send the original item back at his/her own cost.
Man-made damage by abuse or wrong operation is not covered by this warranty.
Refunds will be credited within 1 to 5 business days of receiving the return.
- Any Questions Please Message Us Before Order

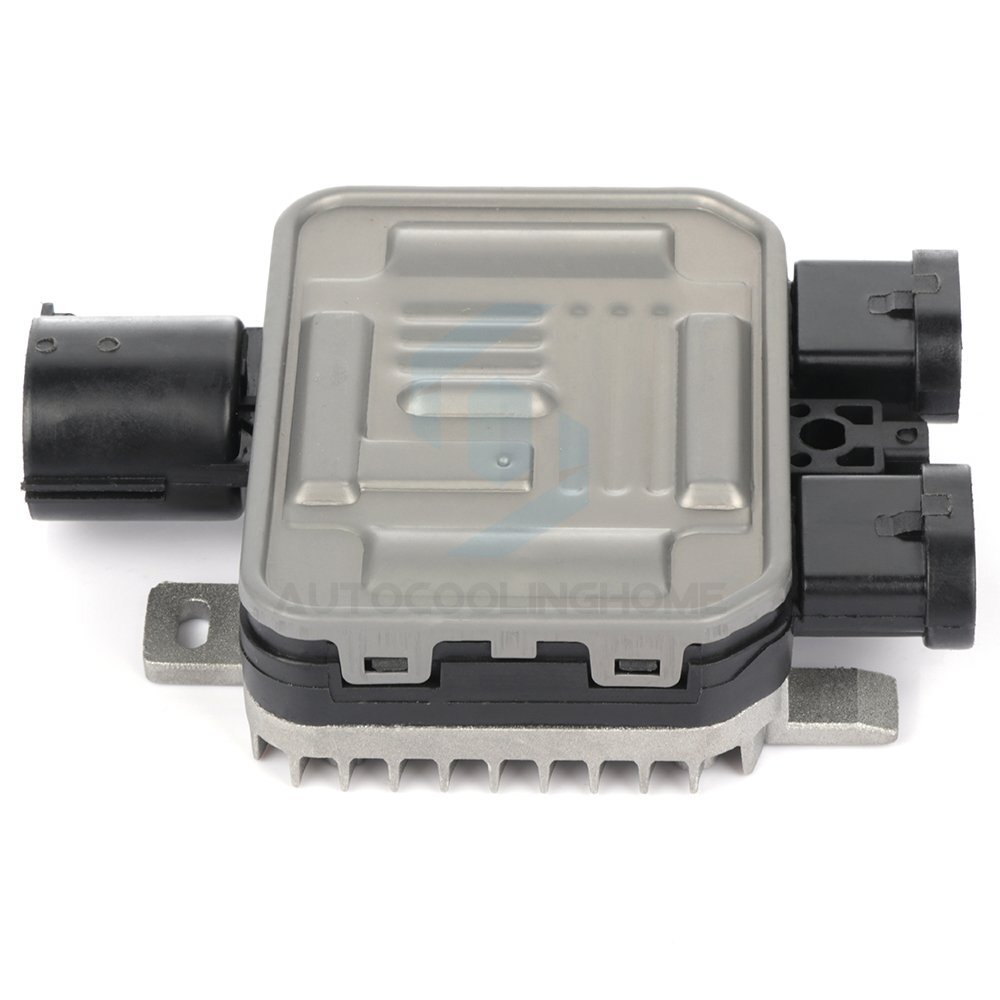

Radiator Cooling Fan Control Module Unit For Volvo S60 S80 V70 XC60 XC70
