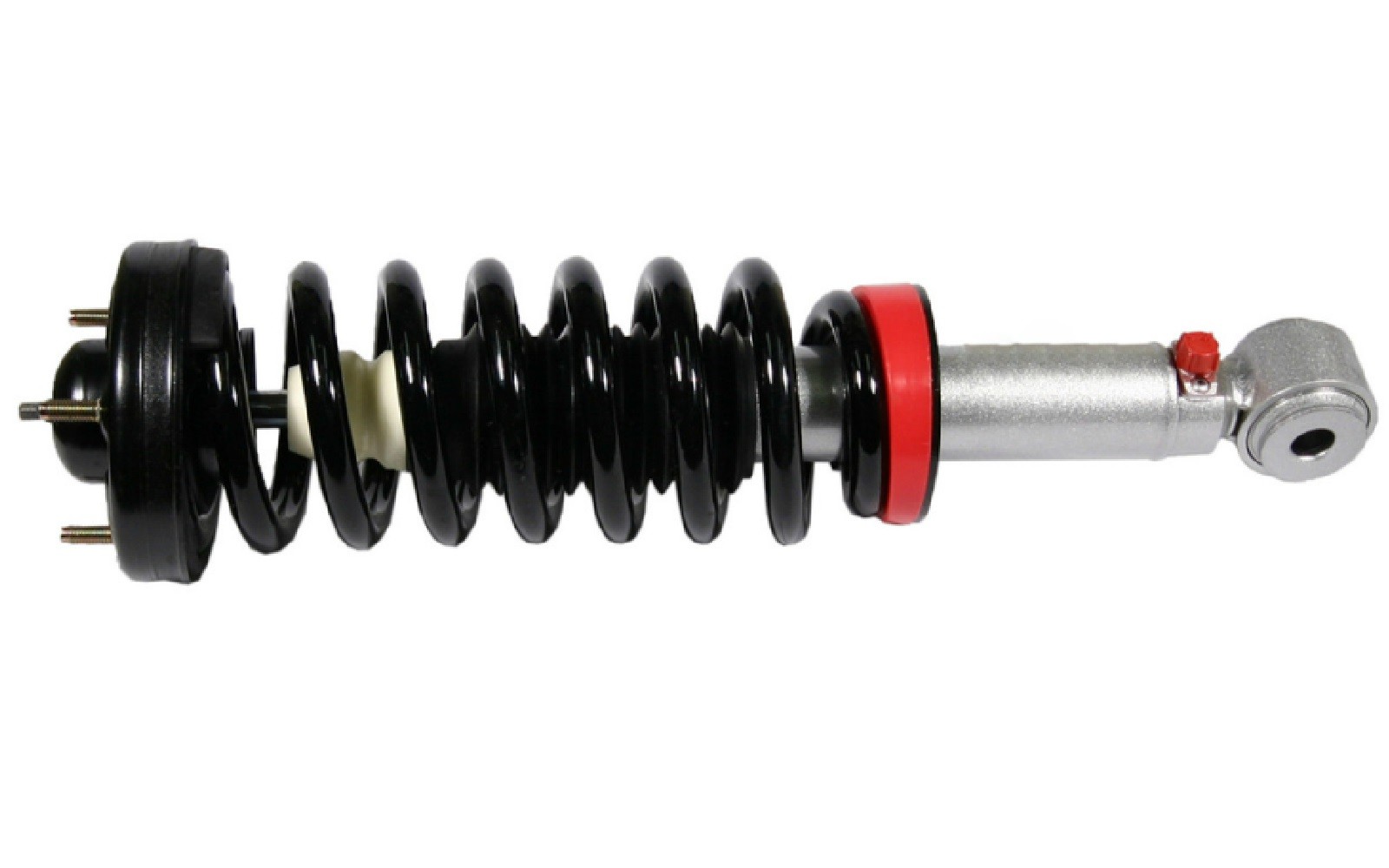

Rancho QuickLIFT Front Right Coil Spring Strut Assembly for 07-12 Expedition
PART NUMBER: RS999925
BRAND: Rancho
DESCRIPTION
An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.
- COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
- EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
- LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
- INCREASED GROUND CLEARANCE -- Provides 1.25-in. of additional lift to accommodate up to 275x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
- NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
- REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
| Extended Length |
21.3 (in) |
| Extended Length |
541 (mm) |
| Lower Mount Type |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Upper Mount Type |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Body Diameter |
2.13 (in) |
| Body Diameter |
54.1 (mm) |
| Body Type |
SS3 |
| Compressed Length |
16.16 (in) |
| Compressed Length |
410.5 (mm) |
| Travel Length |
5.14 (in) |
| Travel Length |
130.6 (mm) |
| Body Length |
15.66 (in) |
| Body Length |
397.8 (mm) |
| Dust Shield Included |
Yes |
| Includes Bump Stop |
No |
| Hydraulic Lockout |
No |
| Internal Rebound Bumper |
No |
| Parts Pack(s) |
P01141 |
VEHICLE COMPATIBILITY
2007-2012 Ford Expedition 2WD/4WD w/o Air Suspension and EL; w/ 1.25" lift
