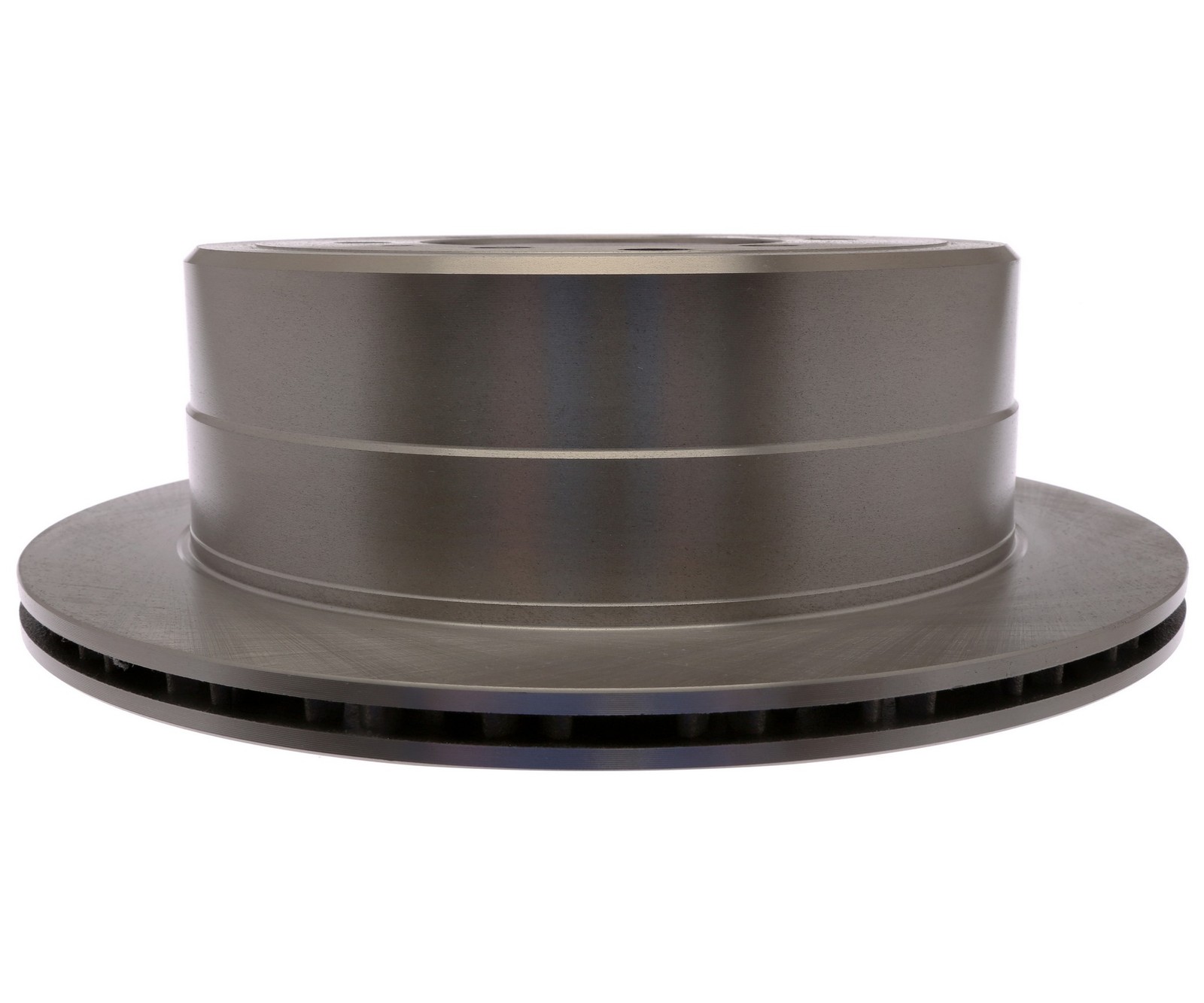

Raybestos Rear Disc Brake Rotor for LX450, Land Cruiser (96362R)
Fitment Chart:
| Years | Make | Model |
|---|
| 1993-1997 | Toyota | Land Cruiser |
| 1996-1997 | Lexus | LX450 |
Specifications:Part Category: Disc Brake Rotor
Brand: Raybestos
Manufacturer Part Number: 96362R
Vehicle Position: Rear
Placement on Vehicle: Rear
Label: R-Line
Product Type: Factory Replacement
Type: Disc Brake Rotor
Discard Thickness: 0.630
Discard Thickness: 16.000
Nominal Thickness: 0.710
Nominal Thickness: 18.050
Overall Height: 102.600
Overall Height: 4.039
Outside Diameter: 13.190
Outside Diameter: 335.050
Mounting Bolt Hole Quantity: 6
Solid Or Vented Type Rotor: Vented
Center Hole Diameter: 106.000
Center Hole Diameter: 4.173
Mounting Bolt Hole Circle Diameter: 139.700
Mounting Bolt Hole Circle Diameter: 5.500
Mounting Bolt Hole Diameter: 139.700
Mounting Bolt Hole Diameter: 5.500
Stud/Lug Hole Quantity: 6
Conventional Or Drum-In-Hat Type Rotor: Conventional
Interchange Part Number: 083-2577 107790 120.44094 120.44094CRY 121.44094 125424
Replaces Part Numbers: 126.44094CSL 126.44094CSR 126.44094SL 126.44094SR 127.44094CL
Replacement Part Numbers: 127.44094CR 127.44094L 127.44094R 128.44094CL 128.44094CR 141878
Replace Part Numbers: 128.44094L 128.44094R 14-31154 23702 25590 31154 31154DG 31154G
Replaces Parts: 320.44094 325394 4243160170 442245 479690 50011255 52-125424 64-7
All Interchanges: 083-2577,107790,120.44094,120.44094CRY,121.44094,125424,126.44094CSL,126.44094CSR,126.44094SL,126.44094SR,127.44094CL,127.44094CR,127.44094L,127.44094R,128.44094CL,128.44094CR,128.44094L,128.44094R,14-31154,141878,23702,25590,31154,31154DG,31154G,320.44094,325394,4243160170,442245,479690,50011255,52-125424,64-79-690,78450,789-22086,89-22086,96362,96362R,96362RGS,BD125424,BDC4943,BR06290,BR31154,CW18708,DF3184S,JBR743,JBR743E,R79690,RB670,TO679,TSR786,X50950,YH141878,YH141878C,YH2245
Brand Label: R-Line
