Red Lion T16 Series is a discontinued, panel-mount, single-loop temperature and process controller that accepts signals from a variety of temperature sensors like thermocouples and RTDs. It features a dual-line LCD display (red and green), and it can provide an accurate output control signal using On/Off or PID methods to maintain a setpoint.
Key features
- Function: Single-loop temperature and process controller.
- Inputs: Accepts signals from thermocouples (B, C, E, J, K, N, R, S, T) and RTDs (385, 392, 672) with 2-wire or 3-wire connections.
- Control method: On/Off and proportional (PID).

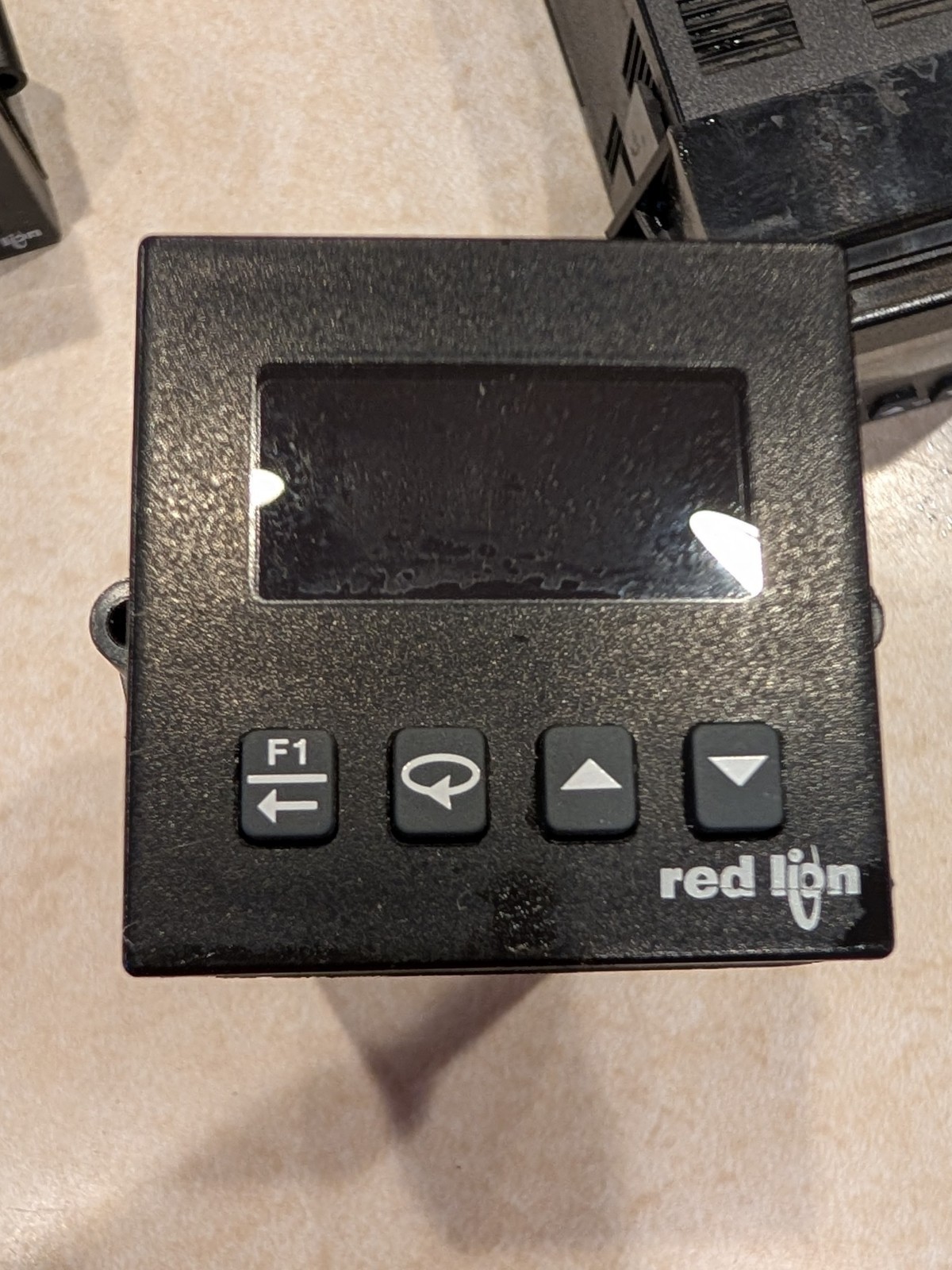

- Display: Dual 4-digit LCD with red characters on the top line for the process value and green on the bottom line for the setpoint.
- Output: One digital output that can operate a Solid State Relay (SSR).
- Supply voltage: 85-250 VAC.
- Enclosure: Meets NEMA 4X/IP65 requirements for indoor use when properly installed.
These were removed from a laboratory setting in working condition, but were not tested any further. Returns will be accepted for non-functioning PID controllers.
