DESCRIPTION
【LOW POWER CONSUMPTION & GOOD STABILITY】:The
parameters of kill switch for car are as follows: Rated current: 240A;
Rated voltage: 12V; Standby power consumption: 3mA; Power failure
threshold: 11.6V-12V; Instantaneous current: 500A.Battery kill switch
Operating Temperature: -22℉-194℉ 【SMART VOLTAGE SAFET KILL SWITCH】: This kill switch for car when the voltage is lower than 11.8V, it will cut off the power automatically after 120 seconds to save power; when the voltage is higher than 13.2V, the remote control is invalid and can only be controlled by a manual switch to prevent the power from being cut off by an accidental action during traveling. This kill switch for car adopts a new type of relay, which utilizes the magnetic principle to control the disconnection and cut-off of the circuit, and the standby current is 3mA, which is more energy-saving
【PROTECT AND EXTEND BATTERY LIFE】: This kill switch for car can avoid car battery depletion due to long term parking, line aging, forgetting to turn off the lights and other reasons. this remote battery protects can maximize the retention of car battery power, effectively protect and extend the life of the car battery
【WHAT YOU GET】: Cut off Switch x 1, Remote controller x 2, Manual x 1, Nut x 1, cushioning sheet x 1. This kill switch for car adopts the negative link method, easy to install, more stable performance.Just follow the included instructions to install. NOTE: be sure to turn off the power before installation, ignition test after installation
【APPLICATION AND PRECAUTIONS】:This kill switch Suit for most 12V car, boat, rv, trailer, trucks, ATV, UTV, motorcycle, vehicles with displacement less than 4.0; Negative pole: 9-13 mm and 15-17mm, not fit for small pile head vehicles；Note: The size of the switch is 3.3"x2.4"x1.4", before order it, it's best to check and measure your car's battery compartment to see if there is enough space to install it and close the hood properly

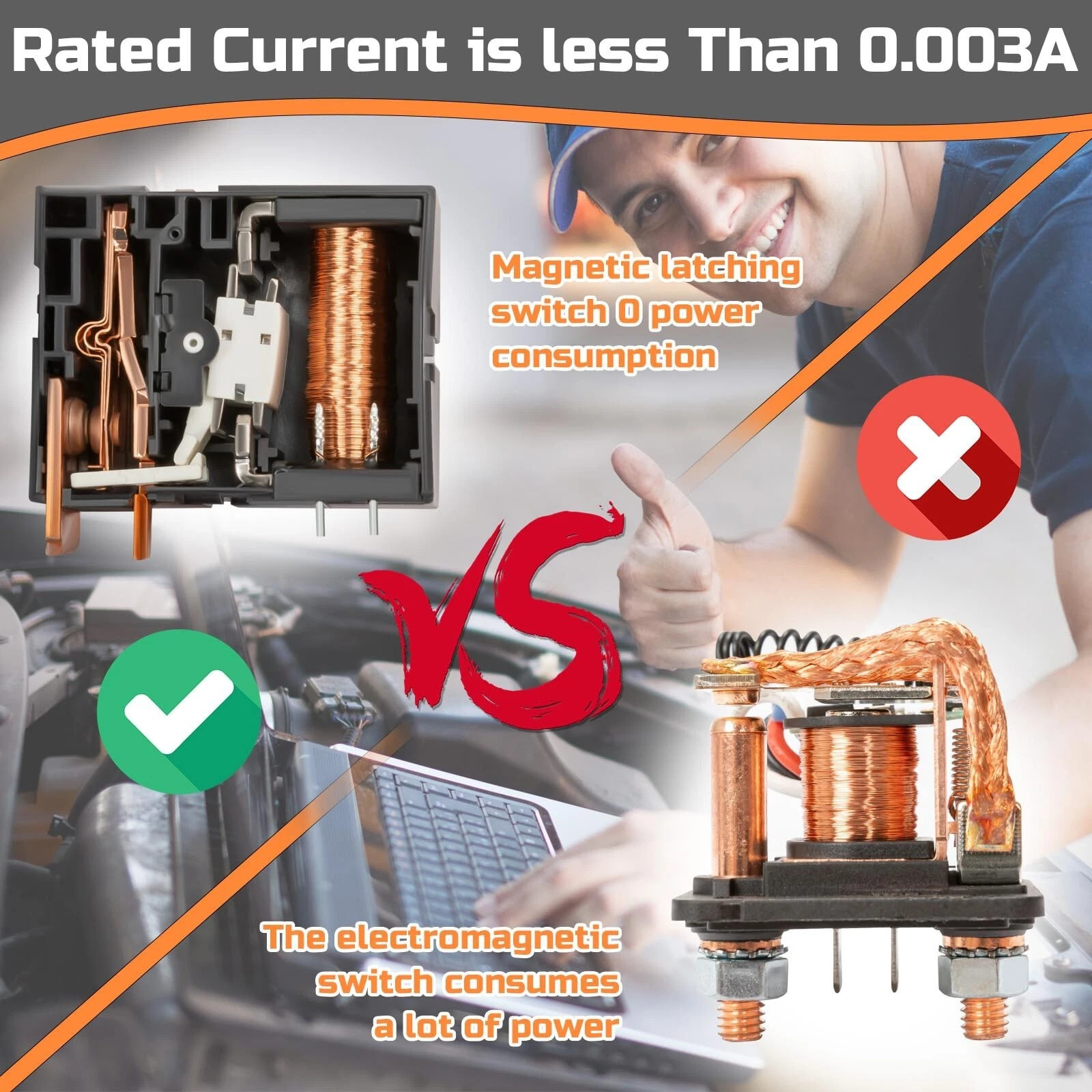

【MAGNETIC LATCHING FUNCTION】:Remote battery disconnect switch is an upgraded version of the previous generation product,This kill switch for car uses a new type of relay that controls circuit disconnection by magnetic principle, with a standby current of 3mA, which is more energy-saving.
Function:
1. The remote controller can be paired with the equipment normally within the working voltage range.
2. The equipment can be turned on and off by manually pressing the key ON/OFF within the working voltage range.
3. Equipment with power supply voltage lower than 6V or higher than 30V will automatically shut down and disconnect.
4. When the power supply voltage is lower than the protection threshold voltage (11.8V/23.2V) for 60 seconds, an alarm will be given, and the equipment will be automatically disconnected for 120 seconds to protect the battery.
5. If the voltage is higher than 13.3V(12V system) /26.2V(24V system), the radio frequency remote control will fail to prevent the power failure caused by touching the remote control button by mistake during driving.
6. When the voltage range is 6-18V, it is self-identified as a 12V vehicle system, and works in response to the threshold point of the 12V system.
7. When the voltage range is 18-30V, it is self-identified as a 24V vehicle system, and works in response to the threshold point of the 24V system.
8. When driving, the battery voltage is relatively high, and the system enters the false trigger protection state of driving.
9. When the battery voltage is relatively low during ignition, the system enters the ignition false trigger protection state.
10, power loss delay alarm for 60 seconds, automatic disconnection for 120 seconds.
11, driving process and ignition false trigger protection
Remote control matching instructions：
1. Interlocking mode (applicable to vehicle system control)-Press the manual button on continuously for 3 seconds to flash the code indicator light for 3 times to enter the learning state, press the button on the remote controller, and then flash the code indicator light for 3 times after the code is successful, and then press another button on the remote controller to flash the code indicator light for 3 times after the code is successful;
2. After entering the learning state, the learning code indicator light automatically exits the learning state without receiving the remote control signal within 30 seconds;
3. Clear code-lONg press the manual buttON on the code indicator flashes 8 times to indicate that clear code is complete (long press the manual button on, the indicator flashes 3 times, 4 times, 5 times and 8 times in turn; Among them, flashing 3 times is the interlocking mode learning state, flashing 4 times is the self-locking mode learning state, flashing 5 times is the inching mode learning state, and flashing 8 times is the code clearing state).
Voltage Rating: 12V/24V, Current Rating: 240A, Instantaneous Current: 500A, Standby Current: 0.003A, Operating Temperature: 30℃-90 ℃
Low Power Consumption
Magnetic Latching Function
433HMZ Remote Control Key
Simply press the button to disconnect the power supply.
（Black rectangle sponge）：Anti Friction and Silent
（M2 gasket）：Increase Height
Protect&Extend Car Battery Life:
Battery disconnect switch can avoid car battery to run out due to long-term parking, line aging and forgetting to turn off the light. It can maximize the storage of car battery power, effectively protecting and extending lifespan.
