Whether youre in need of an oil system that works with a tight engine compartment or you simply wish to upgrade your block mount oil filter housing, we have you covered with these remote bypass adapter kits from Speedway Motors.

Kit Includes:

• (1) Trans-Dapt 1022 1968-Up Chevy Spin-On Oil Filter Bypass
• (1) Neoprene Hose and Fitting Kit
• (1) Single Remote Oil Filter Bracket, Horizontal Outlet
• (1) AC Delco PF1218 Duraguard Chevy Engine Oil Filter

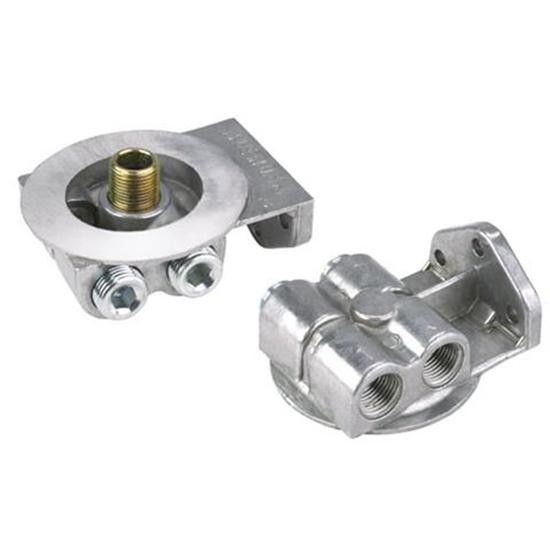

Spin-On Bypass Adapter

Remote bypass adapters replace the bolt-on oil filter housing or the spin-on oil filter. Adapters feature 1/2" NPT female inlet/outlet threads.

• Fits 13/16"-16 threads.
• Designed to fit Small and Big Block Chevy V8''s
• 3-1/8" O-ring included
• Aluminum construction
• 1/2" NPT Female port size

Neoprene Hose and Fitting Kit

Kit includes enough -8 AN push-on neoprene/rubber hose (1/2" I.D.) to run two 48" lines from your oil filter block adapter to your remote oil filter bracket. Also includes two 1/2" NPT hose ends, two -8 AN hose ends and two 1/2" NPT to -8 AN steel fittings.

• One 8 ft. hose length
• Two 1/2" NPT hose ends
• Two -8 AN hose ends
• Two 1/2" NPT to -8 AN fittings

Single Remote Oil Filter Bracket

Aluminum remote oil filter bracket with vertical hose inlet/outlet. Has 1/2" NPT female hose inlet/outlet threads. This oil filter relocator is used with Chevy filters with 13/16"-16 thread (AC Delco PF35, PF932 or Fram HP4 filters).

• Aluminum
• Horizontal hose inlet/outlet
• 1/2" NPT female hose inlet/outlet threads
• Spin-on type element
• Accepts Chevy filters with 13/16"-16 thread

Engine Oil Filter

Protect your Chevy V8 engine with this premium quality oil filter. Outstanding filter capacity, enhanced efficiency, consistent flow management and high-durability design help provide exceptional filtering performance.

• 98% single-pass efficiency at 25-30 microns
• Patented cellulose media traps particles 1/3 the width of a human hair
• Designed with 5x greater burst strength than most engine oil operating pressures
