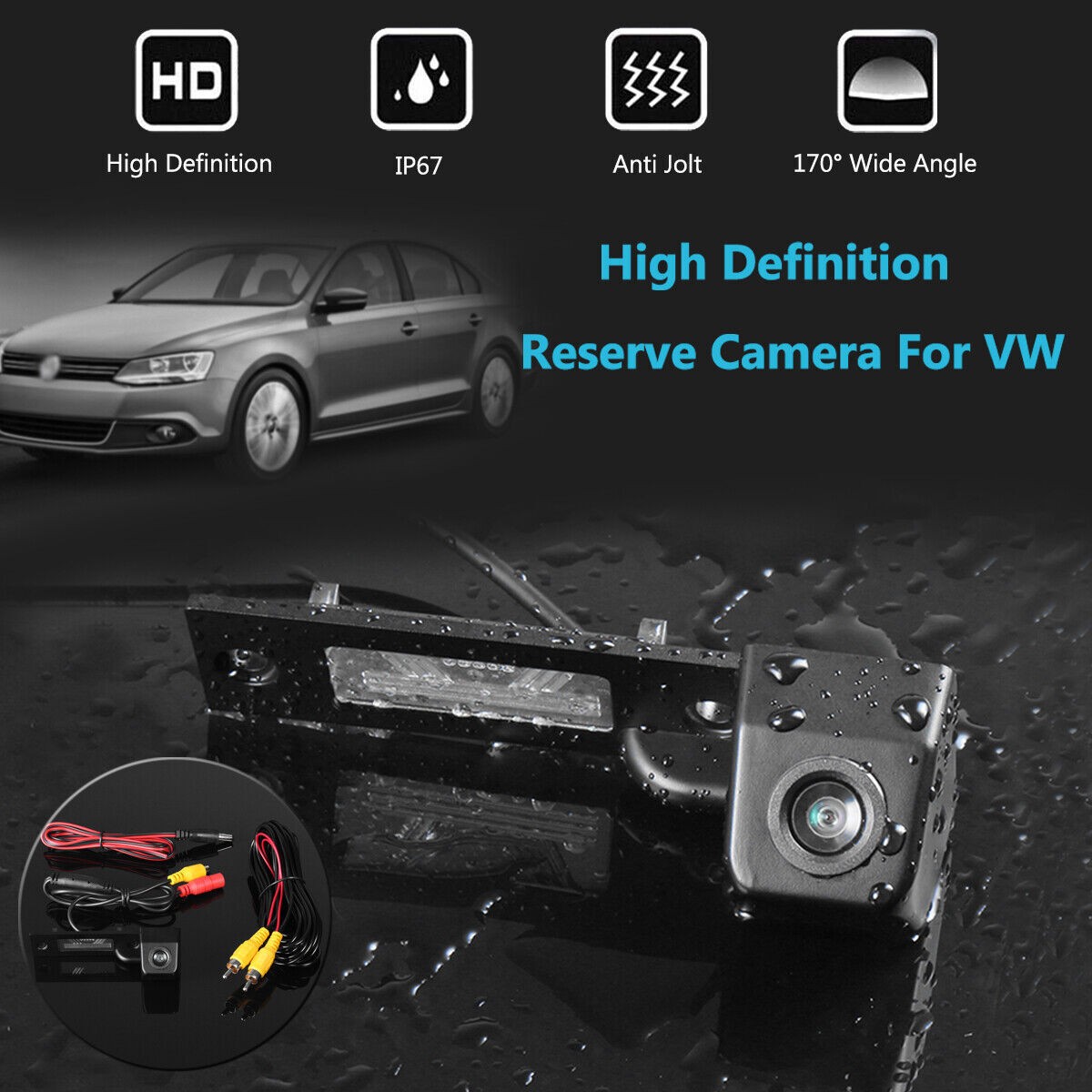

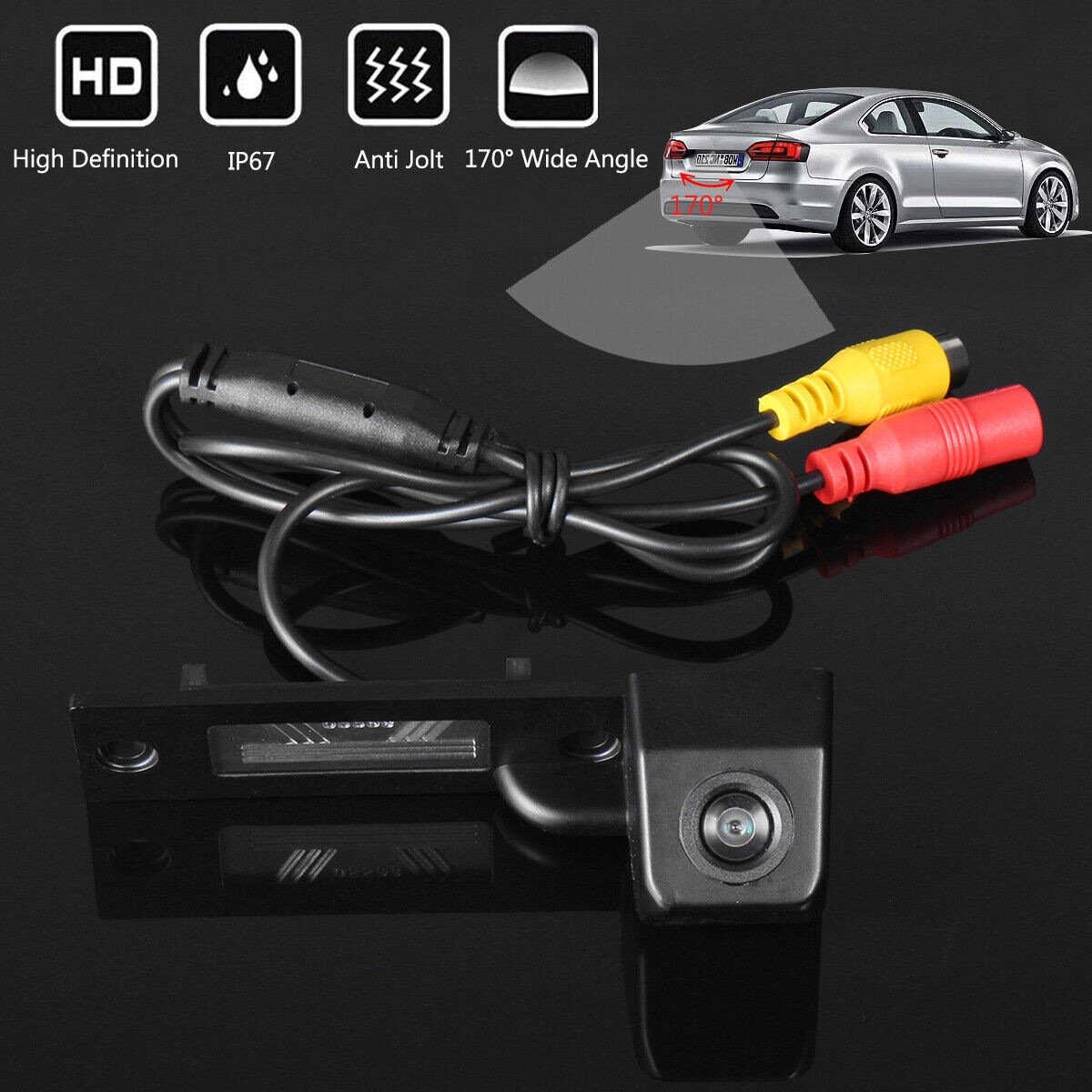

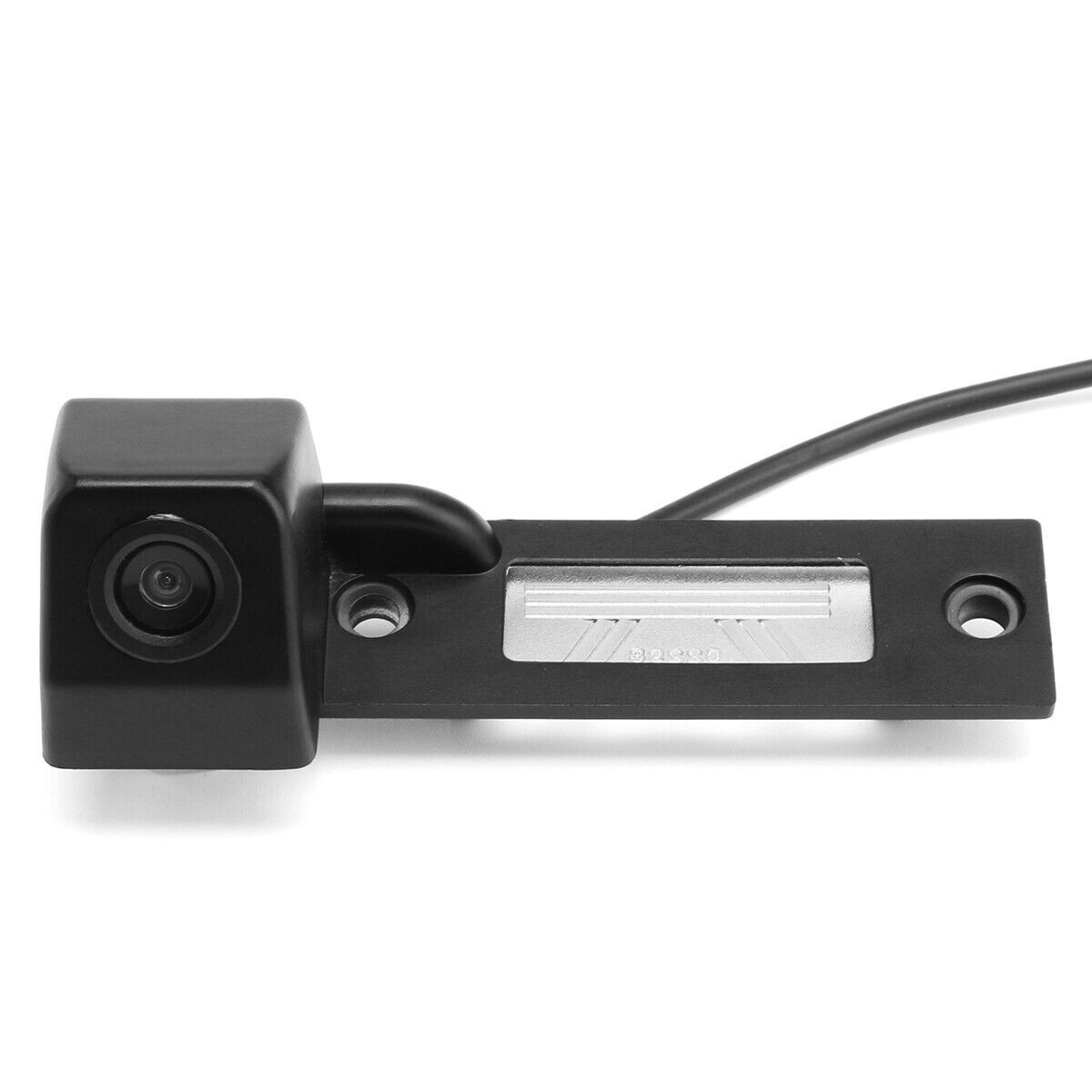

HD Car Auto Reverse Backup Rear View Camera For Caddy Passat 3B Touran Jetta

Specification :

Model : 702612

Product name : wide angle reversing camera

Material : plastic  metal

Color : black

Voltage : 12V DC

Current consumption : 130mA

Effective Pixels:NTSC:628(H) *535(V)

Resolution : 480 TV lines

Minimum illumination : 3Lux/F1.2(OLux when infrared LED on)

Lens angle : 170°

S/N rstio : more than 48db

Electronic shutter : 1/50/1/60-1/15,000 seconds

Video output : RCA connector, 1.0vp-p,75ohm

Operating temperature : -30 to 60 degree RH95% Max

Storage temperature : -35 to 70 degree RH95% Max

Other items : automatiewhite balance, AGC and BLC

Cable Length of Camera:Approx.54cm/21.26in

Power Supply Cable Length:Approx.102cm/40.16in

Video Cable Length:Approx. 297cm/116.93in

Placement on vehicle : rear

Quantity : 1pc

Feature :

1.Shockproof, IP67, anti-interference and resistance to high/low temperature.

2.Super low-light, high quality image capabilities,high resolution, high sensitivity and high signal to noise ratio.

3.DSP digital chip, image clarity without distortion.

4.High-definition and 170 degree wide viewing angle.

5.Embedded mounting in rear bumper.

6.This camera can give you a full sight of the back of your car when you are driving.

7.To protect your car from collision with For invisible obstacle, choose a high definition and good quality camera as ours.

Fitment :

For    CADDY      2004-2015

For    JETTA       2003-2014

For    GOLF PLUS    2005-2007

For    PASSAT 3C 3B   2001-2005

For    TOURAN    2003-2015

For    T5, T5.1 TRANSPORTER  2003-2015

For  Skoda's  SUPERB  2002-2008

(The compatibility just for reference,Please make sure the item fit for your vehicle.)

Installation:

1.Mount the camera inside the keyhole of your vehicle.

2.Adjust the lens of the camera to its best position.

3.Connect power cord to connect to your vehicle DC 12V power system.

4.Connect the video output(yellow) of the camera to the display in your vehicle.

Note :

1.We provide clear pictures ,measurement where possible.Please check as much as possible to make sure the item the one that you need.

2.The actual item maybe has slight color distinct with listing image due to different computer screens ,thanks for your understanding.

3.The size of item is manual measurement,please allow 0.5-1inch difference.(1inch=2.54cm)

4.Installation manual is not included.Professional Installation Is Highly Recommended！

Package included :

1 x car rear view camera

1 x video cable

1 x power cable

1 x manual
