170° CMOS Car Rear View Reverse Backup Night Reversing Parking Back Up Camera
Main features:
1, Universal Rearview Backup Camera
2, Die cast Metal housing
3, Small and compact design
4, Completely waterproof housing
5, Metal anti-theft bracket
6, Simple installation for installers
7, Low light sensitivity fo 0.5 Lux
8, Reverse image
9,Body Color: Black
10,Requires a 12V DC power supply

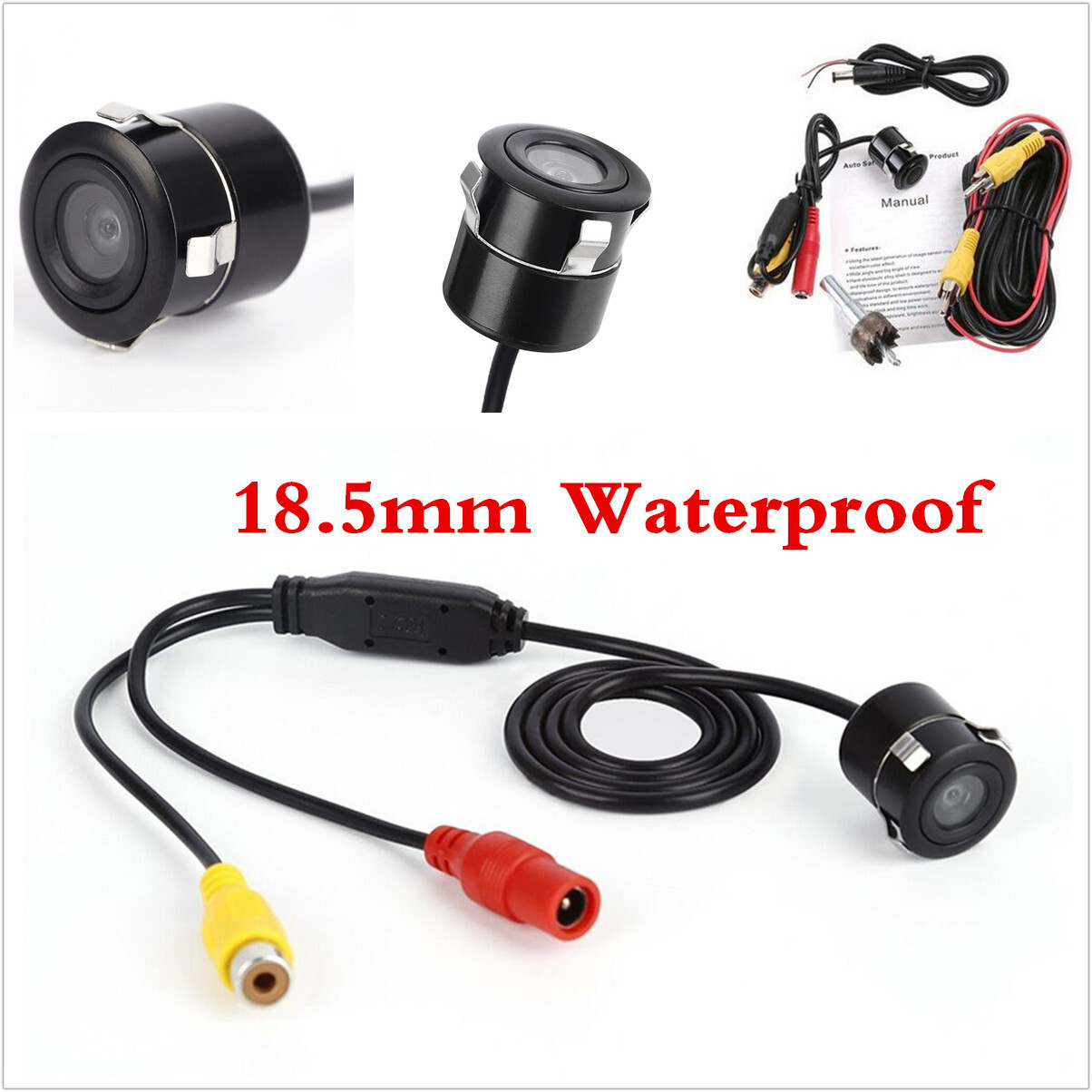

11.The Camera need to drill,the diameter is 18.5mm.
Technical Specifications:
1,TV Systems:NTSC/PAL
2, Image Sensors: Color CMOS
3,Total Pixels: 688*488
4, Resolution: 420 TV Lines
5, Lens: 2.8mm

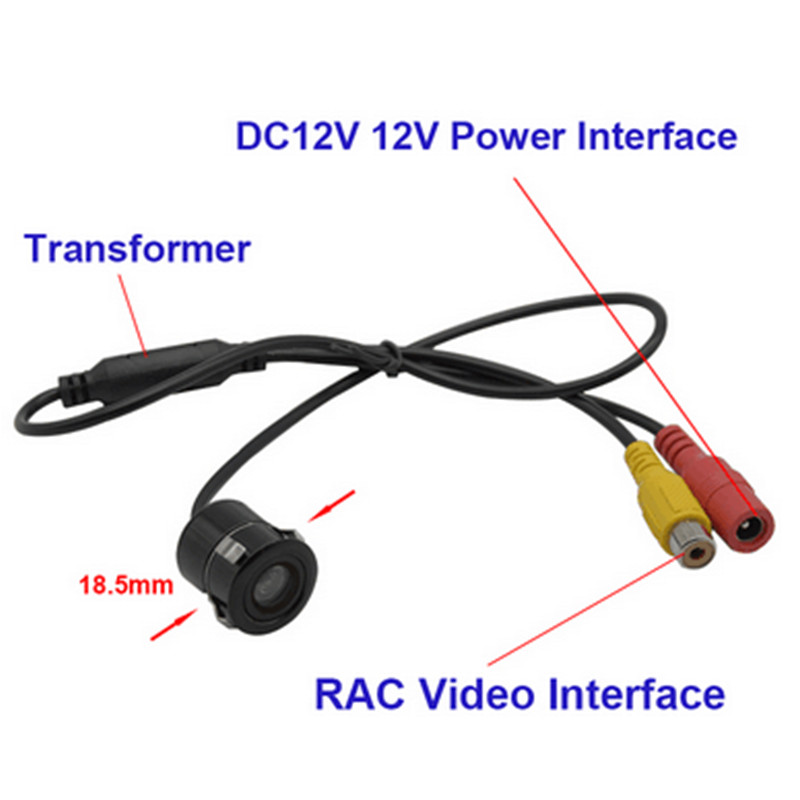

6,Video Output: 1.0vp-p composite video at 75ohm.
7, Working Voltage Supply: DC 9V-15V(12V in car)
8,Operating Temperature (Deg. C) -30~ +70
9,Water Proof, Anti-Shock

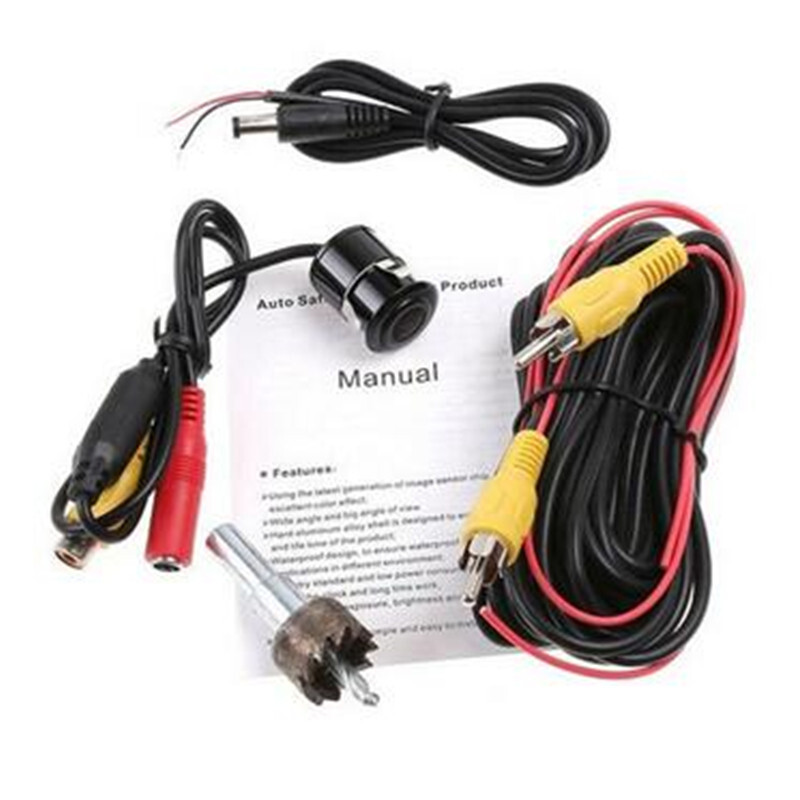

Package include:
1 x Car Rear View Camera.
1 x 6M Video Cable.
1 x Power Cable
(without retail box)

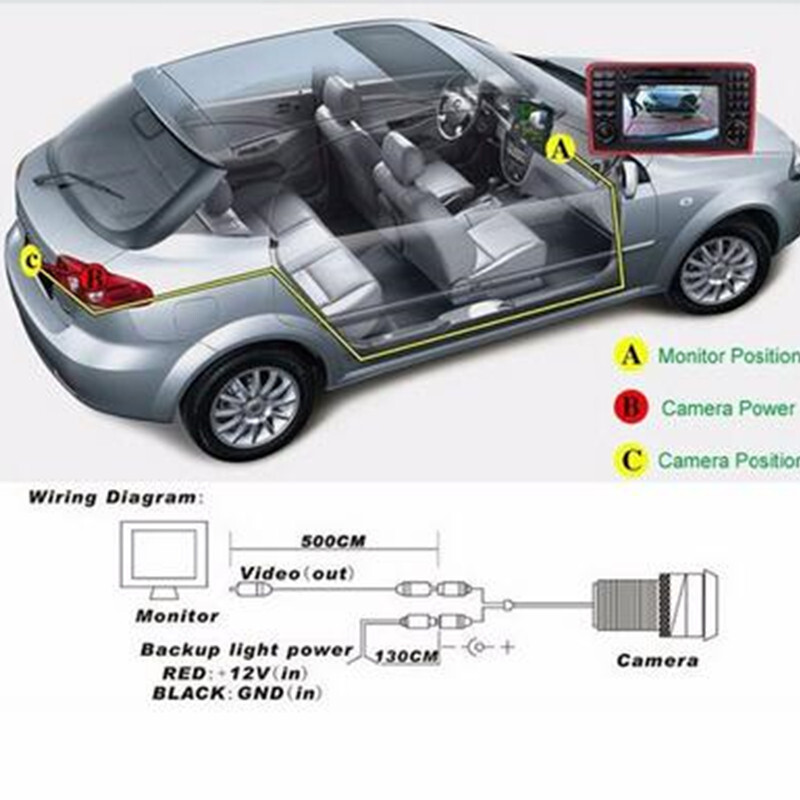

Installation:
Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
Connect the extension cord to your car monitor.
You will see the images when your car is in reverse shift.
NOTE: it can support NTSC and PAL system!
The listing just is a camera ,not included monitor !!!
