This USB 3.0 to SATA or IDE Adapter allows individual or simultaneous connection to either a SATA or IDE drive (2.5"/3.5"/5.25"). You can also transfer data between a SATA and an IDE drive over the hard drive adapter. It provides a convenient, efficient way to format hard drives or transfer files without installing them first. With the hard drive reader, any SATA or IDE drive can conveniently turn into an external USB 3.0 storage drive. Support Plug and play & hot swap to allow you to quickly backup and restore files. The sata to usb adapter is compatible with Windows, macOS, and Linux.

Features
◆USB 3.0, USB 2.0 and SATA 1.0a Compliant
◆Operates with one IDE and one SATA drive simultaneously
◆Supports Plug-n-Play
Specification
◆40-pin and 44-pin IDE connectors, and a 22-Pin SATA Data + Power connector
◆Compatible with 2.5" / 3.5" / 5.25" SATA and IDE drives
◆Compatible with Windows, Mac, and Linux System Requirements
◆2.5" / 3.5" / 5.25" SATA and/or IDE drive
◆Computer with an available USB port
◆Compatible with Windows, Mac, and Linux


Package Includes
◆USB 3.0 to SATA/IDE Combo Adapter
◆USB 3.0 Cable
◆4-Pin Molex Power Cable
◆External Power Supply (Input: 100-240V, 50/60Hz, 0.8A; Output: 12V, 2A)
◆Owner's Manual


Some tips:
(1) As for the other IDE drives, some had to be set to slave, not master.

(2) The computer recognizes the drive right away, but can't always read any data from it--that's how you know the drive "works", but the jumper settings might interfere with the computer's ability to read the data from it--so try different jumper settings.

(3) If you use Windows, have the Disk Management window open. If you see Disk 1 (or perhaps some other number), but nothing else, then try changing the jumper settings.


3-IN-1 UNIVERSAL HARD DRIVE READER: This universal SATA IDE adapter supports 2.5"/3.5" SATA/IDE HDDs/SSDs and DVD/CD optical drives using a dual-head IDE (40pin/44pin) plus SATA connector. It is the perfect tool to quickly transfer, backup, or clone large data files from old legacy drives seamlessly.
5GBPS SUPERSPEED USB CONVERTER: This high-speed USB hard drive converter delivers data rates up to 5Gbps with UASP support, which is 70% faster than traditional USB 3.0. it transfers movies in seconds. Features an included USB-C adapter for seamless, lag-free laptop and desktop connectivity
STABLE POWER SUPPLY INCLUDED: While 2.5" laptop drives run on USB bus power, power-hungry 3.5" desktop HDDs require the included external 12V power adapter to spin up. Thisversatile drive connector package also includes a dedicated 4-pin Molex power cable specifically engineered to safely power up older 3.5" IDE master/slave drives

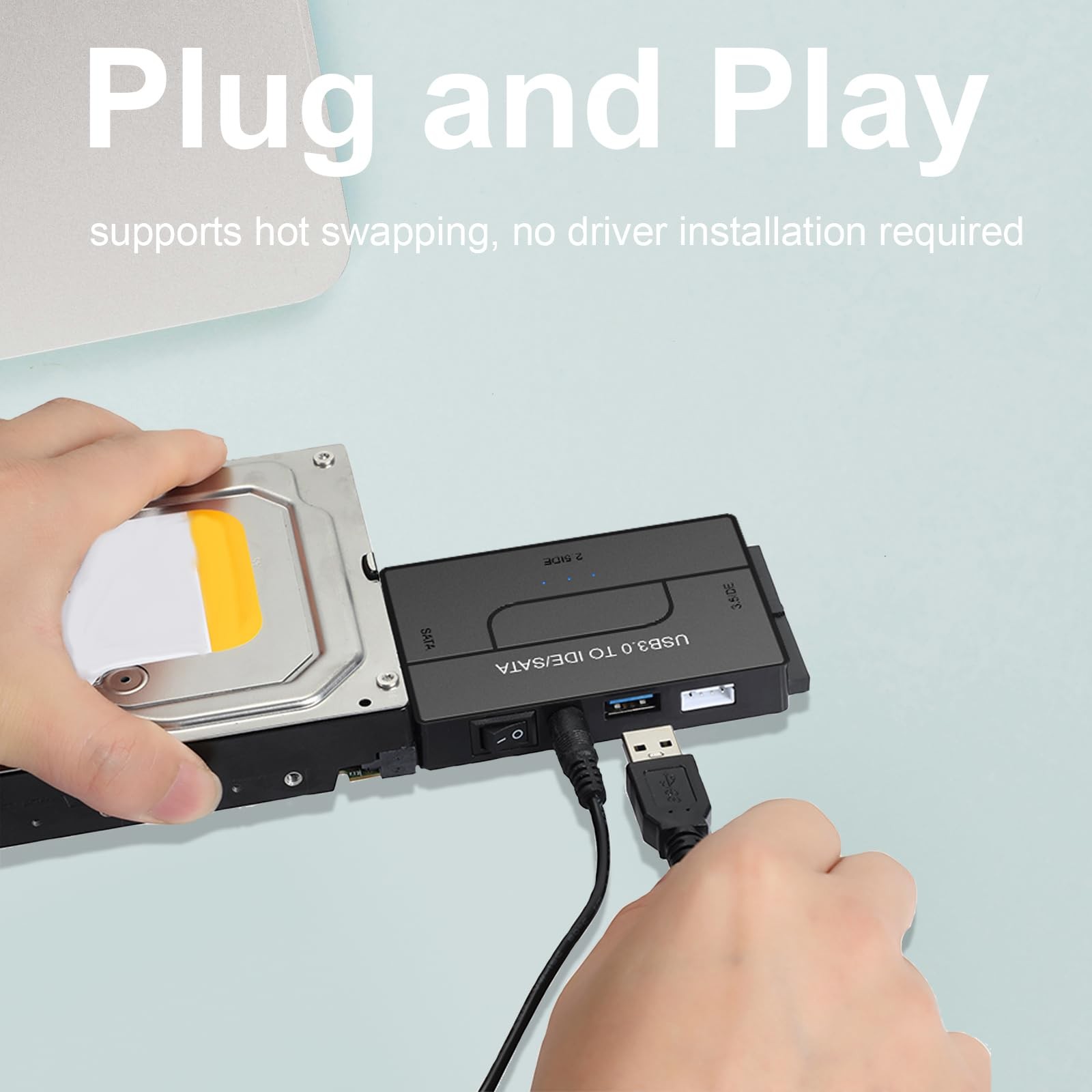

HOT-SWAP PLUG& PLAY: Driveles adapter supporting up to 6TB capacity, this hard drive adapter offers full plug-and-play setup and hot-swapping without rebooting your PC, it features an independent On/Off switch for ultimate HDD protection and a clear LED light indicator to show power and activity status
Wide System Compatibility: external hard drive adapter support hot-swapping. universally compatible with Windows 10/ 8.1/ 8/ 7/Vista/XP, Mac OS 9/ 10, Linux; work with Xbox, Western Digital, Seagate, Fujitsu, Samsung hard drives, etc; Please Note: Before purchasing, please verify the brand and model of the hard disk
WHAT YOU WILL GET: Package included: Hard driver readerx1, 4-pin power cablex1, 12V/2A power adapterx1, USB cable x1, manual x1 and USB-C connector x1. Tips: This IDE to USB adapter default master is a 2.5" IDE hard drive, for new drive, please go to "Disk Management" to initialize it first so that the hard drive can be recognized
