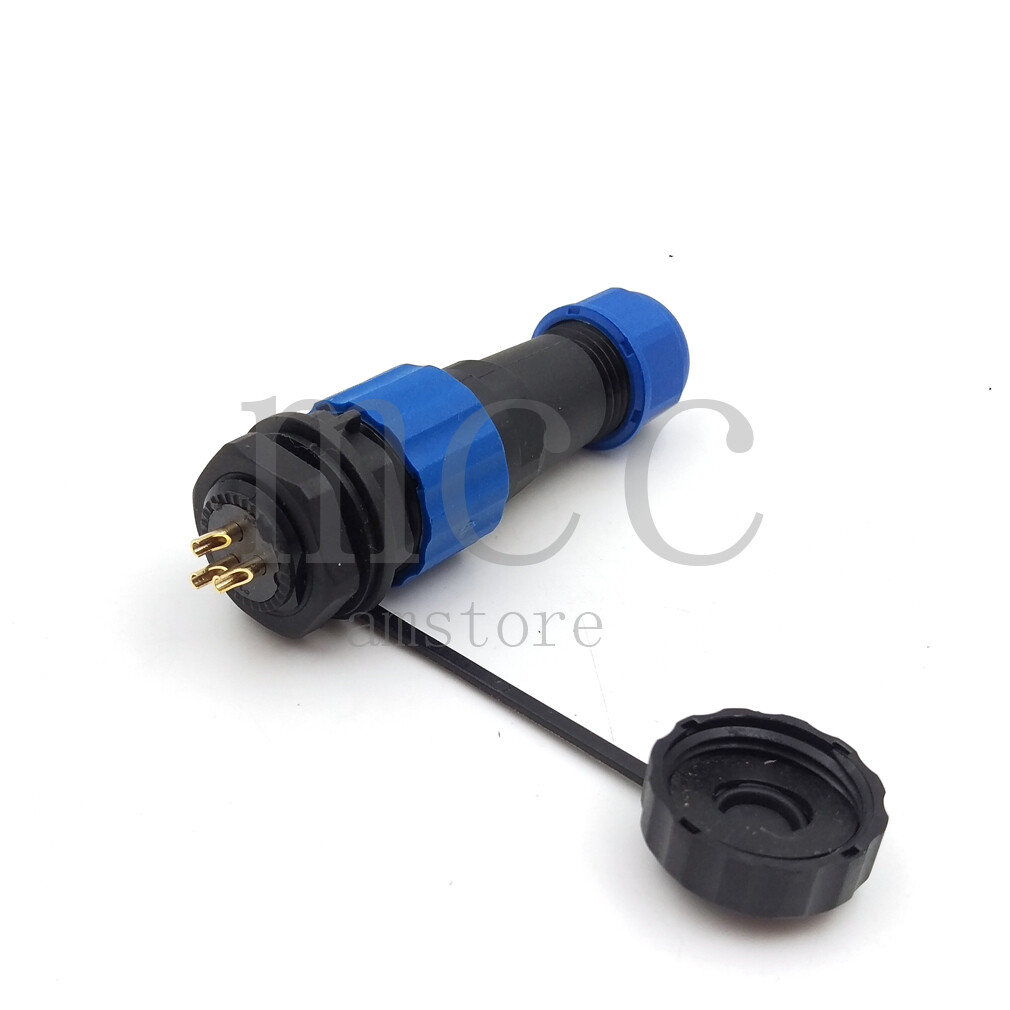

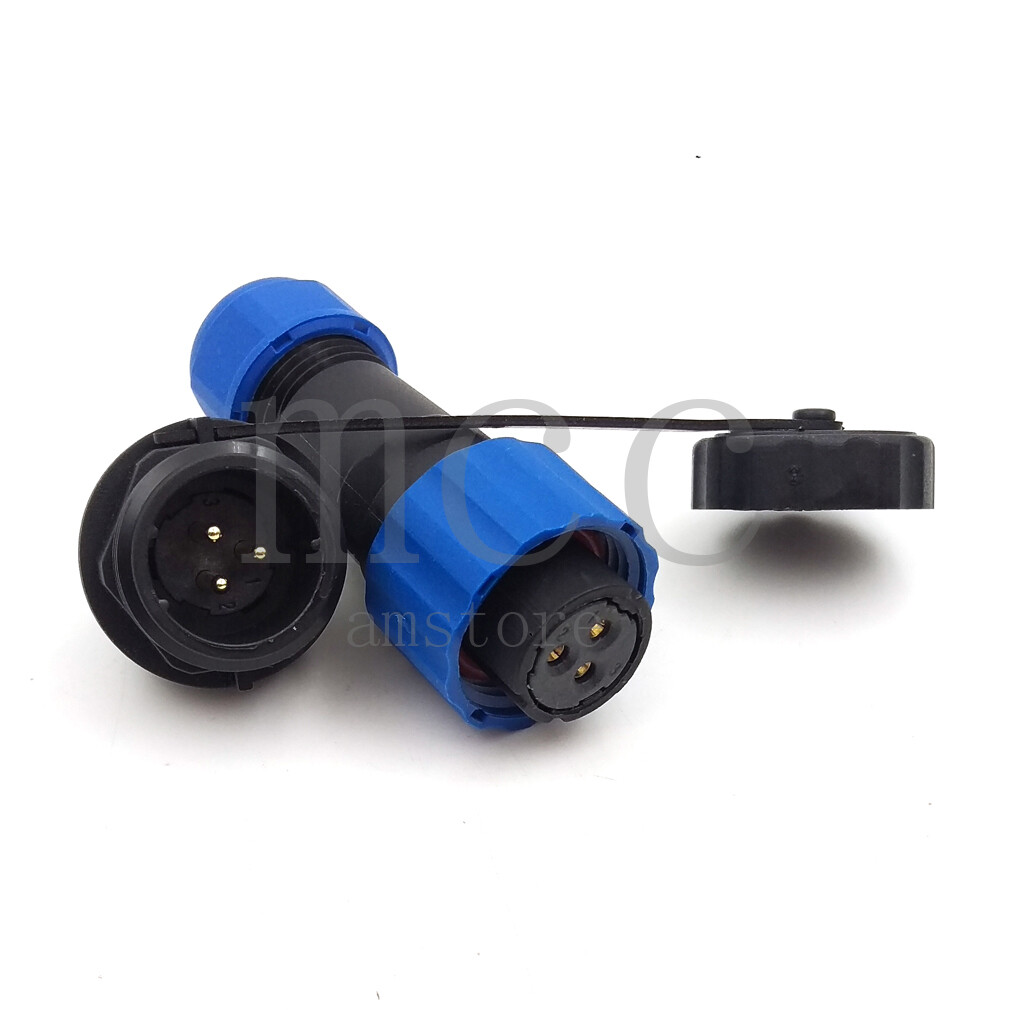

SD16 3Pin Panel Mount Waterproof Aviation Connector,Wire Connector Plug Socket

mc_cable-88

CONTACT SELLER SEE ON EBAY

mc_cable-88

DESCRIPTION

SD16 2 3 4 5 6 7 9PIN WATERPROOF CONNECTOR IP68 POWER CABLE AVIATION PLUG SOCKET

Specifications for 2pin 3pin:
Rated Current (A): 10A
Contact diameter × number: Φ1.8x2
Rated voltage (AC.V.): 250V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2mΩ
Cable specification: <2m㎡/14AWG

Specifications for 4pin, 5pin, 6pin, 7pin, 9pin :
Rated Current (A): 5A
Contact diameter × number: Φ1.0x4 / Φ1.0x5 / Φ1.0x6 / Φ1.0x7 / Φ1.0x9
Rated voltage (AC.V.): 250V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mΩ
Cable specification: <0.785m㎡/18AWG

Coupling: Threaded Coupling
Shell Materia: Nylon66, fire resistance:V0
Insert Material: PPS man temperature 260°
Contact materia: Brass (gold-plated)
Termination: solder
Cable outer diameter range：A4-8mm
Protection level: IP68
Durability: ≥500 times
Working temperature: -25℃～85℃
Insulation resistance: 2000MΩ

What's in the package:
1 plug +1 socket
