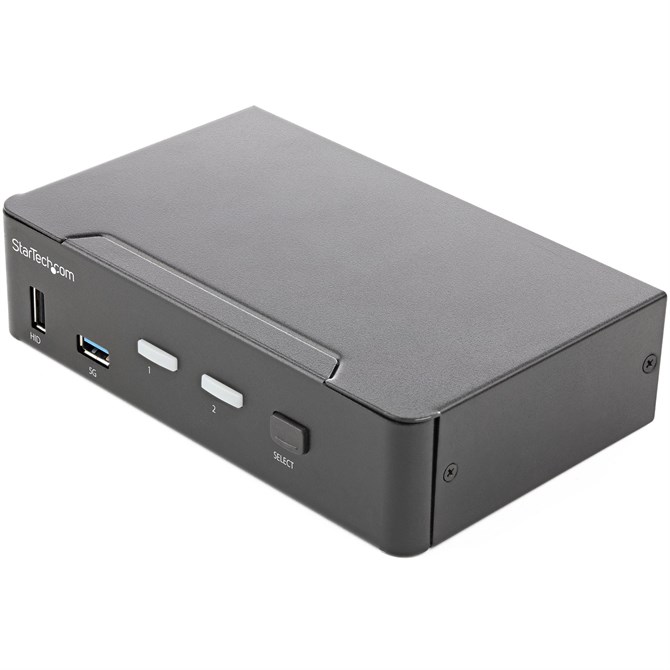

StarTech.com 2 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desk
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This 2-port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech Advantage
Specs
Ports & interfaces
Number of computers controlled
The amount of computers controlled by this device.
1
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
HDMI
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
3
HDMI version
2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports
3.5mm headphone, HDMI, USB A
Console USB ports quantity
4
USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs
Number of sockets /ports where headphones are connected.
3
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Performance
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Data transfer rate (max)
5 Gbit/s
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Daisy chain
Number of users
The number of people that use or can use this product.
1 user(s)
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Genesys Logic - GL3523
Audio channels
7.1
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
LED indicators
Push button
Hot keys
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
3000 h
Certification
CE, RoHS, FCC
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
On Screen Display (OSD)
Power
Input voltage
The voltage (V) which is required to power the product.
0 - 240 V
Input current
1 A
Output voltage
V
Output current
3 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
36 W
External power adapter
Power plug type
Type M
Compatible power plug types
EU, JP, UK, US
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 -C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 -C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
The measurement or extent of something from side to side.
0 mm
Depth
The distance from the front to the back of something.
0 mm
Height
The measurement of the product from head to foot or from base to top.
40 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
640 g
Packaging data
Package width
The distance from one side of the packaging to the other.
238 mm
Package depth
The distance from the front to the back of the packaging.
0 mm
Package height
The distance from the top to the bottom of the packaging.
91 mm
Package weight
Weight of the packaged product.
7 g
Packaging content
AC adapter included
Other features
IP control
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
397 mm
Master (outer) case length
265 mm
Master (outer) case height
305 mm
Products per master (outer) case
6 pc(s)
