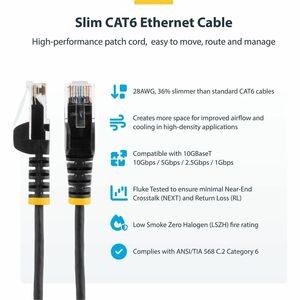

Startech 5M White Slim Cat6 Ethernet Cable Snagless Rj45 Utp Lszh 28Awg Pure Bar

StarTech 5m White Slim CAT6 Ethernet Cable, Snagless RJ45, UTP, LSZH, 28AWG Pure Bare Copper, Slim Network Patch Cord, Fluke Tested - Slim UTP Cat6 Cable supports 1Gbps and 100W PoE; Ideal for crowded installations; 36% slimmer for improved airflow; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Gold-Plated Contacts; 28AWG Pure Bare Copper Wire; LSZH jacket; Fluke Tested This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations. Improved Airflow The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels. This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices. Durable Construction The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered. Tested for Reliability The Slim CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 requirements for guaranteed Cat6 performance. The cable is Fluke Tested to ensure minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 90W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.
Miscellaneous

Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Technical Information

Cable Length5 m
Data Transfer Rate1 Gbit/s
Device SupportedPatch Panel
Network Device
IP Camera
PoE Switch
Rack
Jacket TypeLSZH
ShieldingNo
FeaturesBreak Resistant
Flame Retardant
Wear Resistant
Stranded
Strain Relief
Snag Resistant
PoE++
Flexible
Near End Cross Talk (NEXT)
PoE
Number of Conductors8
Cable CharacteristicPatch Cable
Cable TypeCategory 6
Connector Type on First EndRJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Connector PlatingGold
American Wire Gauge28 AWG
Contact PlatingGold
Connector on First End Details1 x RJ-45 Network - Male
Connector on Second End Details1 x RJ-45 Network - Male
Number of Pairs4
Connector Gender on First EndMale
Connector Gender on Second EndMale


Physical Characteristics

Material DetailsBare Copper - Wire
Copper - Conductor

Product ColorWhite
Color FamilyWhite

General Information

Product TypeNetwork Cable
Manufacturer Part NumberN6PAT5MWHS
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product NameSlim Cat6 Ethernet Cable - LSZH
Brand NameStarTech
