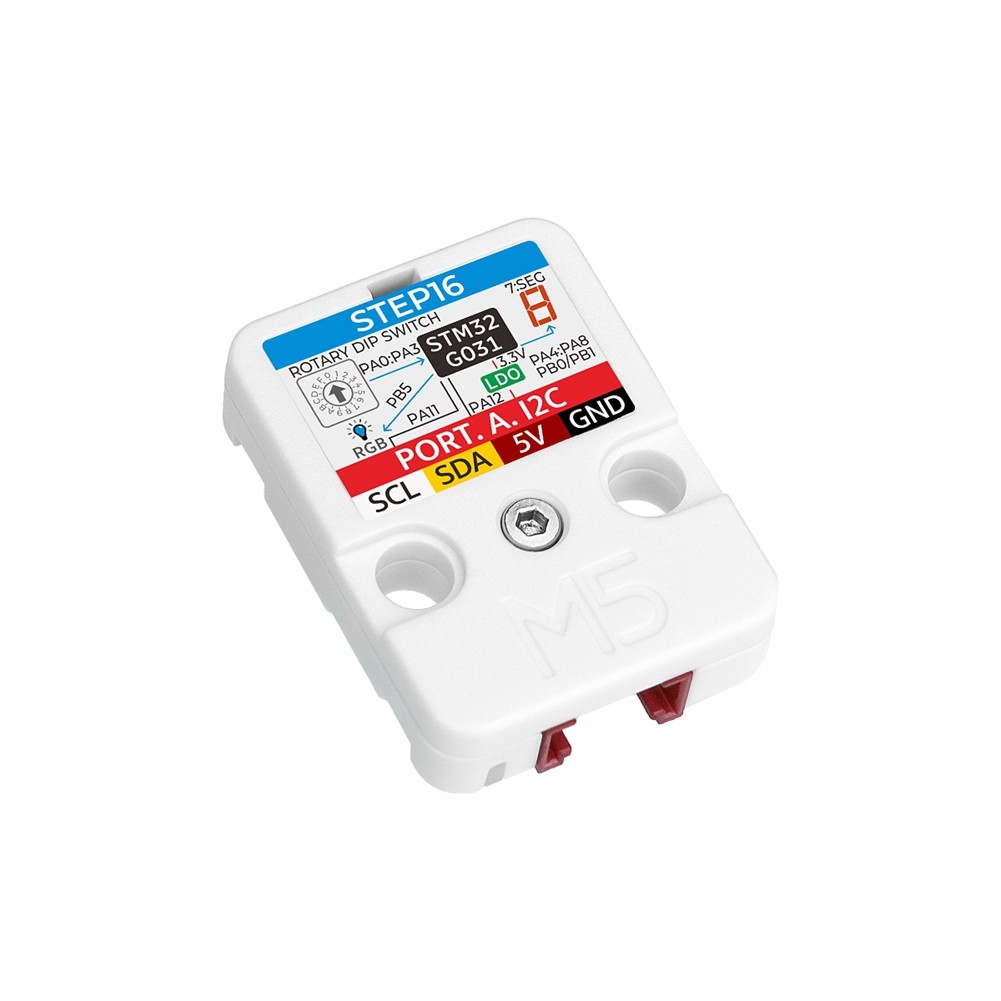

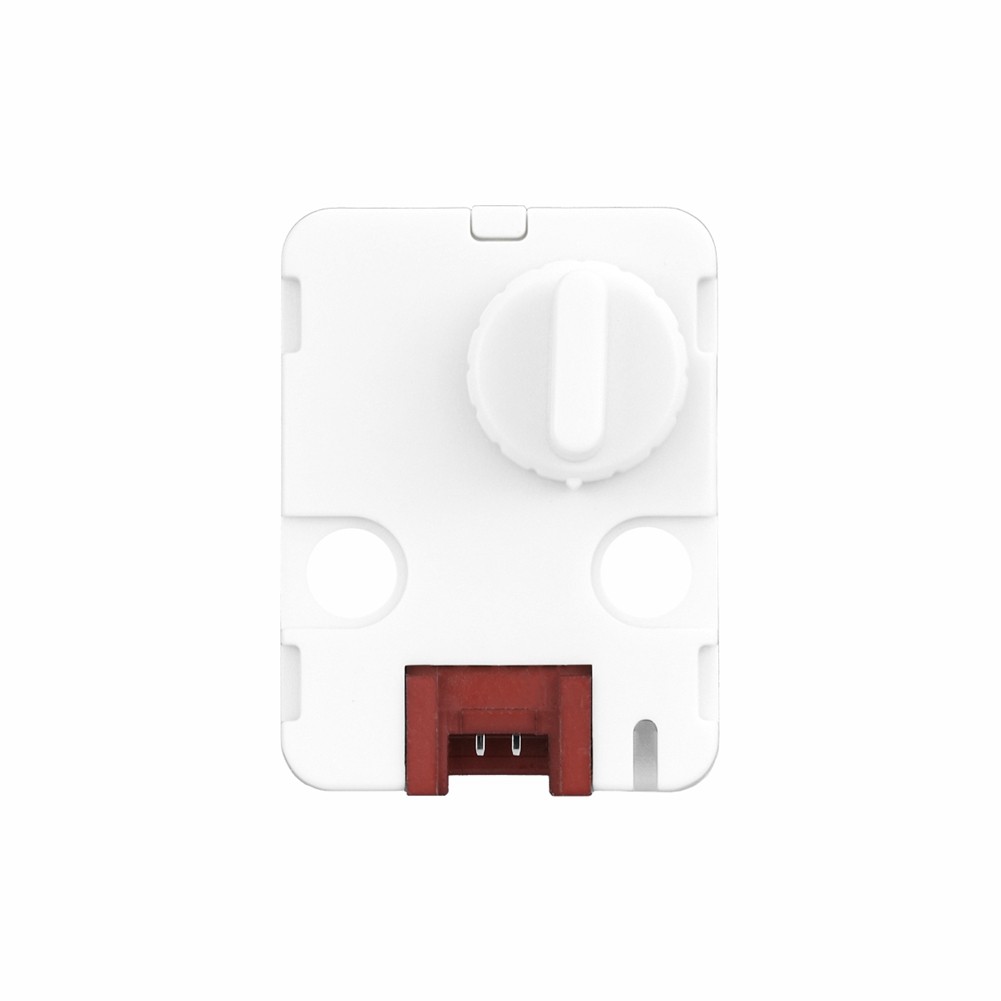

Step16 Unit 16-Bit Rotary Encoder GSMR-16 Control Unit STM32G031 7187
16-bit rotary encoder, programmable, communication, RGB LED.
0-F HEX 7-segment digital display.
MCU: STM32G031G8U6, 32-bit ARM -M0 core, 64MHz clock speed
Step encoder: 16-position, 8421 encoding
Encoder display: 7-segment digital display
Programmable RGB: 1x WS2812
Encoder value update cycle: 100ms
Communication interface: @ 0x48, address range: 0x08-0x77, power-loss protection
Standby power consumption: DC 5V @ 5.85mA
Operating power consumption:
Display LED 60% power: DC 5V @ 14.76mA
Display LED 100% power: DC 5V @ 24.13mA
RGB 100% power: DC 5V @ 18.9mA
Display LED/RGB full power: DC 5V @ 29.91mA
Color: White
Material: plastic
Package Contents:
1 * 16-bit Rotary Encoder
1 * cable
