Product Description

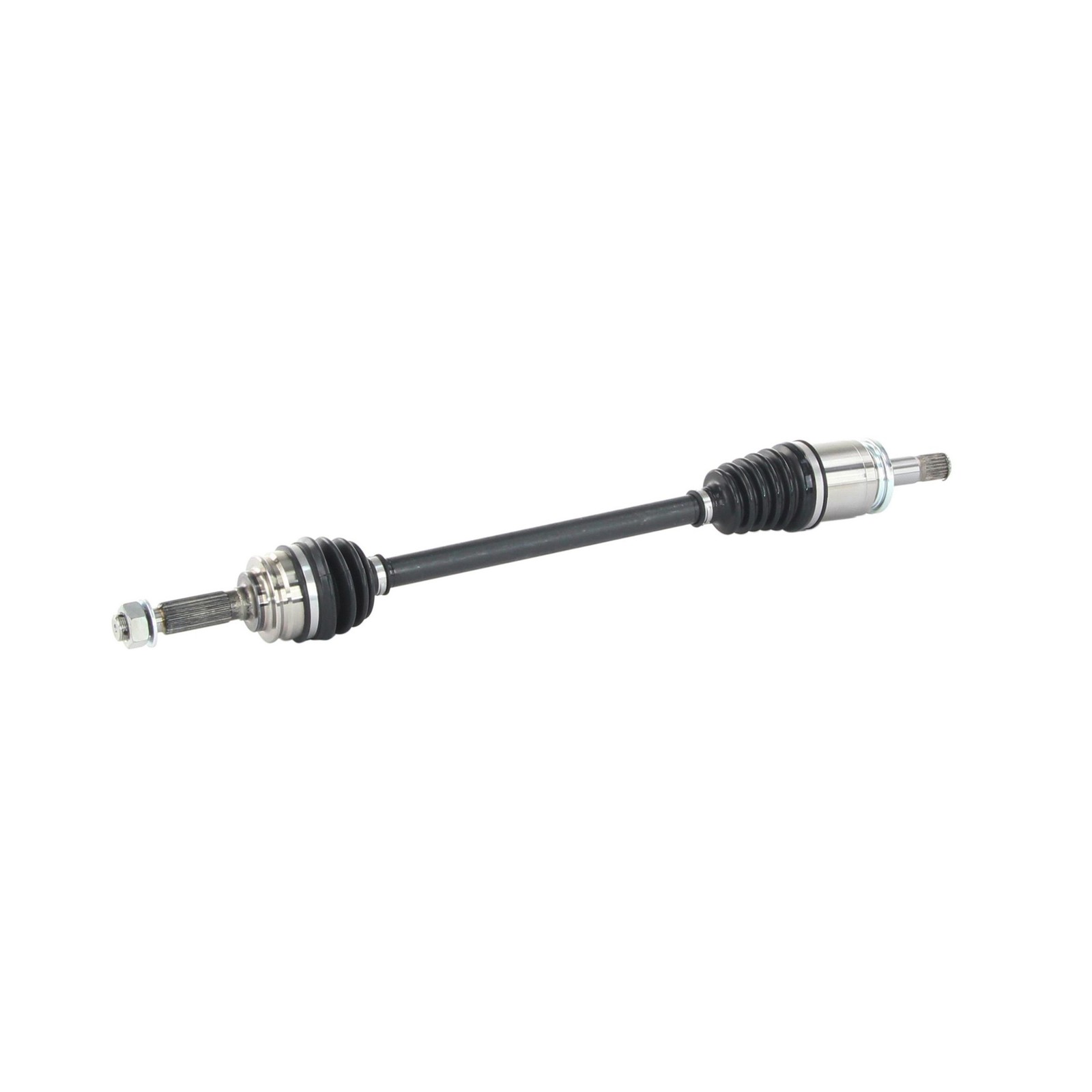

SurTrack CV Axle Shaft Rear Left For 2007-2009 Dodge Caliber

Brand: SurTrack
Warranty: 1 Year
Part Type: CV Axle Shaft
Position: Rear Left

Notes: Standard Duty Replacement;

Description

Compatible Years: 2007 2008 2009

Item Specifics

Overall Compressed Length (mm): 741
Overall Compressed Length (in): 29.17
Inboard Shaft Connection Style: Male
Outboard Shaft Connection Style: Conventional
Number Of Inboard Splines: 23
Number Of Outboard Splines: 25
ABS Tone Ring Included: No
ABS Ring Tooth Count: 0
Axle Nut Included: Yes
Axle Nut Hex Size (mm): 32
Axle Nut Thread Size: M22x1.5
Axle Nut Head Type: Hex
Axle Nut Height (in): .6
Axle Nut Length (in): 1.5
Axle Nut Height (mm): 15
Axle Nut Length (mm): 37
Axle Nut Locking Type: Cotter Pin
Axle Nut Hex Size (in): 1.25
Number Of Bolt Holes: 0
Inboard Joint Boot Material: Neoprene
Outboard Joint Boot Material: Neoprene
Number Of Inboard Shaft Bolts: 0
Number Of Outboard Shaft Bolts: 0
Inboard Joint Type: Male

Confirm Your Vehicle Compatibility

Year	Make	Model	Application	Notes
2007	Dodge	Caliber	AWD;	Standard Duty Replacement; Position: Rear Left;
2008	Dodge	Caliber	AWD;	Standard Duty Replacement; Position: Rear Left;
2009	Dodge	Caliber		Standard Duty Replacement; Position: Rear Left;

To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the eBay Compatibility Table.
Also review the notes section in the compatibility chart for additional specifications about this part.
