TB6560 3A Stepper Motor Driver 10-Speed Current Multi-Function Stepper2627
1. The Current Level Can Be Adjusted To Meet Your Various Application Needs.
2. Automatic Half- Adjustable.
3. Adopt 6N137 High-Speed Optical Coupler To High-Speed Synchronization.
4. Plate Printing Setting Instructions, It Can Be Operated Without Instructions.
5. Thick And Close-Toothed Radiator Is Used For Good Heat Dissipation
Working Voltage DC 10V-35V. It Is Recommended To Use Switching Power Supply DC 24V Power Supply.
Adopt 6N137 High-Speed Optical Coupler To High-Speed Synchronization.
TB6560AHQ New Chip Is Adopted, Which Has Low-Voltage Shutdown, Overheating Shutdown And Overcurrent Protection Circuits To Optimal Performance.
Rated Maximum Output: ±3A, Value 3.5A.
Suitable For Two-Phase/Four-Phase/Four-Wire/Six-Wire Stepper Motors Within 42, 57 Steps Within 3A, Not Suitable For Stepper Motors Exceeding 3A.
Automatic Semi- Function.
Subdivision: Full Step, Half Step, 1/8 Step, 1/16 Step, Maximum 16 Subdivisions.
Colour:As Shown
Material:PCB

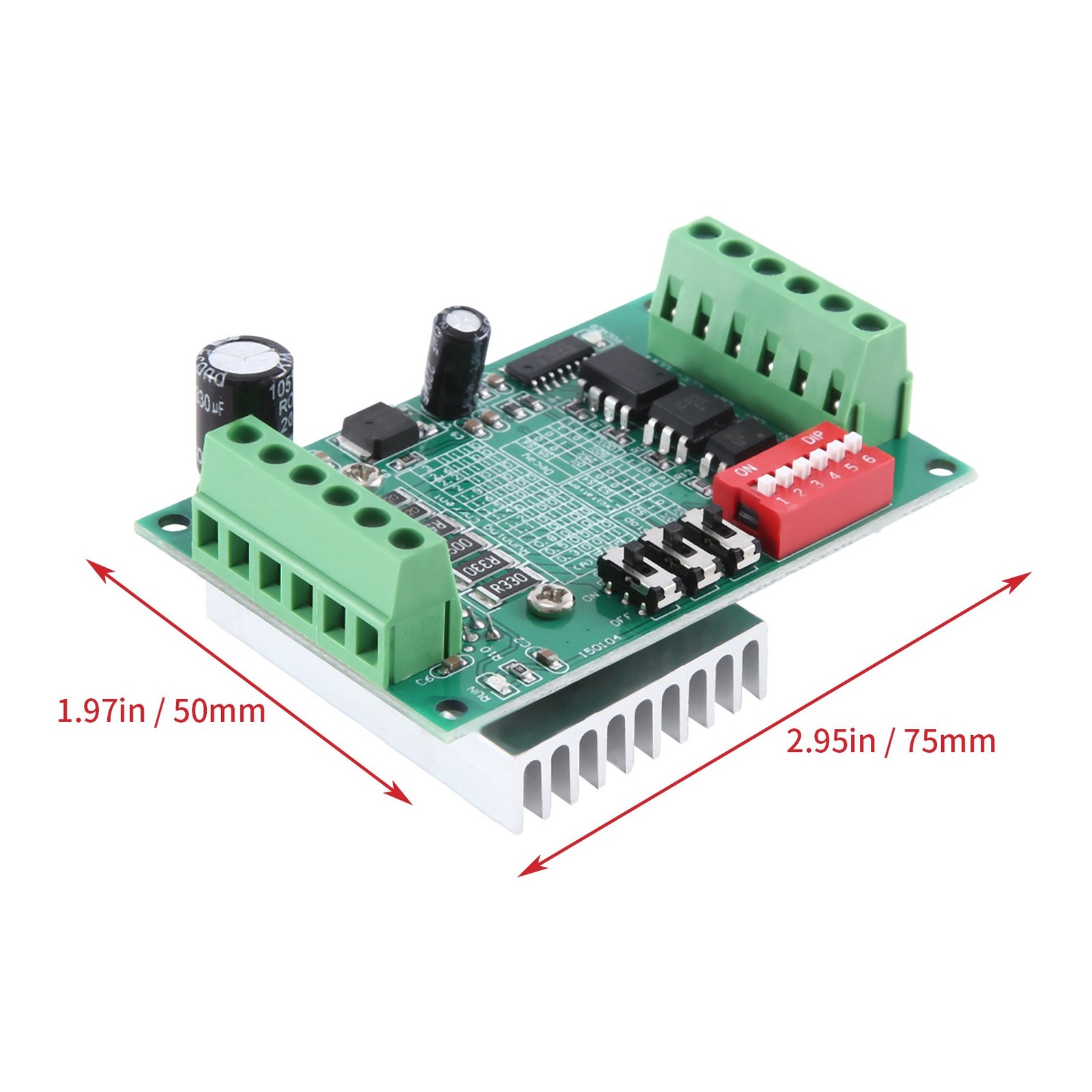

Size:about 50 x 75 x 35mm(Width*Length*Height)
Package Contents:
1 Set Of Motor Driver Motherboard Accessories
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
The Wiring Should Be Checked Repeatedly Before Being Powered On. Connecting The Wrong Wire May Burn Out The Chip! The Set Current Should Not Exceed The Rated Current Of The Motor
