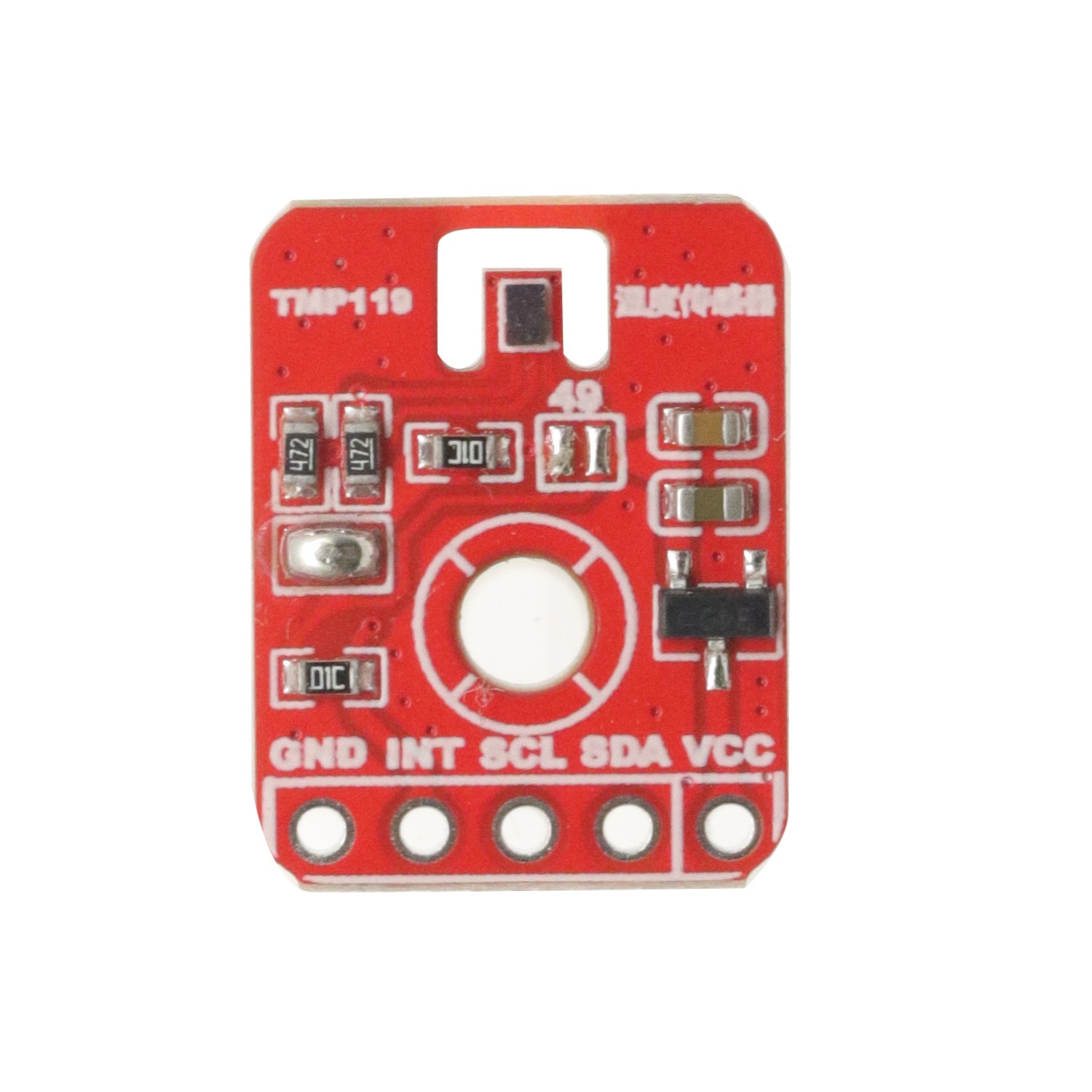

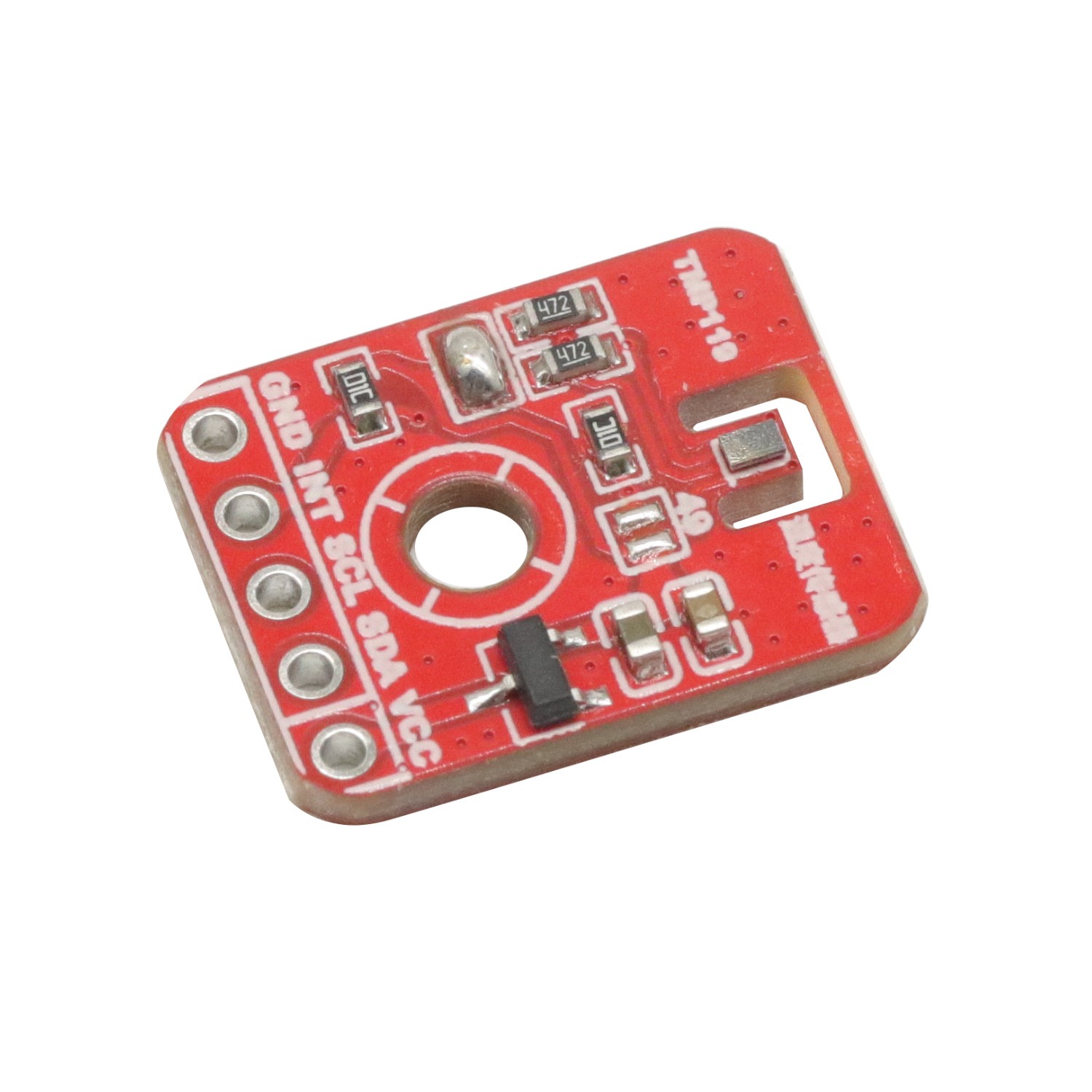

TMP119 High-Precision I2C Temperature Sensor Module ±0.03°C Typical Accuracy, 16-Bit Resolution, Wide Range -55°C to +150°C
Accuracy Specifications
±0.03°C (typical) from 0°C to 45°C
±0.08°C (max) from 0°C to 45°C
±0.09°C (max) from –25°C to 85°C
±0.12°C (max) from –40°C to 85°C
±0.15°C (max) from –55°C to 125°C
±0.2°C (max) from –55°C to 150°C
Technical Parameters
Supply Voltage: DC 1.7 – 5.5 V
Operating Current: 5 µA
Temperature Range: –55°C to +150°C
Communication Interface: I2C,
I2C Addresses: 0x48 (default), 0x49
Product Dimensions (without pin headers): 18 × 13.5 × 2.5 mm
Weight: 0.6 g
1pcs
