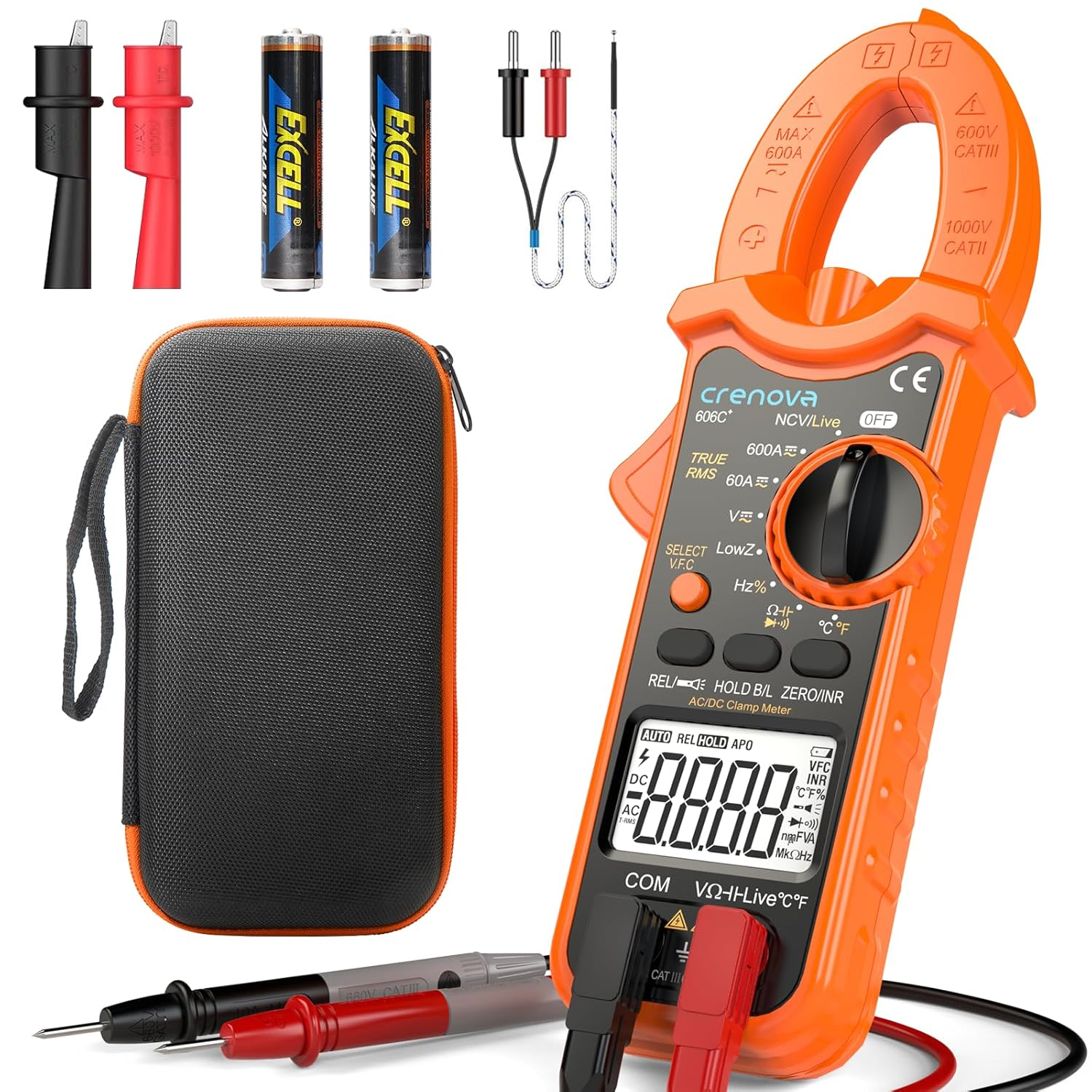

TRMS Digital Clamp Meter - 6000 Counts Multimeter for AC/DC Current & More

Description

Product description

1 Industrail Inspection 2 Automotive Repair 3 Household Maintenance 4 Physics Experiment 5 DIY Circuit Project

Electrical Specifications

AC Current: 60A/600A±(4.0%+10) DC Current: 60A/600A±(4.0%+10) AC Voltage: 6V/60V±(0.8%+10); 600V±(1.2%+25) DC Voltage: 600mV/6V/60V±(0.5%+7); 600V±(1.0%+20) (LowZ)AC Voltage: 6V/60V±(1.0%+10); 300V±(1.0%+12) Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+5); 20MΩ±(1.5%+15); 60MΩ±(2.5%+20) Capacitance: 6nF±(5.0%+40); 60nF/600nF/6μF/60μF/600μF/6mF±(5.0%+10) Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(0.3%+3) Temperature: (-20-1000)℃: <400℃±(2.0%+5); ≥400℃±(1.5%+15) / (-4~1832)℉: <752℉±(2.0%+10); ≥752℉±(1.5%+15)

• What is the maximum voltage it can measure?

  The Crenova Digital Clamp Meter can measure a maximum voltage of 600V for both AC and DC voltage.

• Can it measure temperature?

  Yes, the Crenova Digital Clamp Meter can measure temperature from -4°F to 1832°F (-20°C to 1000°C) using the included K-type thermocouple probe.

• Does it come with a carrying case?

  Yes, the Crenova Digital Clamp Meter comes with a carrying case to keep everything organized and handy.

• It doesn't measure current passing through the clamp, so the clamp meter is defective?

  Hi, when measuring the current, clamp it around ONE wire only (not the entire cable or whole power cord).

• "ZERO" button doesn't work?

  Please note: The current can only be zeroed in the DC range.

• 【Professional Clamp Meter】 Quickly and safely measures AC/DC current (up to 600A), AC/DC voltage (up to 600V), resistance (60MΩ max), capacitance (6mF max), frequency (10MHz max), duty cycle, continuity, and diode. Built-in NCV detection (48–250V) and live wire (110–380V) with audible alarm. Crenova clamp meter is ideal for electricians, HVAC, and industrial maintenance.
• 【More Advanced Functionality】 Supports inrush current (INR) measurement, temperature from -4°F to 1832°F (with K-type probe), and LowZ mode to eliminate ghost voltage false readings. V.F.C (Variable Frequency Carrier) filter ensures stable readings on variable-frequency drives. This electrical tester can handle more complex problems in professional/industrial use.
• 【25mm Jaw Opening 】 The clamp jaw fits wires up to 25mm in diameter, so the amp meter is suitable for most circuit measurements in home or industrial use. Please note: The clamp jaw is designed SOLELY for current measurement. And when measuring, clamp it around ONE wire only (not the entire cable or whole power cord).
• 【User-Friendly Design】Includes 6000-count LCD, data hold, relative (REL) mode, zero function(DC current), backlight, bright torch, low battery indicator, and auto power off, the true RMS digital multimeter is a perfect tool for household, automotive, industrial, laboratory and office electrical inspection, maintenance and repairs.
• 【Safety & Complete Kit】 Conforms to IEC61010, CAT III 600V, double insulation providing protection for users. Package includes: clamp meter, probe leads, alligator clip leads, K-type thermocouple, 2×AAA batteries, carrying pouch, and manual. All must-have items are well organized in a beautiful box.
