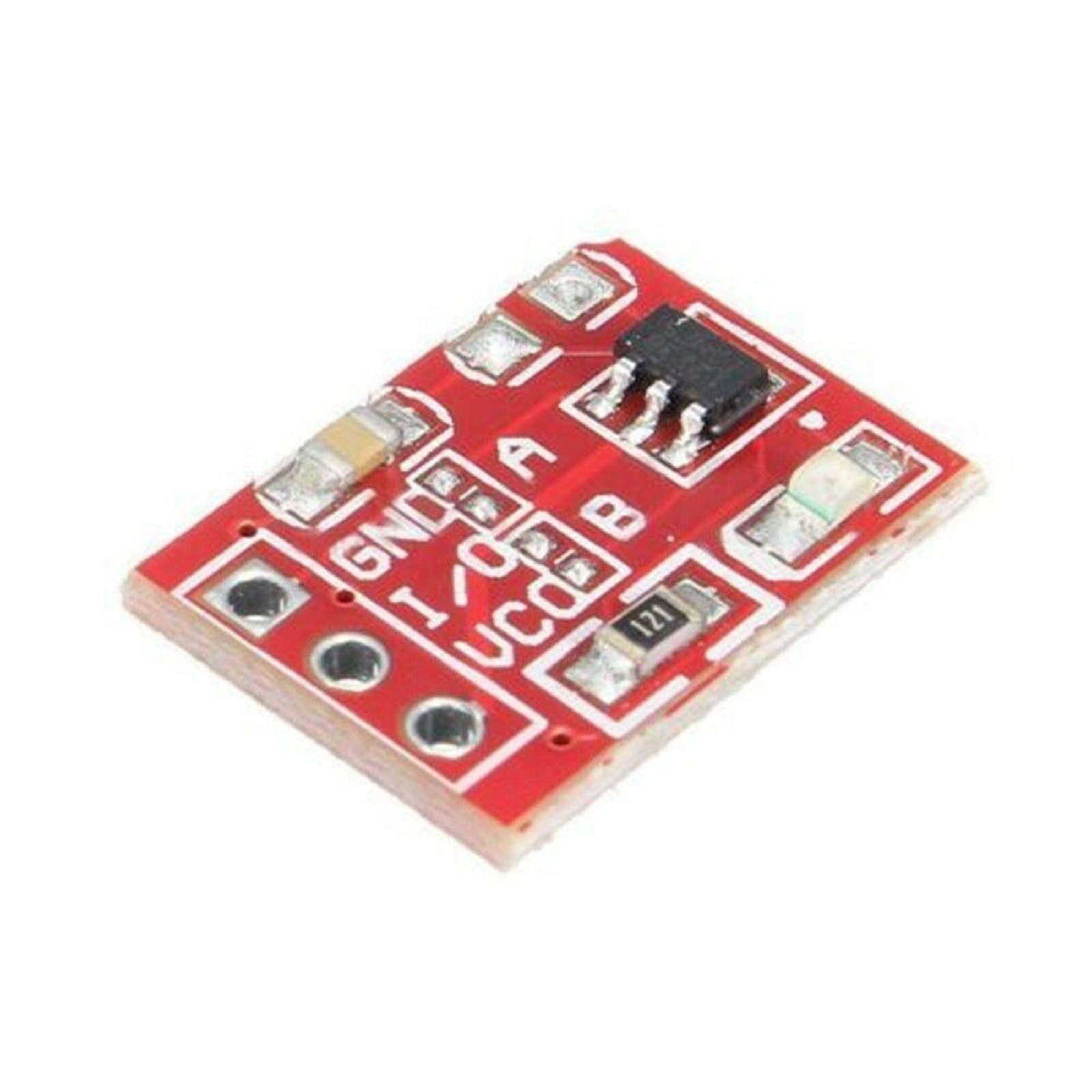

TTP223 Touch Key Switch Module Touch Button Module Capacitor Type Single Channel
10Pcs TTP223 Touch Key Switch Module Touch Button Capacitive Switches Self-Locking/No-Locking Capacitive Touch Switches
Specifications:
Power: 2.5-5.5V
Trigger setting mode: (0: Not Welded;1: Welded)
AB=00: No-lock High TTL level ouput;
AB=01: Self-lock High TTL level ouput;
AB=10: No-lock Low TTL level ouput;
AB=11: Self-lock Low TTL level ouput
Size: approx. 15*11*1mm/0.59*0.43*0.03in
Package Included:

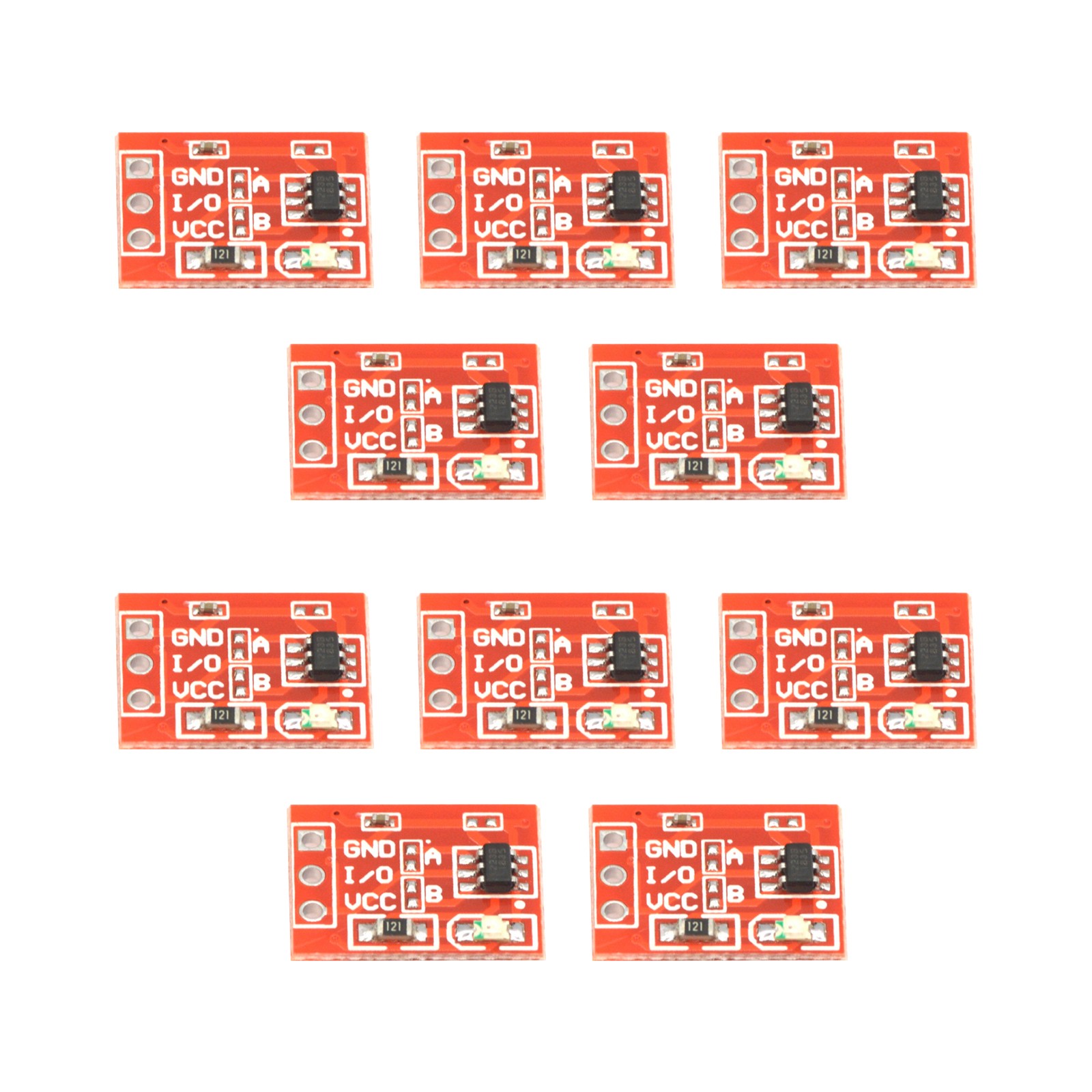

10Pcs TTP223 Touch Key Switch Module
