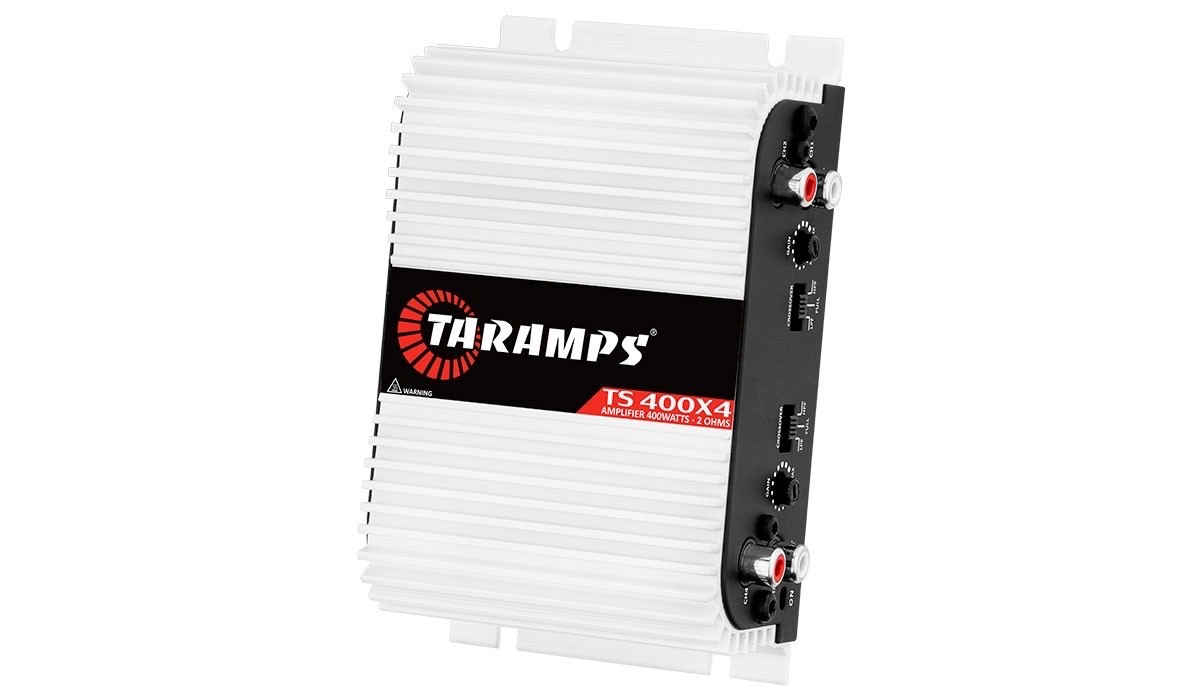

The Taramps TS 400×4 amplifier module was developed with the highest performance for the most varied types of automotive sound systems. It is multichannel, with 4 channels of 100 Watts RMS, with a maximum power of 400 Watts RMS and an impedance of 2 ohms. The TS 400×4 is FULL RANGE, playing all frequencies in the right measure for you. It has thermal and short-circuit protection, in addition to the indicator LED and crossover.

Technical Information

• Operating Class: Class D

• Number of Channels: 04

• Maximum Power:

- @ 13.8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS)

- @ 13.8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS)

- Bridged @ 13.8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS)

• Input Sensitivity: 200mV (Vol = max.)

• Signal to Noise Ratio: > 90dB

• Frequency Response: (Full Range): 18Hz to 30kHz (-3dB)

• High Pass Crossover (HPF): 90Hz(-12dB/8th)

• Low Pass Crossover (LPF): 90Hz(-12dB/8th)

• Input Impedance: 22K OHMS

• Output Impedance: 2 OHMS

• Protection System: Thermal and Short at Output

• Minimum Supply Voltage: 8 VDC

• Maximum Supply Voltage: 16 VDC

• Idle Consumption: 0.8A

• Maximum Musical Consumption: @13.8VDC: 16.5

• Maximum Consumption in Sinusoidal Signal: @13.8VDC: 33A

• Dimensions (WxHxD): 138 x 49 x 121mm

• Weight: 0.6kg
