DESCRIPTION

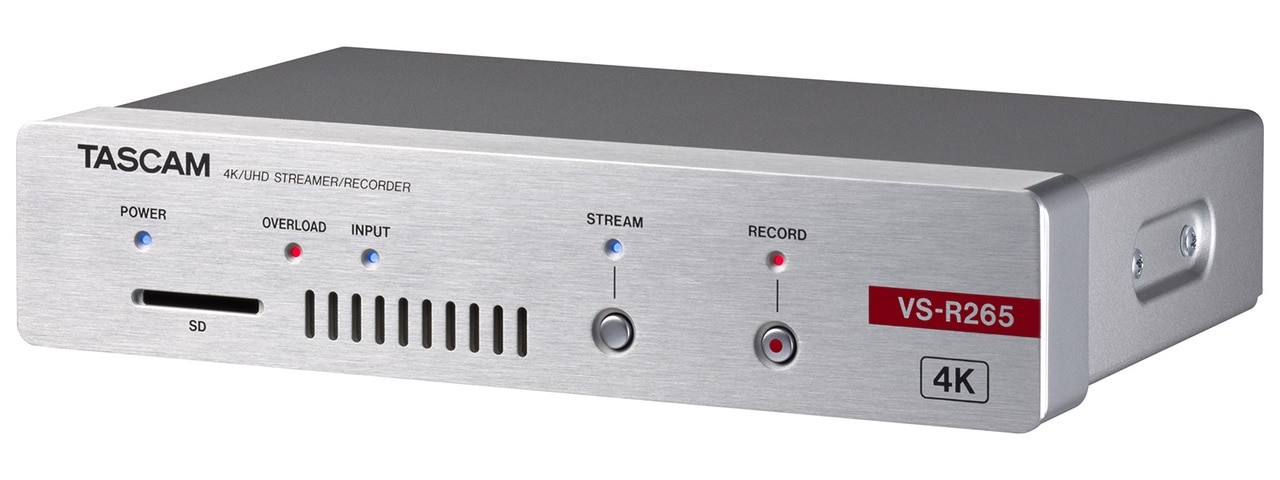

Tascam VS-R265 4K/UHD streamer/recorder
AV Over IP Encoder and Decoder Appliance for 4K Live Streaming
The VS-R265 is a 4K/UHD AV over IP streaming encoder and decoder that simultaneously records, encodes, streams, and decodes multiple 4K video streams (3840x2160) using High Efficiency Video Coding (HEVC), a high efficiency coding scheme that delivers H.264 video quality at half the bit rate.
The VS-R265 4K live stream encoder addresses the growing demand for an external stand-alone encoder for 4K live streaming environments. The VS-R265 functions as a YouTube encoder and also provides live video streaming to popular Content Delivery Networks (CDNs) including Wowza, Ustream, AWS Elemental MediaLive and CloudFront, to name a few. The half-rack size VS-R265 functions as a stand-alone unit-no external computer is needed for recording or streaming.
Notice for Copyright
Creative works as picture images, movies, music and others are to be protected by applicable copyright laws, and when you intend to use those works in recording, reproducing, broadcasting or other means for the purpose of commercial use, you are required to obtain the license by copyright owners therefor. The license terms might be different in each occasion and the copyright owner. Please be advised that you contact your content service providers and/or applicable copyright management organization.
Notice for Streaming
In case of your streaming for commercial purpose, unlike for personal use, you might be required to conclude the specific service agreement with your content service providers or your content service provider may not allow commercial use in general. Please check the terms of use of the content service provider in choosing your content service provider.
Balanced analog Euroblock/Phoenix low voltage wire connectors and unbalanced analog 1/8" (3.5mm) mini-stereo jacks provide versatile audio I/O connections for a wide range commercial AV over IP environments, including corporate, education, house of worship, government, industrial and security.
Audio can be embedded from analog sources and de-embedded to drive networked audio playback for ceiling speakers, or digital audio within the HDMI I/O can be used. An integrated installed output level configuration function and reference level switching function (up to +20dBu) allows reliable and flexible system structuring when streaming video.
The VS-R265 live streaming encoder is compatible with popular standard streaming protocols, including HLS, RTMP, RTP/RTSP, Multicast, Unicast-all with RESTful API for integration into control systems in commercial AV installations.
The VS-R265 can record directly to USB connected media or SD cards via a front panel loading slot.
Recorded files can be automatically uploaded to an FTP server automatically for creating back-up copies, editing, or repurposing to the web.
The Mac/Windows "TASCAM DISCOVERY" app allows multiple VS-R units connected to the network to be managed from a simple Web-browser based GUI. All configuration settings are saved within the VS-R devices, so that in normal operation no computer is needed for streaming or recording.
PoE+ functionality eliminates the need for AC adaptors in AV installations. Optional TASCAM AC power supply sold separately where external AC power is required.
TASCAM PS-P1220E
Power supply also can be done by the optional AC adapter (TASCAM PS-P1220E; sold separately)
Features at a glance
* 4K/UHD AV over IP streaming media encoder and decoder for live video streaming.
* Simultaneously records, encodes, streams, and decodes multiple 4K video streams.
* Functions as an external stand-alone YouTube encoder for HD streaming to YouTube and other popular CDNs, including Wowza, Ustream, AWS Elemental MediaLive and CloudFront, etc.
* Uses High Efficiency Video Coding (HEVC), a high efficiency coding scheme that delivers H.264 video quality via 4K content at half the bit rate.
* Versatile audio I/O connections via balanced analog Euroblock low-voltage wire connectors and unbalanced analog 1/8" (3.5mm) mini-stereo jacks.
* Perfect for a wide range of 4K live streaming AV installations and environments, including corporate, education, house of worship, government, industrial installations and security.
* Audio can be embedded from analog sources and de-embedded to drive networked audio playback for ceiling speakers.
* Provides digital audio embedded within the HDMI I/O.
* Installed output level configuration function and reference level switching function (up to +20dBu) allows reliable and flexible system structuring.
* Compatible with popular standard streaming protocols, including HLS, RTMP, RTP/RTSP, Multicast, Unicast.
* Offers RESTful API for integration into control systems in commercial AV installations.
* Ability to record directly to USB connected media or SD cards via a front panel loading slot.
* Recorded files can easily be uploaded to an FTP server automatically for creating back-up copies or repurposing to the web.
* With the optional rack-mountable shelf AK-RS1, up to two VS-R units can be installed in a 19 inch rack space.
* Support PoE+ for power supply in addition to the optional AC adapter (TASCAM PS-P1220E; sold separately)
Spec description
VS-R264 VS-R265
Video
HDMI IN Connector HDMI v1.4a (Type A)
HDMI OUT Connector HDMI v2.0 (Type A)
Input Resolutions
2160p - 30/ 29.97/ 25 / 24 / 23.98 fps
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
720p 60 / 59.94 / 50 fps
576p 50 fps
480p 60 / 59.94 fps
Frame Rate Limit on/off
Encode Scalling Resolutions Passthru / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p Passthru / 3840x2160p / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p
Encode Format H.264 (Baseline / Main/High) H.264 / H.265
Encode bitrates 500k to 30M bps
Bitrate Control Variable / Constant
key frame interva 0.25-1.00-16.5(sec) or 3-1000(frame)
Audio
Analog Audio inputs (UNBALANCED)
Connector 3.5mm Stereo mini jack
Nominal input level -10dBV (0.316Vrms)
Maximum input level +6dBV (2.0Vrms)
Analog Audio inputs (BALANCED)
Connector Euroblock (balanced) 3.81 mm pitch
Nominal input level +4dBu(1.23Vrms, Ref.Level other than -9dBFS)
+6dBu(1.55Vrms, Ref.Level -9dBFS)
Maximum input level +15dBu(4.36Vrms, Ref.Level -9dBFS)
+18dBu(6.16Vrms, Ref.Level -14dBFS)
+20dBu(7.75Vrms, Ref.Level -16dBFS)
Analog Audio outputs (UNBALANCED)
Connector 3.5mm Stereo mini jack
Nominal output level -10dBV (0.316Vrms)
Maximum output level +6dBV (2.0Vrms)
Analog Audio outputs (BALANCED)
Connector Euroblock (balanced) 3.81 mm pitch
Nominal output level +4dBu(1.23Vrms)
Maximum output level +15dBu(4.36Vrms, Ref.Level -9dBFS)
+18dBu(6.16Vrms, Ref.Level -14dBFS)
+20dBu(7.75Vrms, Ref.Level -16dBFS)
Output Volume -∞, -72 to +6dB (1dB step)
Audio Codec AAC, 64k to 512k bps, 32k/44.1k/48k Hz
Storage
Storage Media USB Drive, SD/SDHC card
USB Connection USB3.0 A-type
Record Bit Rates 500k to 30M bps
Stream
Video Transport Protocols RTMP / RTSP / HLS / Unicast / Multicast
Simultaneous Streaming 1 x RTMP / 2 x Unicast / 1 x Multicast
Stream Bit Rates 500k to 30M bps
Network
Network Connectivity 1Gb Ethernet
Full-featured web browser based UI Designed for tablets and desktops
Encoder and decoder configuration for unicast, multicast and RTMP
IP Address DHCP (Default) / Static
Command and Control HTTP
Auto-detect and discover other TASCAM encoder and decoder units on subnet.
Other
Power PoE+,
TASCAM PS-P1220E AC adapter (sold separately)
Dimensions 214(W) × 44.5(H) × 136.1(D)mm (including protrusions)
Weight 0.85kg
Operating temperature range 0 to 40 °C
Included items Installation brackets, Euroblock plugs, Cable band kit, USB memory(including Discovery app, reference Manual), Quick Start guide, warranty
