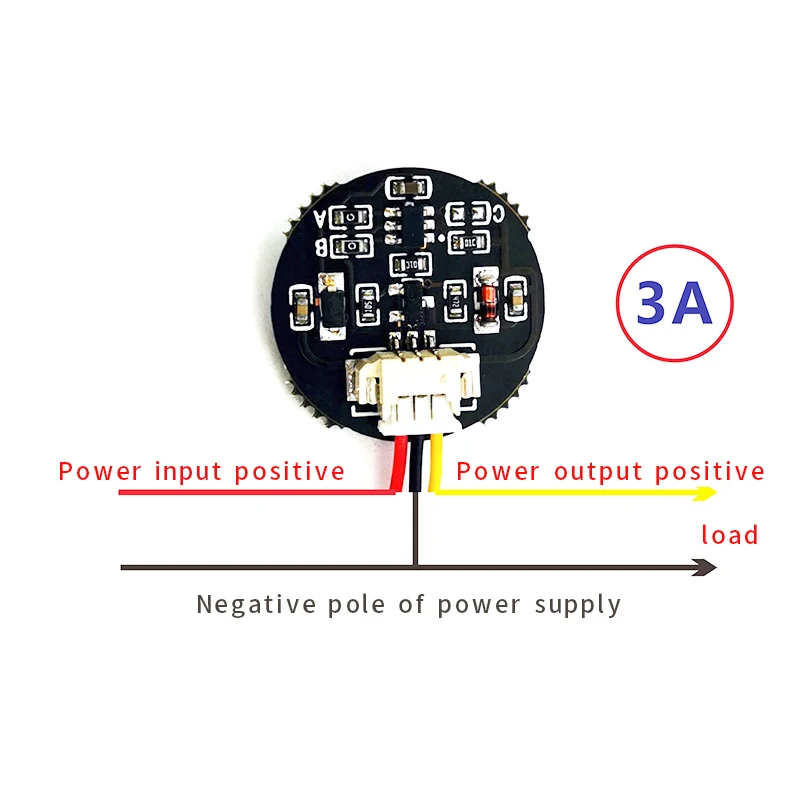

Supply voltage DC dc3-30v / 3A
The maximum sensing distance is 8mm, which can be placed under glass, acrylic, veneer, etc.
A:Default 0Ω resistance
Output status selection after power on
When there is 0 resistance at point a, the output is closed after power on When there is no 0 resistance at point a, the voltage is directly output after power on
B:Default 0Ω resistance
Latch mode,Jog mode
When point B has 0r resistance, it is in latch mode (press on and then off) When there is no 0r resistance at point B, it is inching mode (touch has output, release has no output)
C:sensitivity modulation
Adjust the output sensing distance. The default maximum is 7-8mm If the sensitivity is reduced, 1-50pf capacitor can be used according to the situation. The smaller the capacitor, the higher the sensitivity, and the larger the capacitor, the lower the sensitivity

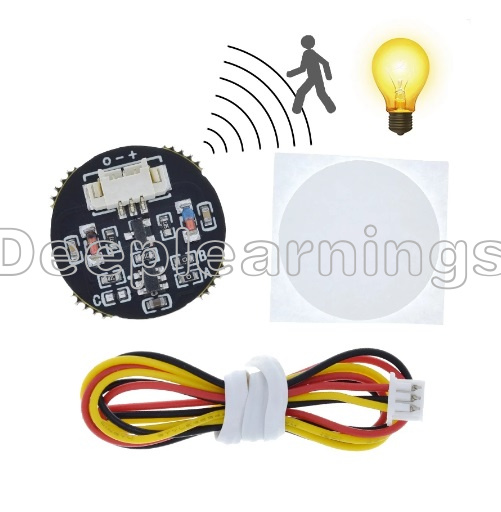

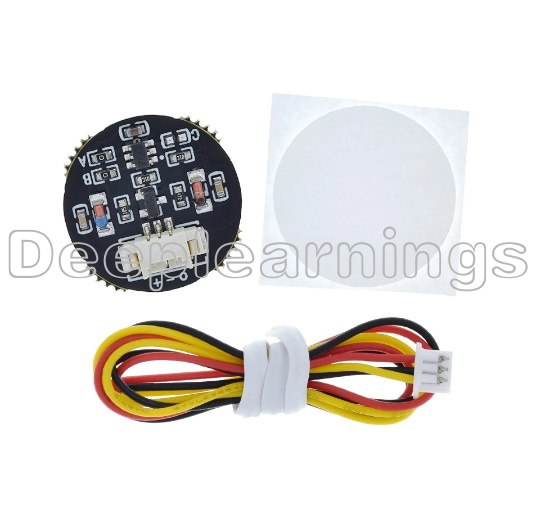

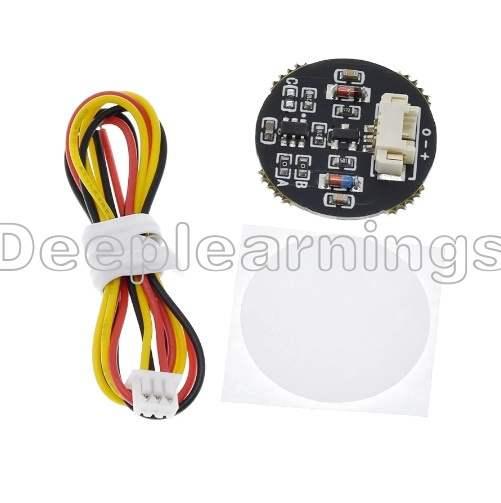

Package Included:
1pcs
